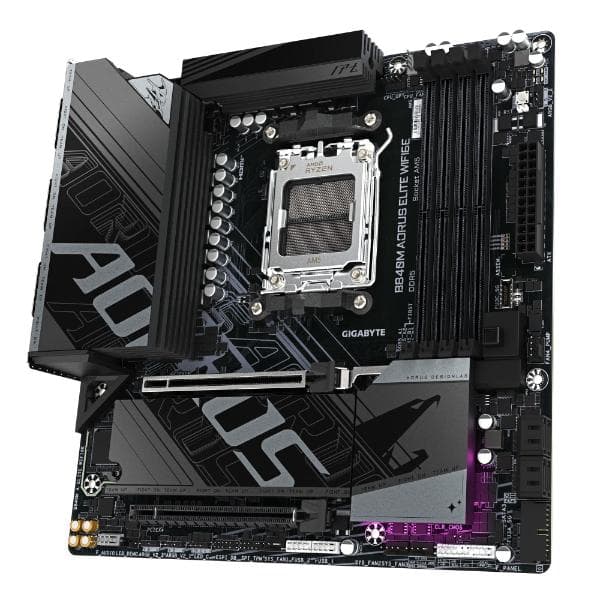

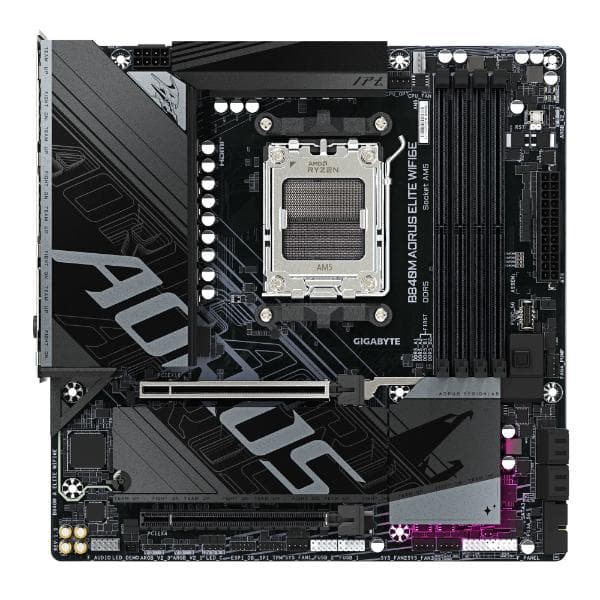

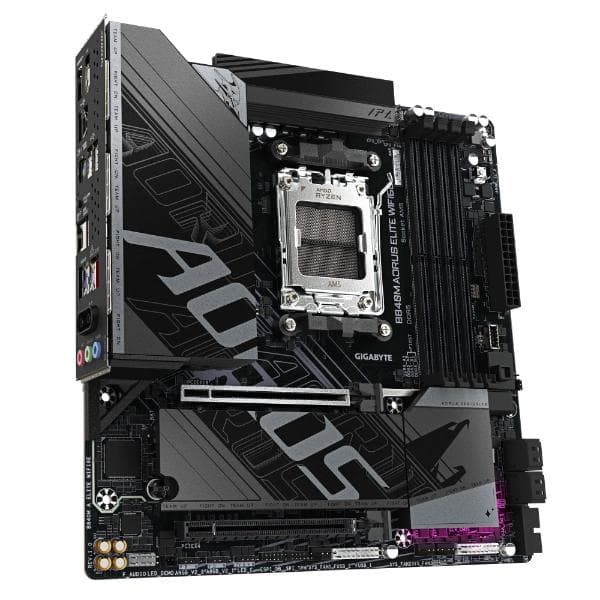

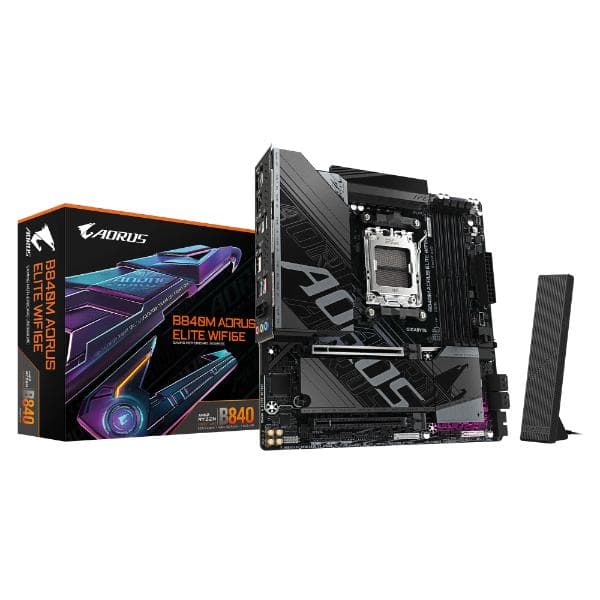

Gigabyte B840M Aorus Elite WiFi6E AM5 M-ATX AMD Motherboard
SKU: B840M A ELITE WIFI6E
users viewing this item right now
₹35499
₹15393
Save Extra
Availability
In Stock
- Wi-Fi 6E for Blazing Speeds: Access ultra-fast and reliable wireless networking for gaming, streaming, and multitasking.
- DDR5 Memory Support: Experience next-gen memory technology for unparalleled speed and multitasking performance.
- PCIe 5.0 Ready: Harness the power of the latest GPUs and SSDs for high-speed performance.
- Enhanced Thermal Design: Integrated heatsinks keep critical components cool during intense workloads.
Gigabyte B840M Aorus Elite WiFi6E AM5 M-ATX AMD Motherboard
Key Features
- X3D Turbo Mode : Unleash new era gaming performance
- DDR5 OC up to 8200MT/s
- AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital twin 10+2+2 phases VRM solution
- Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click : M.2 heatsinks with screwless design
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- Ultra-Fast Storage : 2*M.2 slots
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.
- Fast Networking : 2.5GbE LAN & Wi-Fi 6E with directional Ultra-high gain antenna
- Extended Connectivity : HDMI, Displayport
- PCIe UD Slot : PCIe x16 slots with 10X strength for graphics card & Better Heat dissipation effect
Infinite Memory Performance
Elite Gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
Future Connectivity
Enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.
Born from Ultra Durable™
Technology embodies our commitment to excellence, providing gamers with a platform that's not only powerful but also built for longevity and reliability. Elite series motherboards are engineered to endure and excel.
PCIe UD Slot
GIGABYTE's one-piece stainless-steel shielding design reinforces the PCIe Slots, providing the extra strength required to support heavy graphics cards.
1.7X
stronger shearing test
3.2X
stronger retention force test
Reduced Signal Degradation
with SMD Technology PCIe UD Slot
UD Power Connector
Our innovative UD Power Connector design enhances power conductivity and thermal dissipation.
Solid Pins
Delivers superior conductivity and signal transmission and reduces metal wear from repeated connections.
Key Features
| Category | Specification |
|---|---|
| CPU | AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors / AMD Ryzen™ 8000 Series Processors / AMD Ryzen™ 7000 Series Processors (Check GIGABYTE website for the latest CPU support list.) |
| Chipset | AMD B840 |
| Memory | Support for DDR5 8200(O.C) to 4800 MT/s memory modules. 4 x DDR5 DIMM sockets, up to 256 GB. Dual channel architecture. Supports non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules. Supports AMD EXPO™ and XMP memory modules. |
| Onboard Graphics | Integrated AMD Radeon™ Graphics with DisplayPort (3840x2160@144Hz) and HDMI (4096x2160@60Hz) ports. Supports HDR, DisplayPort 1.4, HDMI 2.1 version, and HDCP 2.3. |
| Audio | Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel audio. Configurable via audio software. |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication | Realtek® Wi-Fi 6E RTL8852CE, Wi-Fi a, b, g, n, ac, ax. 2.4/5/6 GHz. Bluetooth 5.3. Supports 11ax 160MHz wireless standard. |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16) - PCIe 4.0 x16 (AMD Ryzen™ 9000/7000), PCIe 4.0 x8 (Phoenix 1), PCIe 4.0 x4 (Phoenix 2). 1 x PCI Express x16 slot (PCIEX4) running PCIe 3.0 x4. |
| Storage Interface | 1 x M.2 connector (M2A_CPU) and 1 x M.2 connector (M2B_CPU) with PCIe 4.0 x4/x2 SSDs support for AMD Ryzen™ 9000/7000. 4 x SATA 6Gb/s connectors. RAID 0, 1, 5, 10 support. |
| USB | 1 x USB Type-C® (back panel, USB 3.2 Gen 1), 2 x USB 3.2 Gen 1 (back panel), 4 x USB 2.0/1.1 (back panel). Internal connectors: 1 x USB Type-C®, 1 x USB 3.2 Gen 2 Type-A, 2 x USB 3.2 Gen 1, 4 x USB 2.0/1.1 headers. |
| Internal I/O Connectors | 24-pin ATX main power, 8-pin ATX 12V, CPU fan header, system fan headers, 3 x RGB Gen2 headers, M.2, SATA connectors, USB headers, front panel, TPM header, reset jumper, CMOS jumper. |

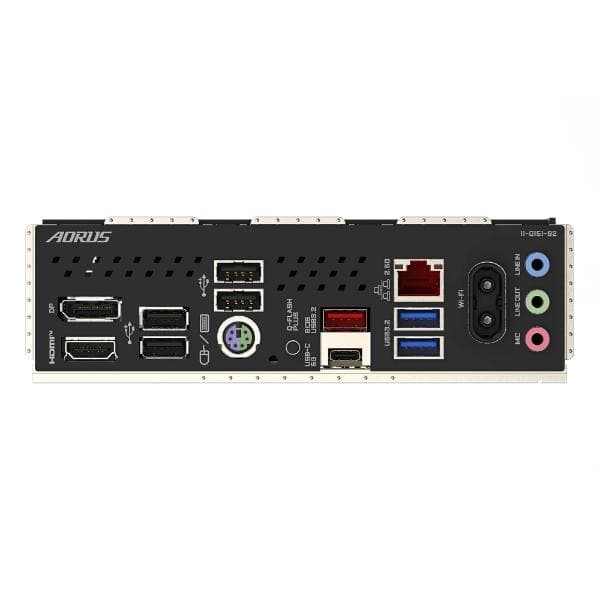

| Back Panel Connectors | 1 x DisplayPort, 1 x HDMI, 1 x PS/2 keyboard/mouse port, 1 x Q-Flash Plus button, 4 x USB 2.0/1.1, 2 x USB 3.2 Gen 1, 1 x USB 3.2 Gen 2 Type-A, 1 x USB Type-C®, 1 x RJ-45 port, 2 x antenna connectors, 3 x audio jacks. |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, temperature, fan speed, water cooling flow rate detection, fan fail warning, fan speed control. |
| BIOS | 256 Mbit flash, AMI UEFI BIOS, supports PnP, DMI, WfM, SM BIOS, ACPI. |
| Unique Features | GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup. |
| Bundled Software | Norton® Internet Security (OEM), LAN bandwidth management software. |
| Operating System | Windows 11 64-bit, Windows 10 64-bit support. |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
Brands
Gigabyte
Socket
AM5
Chipset
B840
Platform
AMD
Warranty
3 Years
Ean-Upc-Code
4719331866082
Memory-Series
DDR5
Motherboard-Size
mATX
