Asus Tuf Gaming X670e Plus Wifi Motherboard
- AMD AM5 socket: X670E PLUS Ready for AMD Ryzen™ 7000 Series desktop processors
- Enhanced power solution: 14+2 teamed power stages, eight-layer PCB, 8+8 ProCool sockets, alloy chokes and durable capacitors for stable power delivery
- Next-gen connectivity: PCIe® 5.0, USB 3.2 Gen2x2 Type-C®, front USB 3.2 Gen 2 Type-C, Thunderbolt™ 4 header support
- Made for online Gaming: Realtek 2.5 Gb Ethernet, WiFi 6E and TUF LANGuard
- Two-way AI Noise Cancelation: X670E PLUS Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
- Comprehensive cooling: X670E PLUS Enlarged VRM and PCH heatsinks, M.2 heatsinks, hybrid fan headers and Fan Xpert 4 utility in Armoury Crate
- Aura Sync RGB effects: X670E PLUS Stylish edge lighting design, addressable RGB headers and RGB strip header support.
- Delivery & Return
🚚 Shipping and Risk:
- Order Will Be Shipped Within 24-48 Working Hours After the Order is Processed.
- Shipping Partners : Delhivery, XpressBees, Gati, BlueDart, Ecom Express (Depending on Availability at Your Pincode), Computech DOES NOT Have any Control over Operations of Shipping Partners.
- Delivery dates are estimates Provided By Shipping Partners. Shipping Partners are solely responsible for any kind of Delays.
- Loss or damage occured during shipping is Computech Responsibility.
- You Must Leave a Remark During Delivery to Delivery Guy About Damaged Box or Package, and Make an Un-cut Unboxing Video of the Package.
- You must notify Computech of damaged or missing items from your order within 24-hours of receiving your package
♻️ Replacement and Refund Policy:
- We accept replacement if product is defective or wrong product shipped no return or refund will be entertained.
- For gaming chairs only part replacement is applicable if the product delivered is defective or damaged, no refunds will be there for orders of gaming chairs.
- If the seal of the product is opened and the product is not faulty then return/refund will not be applicable.
- Packaging material should be kept by the buyer until the replacement window is opened as this will help them to pack the product to its original form to avoid any damage during the transit.
- Product should be packed in a proper way as it was received by the buyer, do not apply tapes or glues directly on the product or on the product box, this may lead to cancellation of your replacement request.
- All the accessories which were delivered along with the product should be returned in the same way and along with the product.
- If the payment was made through our payment gateway, then it will be refunded in same account by which the payment was done, in case of BANK TRANSFER and COD orders refunds will be done only in buyers bank account. Refunds usually takes 7-10 working days to reflect in your account.
₹40,000.00 ₹32,249.00

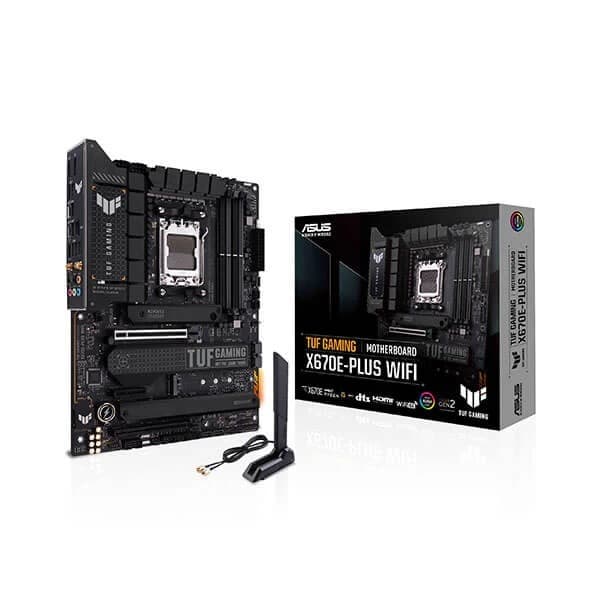

TUF GAMING X670E-PLUS WIFI
ASUS TUF GAMING X670E-PLUS WIFI takes all the essential elements of the latest AMD processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming.
TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.
- AMD AM5 socket: X670E PLUS Ready for AMD Ryzen™ 7000 Series desktop processors
- Enhanced power solution: 14+2 teamed power stages, eight-layer PCB, 8+8 ProCool sockets, alloy chokes and durable capacitors for stable power delivery
- X670E PLUS Next-gen connectivity: PCIe® 5.0, USB 3.2 Gen2x2 Type-C®, front USB 3.2 Gen 2 Type-C, Thunderbolt™ 4 header support
- Made for online Gaming: Realtek 2.5 Gb Ethernet, WiFi 6E and TUF LANGuard
- Two-way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences

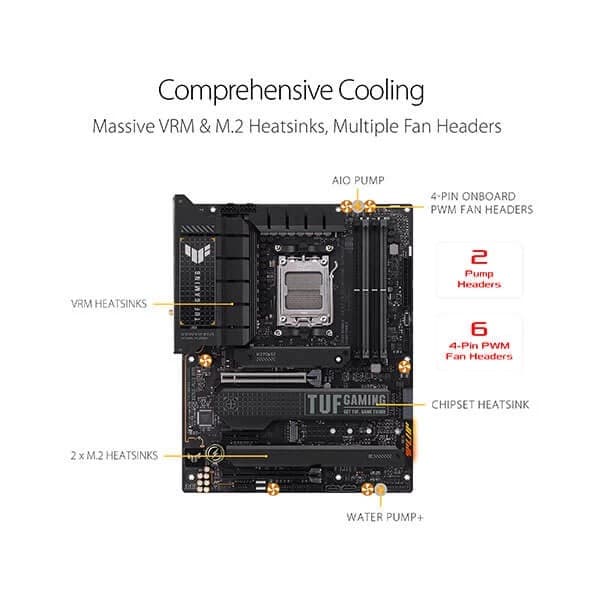

- Comprehensive cooling: Enlarged VRM and PCH heatsinks, M.2 heatsinks, hybrid fan headers and Fan Xpert 4 utility in Armoury Crate
- Aura Sync RGB effects: Stylish edge lighting design, addressable RGB headers and RGB strip header support.

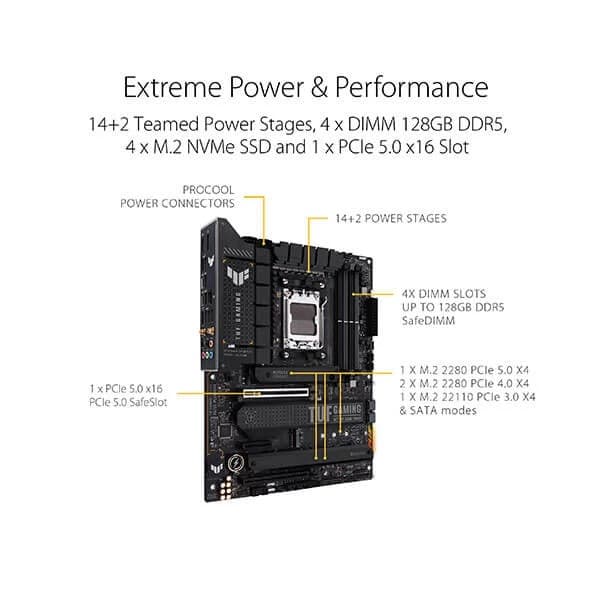

- Teamed Power Stages14+2 power stages are each rated to handle 70 amperes, combining high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible AMD processors.
- X670E PLUS Eight-Layer PCB DesignThe multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.
- 8+8 PIN ProCool Power ConnectorsCompared to traditional power inputs, ASUS ProCool connectors are built to tight specifications to ensure full contact with PSU power cables. The resulting lower impedance helps prevent hotspots and connector failure.
- X670E PLUS TUF ComponentsCertified military-grade TUF chokes deliver rock-solid power to the CPU, improving system stability.
- Digi+ VRMThe integrated Digi+ voltage-regulator module (VRM) is one of the finest in the industry, optimized for ultra-smooth and ultra-clean power delivery to the CPU at all times.
- Up to 3X Enlarged VRM HeatsinkThe extensive surface area of this heatsink covers the VRMs and chokes to improve heat dissipation.
- Enlarged PCH HeatsinkAn expanded surface area for the chipset cooler maximizes performance and heat dissipation.
- Optimized M.2 Heatsink DesignThree out of four M.2 slots have dedicated heatsinks, with one 40% enlarged M.2 heatsink for PCIe 5.0 support at optimal operating temperatures to ensure consistent performance and reliability.
X670E PLUS AI Cooling II
X670E PLUS Balance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then it monitors CPU temperatures to dynamically adjust fans to optimal speeds.
DRAM Overclocking Performance
Comprehensive memory tuning options are the cornerstone of TUF GAMING motherboards. With the TUF GAMING X670E motherboard, you can extract all of the potential out of your DDR5 modules, whether they’re from an extreme-speed kit or an entry-level set that would otherwise be locked
Gen 5 Support
The TUF GAMING X670E motherboard also features one PCIe 5.0 M.2 slot to enjoy the fastest data transfers of up to 128 Gbps*, and all M.2 slots support for NVMe and SATA RAID configurations to take advantage of the latest available speeds.

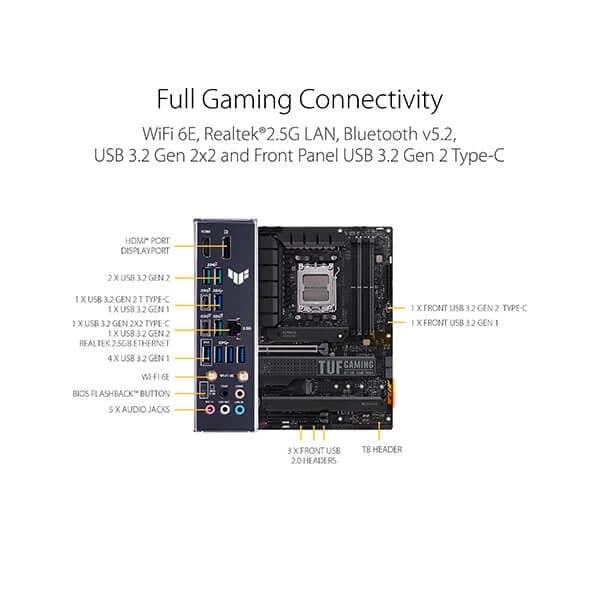

Connectivity
The TUF-GAMING X670E-PLUS WIFI reaches new heights of performance potential with the latest version of PCI Express, while an arsenal of USB ports includes three Type-C® connections, and Thunderbolt 4 expands compatibility and bandwidth even further.
- USB 3.2 Gen 2×2 Type-C®Extensive USB support ensures connections to a wide array of external devices. This TUF GAMING motherboard includes a USB 3.2 Gen 2×2 Type-C port on the rear I/O panel that delivers transfer speeds of up to 20 Gbps.
- PCIe 5.0The latest AMD processors bring PCIe 5.0 support to the market. PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards, and backward compatibility with previous versions of the PCIe bus.
- Front USB3.2 Gen 2 Type-C®A full complement of USB ports support high-end rigs loaded with peripherals, including a front-panel USB 3.2 Gen 2 Type-C® connector that provides data transfer speeds of up to 10 Gbps.
- USB4® SupportTUF GAMING X670E series features USB4® support via an on-board header. With an ASUS add-on card*, TUF GAMING motherboards can enable bi-directional speeds of up to 40 Gbps on a single cable, while providing power to fast-charge device. Additionally, this card has a daisy-chain function for multi-screen connection and supports up to two displays with 4K resolution.
WiFi 6E
Onboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band. It delivers ultrafast wireless networking speeds and improved capacity, as well as better performance in dense wireless environments.*
*WiFi 6E availability and features are dependent on regulatory limitations and co-existence with 5 GHz WiFi.
Two-Way AI Noise Cancelation
This powerful ASUS-exclusive utility leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio while preserving voices. Distracting keyboard clatter, mouse clicks and other ambient noises are removed so you can hear and be heard with perfect clarity while gaming or during calls.
*An audio splitter (3.5 mm audio jack Y-cable) is necessary when using a 3.5 mm headset.
-
500M
Deep-learning database
-
Audio
Input/output
-
High
Fidelity
-
Minimal
Performance Impact
Outshine the Competition

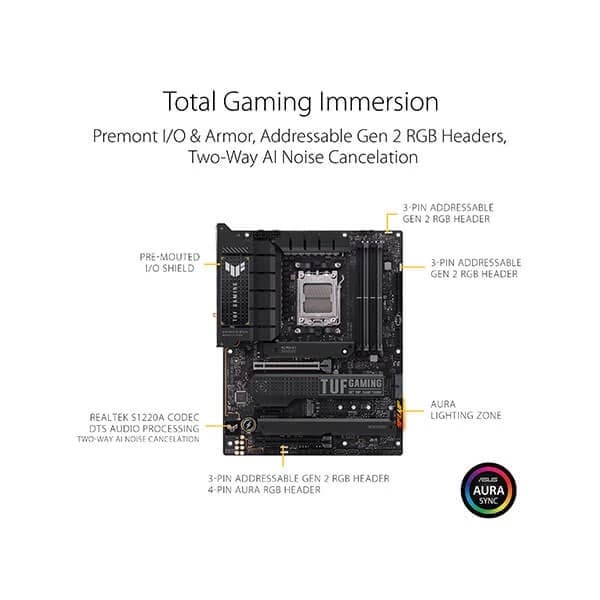

A well-tuned system deserves a matching aesthetic. TUF X670E PLUS series features edge lighting to enhance its rugged look, and ASUS Aura offers full RGB control with presets for built-in LEDs and third-party strips. It can all sync with an ever-growing portfolio of Aura-compatible hardware
M.2 Q-Latch
X670E PLUS innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the M.2 SSD, neatly eliminating the need for screws.
CPU | AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors |
Chipset | AMD X670 |
Memory | 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO) OptiMem II Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration. Non-ECC, Un-buffered DDR5 Memroy supports On-Die ECC function. |
Graphics | 1 x DisplayPort 1 x HDMI portGraphics specifications may vary between CPU types. Supports max. 8K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. |
Expansion Slots | AMD Ryzen™ 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot AMD X670 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x4 slots |
Storage | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD X670 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)** M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10. M.2_2 slot shares bandwidth with SATA6G_1&2. When M.2_2 runs at PCIe x4 mode, SATA6G_1&2 will be disabled. |
Ethernet | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
Wireless & Bluetooth | Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band Bluetooth v5.2WiFi 6E 6GHz regulatory may vary between countries. |
USB | Rear USB (Total 10 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®) 5 x USB 3.2 Gen 1 ports (5 x Type-A) Front USB (Total 9 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports |
Audio | "Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback Audio Features - Audio shielding - Premium audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. |
Back Panel I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x USB Type-C®) 5 x USB 3.2 Gen 1 ports (5 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack™ button |
Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header(s) Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt™ header |
Special Features | TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage Protection - Safeslot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS header - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 headers |
Software Features | ASUS Exclusive Software Armoury Crate - AURA Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - Easy Optimization - TPU - DIGI+ VRM - Turbo app - PC Cleaner TUF GAMING CPU-Z DTS Audio Processing MyAsus Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey |
BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
Manageability | WOL by PME, PXE |

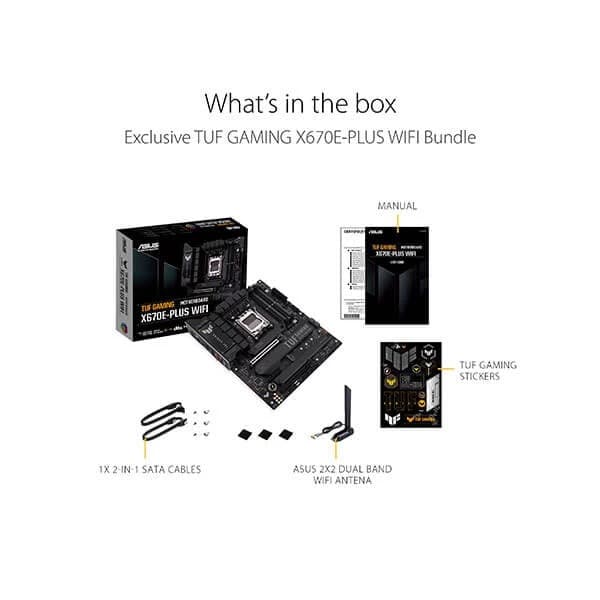

Accessories | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antenna 2 x Rubber packages for M.2 2 x Screw packages for M.2 SSD Documentation 1 x TUF certification card 1 x User guide |
Operating System | Windows® 11 64-bit, Windows® 10 64-bit |
Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
Warranty | 3 Years |
Note | *** Features, Price, Specifications are subject to change without notice. |
