MSI Z790 Gaming Plus WIFI Intel LGA 1700 ATX Motherboard Supports Intel 12th , 13th & 14th Gen Processors

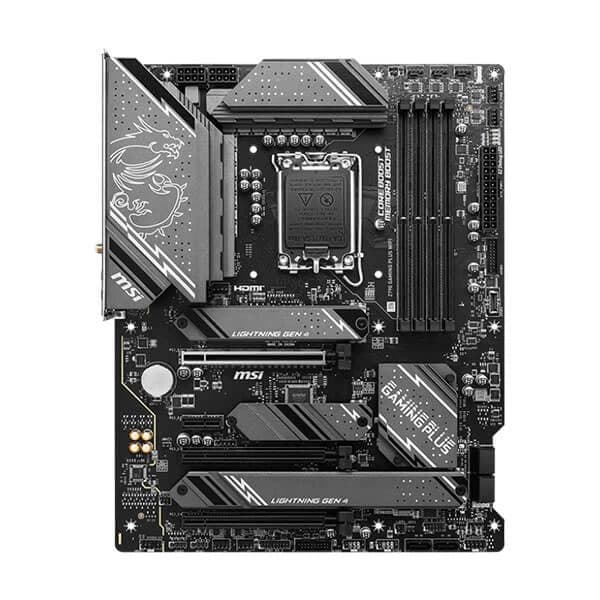

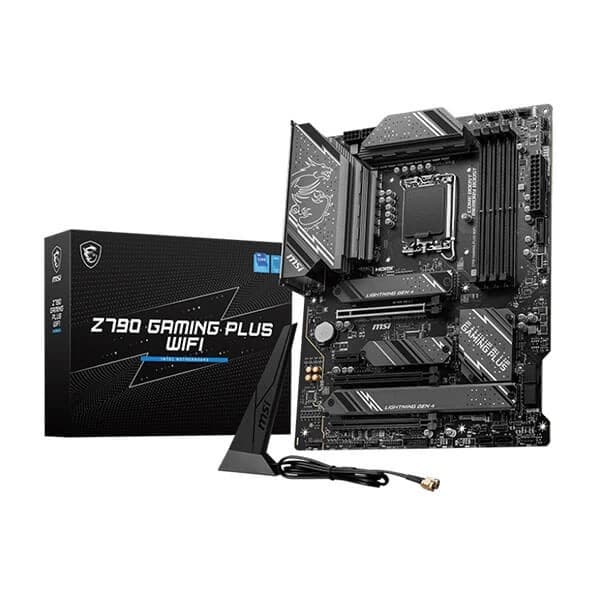

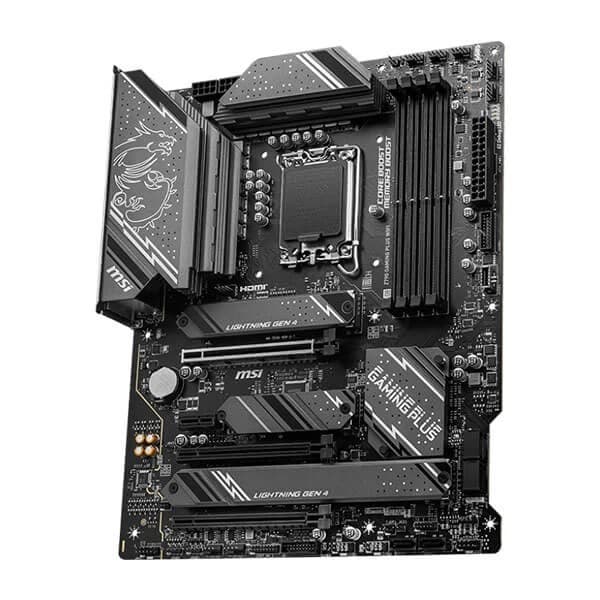

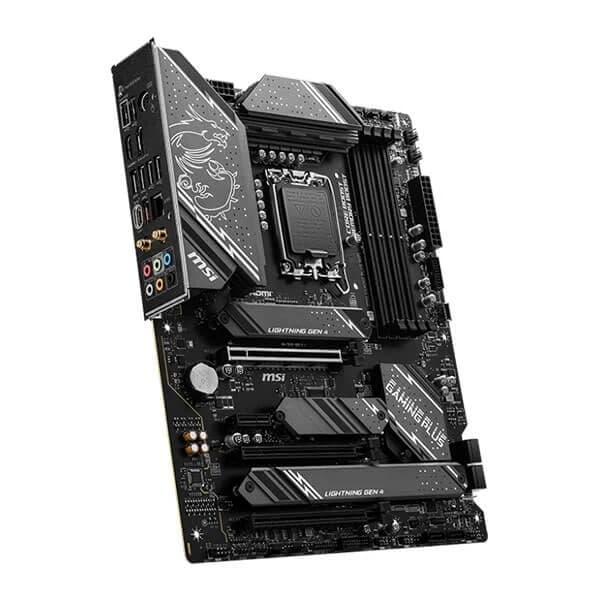

MSI Z790 Gaming Plus WIFI Motherboard

MSI Z790 Gaming Plus WIFI Motherboard supports Intel Core 14th, 13th and 12th Gen Processors, for LGA 1700 socket. It supports DDR5 Memory, up to 7200+(OC) MHz. Features:

• Supports Intel® Core™ 14th, 13th and 12th Gen Processors, Intel® Pentium® Gold, Celeron® Processor and Intel Processor 300(T) for LGA 1700 socket
• Supports DDR5 Memory, up to 7200+(OC) MHz
• Enhanced Power Design: 14+1+1 Duet Rail Power System with DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost
• Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience
• Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2x2 20G
• High Quality PCB: 6-layer PCB made by 2oz thickened copper
• Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

Extended Heatsink

Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

M.2 Shield Frozr

Strengthened M.2 thermal solution helps M.2 SSD safe and ensures incredible performance.

Heavy Plated VRM Heatsink

The VRM heatsink covers the upper MOS and helps dissipate the heat.

7W/mK Thermal Pad & Additional Choke Pad

High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.

Chipset Heatsink

The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.

LIGHTNING GEN 5 PCI-E

Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.

SMT PCIE 5.0 SLOT

The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.

REINFORCED, HEAVY SOLDERED CONNECTIONS

Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
