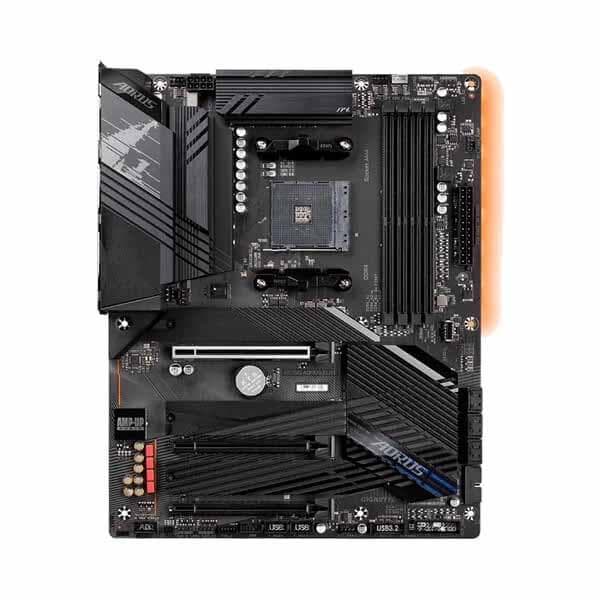

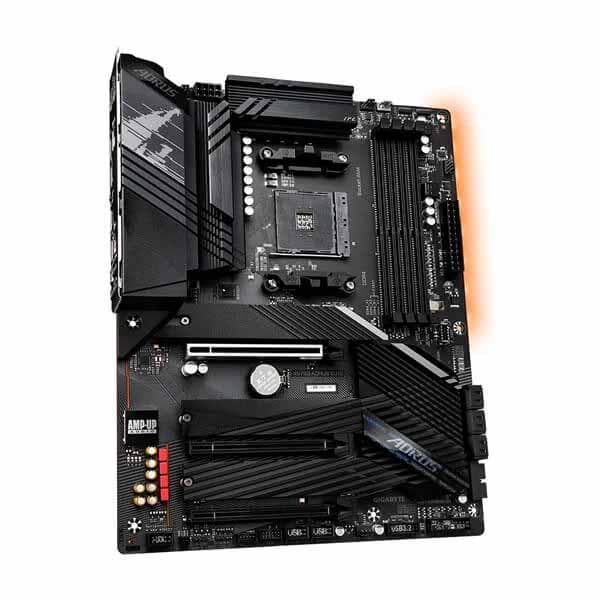

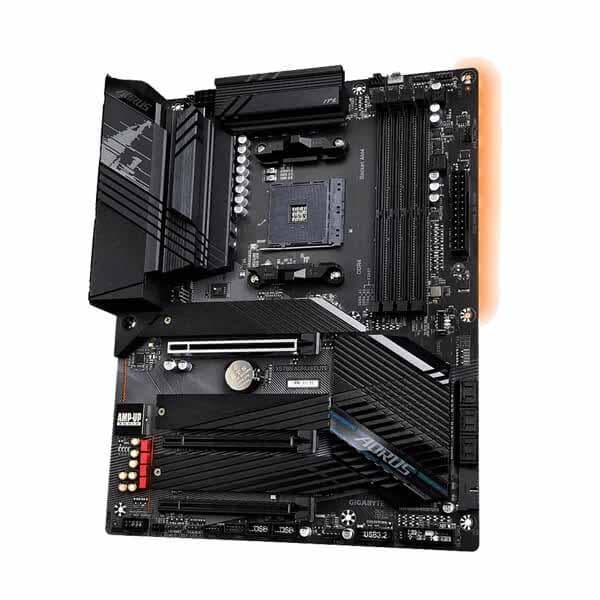

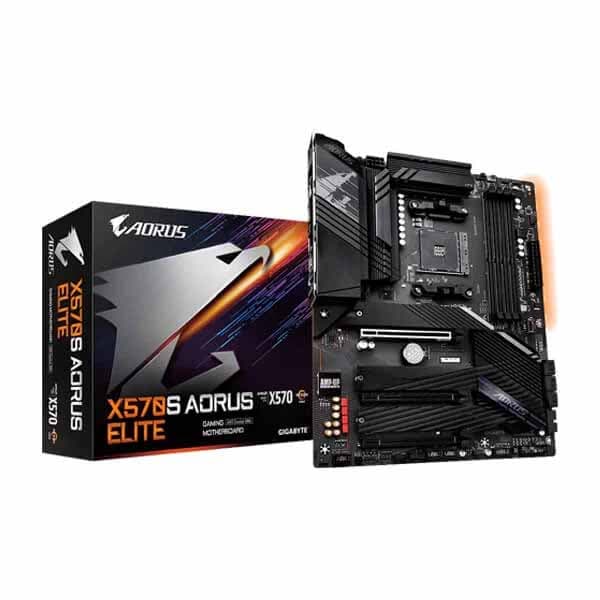

Gigabyte X570S Aorus Elite Motherboard

Gigabyte X570S Aorus Elite Motherboard

Features:

• Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ Ryzen™ 3000 Series/ Ryzen™ 3000 G-Series/ Ryzen™ 2000 Series/ Ryzen™ 2000 G-Series Processors
• Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
• Twin 12+2 Phases Digital VRM Solution with 60A DrMOS
• Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
• Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guards
• Fast 2.5GbE LAN with Bandwidth Management
• SuperSpeed USB 3.2 Gen 2x2 TYPE-C^® delivers up to 20Gb/s transfer speeds
• AMP-UP Audio with ALC1220-VB and WIMA Audio Capacitors
• Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
• Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

GIGABYTE X570S Aorus Elite motherboards feature upgraded power solution, passive and silent thermal design, and PCIe 4.0 components to keep your gaming system up to fast and powerful, even under heavy workloads.

UNPARALLELED PERFORMANCE

To unleash the full potential of the latest AMD Ryzen™ 5000 series processors, the motherboard requires the best CPU power, memory and IO design. With the best quality components and GIGABYTE R&D design capability, X570S Aorus Elite is a true beast among motherboards.

ADVANCED THERMAL SOLUTION

X570S Aorus Elite uses high performance Full Covered thermal design with high coverage MOSFET Heatsinks and thick thermal pad, providing ultimate MOSFET cooling performance for enthusiasts, overclockers and gamers.

GIGABYTE Ultra-Efficient M.2 Thermal Guard

With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

Smart Fan 6

Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.

• High Current Support

  Each fan headers support PWM and DC fan and Water cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection

• Precision Control

  Up to 6 temperature/fan speed control points for precise fan curve

• Dual Curve Mode

  Slope/Stair dual mode for different user scenario

• Fan Stop

  Fan can stop completely below users' specified temperature point

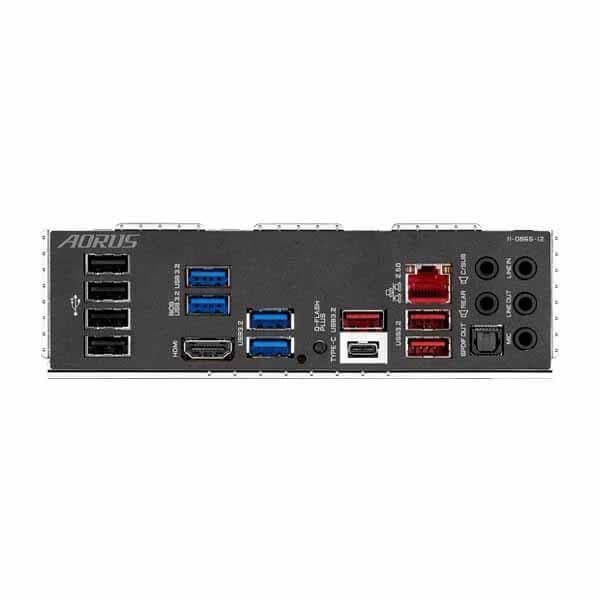

NEXT GENERATION CONNECTIVITY

A high-end product needs to be future-proof so your system stays up-to-date with the latest technology. X570S Aorus Elite provides all next generation network, storage, and connectivity to keep you up to speed.

DEFINITIVE AESTHETICS

X570S Aorus Elite features RGB FUSION 2.0 to offer lighting effected options and customized settings with outstanding aesthetics, and able to let enthusiasts building a stylish and unique gaming PC.

Multi-Zone Light Show Design

Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.
