No reviews yet. Be the first to review!
Gigabyte
X870
E-ATX
AM5
3 Years
Black

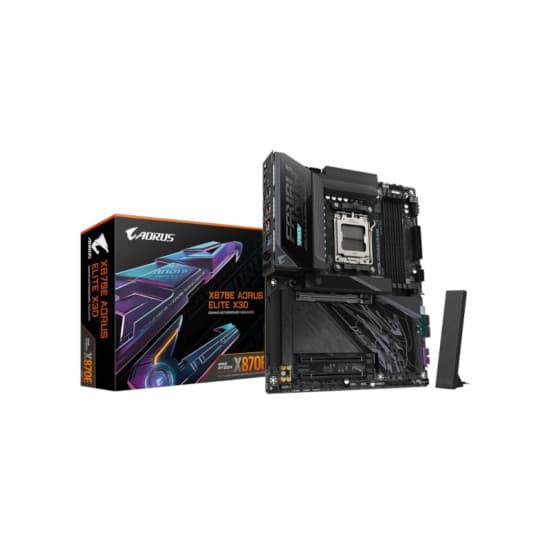

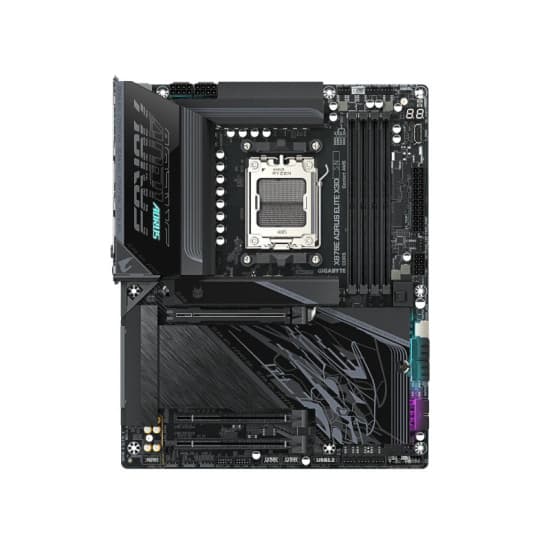

X870E AORUS ELITE X3D
1 kg
N/A
| Motherboard | |
|---|---|
| Platform | AMD |
| Socket | AM5 |
| Cpu Type | Ryzen 9000,Ryzen 8000,Ryzen 7000 |
| Chipset | X870E |
| Memory Speed | up to 9000 |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE\'s website for more information.) |
| Graphics Port | 2 x USB4 USB Type-C,1 x HDMI |
| Wireless Networking | WiFi 7,Bluetooth 5.4 |
| Back Panel I/O Ports | 1 x HDMI port 1 x reset button 1 x power button 1 x Clear CMOS button 1 x Q-Flash Plus button 5 x USB 3.2 Gen 2 Type-A ports (red) 1 x USB Type-C® port, with USB 3.2 Gen 2 support 2 x USB4® USB Type-C® ports (DisplayPort (Note)) 1 x RJ-45 port 3 x USB 3.2 Gen 1 ports 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector |
| Internal I/O Connector | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x PCIe power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x HDMI port 1 x reset jumper 1 x Clear CMOS jumper 2 x temperature sensor headers 1 x noise detection header |
| Form Factor | ATX |
| Warranty | 3 Years |
| Note | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only. |
