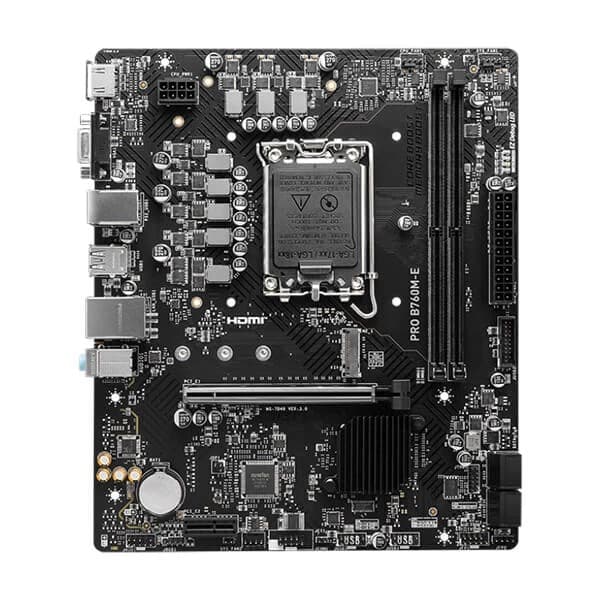

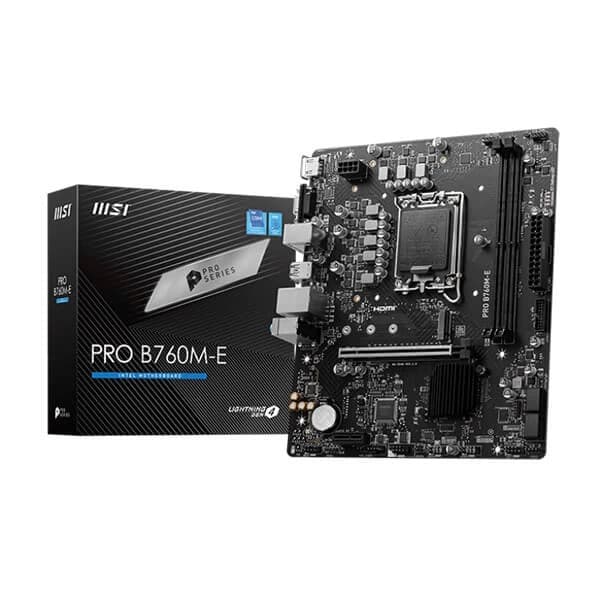

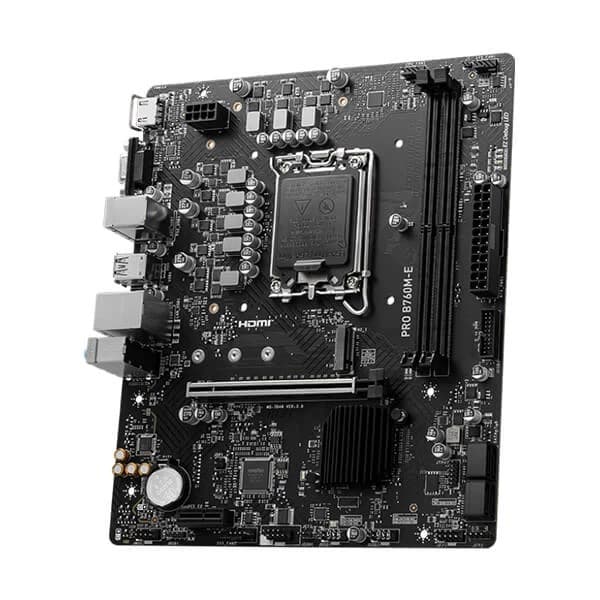

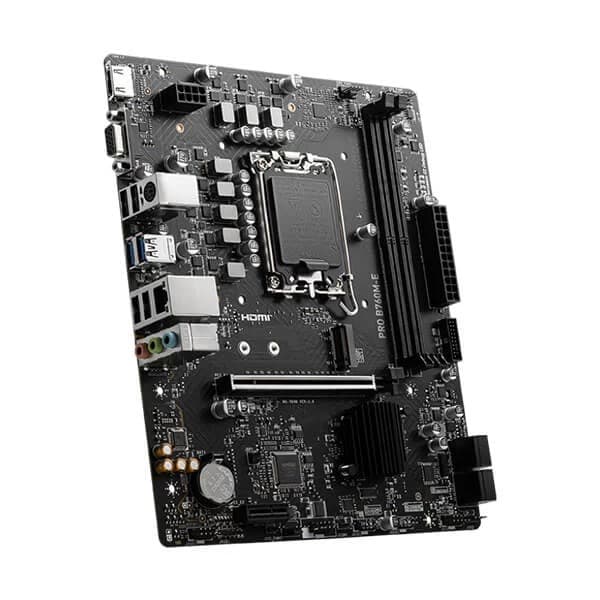

MSI Pro B760M-E DDR5 LGA 1700 mATX Motherboard Supports Intel 12th , 13th & 14th Gen Processors

EMI & Split Payment Options

Motherboard MSI Intel Motherboard MSI Motherboard

MSI Pro B760M-E DDR5 LGA 1700 mATX Motherboard Supports Intel 12th , 13th & 14th Gen Processors

Name: MSI Pro B760M-E DDR5 LGA 1700 mATX Motherboard Supports Intel 12th , 13th & 14th Gen Processors
Brand: MSI
SKU: B760M-E
Price: 8844.00 INR
Availability: InStock

SKU: B760M-E

MSI

users viewing this item right now

₹16999

₹8844 Save Extra

Availability

In Stock

12TH & 13TH GEN CORE - The PRO B760M-E is a compact Micro-ATX motherboard outfitted with the latest Intel B760 chipset (LGA 1700, 12th & 13th Gen Core); The VRM features MSI Core Boost technology for improved stability & performance
PASSIVE & AI COOLING - A chipset heatsink provides passive cooling; Frozr AI cooling auto

MSI PRO B760M-E Motherboard, Micro-ATX - Supports Intel 12th & 13th Gen Core Processors, LGA 1700 - DDR5 Memory Boost 5600MHz, PCIe 4.0 x16 Slot, M.2 Gen4 Slot

MSI PRO B760M-E is designed for professional as well as multi-tasking purpose with DDR5 memory version. Users who care about productivity and efficiency can use this motherboard for future use. Supports DDR5 Memory, Dual Channel DDR5 6400+MHz (OC).

Features:

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
Supports DDR5 Memory, Dual Channel DDR5 6400+MHz (OC)
Core Boost : With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2
AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength

Key Features

Model	PRO B760M-E
Chipset	INTEL B760
CPU SUPPORT	Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
Memory	2x DDR5, Maximum Memory Capacity 96GB Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 6400+ MHz • 1DPC 2R Max speed up to 5600+ MHz Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Onboard Graphics	1x HDMI™ Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz* 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT	1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage	1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G * SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front)
LAN	Realtek® RTL8111H Gigabit LAN
Audio	Realtek® ALC897 Codec 7.1-Channel High Definition Audio
Internal I/O	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports
LED FEATURE	4x EZ Debug LED

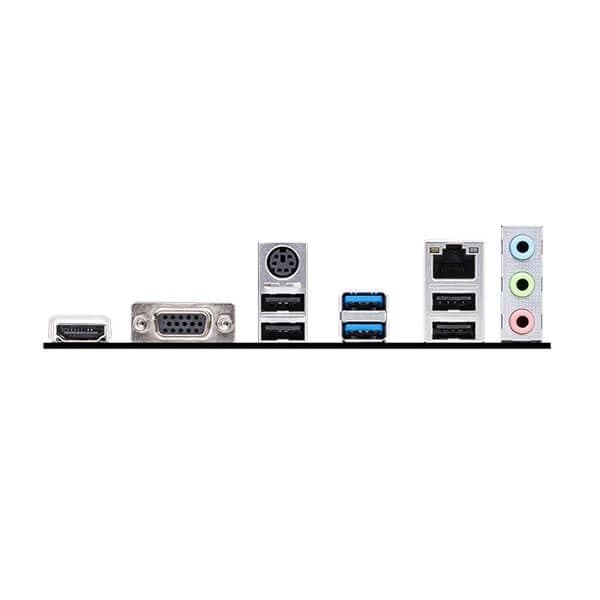

BACK PANEL PORTS	HDMI™ VGA Keyboard / Mouse USB 3.2 Gen 1 5Gbps (Type-A) LAN port Audio Connectors USB 2.0 USB 2.0
OPERATING SYSTEM	Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Dimension (W × L)	mATX 200mmx236.16mm
Warranty	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.
