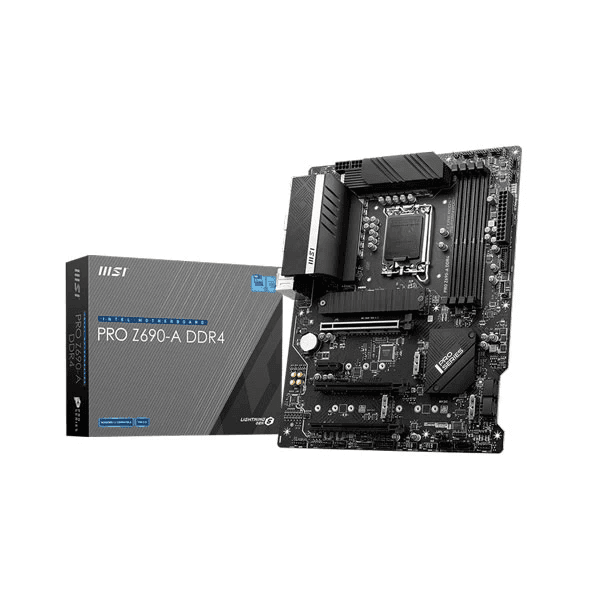

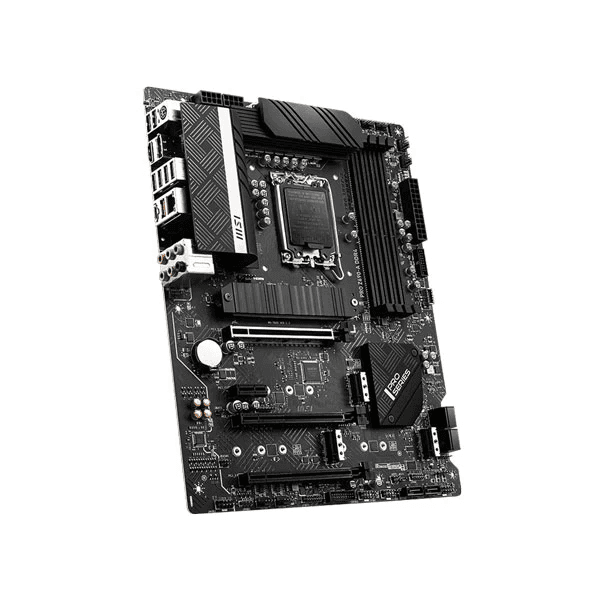

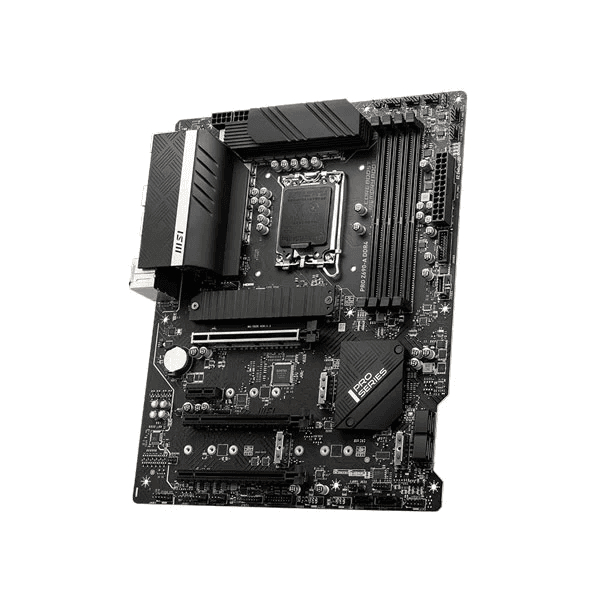

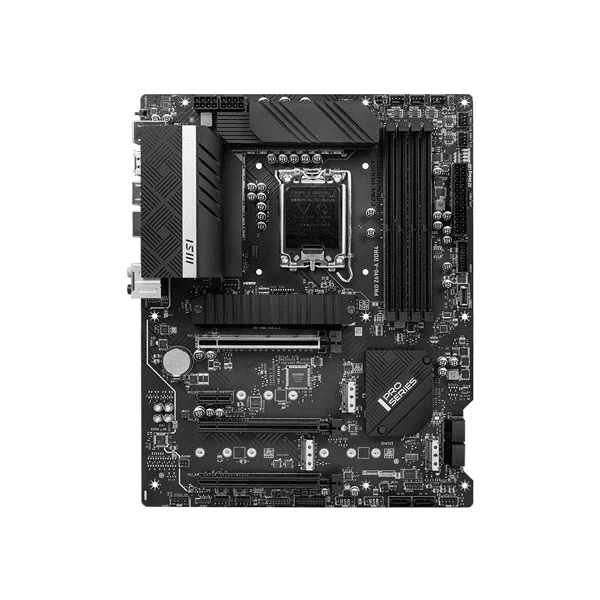

MSI PRO Z690-A DDR4 Pro Series Intel Motherboard
- Z690-A DDR4 Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR4 Memory, up to 5200+(OC) MHz
- Lightning Fast Experience: PCIe 5.0 slots, Lightning Gen4 x4 M.2, USB 3.2 Gen 2×2
- Premium Thermal Solution: Extended Heatsink Design, MOSFET thermal pads rated for 7W/mk and M.2 Shield Frozr are built for high performance system and non-stop works
- 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
₹18,199.00
Out of stock
Email when stock available
MSI PRO Z690-A DDR4 Pro Series Intel Motherboard
Features
PRO Z690-A DDR4
- Msi Z690-A DDR4 Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Z690-A DDR4 Supports DDR4 Memory, up to 5200+(OC) MHz
- Lightning Fast Experience: PCIe 5.0 slots, Lightning Gen4 x4 M.2, USB 3.2 Gen 2×2
- Premium Thermal Solution: Extended Heatsink Design, MOSFET thermal pads rated for 7W/mk and M.2 Shield Frozr are built for high performance system and non-stop works
- 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
- Audio Boost: Reward your ears with studio grade sound quality
- High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
- Multi-GPU: With Steel armor PCI-E slots. Supports AMD Crossfire™
MSI Business & Productivity
MSI Business & Productivity specializes in home & commercial office computing hardware with a design emphasis on productivity and user comfort.
For business professionals searching for elegant, world class solutions engineered with cutting edge components, premium reliability and refined aesthetics, MSI Business & Productivity offers a broad array of innovative products to ensure a competitive working environment.
PRO Z690-A DDR4
Business Elegance
For professionals looking for efficient 12th Gen Intel Core performance with high-bandwidth PCIe 5.0 x16 graphics card architecture, improved DDR4 memory, and a vast array of M.2 Gen4 storage options, the MSI PRO Z690-A DDR4 epitomizes business elegance.
- Supports Intel Core 12th Gen Processors (LGA 1700)
- 4 x DDR4 DIMMs, Memory Boost (5200MHz OC)
- 14+1+1 Duet Rail Power Design (55A) with DrMOS
- 4 x M.2 Slots (3 x Gen4, 1 x Gen3) with Shield Frozr (M2_1)
- 1 x PCI-e 5.0 x16 (128GB/s), 2 x PCI-e 3.0 x16 Graphic Card Slots
- Intel I225-V 2.5G LAN
- USB 3.2 Gen 2×2 Type-C (20Gbps)
Z690 Chipset, 14+1+1 Duet Rail VRM, Smart Cooling, DDR4 Memory Boost
|
|
|
|
|
|---|---|---|---|
Supports Intel Core 12th Gen ProcessorsThe PRO Z690-A DDR4 motherboard supports 12th Gen Intel Core processors.
|
14+1+1 Duet Rail VRM (55A) with DrMOSThe VRM design features MSI exclusive Core Boost Technology powered by 2 x 8-pin CPU power connectors: 1. 14 Duet Rail Power System (55A) 2. 1 Phase AUX Power 3. 1 Phase GT Power 4. Digital PWM IC Includes load-line calibration & overvoltage protection. |
Smart CoolingVRM Cooling: Features an extended heatsink for improved thermal dissipation. SSD Cooling: M.2 Shield Frozr prevents thermal throttling. Frozr AI Cooling: Automatically adjusts system cooling based on CPU & GPU temperatures. A 6-layer server-grade PCB with 2oz of thickened copper improves performance & system stability. |
4 x DDR4 Dual Channel (5200 MHz Overclocked*)Memory Boost: A fully-isolated circuit delivers pure DDR4 data signals for optimal gaming and overclocking performance. XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for improved memory speed and stability. *1DPC 1R Max. overclocking frequency 5200 MHz, supports Intel XMP. |
PCI-e 5.0 x16 Slot, Cutting-Edge Storage Performance, 2.5G LAN Connectivity
|
|
|
|
|
|---|---|---|---|
Fortified PCI-e 5.0 x16MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points* to support the weight of heavy graphics cards and shields the point of contact from electromagnetic interference:
*All-new MSI Surface Mount Technology (SMT) solder welding improves signal clarity. |
Gen4 & Gen3 M.2 ConnectorsThe PRO Z690-A DDR4 motherboard features MSI’s latest M.2 slots (Intel Optane supported):
*M.2 specifications may vary depending on the CPU installed. |
M.2 Shield FrozrEven the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures. M.2 Shield Frozr is MSI’s most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance. |
2.5G LAN2.5G LAN: An Intel I225-V 2.5Gbps LAN controller delivers a premium network experience. USB 3.2 Gen 2×2 Type-C: Enables ultra-fast 20Gbps data transfer rates between devices. HD Audio: 7.1-Channel High Definition Audio with Audio Boost. |
| Processor | Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors1 Processor socket LGA1700 |
| Chipset | Intel® Z690 Chipset |
| Memory |
|
| Expansion Slot |
|
| Onboard Graphics |
|
| Multi-GPU | Supports AMD® CrossFire™ Technology |
| Storage |
|
| RAID |
|
| USB |
|
| Audio | Realtek® ALC897 Codec
|
| LAN | 1x Intel® I225-V 2.5Gbps LAN |
| Internal connectors |
|
| LED Feature |
|

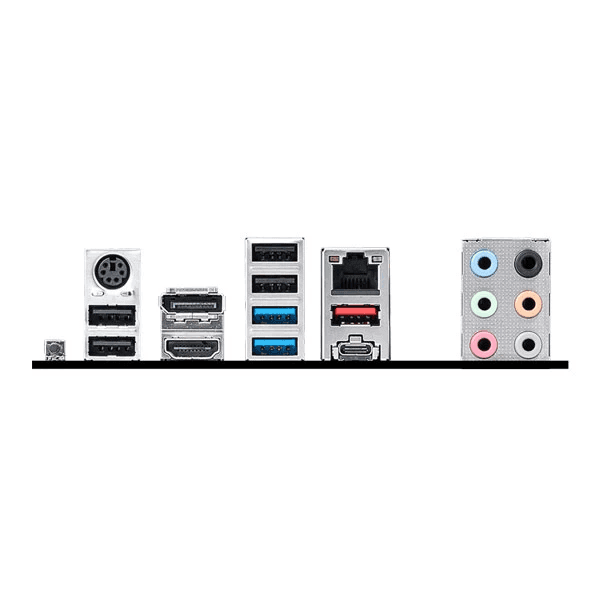

| Back panel ports |
|
| Dimensions |
|
| Mounting | 9 mounting holes |
| Operating System | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
