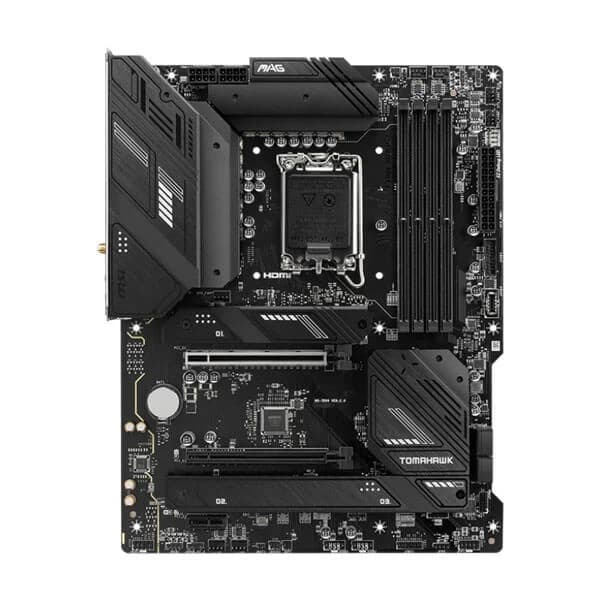

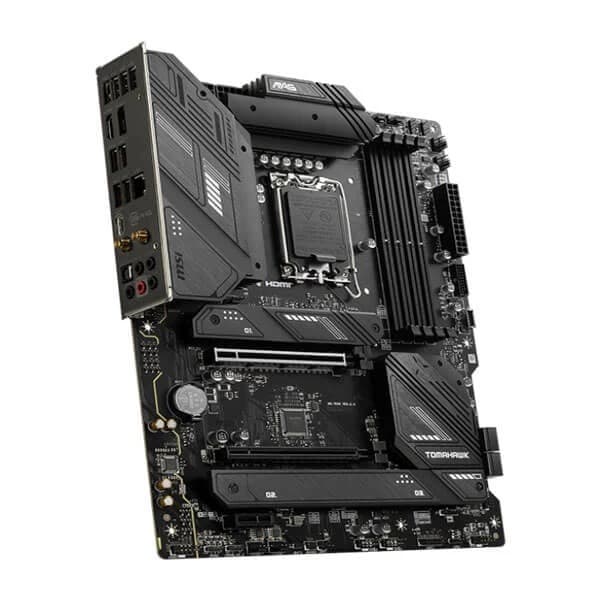

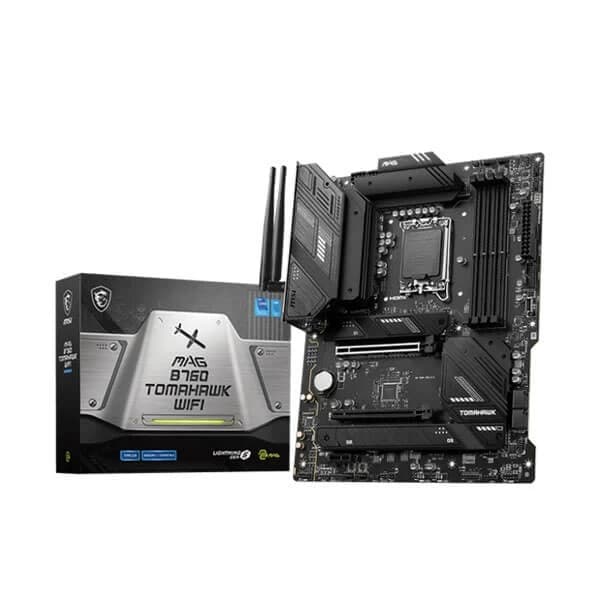

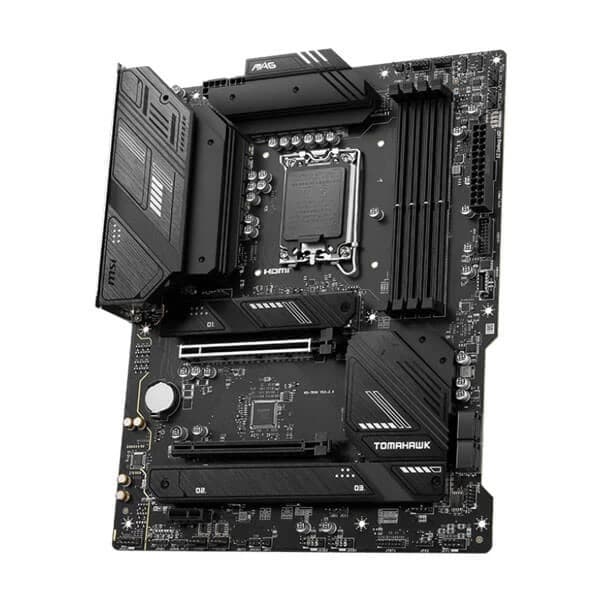

MSI MAG B760 Tomahawk WIFI Intel Motherboard Supports Intel 12th , 13th & 14th Gen Processors
- Supports 12th/ 13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR5 Memory, up to 7000+(OC) MHz
- Enhanced Power Design: 12+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2
Original price was: ₹40,999.00.₹22,389.00Current price is: ₹22,389.00.
MSI MAG B760 Tomahawk WIFI Motherboard
Feature
- MSI MAG B760 Supports 12th/ 13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- MAG B760 Supports DDR5 Memory, up to 7000+(OC) MHz
- Enhanced Power Design: 12+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
- High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
MSI: For Gamers & Creators
MSI is one of the most trusted names in gaming and esports with countless hours and significant resources invested into premier esports leagues and tier-1 gaming teams. By supporting and working with the best of the best, MSI is able to integrate competitive gaming knowledge and aspirations with technological innovation to create new products that shatter today’s performance limits.
MAG B760 TOMAHAWK WIFI
Unite as One
The MAG B760 TOMAHAWK WIFI is a gaming oriented ATX motherboard constructed around the latest Intel B760 chipset that balances value with premium hardware.
- Supports Intel Core 12th & 13th Gen Processors (LGA 1700)
- 4 x DDR5 DIMMs with Memory Boost: Dual Channel (128GB Max. / 7000MHz OC)
- 1 x PCIe 5.0 x16, 1 x PCIe 3.0 x16 slot
- Lightning Gen4 M.2 & Shield Frozr
- 7.1 HD Audio with Audio Boost
- Realtek 2.5G LAN, Intel Wi-Fi 6E & Bluetooth 5.3
B760 Chipset, 12 Duet Rail Power System, Smart Cooling, DDR5 Memory Boost
|
|
|
|
|
|---|---|---|---|
Supports Intel Core 12th & 13th Gen ProcessorsThe MAG B760 TOMAHAWK WIFI motherboard supports 12th & 13th Gen Intel Core, Pentium Gold, and Celeron processors.
|
12+1 Duet Rail Power System with 75A DrMOSWith its dual 8 pin power connectors and exclusive Core Boost technology, the MAG B760 TOMAHAWK WIFI is able to sustain heavy CPU power loads to support system-demanding game settings:
|
Integrated Cooling FeaturesVRM Cooling: Features an extended heatsink, 7W/mK thermal pads and additional choke thermal pads for improved thermal dissipation. PCB Cooling: Premium 6-layer server-grade printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability. SSD Cooling: M.2 Shield Frozr prevents thermal throttling. System Cooling: Connect and synchronize cooling with strategically placed pin-headers – including a dedicated pump-fan header. |
4 x DDR5 Dual Channel (7000 MHz OC)*Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance. XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability. *1DPC 1R Max. overclocking frequency 7000+ MHz, supports Intel XMP. |
M.2 Shield Frozr, Premium Storage Performance, Connectivity
|
|
|
|
|
|---|---|---|---|
Fortified PCI-e 5.0 x16MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference: 1 x PCI-e 5.0/4.0/3.0 x16 slot* (with Steel Armor**) 1 x PCI-e 3.0 x16 slot* *Supports x16/x4 **MSI Surface Mount Technology (SMT) solder welding improves signal clarity. |
Gen4 M.2 ConnectorsThe MAG B760 TOMAHAWK WIFI motherboard features MSI’s Gen4 M.2 slots: 3 x Gen4 x4 64Gbps slots* *3 with M.2 Shield Frozr |
M.2 Shield FrozrEven the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures. M.2 Shield Frozr is MSI’s most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance. |
Wi-Fi 6E & Bluetooth 5.32.5G LAN: A Realtek 2.5Gbps LAN controller delivers a premium network gaming experience. Wi-Fi 6E: Features the latest Intel Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.3 technology. USB 3.2 Gen 2×2 Type-C: Connect to devices and transfer files at high bandwidth rates: 20Gbps. HD Audio: 7.1-Channel High Definition Audio with Audio Boost & S/PDIF output. |
| Model | MAG B760 TOMAHAWK WIFI |
| Chipset | INTEL B760 |
| CPU SUPPORT | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA1700 |
| Memory | 4x DDR5, Maximum Memory Capacity 128GB Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7000+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz |
| Onboard Graphics | 1x HDMI™ 1x DisplayPort Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz* Support DP 1.4, maximum resolution of 8K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| EXPANSION SLOT | 2x PCI-E x16 slot Supports x16/x4 1x PCI-E x1 slot PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x4 (From Chipset) PCI_E3 PCIe 4.0 supports up to x1 (From Chipset) |
| Storage | 3x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G port |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 4x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
| LAN | Realtek® 2.5Gbps LAN |
| WIRELESS / BLUETOOTH | Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11. |
| Audio | Realtek® ALC897 Codec 7.1-Channel USB High Performance Audio Supports S/PDIF output |
| Internal I/O | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C |
| LED FEATURE | 4x EZ Debug LED |

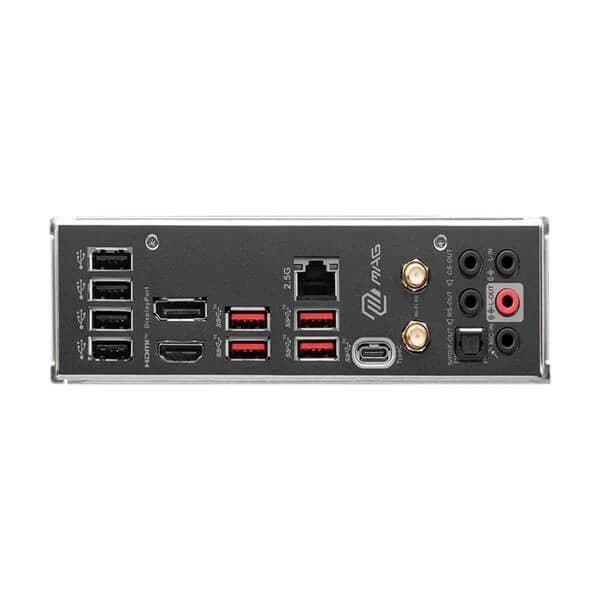

| BACK PANEL PORTS | USB 2.0 DisplayPort 1.4 USB 3.2 Gen 2 10Gbps Type-A 2.5G LAN Port Wi-Fi / Bluetooth Antenna HD Audio Connectors HDMI™ 2.1 Port USB 3.2 Gen 2x2 20Gbps Type-C Optical S/PDIF OUT |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Dimension | ATX 243.84mmx304.8mm |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
