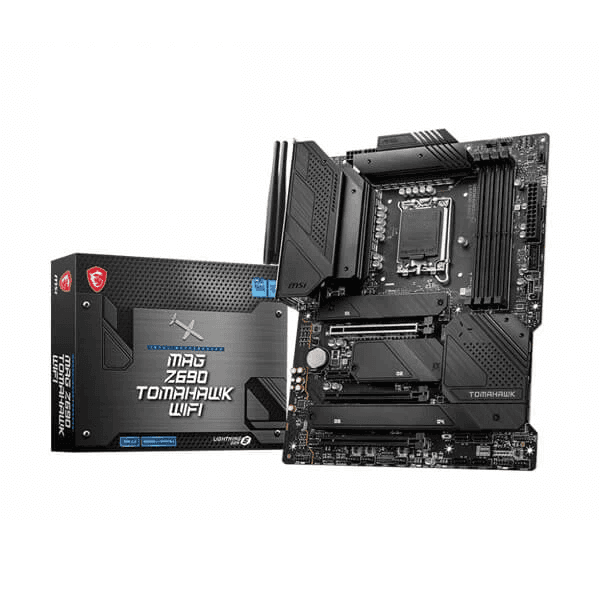

MSI MPG Z690 Tomahawk Wi-Fi DDR5 Intel Motherboard

Brands
  • Supports DDR5 Memory, up to 6400(OC) MHz
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • 2.5G LAN and Intel Wi-Fi Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Lightning M.2: Running at PCIe Gen 5 maximizes performance for NVMe based SSDs
  • Lightning USB 20G: Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
  •  Delivery & Return

    🚚 Shipping and Risk:

    • Order Will Be Shipped Within 24-48 Working Hours After the Order is Processed.
    • Shipping Partners : Delhivery, XpressBees, Gati, BlueDart, Ecom Express (Depending on Availability at Your Pincode), Computech DOES NOT Have any Control over Operations of Shipping Partners.
    • Delivery dates are estimates Provided By Shipping Partners. Shipping Partners are solely responsible for any kind of Delays.
    • Loss or damage occured during shipping is Computech Responsibility.
    • You Must Leave a Remark During Delivery to Delivery Guy About Damaged Box or Package, and Make an Un-cut Unboxing Video of the Package.
    • You must notify Computech of damaged or missing items from your order within 24-hours of receiving your package

    ♻️ Replacement and Refund Policy:

    • We accept replacement if product is defective or wrong product shipped no return or refund will be entertained.
    •  For gaming chairs only part replacement is applicable if the product delivered is defective or damaged, no refunds will be there for orders of gaming chairs.
    • If the seal of the product is opened and the product is not faulty then return/refund will not be applicable.
    • Packaging material should be kept by the buyer until the replacement window is opened as this will help them to pack the product to its original form to avoid any damage during the transit.
    • Product should be packed in a proper way as it was received by the buyer, do not apply tapes or glues directly on the product or on the product box, this may lead to cancellation of your replacement request.
    • All the accessories which were delivered along with the product should be returned in the same way and along with the product.
    • If the payment was made through our payment gateway, then it will be refunded in same account by which the payment was done, in case of BANK TRANSFER and COD orders refunds will be done only in buyers bank account. Refunds usually takes 7-10 working days to reflect in your account.
  ... people are viewing this right now

  Share
Guaranteed Safe Checkout

Original price was: ₹41,550.00.Current price is: ₹28,899.00.

Out of stock

Email when stock available

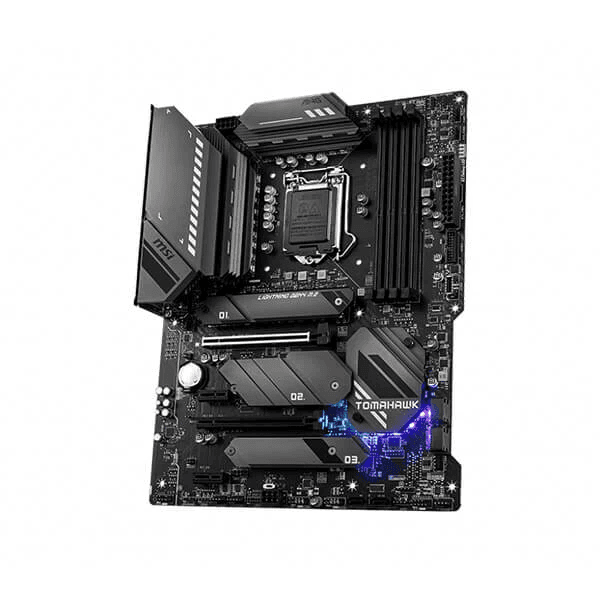

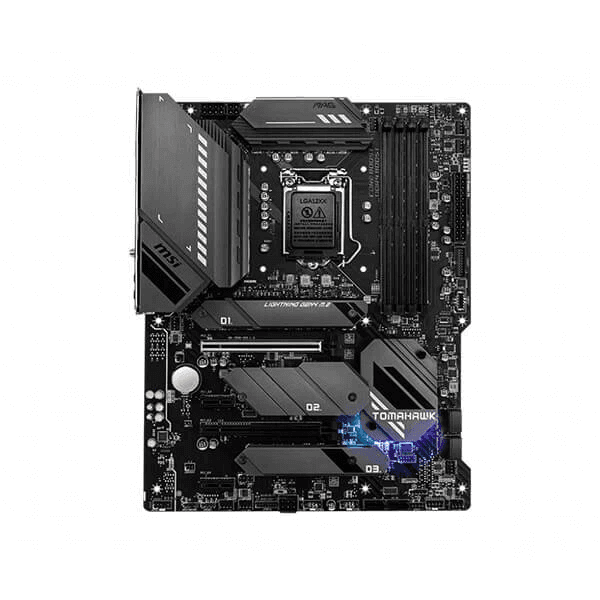

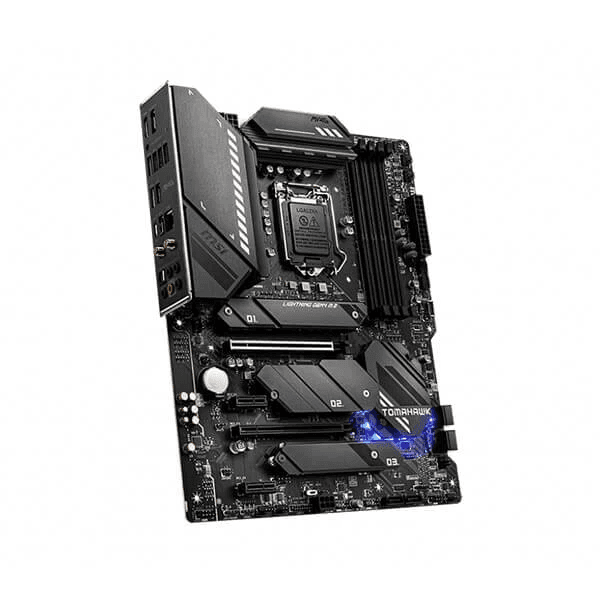

MSI MPG Z690 Tomahawk Wi-Fi DDR5 Intel Motherboard

Features:

MSI MPG Z690 Tomahawk Wi-Fi DDR5

  • Z690 Tomahawk Supports DDR5 Memory, up to 6400(OC) MHz
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • 2.5G LAN and Intel Wi-Fi Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Lightning M.2: Running at PCIe Gen 5 maximizes performance for NVMe based SSDs
  • Lightning USB 20G: Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
  • AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire™
MAG Z690 TOMAHAWK WIFI
MAG Z690 TOMAHAWK WIFI MAIN Image


MSI Gaming Logo

MSI: For Gamers & Creators

MSI is one of the most trusted names in gaming and esports with countless hours and significant resources invested into premier esports leagues and tier-1 gaming teams. By supporting and working with the best of the best, MSI is able to integrate competitive gaming knowledge and aspirations with technological innovation to create new products that shatter today’s performance limits.

MAG Z690 TOMAHAWK WIFI

Conquer the Battlefield

For gamers looking for a 12th Gen Intel Core platform with PCI-e 5.0 x16 graphics card architecture, accelerated DDR5 memory, and a vast array of M.2 Gen4 storage options, the MSI MAG Z690 TOMAHAWK WIFI gaming motherboard is built to help conquer the battlefield.

  • Supports Intel Core 12th Gen Processors (LGA 1700)
  • 4 x DDR5 DIMMs, Memory Boost (6400MHz+ OC)
  • 16+1+1 Duet Rail Power Design with 70A SPS
  • 4 x M.2 Slots (3 x Gen4, 1 x Gen3) with Shield Frozr
  • 1 x PCI-e 5.0 x16 (128GB/s), 2 x PCI-e 3.0 x16 Graphic Card Slots
  • Intel I225-V 2.5G LAN
  • Intel Wi-Fi 6E & Bluetooth 5.2

Z690 Chipset, 16+1+1 Duet Rail VRM, Complete Cooling, DDR5 Memory Boost

MAG Z690 TOMAHAWK WIFI Socket

MAG Z690 TOMAHAWK WIFI VRM

MAG Z690 TOMAHAWK WIFI Cooling

MAG Z690 TOMAHAWK WIFI DIMMs

Supports Intel Core 12th Gen Processors

The MAG Z690 TOMAHAWK WIFI motherboard supports 12th Gen Intel Core processors.

  • Form Factor: ATX
  • Socket Type: LGA 1700
  • Chipset: Intel Z690



16+1+1 Duet Rail VRM with 70A SPS

The hardy VRM design features MSI exclusive Core Boost Technology powered by 2 x 8-pin CPU power connectors:

  1. Digital PWM IC
  2. 1 Phase GT Power
  3. 16 Duet Rail Power System (Smart Power Stage / 70A)
  4. 1 Phase AUX Power



Complete Cooling Solution

VRM Cooling: Features an extended heatsink and 7W/mK thermal pads for improved thermal dissipation.

SSD Cooling: M.2 Shield Frozr prevents thermal throttling.

System Cooling: Connect and synchronize cooling with strategically placed pin-headers – including a dedicated pump-fan header.

6-layer server-grade PCB with 2oz of thickened copper improves performance & system stability.

4 x DDR5 Dual Channel (6400+ MHz Overclocked*)

Memory Boost: A fully-isolated circuit delivers pure DDR5 data signals for optimal gaming and overclocking performance.

XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for improved memory speed and stability.

*1DPC 1R Max. overclocking frequency 6400+ MHz, supports Intel XMP 3.0 OC.

PCI-e 5.0 x16 Slot, Cutting-Edge Storage Performance, Wi-Fi 6E Connectivity

MAG Z690 TOMAHAWK WIFI PCIe

MAG Z690 TOMAHAWK WIFI M.2

MAG Z690 TOMAHAWK WIFI Shield Frozr

MAG Z690 TOMAHAWK WIFI Connectivity

Fortified PCI-e 5.0 x16

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points* to support the weight of heavy graphics cards and shields the point of contact from electromagnetic interference:

  • 1 x PCI-e 5.0 x16 slot (with Steel Armor)
  • 2 x PCI-e 3.0 x16 slots



*All-new MSI Surface Mount Technology (SMT) solder welding improves signal clarity.

Gen4 & Gen3 M.2 Connectors

The MAG Z690 TOMAHAWK WIFI motherboard features MSI’s latest M.2 slots (Intel Optane supported):

  • 3 x Gen4 x4 64Gb/s slots
  • 1 x Gen3 x4 32Gb/s slot



*M.2 specifications may vary depending on the CPU installed.

M.2 Shield Frozr

Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.

M.2 Shield Frozr is MSI’s most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.

Wi-Fi 6E & Bluetooth 5.2

2.5G LAN: An Intel I225-V 2.5Gbps LAN controller delivers a premium network gaming experience.

USB 3.2 Gen 2×2 Type-C: Enables ultra-fast 20Gbps data transfer rates between devices.

HD Audio: 7.1-Channel High Definition Audio with Audio Boost 5 & S/PDIF output.

Wi-Fi 6E: Features the latest Intel Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.2 technology.

Processor Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors 1 Processor socket LGA1700 Please go to msi.com to get the newest support status as new processors are released.
Chipset Intel® Z690 Chipset
Memory
  • 4x DDR5 memory slots, supporting up to 128GB
  • Supports 1R 4800 MHz (by JEDEC & POR)
  • Max overclocking frequency:
  • 1DPC 1R Max speed up to 6400+ MHz
  • 1DPC 2R Max speed up to 5400+ MHz
  • 2DPC 1R Max speed up to 4000+ MHz
  • 2DPC 2R Max speed up to 4000+ MHz
Supports Intel® XMP 3.0 OC Supports Dual Controller Dual-Channel mode Supports non-ECC, un-buffered memory Please refer to www.msi.com for more information on compatible memory. See supported memory
Expansion Slot
  • 3x PCIe x16 slots
  • PCI_E1 (From CPU)
  • Support up to PCIe 5.0 x16
  • PCI_E3 (From Z690 chipset)
  • Support up to PCIe 3.0 x4
  • PCI_E4 (From Z690 chipset)
  • Support up to PCIe 3.0 x1
  • 1x PCIe 3.0 x1 slot (From Z690 chipset)
Multi-GPU Supports AMD® CrossFire™ Technology
Onboard Graphics 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Storage 6x SATA 6Gb/s ports (From Z690 chipset) 4x M.2 slots (Key M) M2_1 slot (From CPU) Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (From Z690 chipset) Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_3 slot (From Z690 chipset) Supports up to PCIe 3.0 x4 Supports up to SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_4 slot (From Z690 chipset) Supports up to PCIe 4.0 x4 Supports up to SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Intel® Optane™ Memory Ready for M.2 slots from Z690 Chipset Supports Intel® Smart Response Technology for Intel Core™ processors
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
USB Intel® Z690 Chipset 1x USB3.2 Gen2x2 20Gbps Type-C port on the back panel 4x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector, 3 Type-A ports on the back panel) 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports through the internal connector) 1x USB 2.0 Type-A port on the back panel Hub-GL850G 5x USB 2.0 ports (1 Type-A port on the back panel, 4 Type-A ports available through internal connectors)
Audio Realtek® ALC4080 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
LAN 1x Intel® I225V 2.5Gbps LAN controller
Wireless LAN & Bluetooth® Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2
Internal connectors 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 4x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 1x Clear CMOS jumper 1x TBT connector (supports RTD3) 1x Tuning Controller connector
LED Feature 1x EZ LED Control switch 1x 4-pin RGB LED connectors 3x 3-pin RAINBOW LED connectors 4x EZ Debug LED

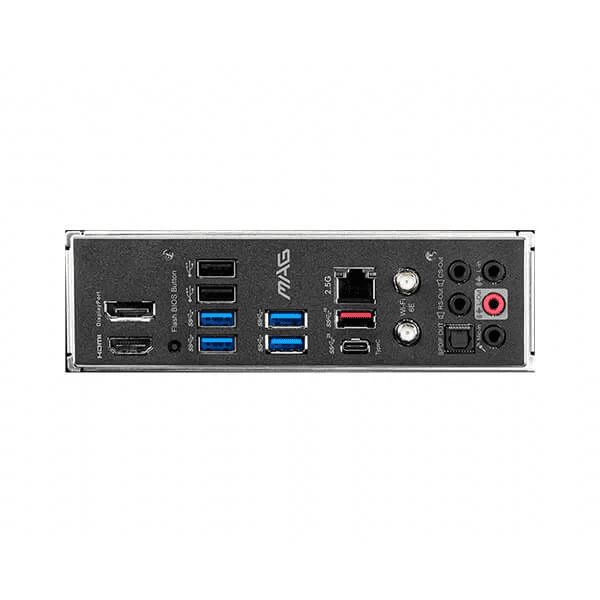

Back panel ports DisplayPort 1.4 USB 2.0 Port USB 3.2 Gen 2 10Gbps Type-A 2.5G LAN Port Wi-Fi / Bluetooth Antenna HD Audio Connectors HDMI 2.1 Port Flash BIOS Button USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 2 10Gbps Type-A USB 3.2 Gen 2x2 20Gbps Type-C Optical S/PDIF OUT
Dimensions ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Warranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.
Weight 2 kg
Dimensions 30 × 24 × 6 cm
