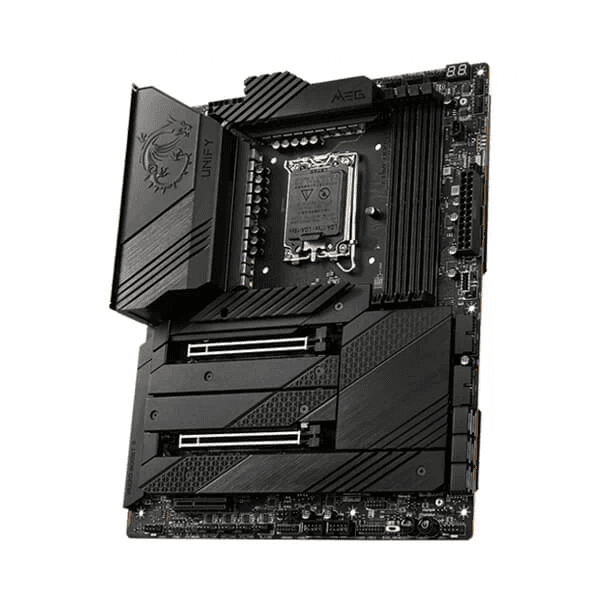

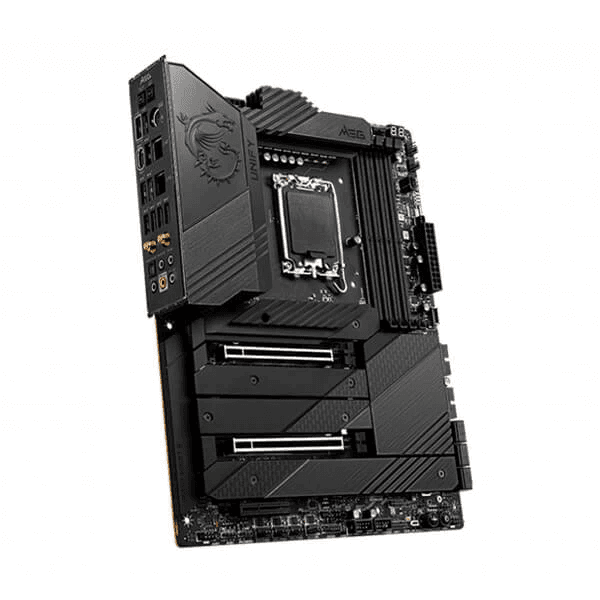

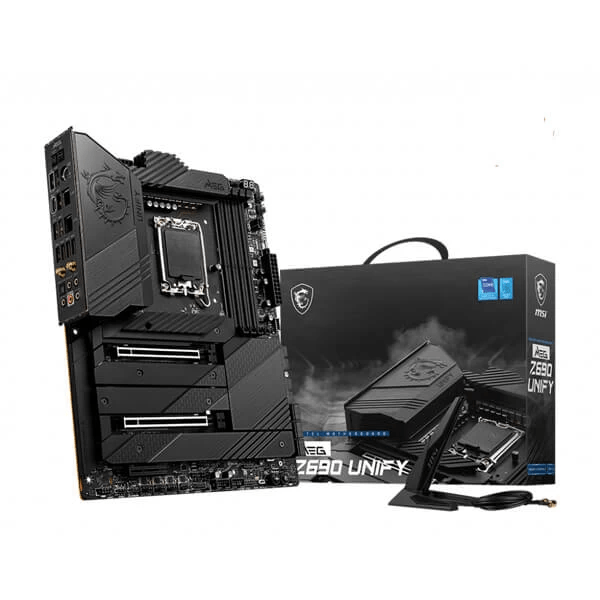

MSI MEG Z690 Unify (Wi-Fi) Intel Motherboard

Features:

MSI MEG Z690 Unify WIFI

• Supports 12th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1700 socket
• Supports DDR5 Memory, Dual Channel DDR5-6666+MHz(OC)
• Latest DDR5 Memory: A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, it is ready to deliver the world class memory performance.
• Quintuple M.2 Connectors: Onboard 5x M.2 connectors for the maximum storage performance with quad Lightning Gen 4 solution. Double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
• Extreme Power Design: Premium digital PWM, direct 19+2 phases with 105A Smart Power Stage, Titanium Choke III and dual CPU power connectors to unleash the true power of your processors.
• Outstanding Cooling Solution: Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, Double-sided M.2 Shield Frozr and Aluminum Backplate ensure the extreme performance with low temp.
• Dual 2.5G LAN with latest Wi-Fi 6E: Onboard dual 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience.
• Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 4 x4 M.2, Front & Rear USB 3.2 Gen 2×2 20G.
• 8 Layer Server Grade PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.
• Audio Boost 5: Isolated audio with a high quality ALC4080 audio processor & amp for the most immersive gaming experience.

THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE

With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU to run in full speed with MSI motherboards.

FROZR AI COOLING

Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

FULLY CONTROLLABLE IN BIOS AND SOFTWARE

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT

Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.

DIRECT 19+2 PHASES POWER DESIGN

Z690 Unify Unleash and sustain the maximum performance with a flagship VRM design built with a total of direct 19+2 digital power phases. Combining dual power connectors and 105A Smart Power Stage, MEG Z690 UNIFY is ready for the challenge of high-end processors.

CORE BOOST

Z690 Unify Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.

1-SECOND OVERCLOCKING!

MSI Game Boost enables one-second overclocking, giving you the performance boost you need to get more FPS.

LOAD-LINE CALIBRATION

What you set, is what you get. LLC makes sure your CPU voltage remains 100% stable under any load. This greatly improves stability when demanding more CPU performance.

OVERVOLTAGE PROTECTION

Prevents potential short-circuit damage to the CPU and other critical components.

DIGITALL POWER DESIGN

A fully digital power design allows for faster and undistorted current delivery to the CPU at pin-point precision. Creating the perfect conditions for CPU overclocking.

DOUBLE POWER CONNECTORS

Two 8-pin connectors deliver adequate power even for an overclocked multi-core CPU.

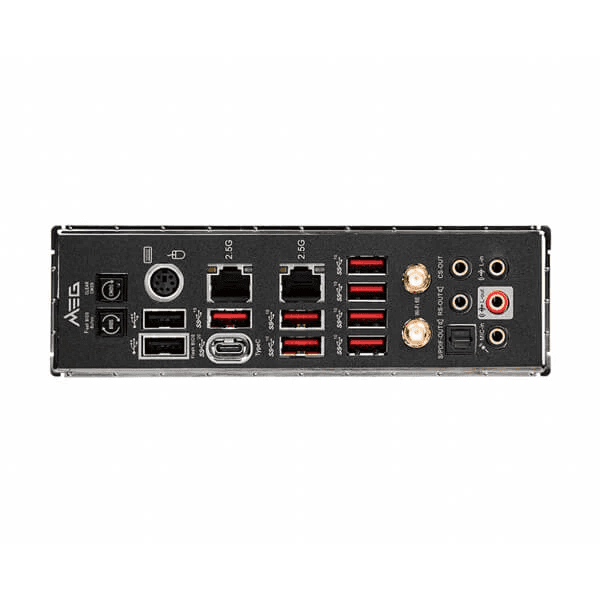

PRE-INSTALLED IO SHIELD

Featuring the pre-installed IO shield, makes your installation process easier and safer. The patent-pending design protect your IO ports and also prevent electrostatic discharge damage, makes your motherboard a strong gaming foundation.

BOOT UP GUARANTEED

Having trouble with updating the BIOS or somehow corrupted it? Don’t worry! With System-Saver, use one of 3 easy to use options to successfully boot your system again.

PCB Design

The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.

• 8 PCB layers
• IT-170 Server-grade PCB material
• 2oz Thickened Copper

LATEST DDR5 MEMORY

A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MEG Z690 UNIFY is ready to deliver the world class memory performance.

Memory Support Stand

The aluminum backplate cools down your motherboard, while the dedicated sunken design strengthens the memory slot area to prevent PCB bending and to protect surrounding components.

SMT DDR5 MEMORY SLOT

Z690 Unify advanced SMT(Surface Mount Technology) welding process reduces the defect rate of slot solder joints, electromagnetism, and interference. Combining with exclusive Memory Boost technology allows MSI motherboards to deliver the clean and pure high-frequency DDR5 signal.

EXTREME STABILITY & COMPATIBILITY TESTING

MSI Z690 Unify conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules, configurations and even improve overclocking.

EASY OVERCLOCKING WITH XMP PROFILE

The XMP (Extreme Memory Profiles) in MSI BIOS are tested and certified by MSI OC LAB. It is easy to enable with auto power settings to get the best memory speed and stability.

MEMORY FORCE – EASY TUNING YOUR DDR5 MEMORY

MSI MEG series motherboards feature exclusive Memory Force function which shows the current state of DDR5 memory. This patent-pending feature simplifies the complicated training flow to an easy graphic that helps you determine the direction of overclocking without the redundant reboot and testing process.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

Onboard dual 2.5Gbps LAN with LAN manager provides incredible data transfer speed faster than general Gigabit LAN, delivering the best online gaming experience.

SURFACING WITH THE REAL MU-MIMO TECHNOLOGY

Z690 Unify latest Wi-Fi 6E solution supports 6GHz spectrum, Bluetooth 5.2, two-way MU-MIMO and BSS color technology, provide up to 4X network capacity and efficiency in the high signal density environment, delivering speeds up to 2400Mbps.

OPTIMIZE ONLINE GAMING TRAFFIC FOR LOWER LATENCY!

MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency.
