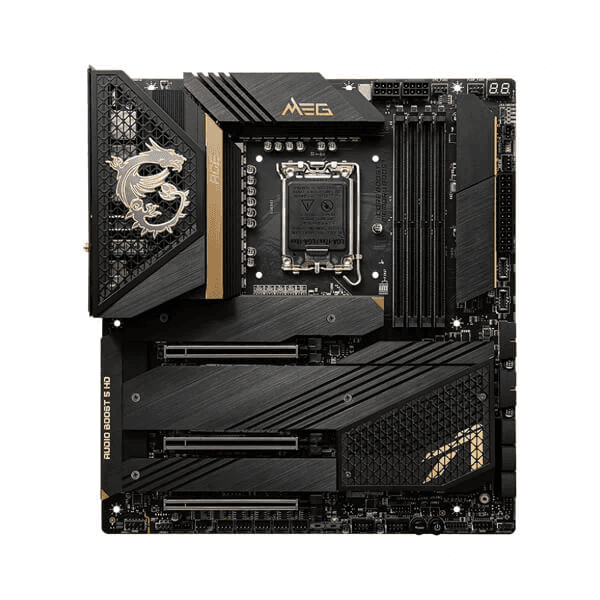

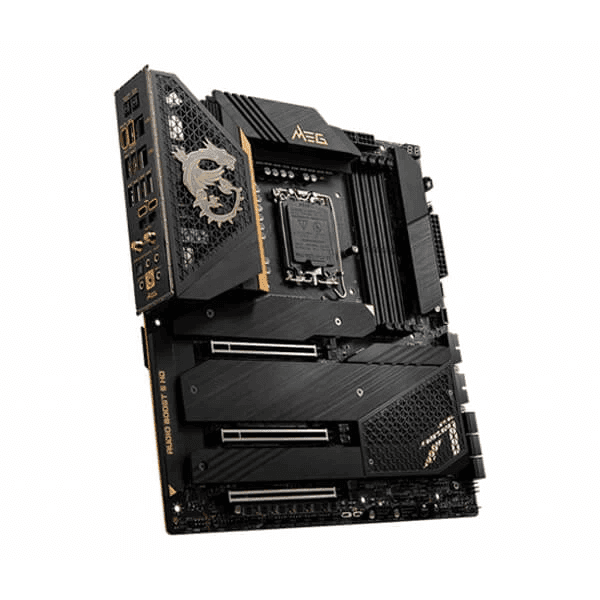

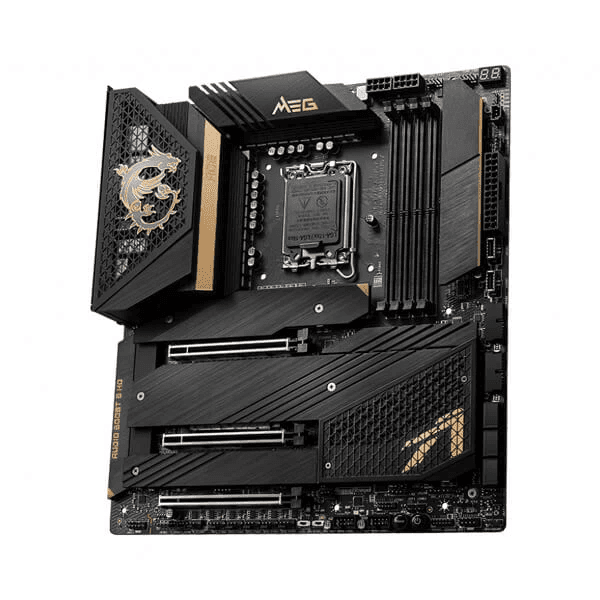

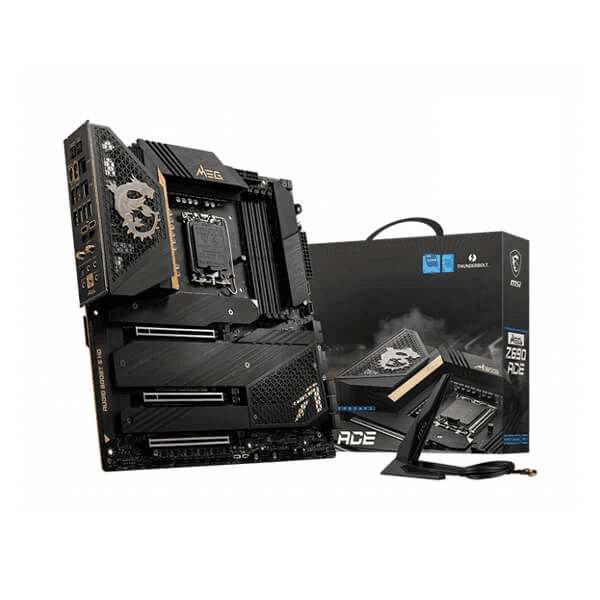

MSI MEG Z690 ACE (Wi-Fi) Intel Motherboard
- Z690 ACE Supports 12th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1700 socket
- Z690 ACE Supports DDR5 Memory, Dual Channel DDR5-6666+MHz(OC)
- Genuine 24K Gold: Premium aesthetics with its dark black finish and genuine 24K-gold foil heatsink perfectly show off the concept of beauty.
- Dual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience.
- Quintuple M.2 Connectors: Z690 ACE Onboard 5x M.2 connectors for the maximum storage performance with quad Lightning Gen 4 solution. Double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
₹66,919.00
Out of stock
Email when stock available
MSI MEG Z690 ACE (Wi-Fi) Intel Motherboard
Features:
MSI MEG Z690 ACE WIFI
- MSI Z690 ACE Supports 12th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1700 socket
- Z690 ACE Supports DDR5 Memory, Dual Channel DDR5-6666+MHz(OC)
- Genuine 24K Gold: Premium aesthetics with its dark black finish and genuine 24K-gold foil heatsink perfectly show off the concept of beauty.
- Dual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience.
- Quintuple M.2 Connectors: Onboard 5x M.2 connectors for the maximum storage performance with quad Lightning Gen 4 solution. Double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
- Extreme Power Design: Z690 ACE Premium digital PWM, direct 19+1+2 phases with 105A Smart Power Stage, Titanium Choke III and dual CPU power connectors to unleash the true power of your processors.
- Outstanding Cooling Solution: Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, Double-sided M.2 Shield Frozr and Aluminum Backplate ensure the extreme performance with low temp.
- Dual 2.5G LAN with latest Wi-Fi 6E: Onboard dual 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience.
- Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 4 x4 M.2, Dual Front USB 3.2 Gen 2×2 20G.
- 8 Layer PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.
- Audio Boost 5 HD: Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience.
MSI: For Gamers & Creators
MSI is one of the most trusted names in gaming and esports with countless hours and significant resources invested into premier esports leagues and Tier-1 gaming teams. By supporting and working with the best of the best, MSI is able to integrate competitive gaming knowledge and aspirations with technological innovation to create new products that shatter today’s performance limits.
MEG Z690 ACE
Lustrous Aesthetics, Pure Performance
For extreme gamers seeking unparalleled 12th Gen Intel Core overclocking with dual PCIe 5.0 x16 graphics card architecture, accelerated DDR5 memory, multiple M.2 Gen4 slots, and Thunderbolt 4 connectivity, the MSI MEG Z690 ACE E-ATX gaming motherboard combines lustrous aesthetics and pure performance.
- Supports Intel Core 12th Gen Processors (LGA 1700)
- 4 x DDR5 DIMMs, Memory Boost (6666MHz+ OC)
- Direct 19+1+2 Phase Power Design with 105A SPS
- 5 x M.2 Slots (4 x Gen4, 1 x Gen3) with Double-Sided Shield Frozr
- 2 x PCI-e 5.0 x16 (128GB/s), 1 x PCI-e 4.0 x16 Graphic Card Slots
- Dual Intel I225-V 2.5G LAN
- Wi-Fi 6E with Bluetooth 5.2
- Dual Thunderbolt 4 USB Type-C Ports (40Gbps, max. 8K display)
Z690 Chipset (E-ATX), Direct 19+1+2 Phase VRM, Lustrous Cooling, DDR5 Memory Boost
|
|
|
|
|
|---|---|---|---|
Supports Intel Core 12th Gen ProcessorsThe MEG Z690 ACE motherboard supports 12th Gen Intel Core processors.
|
Direct 19+1+2 Phase VRM with 105A SPSThe powerful VRM design features MSI exclusive Core Boost Technology powered by 2 x 8-pin CPU power connectors. The VRM Structure incorporates:
An 8-layer server-grade PCB with 2oz of thickened copper improves performance & system stability. |
Premium Cooling with 24K Gold DetailingVRM Cooling: Features heavy-plated heatsinks, connecting heat pipe, aluminium backplate, choke and 7W/mK thermal pads for improved thermal dissipation. SSD Cooling: M.2 Shield Frozr prevents thermal throttling. System Cooling: Connect and synchronize cooling with strategically placed pin-headers – including a dedicated pump-fan header. Chipset Cooling: Includes an enlarged heatsink. |
4 x DDR5 Dual Channel (6666+ MHz Overclocked*)Memory Boost: A fully-isolated circuit delivers pure DDR5 data signals for optimal gaming and overclocking performance. XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for improved memory speed and stability. *1DPC 1R Max. overclocking frequency 6666+ MHz, supports Intel XMP 3.0 OC. |
2 x PCI-e 5.0 x16 Slots, Cutting-Edge Storage Performance, Wi-Fi 6E & Thunderbolt 4 Ports
|
|
|
|
|
|---|---|---|---|
2 x Fortified PCI-e 5.0 x16MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points* to support the weight of heavy graphics cards and shields the point of contact from electromagnetic interference:
*All-new MSI Surface Mount Technology (SMT) solder welding improves signal clarity. |
Gen4 & Gen3 M.2 ConnectorsThe MEG Z690 ACE motherboard features MSI’s latest M.2 slots (Intel Optane supported):
*M.2 specifications may vary depending on the CPU installed. |
Double-Sided M.2 Shield FrozrEven the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures. Double-sided M.2 Shield Frozr is MSI’s most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance. |
Wi-Fi 6E & Thunderbolt 4 PortsDual 2.5G LAN: 2 x Intel I225-V 2.5Gbps LAN controllers deliver a premium network gaming experience. Dual Thunderbolt 4 USB Type-C: Enables ultra-fast 40Gbps bandwidth with 8K display support, and multi-port/daisy-chaining architecture. HD Audio: 7.1-Channel High Definition Audio with Audio Boost 5 HD & S/PDIF output. Wi-Fi 6E: Features the latest Intel Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.2 technology. |
| Processor |
|
| Chipset |
|
| Memory |
|
| Expansion Slots | 3x PCIe x16 slots
|
| Multi-GPU |
|
| Onboard Graphics |
|
| Thunderbolt 4 |
Intel®JHL8540 Thunderbolt™ 4 Controller
|
| Storage |
|
| RAID |
|
| USB |
|
| Audio |
Realtek® ALC4082 Codec + ESS SABRE9018Q2C Combo DAC/HPA
|
| LAN |
|
| Wireless LAN & Bluetooth | |
| Internal connectors |
|
| LED Feature |
|

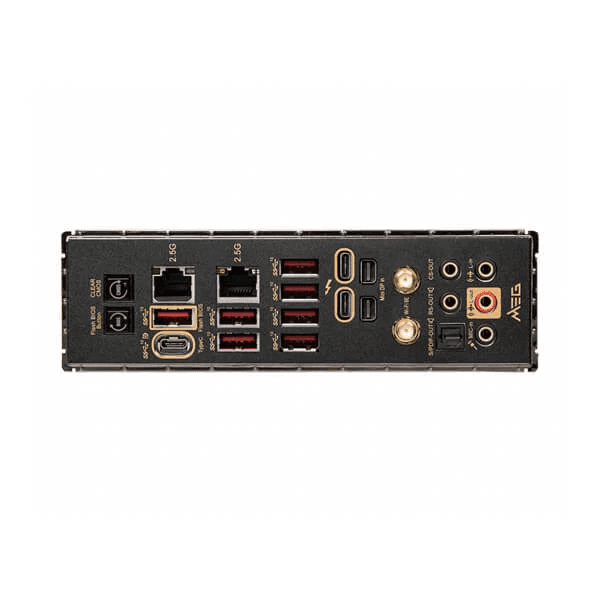

| Back panel ports |
|
| Dimensions |
|
| Warranty | 3 Years |
| Note | ***Features, Price, Specifications are subject to change without notice. |
