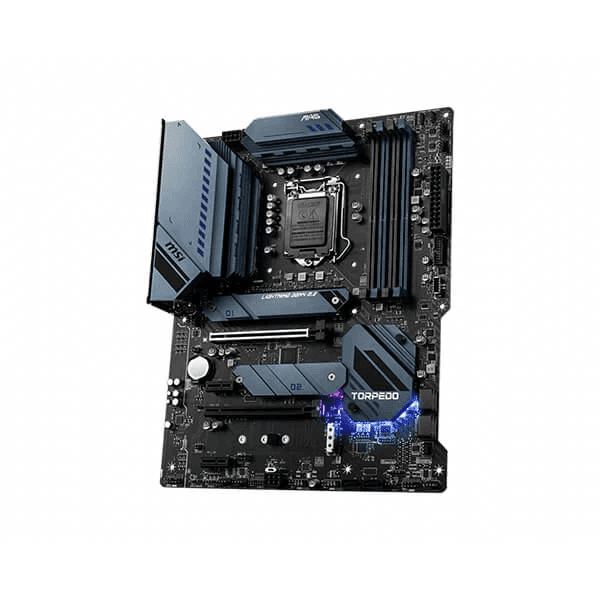

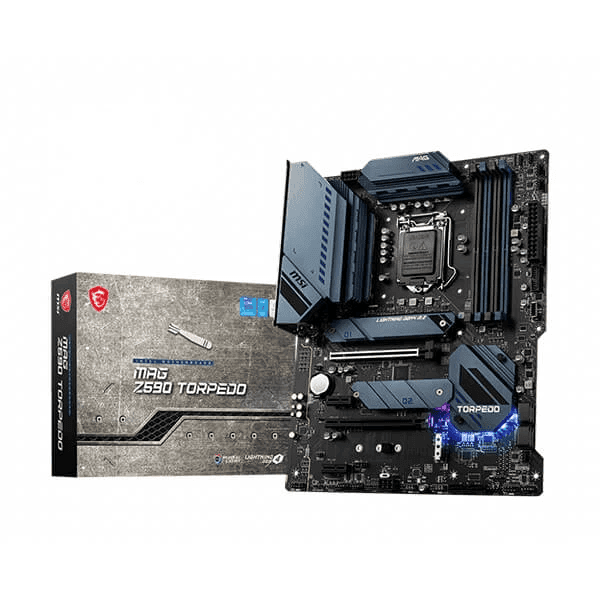

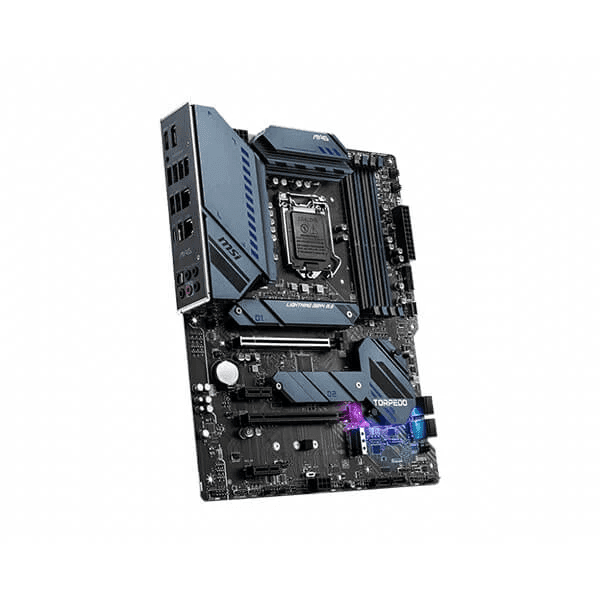

MSI MAG Z590 Torpedo Intel Motherboard

EMI & Split Payment Options

MSI MAG Z590 Torpedo Intel Motherboard

SKU: MAG Z590 Torpedo

users viewing this item right now

₹23750
Availability
Sold Out
  • Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 5333(OC) MHz
  • Latest Network Solution: Onboard 2.5G LAN plus Gigabit LAN with LAN Manager deliver the best online experience without lag
  • Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs
  • Lightning USB 20G: Powered by USB 3.2 Gen2x

MSI MAG Z590 Torpedo Intel Motherboard

The MSI MAG Series Z590 Torpedo WiFi is an ATX Motherboard, Featuring DDR4 5333 MHz Memory Support, 16 Phase Digital VRM, 6 Layer PCB, Intel WiFi 6E, 2.5 Gigabit Ethernet And Realtek ALC4080 Premium Audio.

Msi MAG Z590 TORPEDO
  • Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 5333(OC) MHz
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • Latest Network Solution: Onboard 2.5G LAN plus Gigabit LAN with LAN Manager deliver the best online experience without lag
  • Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs
  • Lightning USB 20G: Powered by USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C
  • AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Multi-GPU: With Steel armor PCIe slots. Supports 2-Way AMD Crossfire™
MAG Z590 Torpedo
Z590 Intel Motherboard Gaming 11th gen intel 10th gen intel
MSI Gaming

MSI: For Gamers & Creators

MSI is one of the most trusted names in gaming and esports with countless hours and significant resources invested into premier esports leagues and tier-1 gaming teams. By supporting and working with the best of the best, MSI is able to integrate competitive gaming knowledge and aspirations with technological innovation to create new products that shatter today's performance limits.

MAG Z590 TORPEDO Motherboard

11th Gen Core Ready, 11/10 for Value

The MAG Z590 TORPEDO delivers a full Intel Core 11th Gen ready platform which offers high-end performance and sophisticated aesthetics.

  • Supports Intel Core 11th & 10th Gen Processors (LGA 1200)
  • 14 Duet Rail VRM with 60A DrMOS
  • Lightning Gen4 & Turbo Gen3 M.2 slots with Shield Frozr
  • PCI-e 4.0 x16 (CrossFire via PCI-e 3.0 x16)
  • 4 DIMMS with DDR4 Boost: Dual Channel (128GB Max. / 5333MHz OC)
  • Intel I225-V 2.5G LAN & Intel I219-V 1G LAN
  • Mystic Light illumination

Z590 Chipset, 14 Duet Rail VRM, Smart Cooling, PCI-e 4.0 x16

Intel Core 10th Gen 11th Gen
Duet Rail Power Delivery system high power loads
Cooling capabilities, cooling access, overclocking
PCI-E 4.0 lanes gpu bandwidth

Supports Intel Core 11th Gen Processors

The MAG Z590 TORPEDO motherboard supports 11th Gen Intel Core, 10th Gen Intel Core, Pentium Gold, and Celeron processors.

Form Factor: ATX

Socket Type: LGA 1200

Chipset: Intel Z590

14+1+1 Duet Rail Power System

With its 8+4 pin power connectors and exclusive Core Boost technology, the MAG Z590 TORPEDO is able to sustain heavy CPU power loads to support system-demanding game settings:

1. 14 Duet Rail CPU Power System, DrMOS 60A

2. 2-Phase GT Power

3. 1-Phase SA Power

4. Digital PWM IC

Integrated Cooling Features

VRM Cooling: Features a heavy-plated MOS heatsink , heat pipe and 7W/mK thermal pads.

PCB Cooling: Premium 6-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability.

SSD Cooling: M.2 Shield Frozr prevents thermal throttling.

System Cooling: Connect and synchronize cooling with strategically placed pin-headers - including a dedicated pump-fan header.

Fortified PCI-e 4.0 x16

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:

1 x PCI-e 4.0/3.0 x16 slot (with Steel Armor)

1 x PCI-e 3.0 x16 slot (CrossFire supported)

2 x PCI-e 3.0 x1 slots

Cutting-Edge Performance & Powerful Connectivity

M.2 performance intel optane
M.2 Shield Frozr
DDR4 RAM 5333 MHz OC
Connectivity USB-C HD Audio 2.5G LAN

Gen4 & Gen3 M.2 Connectors

The MAG Z590 TORPEDO motherboard features MSI's latest M.2 slots (Intel Optane supported):

1 x Gen4 x4 64Gb/s slot

2 x Gen3 x4 32Gb/s slots

*M.2 specifications may vary depending on the CPU installed.

M.2 Shield Frozr

Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.

M.2 Shield Frozr is MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.

4 x DDR4 Dual Channel (5333 MHz OC)

DDR4 Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.

XMP profiles in MSI BIOS are MSI OC LAB tested and can be easily enabled with auto power settings for optimized memory speed and stability.

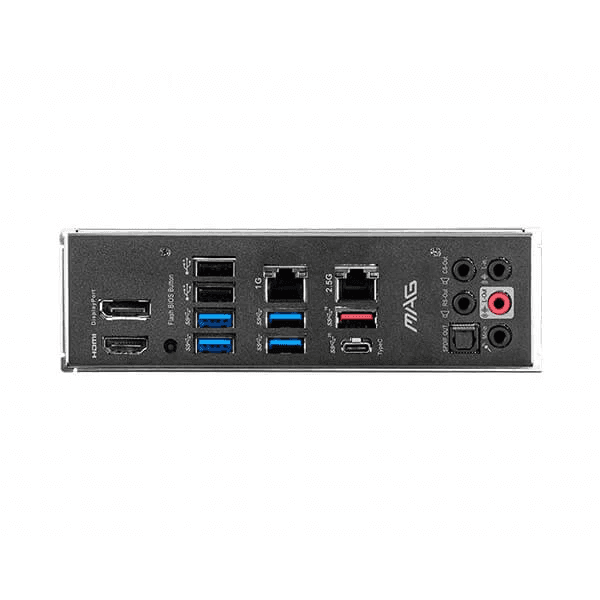

DUAL LAN

DUAL LAN: An Intel I225-V 2.5Gbps LAN controller delivers a premium network gaming experience.

USB 3.2 Gen 2x2 Type-C: Connect to devices and transfer files at unpredicted rates: 20Gb/s.

HD Audio: 7.1-Channel High Definition Audio with Audio Boost 5 & S/PDIF output.

Brands
MSI
Socket
LGA 1200
Chipset
Z590
Platform
Intel
Ram-Type
DDR4
Ean-Upc-Code
4719072800536
Product-Type
Gaming
Motherboard-Size
ATX
Motherboard-Series
MSI MAG
