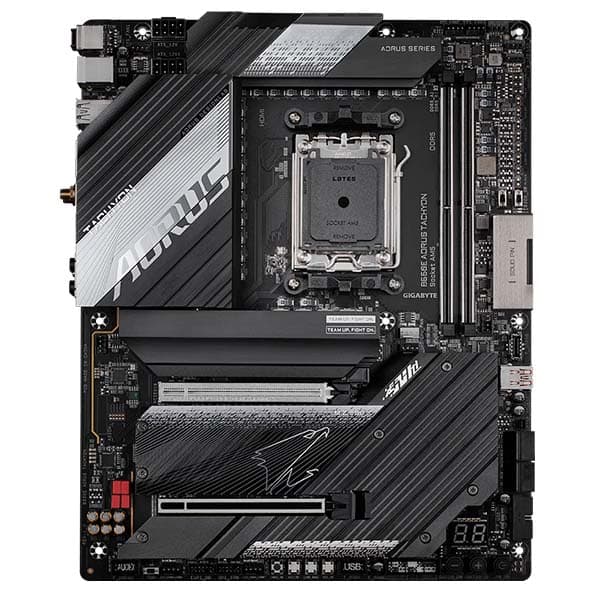

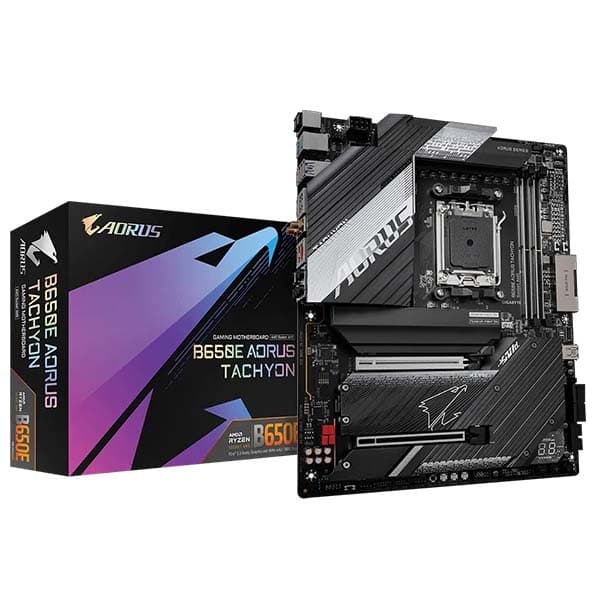

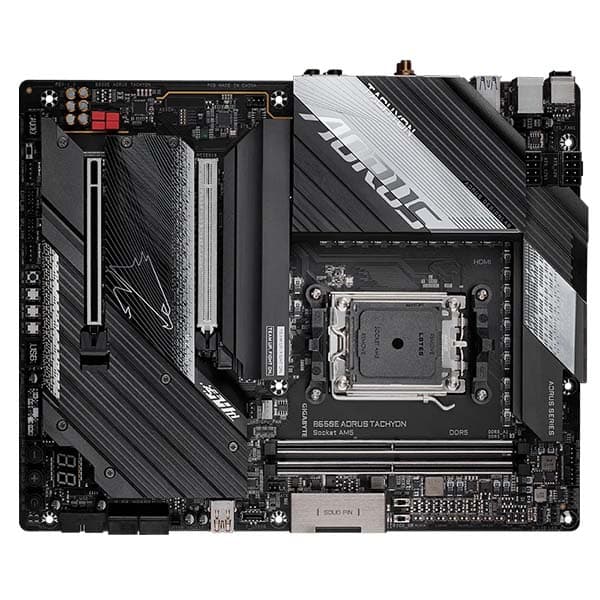

Gigabyte B650E Aorus Tachyon Motherboard

Gigabyte B650E Aorus Tachyon Motherboard

Feature

• AMD Socket AM5：Supports AMD Ryzen™ 7000/ Ryzen™ 8000 Series Processors
• Unparalleled Performance：Twin 16*+2+2 Phases Digital VRM Solution
• Dual Channel DDR5：2*SMD DIMMs with EXPO & XMP Memory Module Support
• Next Generation Storage：2*PCIe 5.0 x4 and 1*PCIe 4.0 x4 M.2 Connectors
• Advanced Thermal Design & M.2 Thermal Guard ：To Ensure VRM Power Stability & M.2 SSD Performance
• EZ-Latch Plus：M.2 Connectors with Quick Release & Screwless Design
• Hi-Fi Audio with DTS:X® Ultra：ALC1220 CODEC and WIMA Audio Capacitors
• Fast Networks：Intel® 2.5GbE LAN & Wi-Fi 6E 802.11ax
• Extended Connectivity：HDMI, Front USB-C® 20Gb/s, Rear USB-C® 10Gb/s
• Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection
• Exclusive onboard Overclocking Kit for Extreme Overclocking
• Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

VRM Design

To ensure maximum Turbo Boost and overclocking performance of AMD's new generation CPU, GIGABYTE AORUS series motherboard equip the best VRM design ever built with the highest quality components.

Digital PWM Controller

VRM design uses RENESAS RAA229620 PWM controller that directly drives Twin 16 phases for the highest efficiency.

105A Power Stage

VRM design uses 100% full tantalum polymer capacitors for better transient response and less mechanical interference with extreme overclocking cooling device.

Tantalum Capacitor Matrix

VRM design uses 100% full tantalum polymer capacitors for better transient response and less mechanical interference with extreme overclocking cooling device.

Dual CPU Power Connectors

Dual 8 pin CPU power connectors with metal shielding provide maximal current input to processor.

DDR5 EXPO & XMP Overclocking Up to 8000 and Beyond*

AORUS is offering a tested and proven platform that the memory overclocking capability is able up to 8000 and beyond. All users need to do for achieving this extreme memory performance boost is to ensure that their DDR5 memory modules are AMD EXPO™/ Intel® XMP capable, the EXPO/XMP function is activated and enabled on their AORUS motherboard.

Ultra Durable™ SMD DDR5 Memory Armor

GIGABYTE's exclusive stainless steel shielding design.

Unlock DDR5 Voltage

DDR4

DDR4 voltage is managed by MB with wide range

Native DDR5

Secure Mode

MB provides fixed 5V to Native DDR5 memory and built-in PMIC outputs locked 1.1v to memory IC.

GIGABYTE Exclusive DDR5 Circuit Design

Programmable Mode

GIGABYTE’s exclusive design unlocks Native DDR5 PMIC secure mode into programmable mode and control Native DDR5 voltage with wide range.

• GIGABYTE exclusive circuit design unlocks Native DDR5 voltage control
• Transforms Native DDR5 memory module to Overclocked DDR5 memory
• Increases DDR5 memory overclocking performance and capability
• Supports all PMIC vendors for maximum compatibility

XTREME MEMORY

With 2-DIMM daisy chain memory trace layout, B650E AORUS TACHYON can achieve the shortest memory DIMM distance between CPU, therefore reach the highest memory clock and the lowest latency.

Shielded Memory Routing

All memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference.

EXPO and XMP Dual Support

GIGABYTE AM5 MB supports both AMD EXPO™ and/or Intel® XMP overclocking memory modules for maximal compatibility. MB will automatically detect both profiles format in SPD, users can choose to enable one of profiles from BIOS menu and easily reach overclocked memory performance.

DDR5 Auto Booster

Automatically Boost the Native DDR5 frequency to 5000MHz while the system is under heavy loading by a single click.

AMD EXPO™ and Intel® XMP 3.0 User Profile

Define and create your own SPD profile into Native, EXPO and XMP 3.0 memory modules. One user-defined profile can be saved, loaded either locally or from/to an external storage device. • One empty SPD profile can be defined by users and carry to next computer • Quick memory performance simulation based on user input clock and timing parameters • Profile save and load function to share your memory parameters online

Design Ready for PCIe 5.0

PCIe 5.0 Design supports double the bandwidth of PCIe 4.0 and ensures that compatible with cutting-edge SSDs and GPUs released in the next few years to their full capability

Ultra Durable™ SMD PCIe 5.0 x4 M.2 Connectors

The PCIe 5.0 x4 M.2 Slots support the latest M.2 25110 form factor. Reinforced PCIe 5.0 M.2 connectors with metal shielding to provide higher strength.

The New Generation Ultra Durable™ SMD PCIe 5.0 Armor

The new generation, GIGABYTE's exclusive stainless-steel PCI-e shielding becomes 20% wider providing reinforced tensile strength.

802.11ax Wi-Fi 6E

The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.

Smart Antenna

1. 2X signal strength compared to traditional antenna design.
2. AORUS Antenna with smart antenna function for the best WIFI signal transmitting.

Wi-Fi 6E bring you the Ultimate VR experience!

Wi-Fi 6E brings faster Wi-Fi speeds, lower latency, and better battery life for VR devices, which means streaming VR games wirelessly from your PC to your VR device offers a lot smoother and has higher quality video.

• Wi-Fi 6E compared to Wi-Fi 5 provide…
• 40% faster speed for smoother gaming/streaming experience
• 50% higher resolution for video game related content
• Better battery life for VR devices

Wi-Fi 6E Advantage

Spectrum congestion is huge problem in current Wi-Fi environment nowadays because too many devices all use existing 2.4GHz and 5GHz spectrum, and it cause unreliable connection and slower speed. Wi-Fi 6E is extended standard to Wi-Fi 6, and it use dedicated 6GHz band that it provides not only brand new frequency to transfer data, but also spacious spectrum for future more devices. With Wi-Fi 6E, users can enjoy faster connection and stronger signal than before.

First adopter on 2.5GbE LAN onboard

2X Faster than ever

1. Adoption of 2.5G LAN provide up to 2.5 GbE network connectivity, with at least 2X faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with ultimate online gaming experience.
2. Support Multi-Gig(10/100/1000/2500Mbps) RJ-45 Ethernet

Connecting the Future - Front USB 3.2 Gen 2x2 Type-C®

Featuring the USB 3.2 Gen 2x2 design which is doubled the performance than previous generation of USB 3.2 Gen 2. It works up to 20Gbps ultra-fast data transfer while connecting to USB 3.2 compliant peripherals. Through the USB Type-C® connector, users can enjoy the flexibility of reversible connection to access and store massive amounts of data rapidly.
