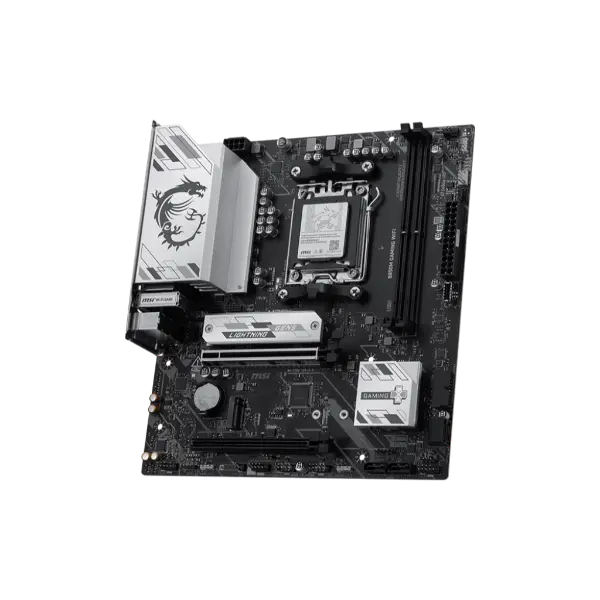

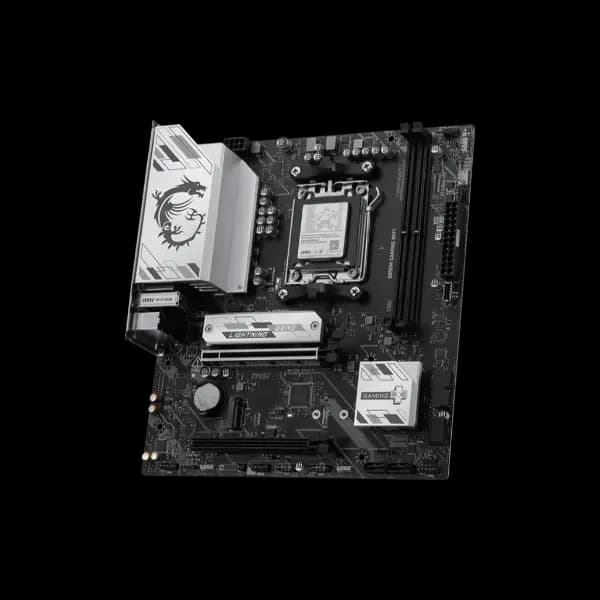

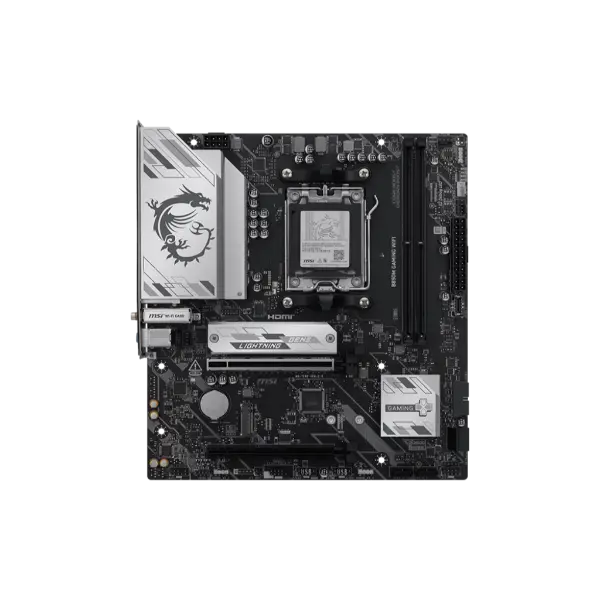

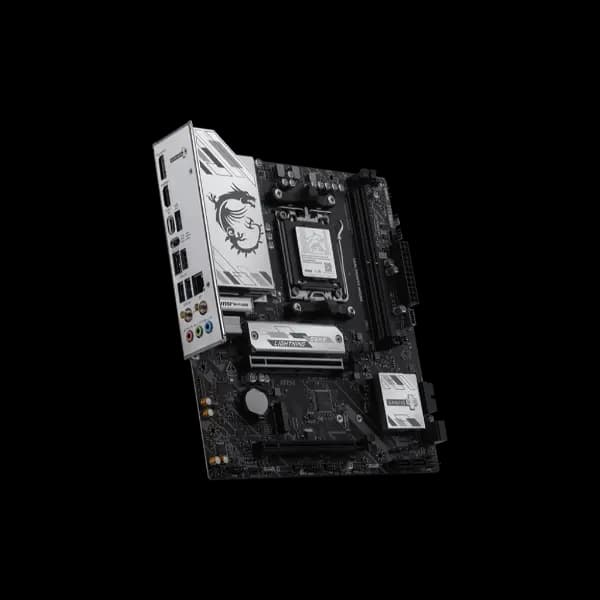

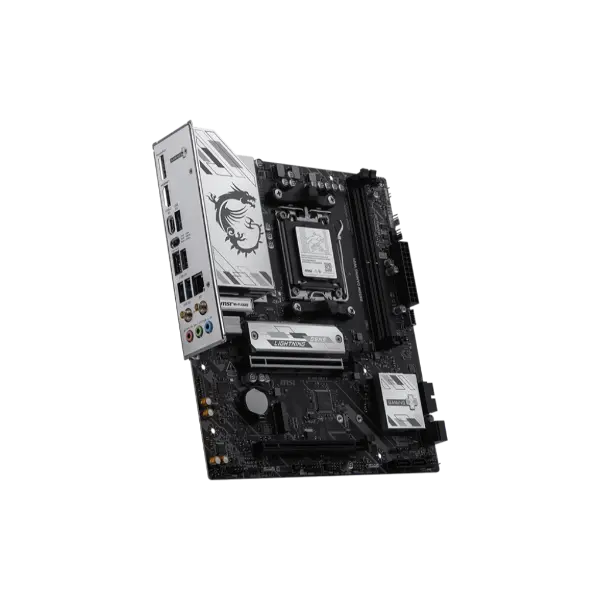

MSI B850M GAMING WIFI AMD Motherboard

2x DDR5 UDIMM, Maximum Memory Capacity 128GB
Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8200+ MT/s
• 1DPC 2R Max speed up to 8000+ MT/s

Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*

* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.

1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

2x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)

PCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)

2x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G

M2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)

M2_2 slot
• Supports up to PCIe 4.0 x4
• Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)

*Please refer to the manual for M.2 SSD heatsink restrictions.

Wi-Fi 7 Solution
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.9Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth® 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.

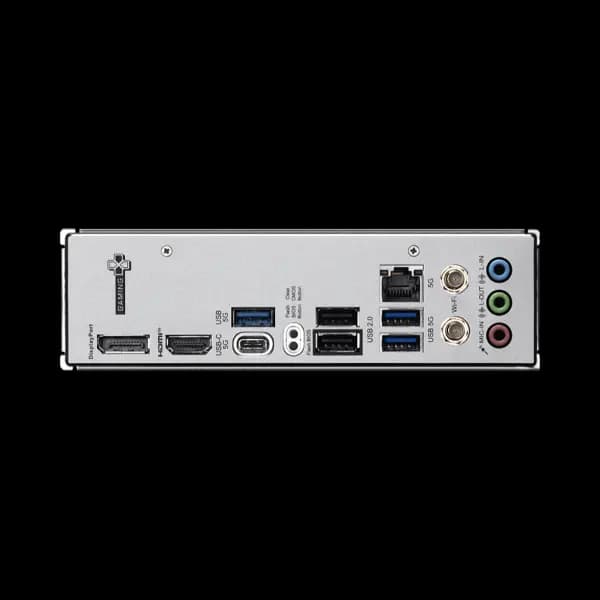

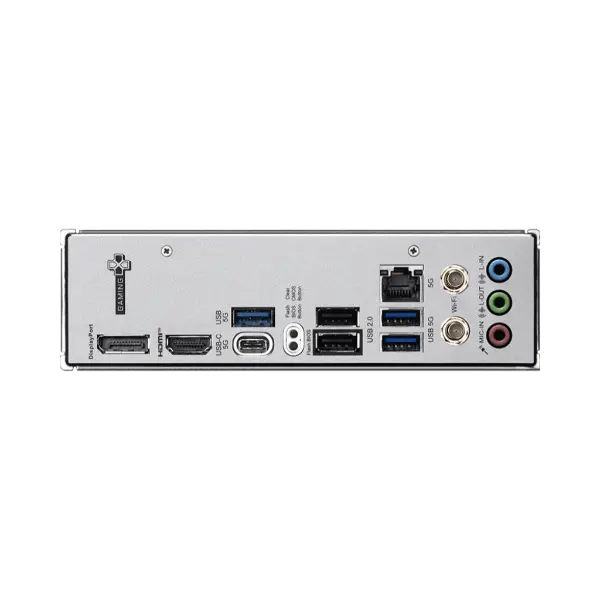

1. DisplayPort 1.4
2. HDMI™
3. USB 5Gbps (Type-A)
4. Clear CMOS Button
5. 5G LAN
6. Wi-Fi / Bluetooth
7. USB 5Gbps (Type-C)
8. Flash BIOS Button
9. USB 2.0
10. USB 5Gbps (Type-A)
11. HD Audio Connectors
