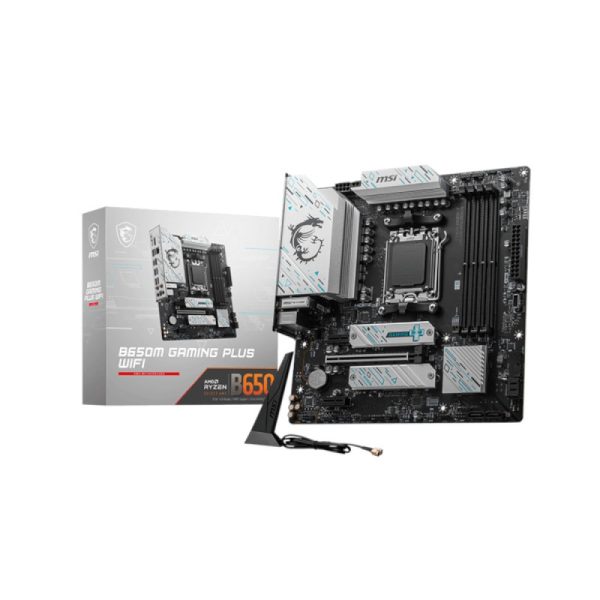

MSI B650M Gaming Plus WiFi Motherboard

MSI B650M Gaming Plus WiFi Motherboard, mATX - Supports AMD Ryzen 7000 Series Processors, AM5, DDR5 Memory Boost 7800+MHz/OC, 1 x PCIe 4.0 x16, 2 x M.2 Gen4, Wi-Fi 6E

Feature

• MSI B650M Gaming Plus Supports AMD Ryzen 8000 / 7000 Series Desktop Processors
• Supports DDR5 Memory, up to 7200+(OC) MHz
• Enhanced Power Design: 10+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
• Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen4 M.2, USB 3.2 Gen 2
• Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high-performance systems and non-stop works
• AUDIO BOOST: Reward your ears with studio-grade sound quality for the most immersive gaming experience
• High-Quality PCB: 6-layer PCB made by 2oz thickened copper

COOLING OVERVIEW

Extended Heatsink

Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

M.2 Shield Frozr

Strengthened M.2 thermal solution helps M.2 SSD safe and ensures incredible performance.

Heavy Plated VRM Heatsink

The VRM heatsink covers the upper MOS and helps dissipate the heat.

7W/mK Thermal Pad & Additional Choke Pad

High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.

Chipset Heatsink

The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.

LIGHTNING GEN 4 PCI-E WITH STEEL ARMOR

LIGHTNING GEN 4 PCI-E

MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.

REINFORCED, HEAVY SOLDERED CONNECTIONS

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.
