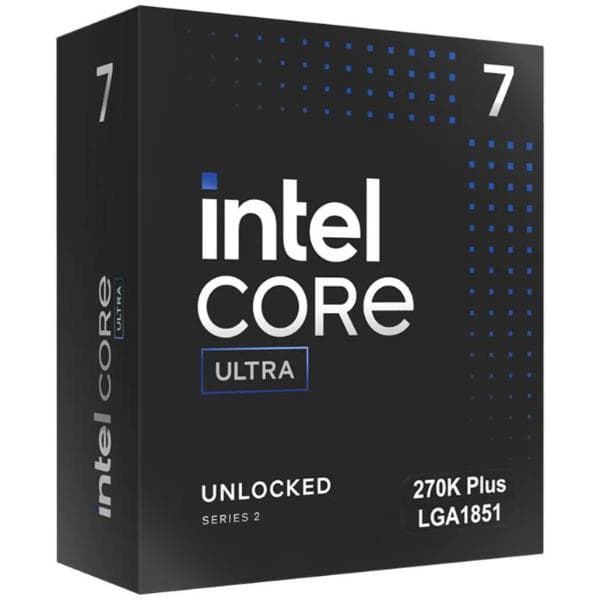

Intel Core Ultra 7 270K Plus Processor

Product Collection: Intel® Core™ Ultra Processors (Series 2)

Code Name:  Products formerly Arrow Lake

Vertical Segment: Desktop

Processor Number: 270K PLUS

Overall Peak TOPS (Int8): 36

Total Cores: 24

# of Performance-cores: 8

# of Efficient-cores: 16

# of Low Power Efficient-cores: 0

Total Threads: 24

Max Turbo Frequency: 5.5 GHz

Intel® Turbo Boost Max Technology 3.0 Frequency ‡: 5.5 GHz

Performance-core Max Turbo Frequency: 5.4 GHz

Efficient-core Max Turbo Frequency: 4.7 GHz

Performance-core Base Frequency: 3.7 GHz

Efficient-core Base Frequency: 3.2 GHz

Cache: 36 MB Intel® Smart Cache

Total L2 Cache: 40 MB

Processor Base Power: 125 W

Maximum Turbo Power: 250 W

Intel® Deep Learning Boost (Intel® DL Boost) on CPU: Yes

AI Software Frameworks Supported by CPU: OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN

CPU Lithography: TSMC N3B

Embedded Options Available: No

Use Conditions: PC/Client/Tablet, Workstation

Max Memory Size (dependent on memory type): 256 GB

Memory Types: Up To DDR5 7200 MT/s

Max # of Memory Channels: 2

ECC Memory Supported ‡: Yes

GPU Name‡: Intel® Graphics

Graphics Base Frequency: 300 MHz

Graphics Max Dynamic Frequency: 2.0 GHz

GPU Peak TOPS (Int8): 8

Graphics Output: eDP1.4b, DP 2.1 UHBR20, HDMI 2.1 FRL

Xe-cores: 4

Max Resolution (HDMI)‡: 4096 x 2304 @ 60Hz (HDMI 2.1 TMDS) 7680 x 4320 @ 60Hz (HDMI 2.1 FRL))

Max Resolution (DP)‡: 7680 x 4320 @ 60Hz

Max Resolution (eDP - Integrated Flat Panel)‡: 3840 x 2400 @ 120Hz

DirectX* Support: 12

OpenGL* Support: 4.5

OpenCL* Support: 3

H.264 Hardware Encode/Decode: Yes

H.265 (HEVC) Hardware Encode/Decode: Yes

AV1 Encode/Decode: Yes

Intel® Quick Sync Video: Yes

# of Displays Supported ‡: 4

Device ID: 0x7D67

Intel® Deep Learning Boost (Intel® DL Boost) on GPU: Yes

AI Software Frameworks Supported by GPU: OpenVINO™, WindowsML, DirectML, ONNX RT, WebGPU

NPU Name‡: Intel® AI Boost

NPU Peak TOPS (Int8): 13

Sparsity Support: Yes

Windows Studio Effects Support: Yes

AI Software Frameworks Supported by NPU: OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN

Direct Media Interface (DMI) Revision: 4

Max # of DMI Lanes: 8

Intel® Thunderbolt™ 4: Yes

Scalability: 1S Only

PCI Express Revision: 5.0 and 4.0

PCI Express Configurations ‡: Up to 1x16+2x4, 2x8+2x4, 1x8+4x4

Max # of PCI Express Lanes: 24

Sockets Supported: FCLGA1851

Thermal Solution Specification: PCG 2020A

Max Operating Temperature: 105 °C

Intel® Gaussian & Neural Accelerator: 3.5

Intel® Thread Director: Yes

Intel® Speed Shift Technology: Yes

Intel® Turbo Boost Max Technology 3.0 ‡: Yes

Intel® Turbo Boost Technology ‡: 2.0

Intel® Hyper-Threading Technology ‡: No

Intel® 64 ‡: Yes

Instruction Set: 64-bit

Instruction Set Extensions: Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2

Idle States: Yes

Enhanced Intel SpeedStep® Technology: Yes

Thermal Monitoring Technologies: Yes

Intel® Volume Management Device (VMD): Yes

Intel vPro® Eligibility ‡: Intel vPro® Enterprise

Intel® Threat Detection Technology (TDT): Yes

Intel® Active Management Technology (AMT) ‡: Yes

Intel® Standard Manageability (ISM) ‡: Yes

Intel® Remote Platform Erase (RPE) ‡: Yes

Intel® One-Click Recovery ‡: Yes

Intel® Secure Key: Yes

Intel® Control-Flow Enforcement Technology: Yes

Intel® Total Memory Encryption - Multi Key: Yes

Intel® AES New Instructions: Yes

Intel® Trusted Execution Technology ‡: Yes

Execute Disable Bit ‡: Yes

Intel® OS Guard: Yes

Intel® Boot Guard: Yes

Mode-based Execute Control (MBEC): Yes

Intel® Stable IT Platform Program (SIPP): Yes

Intel® Virtualization Technology with Redirect Protection (VT-rp) ‡: Yes

Intel® Virtualization Technology (VT-x) ‡: Yes

Intel® Virtualization Technology for Directed I/O (VT-d) ‡: Yes

Intel® VT-x with Extended Page Tables (EPT) ‡: Yes
