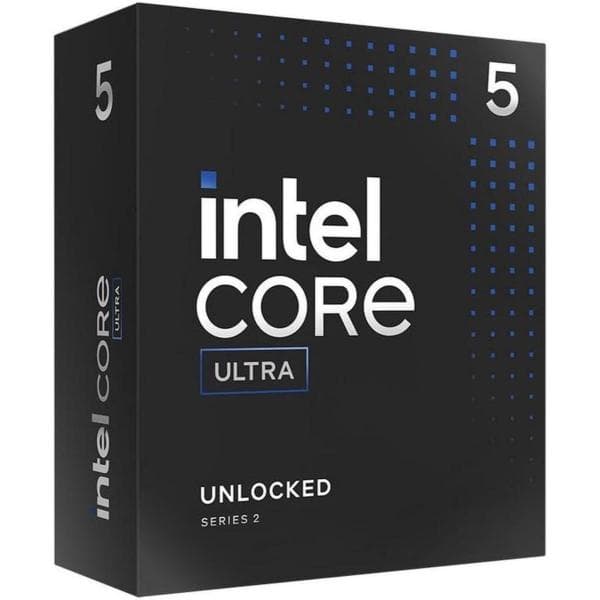

SKU: BX80768225F
users viewing this item right now
Unleash your best self with up to 24 Core 3D Performance architecture to help you play, create, and work.3
Intel Graphics equips you with a modern feature set delivering greater everyday performance, advanced media, and expansive display capabilities.
Be connected like never before with the latest connectivity and I/O with features like Thunderbolt™ technology.
| Total Cores | 10 |
| # of Performance-cores | 6 |
| # of Efficient-cores | 4 |
| Total Threads | 10 |
| Max Turbo Frequency | 4.9Ghz |
| Performance-core Max Turbo Frequency | 4.9Ghz |
| Efficient-core Max Turbo Frequency | 4.4Ghz |
| Performance-core Base Frequency | 3.3Ghz |
| Efficient-core Base Frequency | 2.7Ghz |
| Cache | 20 MB Intel® Smart Cache |
| Total L2 Cache | 22 MB |
| Processor Base Power | 65W |
| Maximum Turbo Power | 121W |
| Intel® Deep Learning Boost (Intel® DL Boost) on CPU | Yes |
| AI Software Frameworks Supported by CPU | OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN |
| CPU Lithography | TSMC N3B |
| Supplemental Information | |
| Marketing Status | Launched |
| Launch Date | Q1’25 |
| Embedded Options Available | No |
| Use Conditions | PC/Client/Tablet |
| Memory Specifications | |
| Max Memory Size (dependent on memory type) | 256GB |
| Memory Types | Up to DDR5 6400 MT/s |
| Max # of Memory Channels | 2 |
| CC Memory Supported | No |
| NPU Specifications | |
| NPU Name | Intel® AI Boost |
| NPU Peak TOPS (Int8) | 13 |
| Sparsity Support | Yes |
| Windows Studio Effects Support | Yes |
| AI Software Frameworks Supported by NPU | OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN |
| Expansion Options | |
| Direct Media Interface (DMI) Revision | 4 |
| Max # of DMI Lanes | 8 |
| Intel® Thunderbolt™ 4 | Yes |
| Scalability | 1S Only |
| PCI Express Revision | 5.0 and 4.0 |
| PCI Express Configurations | Up to 1×16+2×4, 2×8+2×4, 1×8+4×4 |
| Max # of PCI Express Lanes | 24 |
| Package Specifications | |
| Sockets Supported | FCLGA1851 |
| Thermal Solution Specification | PCG 2022C |
| Max Operating Temperature | 105 °C |
| Advanced Technologies | |
| Intel® Gaussian & Neural Accelerator | 3.5 |
| Intel® Thread Director | Yes |
| Intel® Speed Shift Technology | Yes |
| Intel® Turbo Boost Technology | 2 |
| Intel® 64 | Yes |
| Instruction Set | 64 Bit |
| Instruction Set Extensions | Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 |
| Idle States | Yes |
| Enhanced Intel SpeedStep® Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Volume Management Device | Yes |
| Security & Reliability | |
| Intel® Standard Manageability (ISM) | Yes |
| Intel® Secure Key | Yes |
| Intel® Control-Flow Enforcement Technology | Yes |
| Intel® AES New Instructions | Yes |
| Intel® Trusted Execution Technology | Yes |
| Execute Disable Bit | Yes |
| Intel® OS Guard | Yes |
| Intel® Boot Guard | Yes |
| Mode-based Execute Control (MBEC) | Yes |
| Intel® Virtualization Technology (VT-x) | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® VT-x with Extended Page Tables (EPT) | Yes |
| Warranty | 3 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
No reviews yet for this product.
No questions have been answered yet.
