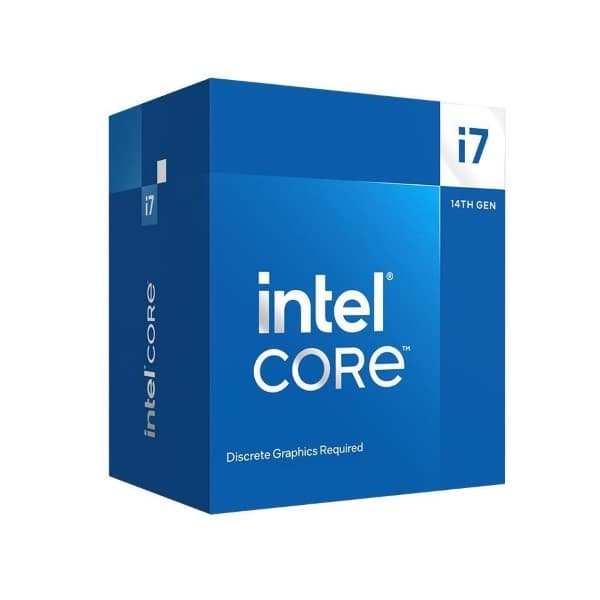

Intel Core i7-14700F 20 Core LGA 1700 Processor
- 20 Cores & 28 Threads
- 5.4 GHz Maximum Turbo Boost Frequency
- LGA 1700 Socket
- 33MB Cache Memory
- Dual-Channel DDR5-5600 ECC Memory
- Hybrid Core Architecture
- Includes Laminar RM1 Cooler
- 14th Generation (Raptor Lake-S Refresh)
₹34,399.00

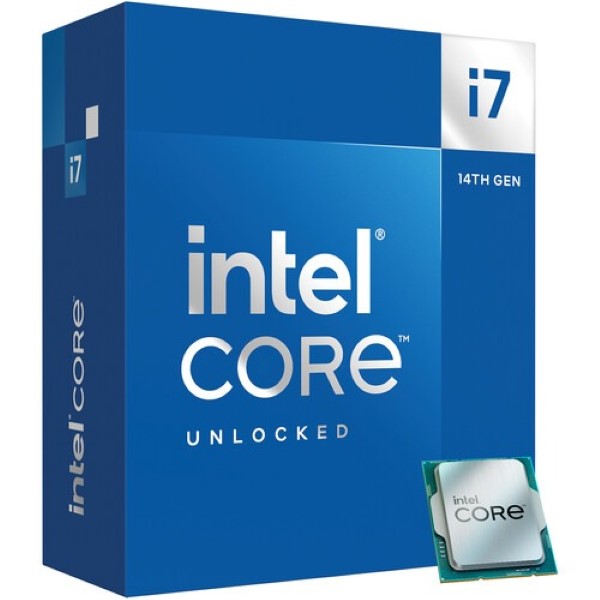

Intel Core i7-14700F – Core i7 14th Gen Raptor Lake 20-Core (8P+12E) LGA 1700 65W None Integrated Graphics Processor – BX8071514700F
Power up your productivity, gaming, and content creation with the Intel Core i7-14700K 3.4 GHz 20-Core LGA 1700 Processor. Built with the Intel 7 process, this 14th generation desktop processor delivers improved power efficiency with a total of 20 cores while fitting the LGA 1700 socket. Featuring an optimized Hybrid Core Architecture, the Core i7-14700K powers demanding applications and games with eight 3.4 GHz Performance-cores while the 12 low-voltage Efficient-cores handle background tasks for smooth multitasking. The built-in Intel Thread Director ensures that the two work seamlessly together by dynamically and intelligently assigning workloads to the right core at the right time.
With 30MB of cache and a 5.6 GHz Turbo Boost Max 3.0 frequency, this processor is made to handle intense workloads. You can overclock this processor for even greater performance. The Core i7-14700K also supports PCI Express 5.0 and up to 192GB of dual-channel DDR5 ECC memory at 5600 MHz.
The Core i7-14700K features integrated Intel UHD 770 Graphics. Please note that a thermal solution is NOT included. This processor is backed by a 3-year warranty.
Hybrid Core Design
Intel Thread Director
PCIe 4.0 & 5.0
Gaussian & Neural Accelerator 3.0
Intel Deep Learning Boost
| Feature | Specification |
|---|---|
| Product Collection | Intel® Core™ i7 Processors (14th gen) |
| Code Name | Products formerly Raptor Lake |
| CPU Specifications | |
| * Total Cores | 20 |
| * # of Performance-cores | 8 |
| * # of Efficient-cores | 12 |
| * Total Threads | 28 |
| * Max Turbo Frequency | 5.4 GHz |
| * Performance-core Max Turbo Frequency | 5.3 GHz |
| * Efficient-core Max Turbo Frequency | 4.2 GHz |
| * Performance-core Base Frequency | 2.1 GHz |
| * Efficient-core Base Frequency | 1.5 GHz |
| * Cache | 33 MB Intel® Smart Cache |
| * Processor Base Power | 65 W |
| * Maximum Turbo Power | 219 W |
| Memory Specifications | |
| * Max Memory Size | 192 GB |
| * Memory Types | Up to DDR5 5600 MT/s, Up to DDR4 3200 MT/s |
| * Max # of Memory Channels | 2 |
| * Max Memory Bandwidth | 89.6 GB/s |
| Expansion Options | |
| * Direct Media Interface (DMI) Revision | 4.0 |
| * Max # of DMI Lanes | 8 |
| * Scalability | 1S Only |
| * PCI Express Revision | 5.0 and 4.0 |
| * PCI Express Configurations | Up to 1x16+4, 2x8+4 |
| * Max # of PCI Express Lanes | 20 |
| Package Specifications | |
| * Sockets Supported | FCLGA1700 |
| * Max CPU Configuration | 1 |
| * Thermal Solution Specification | PCG 2020C |
| * TJUNCTION | 100°C |
| * Package Size | 45.0 mm x 37.5 mm |
| Advanced Technologies | |
| * Intel® Gaussian & Neural Accelerator | 3.0 |
| * Intel® Thread Director | Yes |
| * Intel® Deep Learning Boost (Intel® DL Boost) on CPU | Yes |
| * Intel® Speed Shift Technology | Yes |
| * Intel® Turbo Boost Max Technology 3.0 | Yes |
| * Intel® Turbo Boost Technology | 2.0 |
| * Intel® Hyper-Threading Technology | Yes |
| * Intel® 64 | Yes |
| * Instruction Set Extensions | Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 |
| * Idle States | Yes |
| * Enhanced Intel SpeedStep® Technology | Yes |
| * Thermal Monitoring Technologies | Yes |
| * Intel® Volume Management Device (VMD) | Yes |
| Security & Reliability | |
| * Intel® Standard Manageability (ISM) | Yes |
| * Intel® Control-Flow Enforcement Technology | Yes |
| * Intel® AES New Instructions | Yes |
| * Secure Key | Yes |
| * Intel® OS Guard | Yes |
| * Execute Disable Bit | Yes |
| * Intel® Boot Guard | Yes |
| * Mode-based Execute Control (MBEC) | Yes |
| * Intel® Virtualization Technology (VT-x) | Yes |
| * Intel® Virtualization Technology for Directed I/O (VT-d) | Yes |
| * Intel® VT-x with Extended Page Tables (EPT) | Yes |
| Weight | 1 kg |
|---|---|
| Brands | |
| CPU Cores | |
| Threads | |
| Socket | |
| TDP | |
| Processor Model | |
| Processor Series | |
| Warranty | |
| Product Type | |
| EAN / UPC Code |
