ASRock Z890 Taichi Lite Intel Core Ultra LGA1851 DDR5 RL-ILM WiFi 7 ATX Motherboard

ASRock Z890 Taichi Lite Intel Core Ultra LGA1851 DDR5 RL-ILM WiFi 7 ATX Motherboard 9200 MHz 256 GB PCIe 5.0 Thunderbol

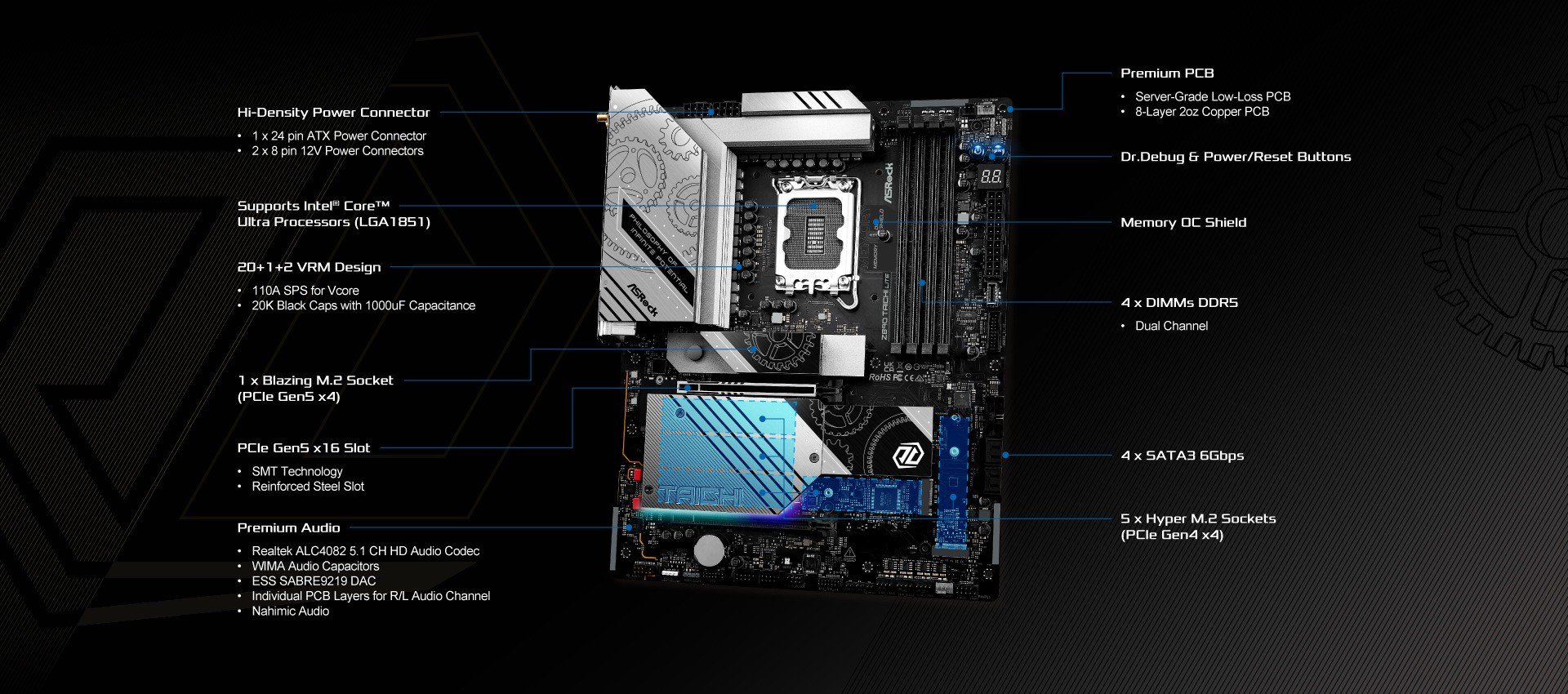

Feature

• Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
• 20+1+2+1+1 Power Phase, 110A SPS for VCore
• 4 x DDR5 DIMMs Supports Dual Channel, up to 9600+ (OC)
• 1 PCIe 5.0 x16, 1 PCIe 4.0 x16
• Graphics Output Options: 1 HDMI, 2 Thunderbolt™ 4 Type-C
• Realtek ALC4082 5.1 CH HD Audio Codec, ESS SABRE9219 DAC, WIMA Audio Cap, Nahimic Audio
• 4 SATA3 1 Blazing M.2 (PCIe Gen5 x4), 4 Hyper M.2 (PCIe Gen4 x4), 1 Hyper M.2 (PCIe Gen4 x4 & SATA3)
• 2 Thunderbolt™ 4 Type-C (Rear), 1 USB 3.2 Gen2x2 Type-C (Front), 4 USB 3.2 Gen2 Type-A (Rear), 8 USB 3.2 Gen1 (4 Rear, 4 Front), 6 USB 2.0 (2 Rear, 4 Front)
• 5Gbps LAN, 2.5G LAN
• 802.11be Wi-Fi 7 + Bluetooth
• Supports Memory OC Shield, BIOS Flashback, 20K Caps with 1000uF Capacitance

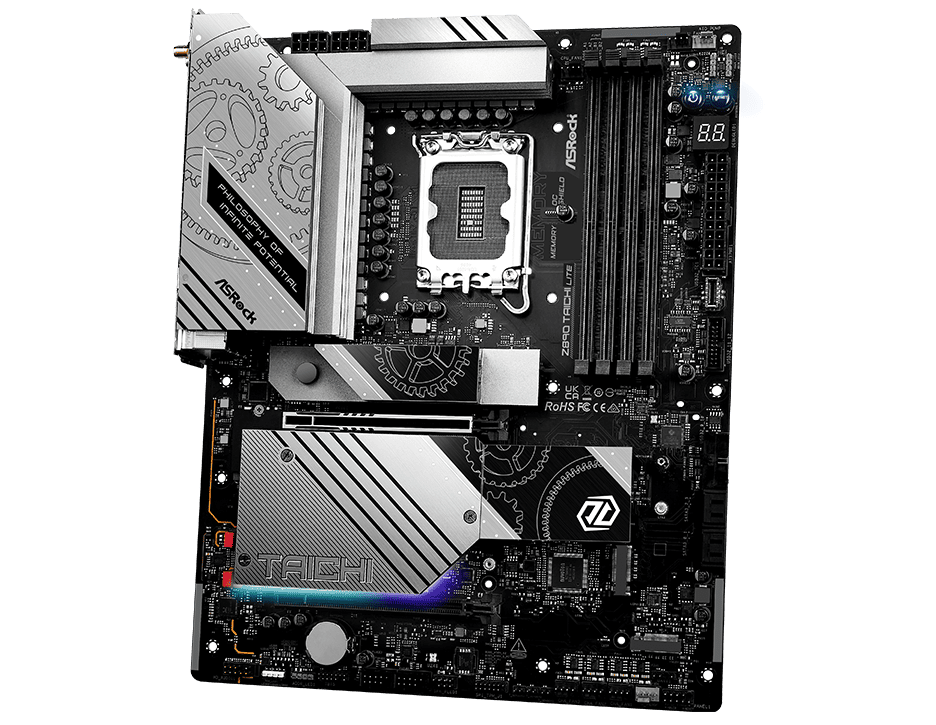

ASRock Z890 Taichi Lite

The Taichi Lite series is simply brilliant, offering top-tier performance in a streamlined, functionality-focused design.

PHILOSOPHY OF INFINITE POTENTIAL

Taichi represents the philosophical state of undifferentiated absolute and infinite potential. A motherboard that fulfills every task – with style! Become like water. Shapeless, formless, versatile for any situation.

Exclusive 20K Cap with 1000uF Capacitance

The upgraded 20K Black capacitor not only extends the lifespan to 20,000 hours but also increases the capacitance value from 560uF to 1000uF, bringing several benefits:

• Higher Capacitance: Greater charge storage for better support under high loads.
• Lower Ripple: Reduced power output fluctuations, improving quality.
• More Stable Output Current: Stable power supply, minimizing voltage impacts.
• Better Performance & System Stability: Increased reliability and consistent performance.

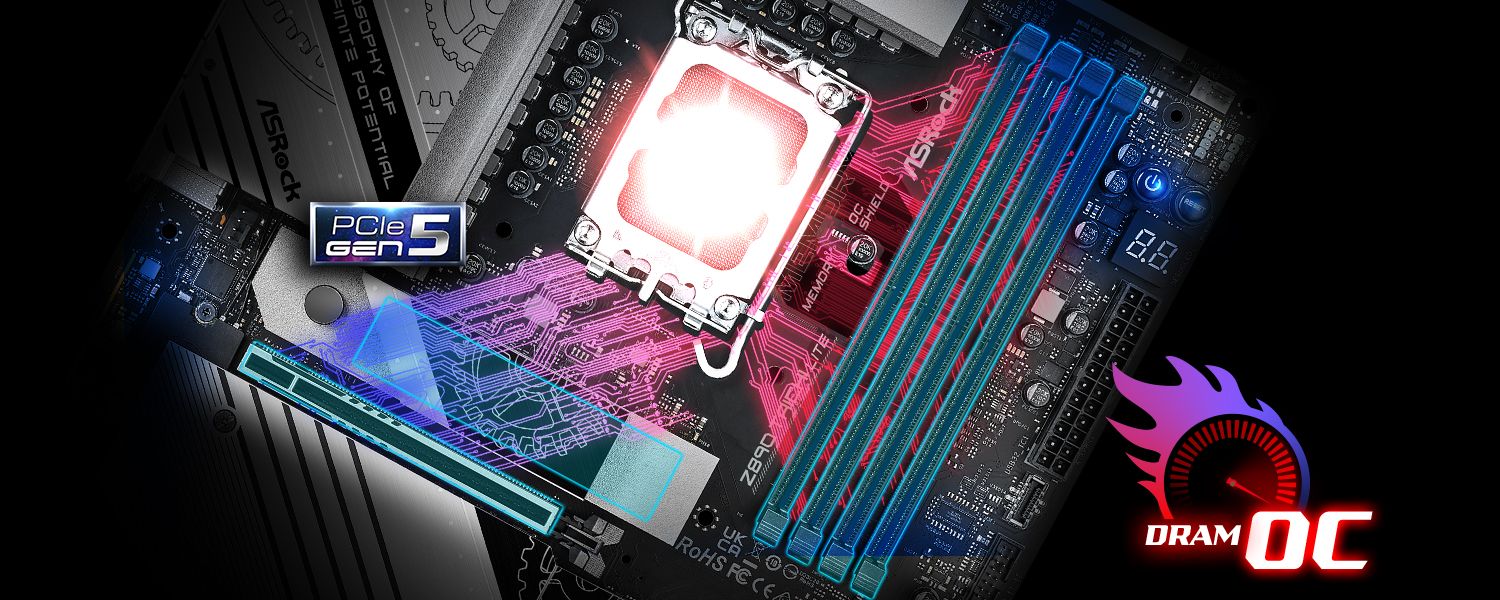

Server Grade Low Loss PCB

The server grade low loss PCB improves signal integrity, allowing motherboard to support PCIe 5.0 for both graphics card and M.2 SSD, it also improves memory OC potential to deliver the most extreme memory performance.

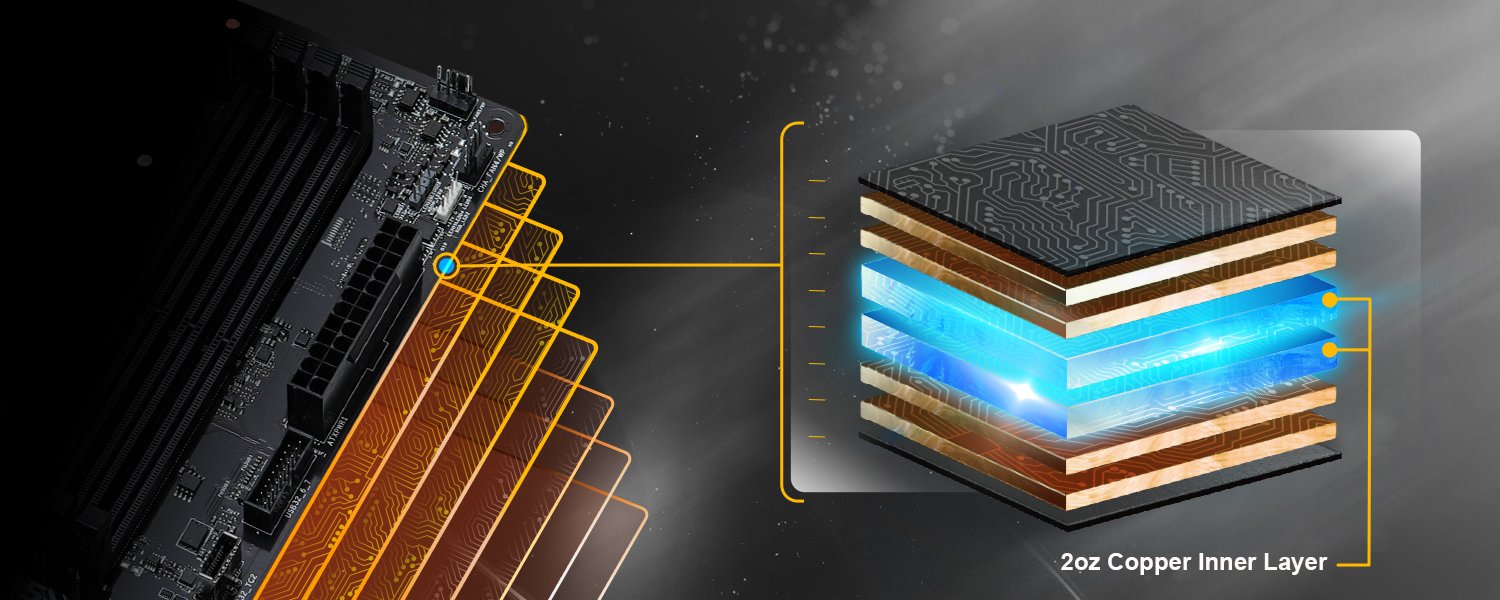

2oz Copper PCB

2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.

Deluxe 6*M.2 Socket

Supports up to 6*NVMe M.2 SSDs and one of which is able to accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed. It is ready to unleash the full potential of future ultrafast SSDs. to give a lightning fast data transferring experience

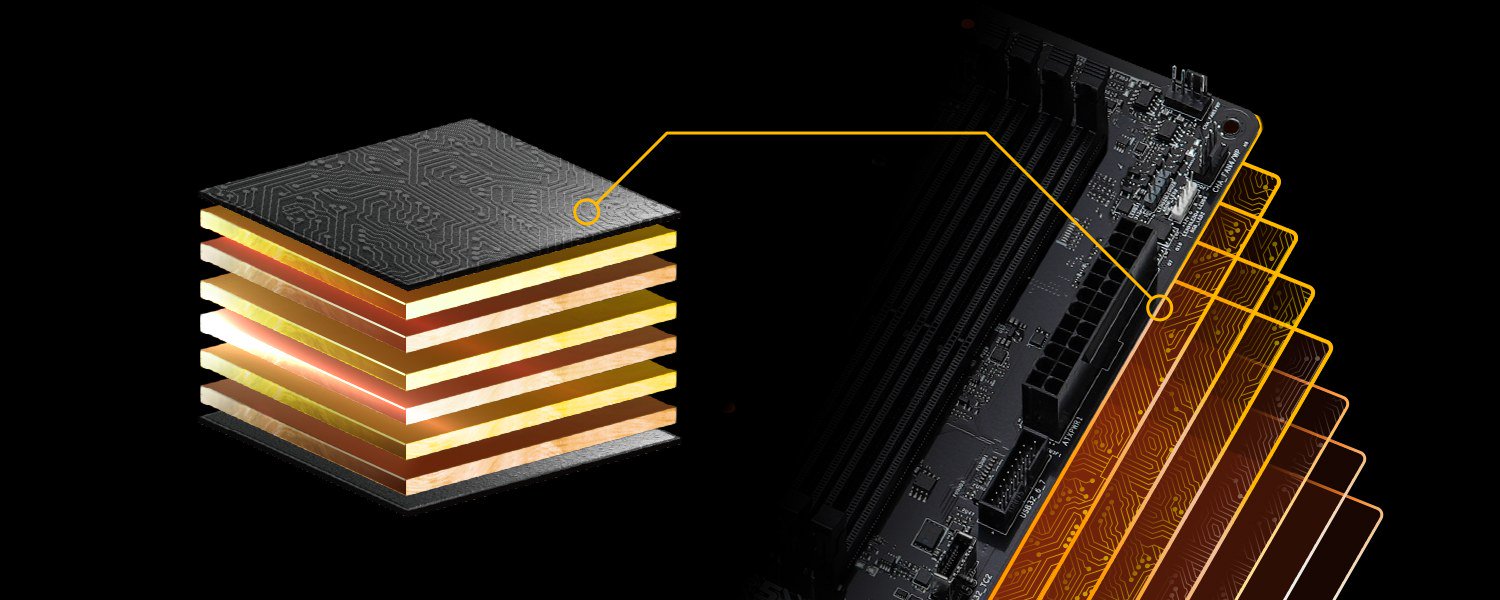

8 Layer PCB

The 8 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, ensures a reliable and long-lasting system while delivering ultimate performance without any compromise.

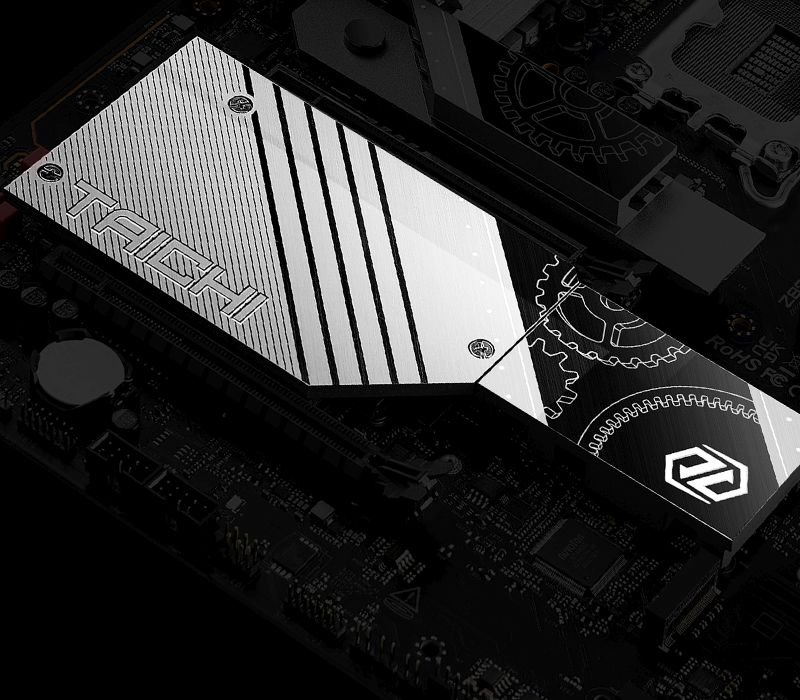

Enlarged M.2 Heatsink

The extra large aluminum alloy M.2 heatsink effectively improves heat dissipation to keep those high speed M.2 SSDs as cool as possible, it is able to give better stability while maintaining top performance.

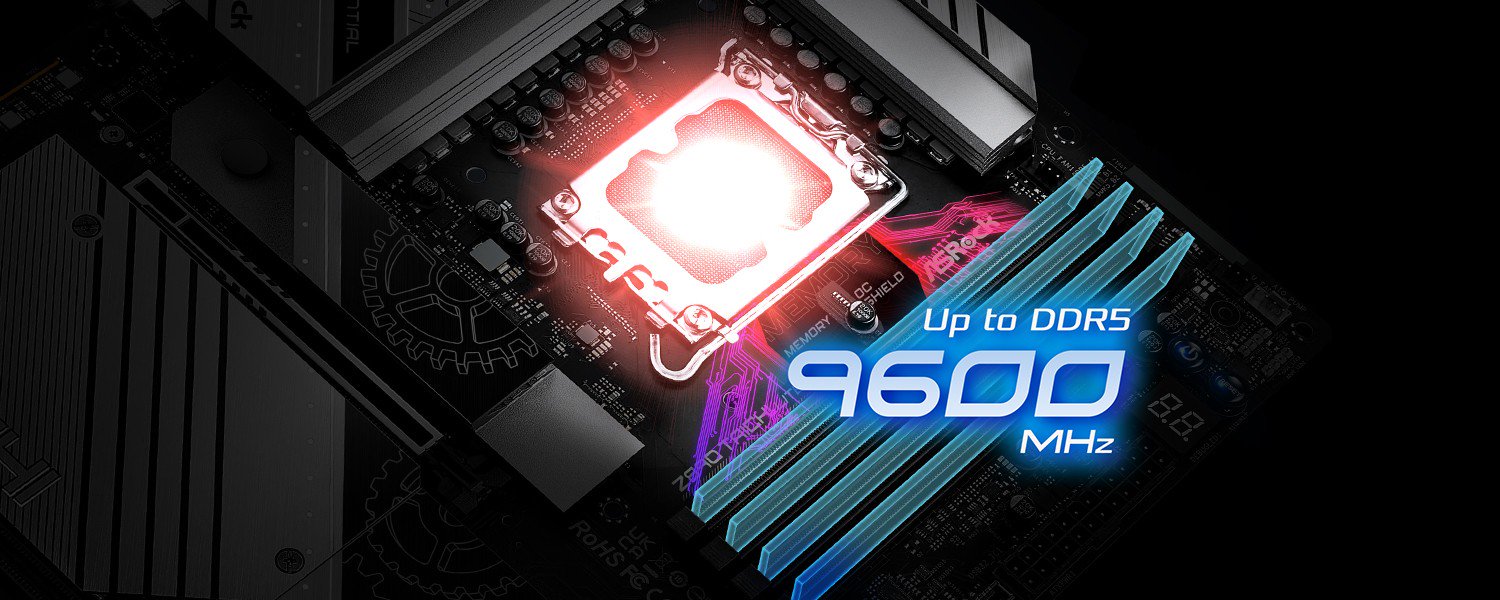

DDR5 XMP & EXPO Support

Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboards is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel^® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

Aluminum Heatsink

The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.

Memory OC Shield

ASRock's exclusive Memory OC Shield is a patented feature engineered to reduce electromagnetic interference (EMI) that could affect memory overclocking. By shielding memory modules from EMI noise and optimizing the layout, the Memory OC Shield enhances stability and reliability during high-frequency operations, enabling users to push their systems to the maximum potential.

Thunderbolt™ 4 Type-C

Thunderbolt™ 4 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast data transfer up to 40Gbps and connects external monitors, Thunderbolt™, and USB devices with a single Thunderbolt 4 cable.
