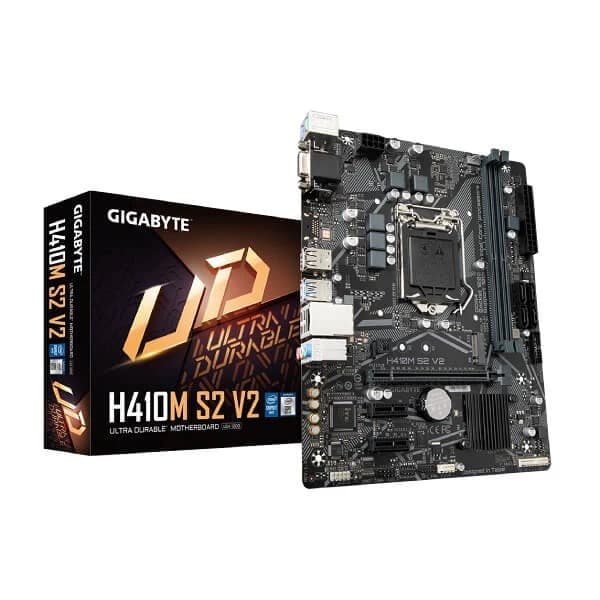

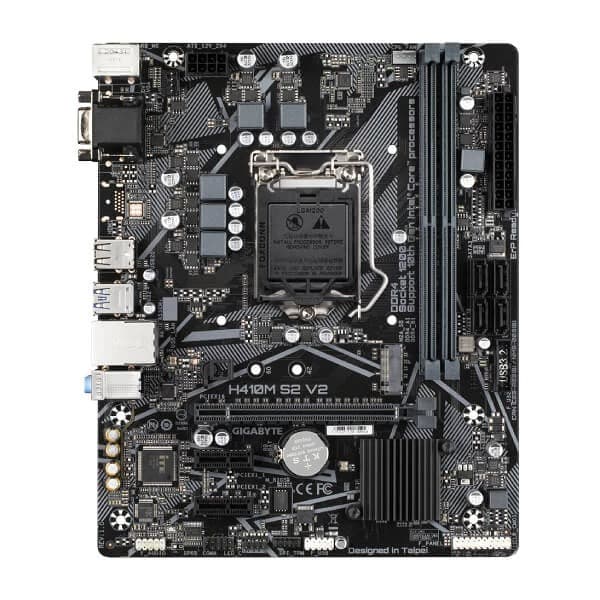

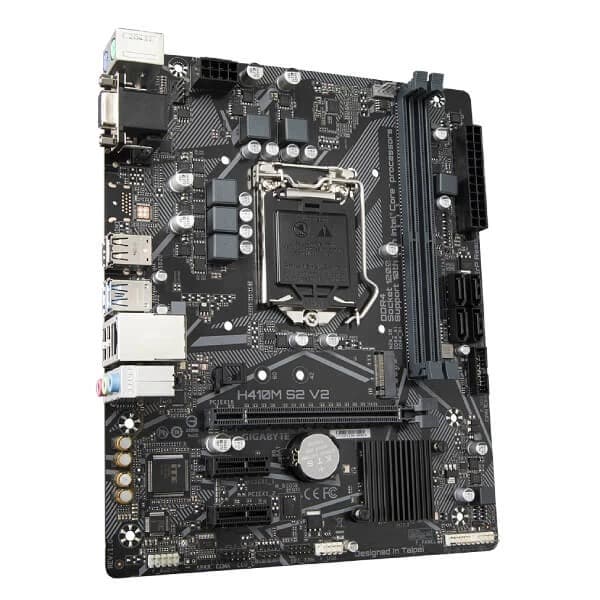

Gigabyte H410M S2 V2 Intel Motherboard

5,545.00

Save 38%
Gigabyte
  • H410M S2 V2 Supports 10th Gen IntelĀ® Coreā„¢ Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • 8-Channel HD Audio with High Quality Audio Capacitors
  • NVMe PCIe Gen3 x4 2280 M.2 Connector
Gigabyte H410M S2 V2 Motherboard 1

5,545.00

Add to cart
Buy Now

Gigabyte H410M S2 V2 Intel Motherboard

Humidity Protection Glass Fabric PCB

There is nothing more harmful to the longevity of your PC than moisture, and most parts of the world experience moisture in the air as humidity at some point during the year. GIGABYTE motherboards have been designed to make sure that humidity is never an issue, incorporating a new Glass Fabric PCB technology that repels moisture caused by humid and damp conditions. Glass Fabric PCB technology uses a new PCB material which reduces the amount of space between the fiber weave, making it much more difficult for moisture to penetrate compared to traditional motherboard PCBs. This offers much better protection from short circuit and system malfunction caused by humid and damp conditions.

High Temperature Protection Lower RDS(on) MOSFETs Design

GIGABYTE motherboards use Low RDS(on) MOSFETs which reduce energy wastage through unnecessary residual heat dissipation. This all amounts to tangible energy savings which are beneficial for both end-users and the environment without impacting system performance.

Features

IntelĀ® Ultra Durable Motherboard with IntelĀ® GbE LAN, Anti-Sulfur Resistor, Smart Fan5
  • Supports 10th Gen IntelĀ® Coreā„¢ Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • 8-Channel HD Audio with High Quality Audio Capacitors
  • NVMe PCIe Gen3 x4 2280 M.2 Connector
  • IntelĀ® GbE LAN with cFosSpeed Internet Accelerator Software
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • All New GIGABYTE H410M S2 V2 APP Center, Simple and Easy Use
  • Anti-Sulfur Resistors Design
Product Type

color

Brands

Motherboard Size

Socket

Chipset

Memory Series

Specification

CPU
  1. Support for 10th Generation IntelĀ®Ā Coreā„¢ i9 processors/IntelĀ®Ā Coreā„¢ i7 processors/IntelĀ®Ā Coreā„¢ i5 processors/IntelĀ®Ā Coreā„¢ i3 processors/IntelĀ®Ā PentiumĀ®Ā processors/IntelĀ®Ā CeleronĀ®Ā processors in the LGA1200 package
  2. L3 cache varies with CPU

(Please refer “CPU Support List” for more information.)

Chipset IntelĀ®Ā H470 Express Chipset
Memory
  1. IntelĀ®Ā Coreā„¢ i9/i7 processors:
    Support for DDR4 2933/2666/2400/2133 MHz memory modules
  2. IntelĀ®Ā Coreā„¢ i5/i3/PentiumĀ®/CeleronĀ®Ā processors:
    Support for DDR4 2666/2400/2133 MHz memory modules
  3. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  4. Dual channel memory architecture
  5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  7. Support for Extreme Memory Profile (XMP) memory modules

(Please refer “Memory Support List” for more information.)

Onboard Graphics Integrated Graphics Processor-IntelĀ®Ā HD Graphics support:

  1. 1 x D-Sub port, supporting a maximum resolution of 1920×[email protected] Hz

Maximum shared memory of 512 MB

Audio
  1. RealtekĀ®Ā Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software.
LAN IntelĀ®Ā GbE LAN chip (1000/100 Mbit)
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16
  2. 2 x PCI Express x1 slots
    (The PCI Express slots conform to PCI Express 3.0 standard.)

Supports up to ASPM L1.2 power management protocols.

Storage Interface
  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
  2. 4 x SATA 6Gb/s connectors
  3. Support for RAID 0, RAID 1, RAID 5, and RAID 10
  4. IntelĀ®Ā Optaneā„¢ Memory Ready

M.2 connectors support up to ASPM L1.2 PCIe power management protocols.

USB Chipset:

  1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 4 x SATA 6Gb/s connectors
  4. 1 x CPU fan header
  5. 1 x system fan header
  6. 1 x RGB LED strip header
  7. 1 x front panel header
  8. 1 x front panel audio header
  9. 1 x USB 3.2 Gen 1 header
  10. 1 x USB 2.0/1.1 header
  11. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  12. 1 x serial port header
  13. 1 x Clear CMOS jumper

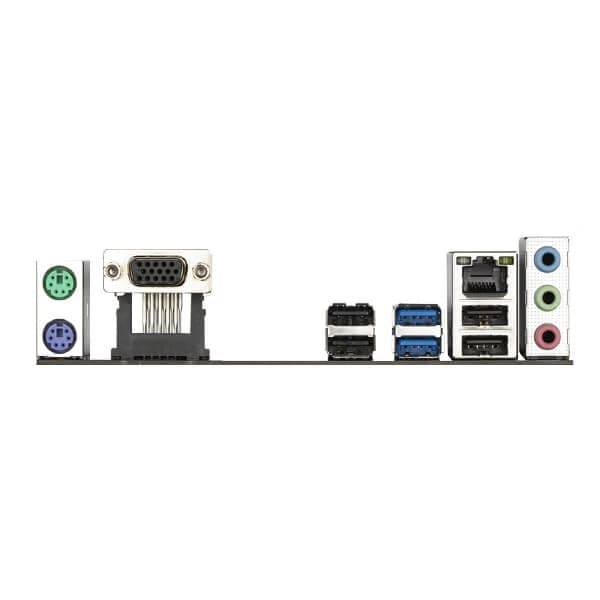

Back Panel Connectors
  1. 1 x PS/2 keyboard port
  2. 1 x PS/2 mouse port
  3. 1 x D-Sub port
  4. 2 x USB 3.2 Gen 1 ports
  5. 4 x USB 2.0/1.1 ports
  6. 1 x RJ-45 port
  7. 3 x audio jacks
I/O Controller iTEĀ®Ā I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Overheating warning
  5. Fan fail warning
  6. Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    Ambient LED
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    Smart Backup
    System Information Viewer
  2. Support for Q-Flash
  3. Support for Xpress Install
Bundled Software
  1. NortonĀ®Ā Internet Security (OEM version)
  2. cFosSpeed
Form Factor Micro ATX Form Factor; 22.6cm x 18.5cm
Warranty 3 Years
Note ***Features, Price and specifications are subject to change without notice.
