Gigabyte B660M Gaming DDR4 Motherboard 1

Gigabyte B660M Gaming DDR4 Intel Motherboard

₹10,879.00

Add to cart

Gigabyte B660M Gaming DDR4 Intel Motherboard

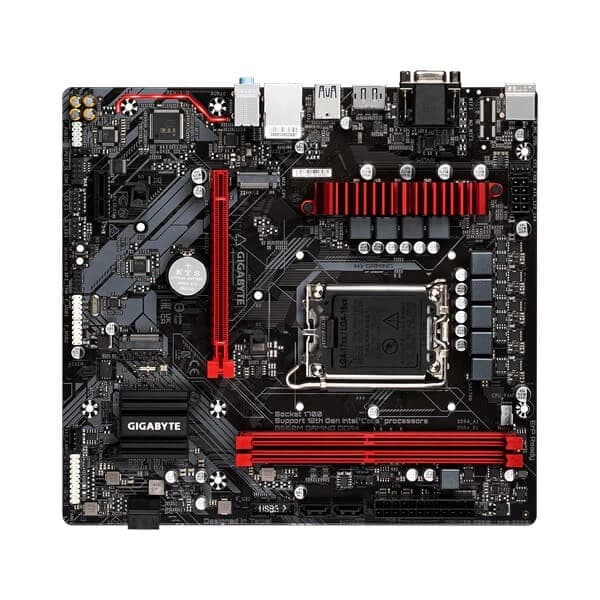

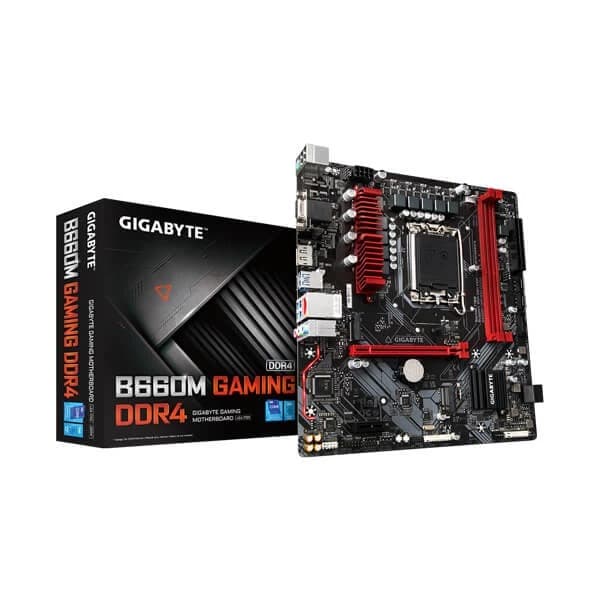

Gigabyte B660M Gaming DDR4 Motherboard 1
Gigabyte B660M Gaming DDR4 Motherboard 2

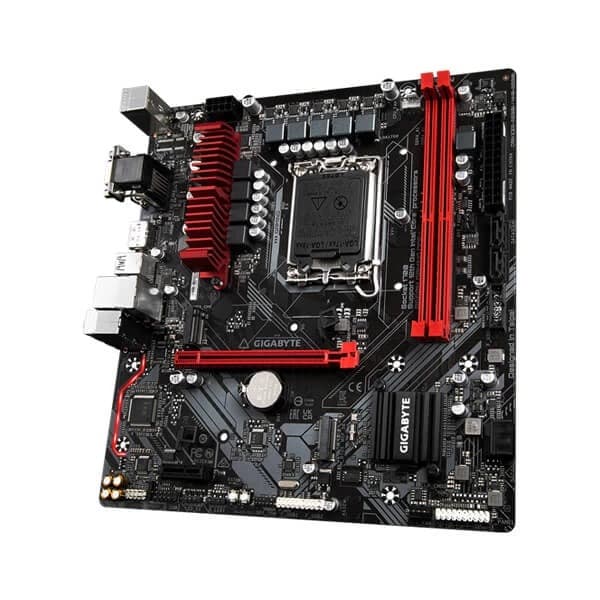

Gigabyte B660M Gaming DDR4 Motherboard 3
Gigabyte B660M Gaming DDR4 Motherboard 4
View details

₹10,879.00

Save 36%
Gigabyte
  • B660M Gaming Supports 12th Gen Intel® Core™ Series Processors​​
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs​​
  • 6+2+1 Phases Hybrid Digital VRM with MOS Heatsink​
  • Fast 2.5 GbE GAMING LAN with Bandwidth Management​​
Gigabyte B660M Gaming DDR4 Motherboard 1

₹10,879.00

Add to wishlist
Add to cart
Buy Now
Add to wishlist
SKU: B660M-GAMING-DDR4 Categories: Tags: Brand:

Gigabyte B660M Gaming DDR4 Intel Motherboard

Features:

Intel® B660M GAMING Motherboard with 6+2+1 Phases Hybrid Digital VRM with MOS Heatsink, 2 x PCIe 4.0 M.2, 2.5GbE LAN, Rear USB 3.2 Gen 1 Type-C®, RGB FUSION 2.0, Q-Flash Plus​​​

  • Supports 12th Gen Intel® Core™ Series Processors​​
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs​​
  • 6+2+1 Phases Hybrid Digital VRM with MOS Heatsink​
  • Fast 2.5 GbE GAMING LAN with Bandwidth Management​​
  • Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2​
  • Rear SuperSpeed USB 3.2 Gen 1 TYPE-C® for Fast and Versatile Connections
  • High Quality Audio Capacitors and Audio Noise Guard​
  • RGB FUSION 2.0 supports Addressable LED & RGB LED Strips​​
  • Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP​​
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card​​

Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.

  • 6+2+1 Phases Low RDS(on) MOSFETs
  • Solid capacitors to improve transient response and minimize oscillation
  • 8-pin Solid Pin CPU Power Connector

GIGABYTE B660M Gaming Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.

Support for DDR4 XMP Up to 5333MHz and Beyond

GIGABYTE B660M Gaming is offering a tested and proven platform that ensures proper compatibility with profiles up to 5333MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard.

Cooling Features:

High Current Support
Each fan headers support PWM and DC fan and Water cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection

Precision Control
Up to 6 temperature/fan speed control points for precise fan curve

Dual Curve Mode
Slope/Stair dual mode for different user scenario

Fan Stop
Fan can stop completely below users’ specified temperature point

New User Interface
All new EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.

My Favorites
Add constantly used items into the favorite menu for quick access.

Storage Information
Show all kinds of storage information including SATA, PCIE and M.2 interface.

Changelog
List all changes before saving and exiting bios. Quickly review overall settings modification.

Intuitive Load Line Curve
Clearly show each loadline calibration setting in an intuitive curve graph.

Product Type

color

Brands

Motherboard Size

Socket

Chipset

Memory Series

Specification

CPU
  • LGA1700 socket: Support for 13th Generation Intel® Core™ Processors and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
  • L3 cache varies with CPU
Chipset Intel® B660 Express Chipset
Memory
  • Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules
  • 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
Audio
  • Realtek® Audio CODEC
  • High Definition Audio
  • 2/4/5.1/7.1-channel
LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots
  • 1 x PCI Express x16 slot, running at x16(The PCIEX16 slot conforms to PCI Express 4.0 standard.)
  • 1 x PCI Express x1 slot
    (The PCIEX1 slot conforms to PCI Express 3.0 standard.)
Storage Interface CPU:

  • 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

  • 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
  • 4 x SATA 6Gb/s connectors

Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10

Intel® Optane™ Memory Ready
USB Chipset:

  • 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
  • 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
  • 2 x USB 2.0/1.1 ports on the back panel

Chipset+2 USB 2.0 Hubs:

4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 3 x system fan headers
  • 1 x addressable LED strip header
  • 1 x RGB LED strip header
  • 2 x M.2 Socket 3 connectors
  • 4 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  • 1 x serial port header
  • 1 x S/PDIF Out header
  • 1 x Q-Flash Plus button
  • 1 x reset button
  • 1 x reset jumper
  • 1 x Clear CMOS jumper

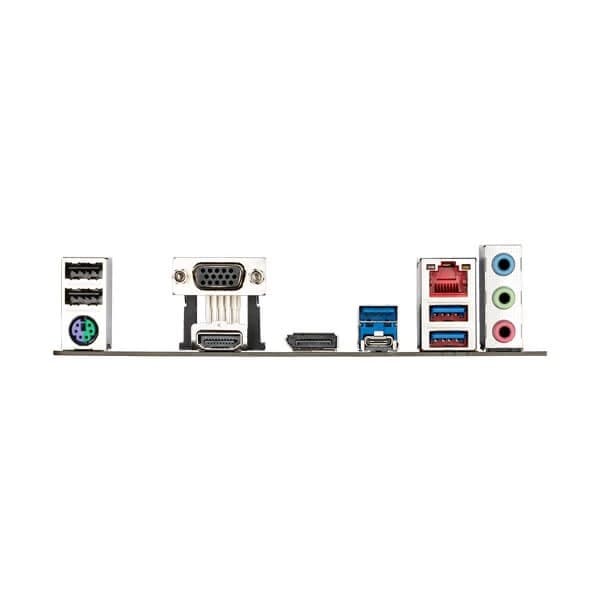

Back Panel Connectors
  • 2 x USB 2.0/1.1 ports
  • 1 x PS/2 keyboard/mouse port
  • 1 x D-Sub port
  • 1 x HDMI port
  • 1 x DisplayPort
  • 3 x USB 3.2 Gen 1 ports
  • 1 x USB Type-C® port, with USB 3.2 Gen 1 support
  • 1 x RJ-45 port
  • 3 x audio jacks
I/O Controller iTE® I/O Controller Chip
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Fan fail warning
  • Fan speed control
BIOS
  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  • Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer

  • Support for Q-Flash Plus
  • Support for Q-Flash
  • Support for Xpress Install
Bundled Software

  • Norton® Internet Security (OEM version)
  • Realtek® Gaming LAN Bandwidth Control Utility
Operating System
  • Support for Windows 11 64-bit
  • Support for Windows 10 64-bit
Form Factor Micro ATX Form Factor; 24.4cm x 22.5cm
Warranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.
