Description

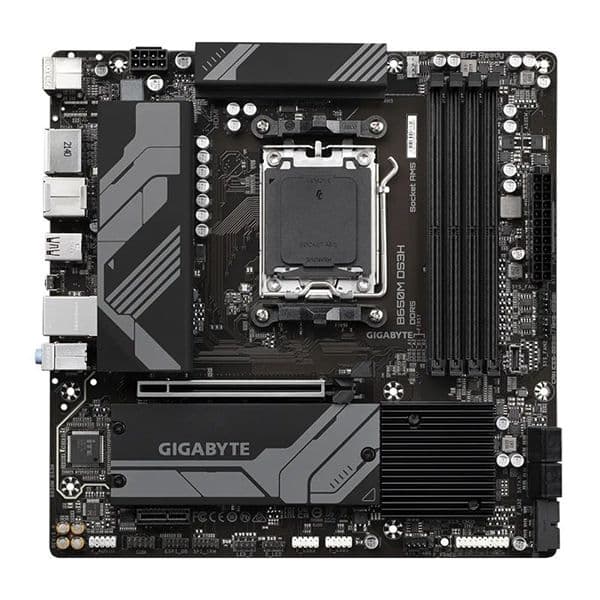

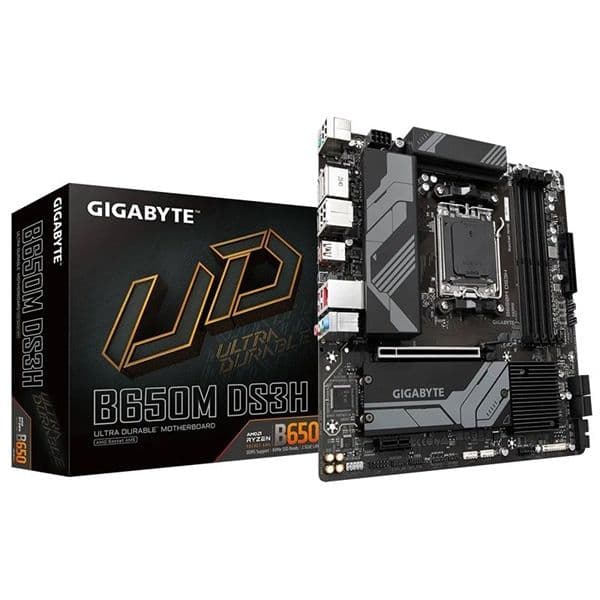

Gigabyte B650M DS3H mATX Motherboard

FEATURES

AMD Socket AM5：Supports AMD Ryzen™ 7000 Series Processors
Unparalleled Performance：Direct 6+2+1 Phases Digital VRM Solution
Dual Channel DDR5：4*SMD DIMMs with AMD EXPO™ & Intel^® XMP Memory Module Support
SuperSpeed Storage：2*PCIe 4.0 x4 M.2 Connectors
Advanced Thermal Design & M.2 Thermal Guard：To Ensure VRM Power Stability & 25110 M.2 SSD Performance
PCIe x16 EZ-Latch with Quick Release & Screwless Design
Fast Networks：2.5GbE LAN
Extended Connectivity：2*DP, HDMI, 2*USB-C^® 10Gb/s
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus： Update BIOS Without Installing the CPU, Memory and Graphics Card

UNPARALLELED PERFORMANCE

With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. Gigabyte B650M DS3H Motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.

THERMAL DESIGN

Gigabyte B650M DS3H Motherboards’ unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.

CONNECTIVITY

Gigabyte B650M DS3H Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage.

PERSONALIZATION

Gigabyte B650M DS3H Motherboards bundle several useful and intuitive software to help users to control every aspect of the motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.

ULTRA-DURABLE

Gigabyte B650M DS3H Motherboards Ultra Durable™ design provides product durability and high-quality manufacturing process. Gigabyte B650M DS3H Motherboards use the best components and reinforce every slots to make each of them solid and durable.

Additional information

Product Type	Gaming
Motherboard Size	MicroATX
Socket	AM5
Chipset	B650
Memory Series	DDR5
Platform	AMD

Specifications

Edition	B650M DS3H
Form Factor	MicroATX
CPU Socket	AM5
Chipset	AMD B650

Memory Type	DDR5
Memory Channel	Dual (2)
Memory Type (ECC)	Non-ECC
Memory Type (R/U)	UDIMM (Unbuffered)
Memory Speed (Mhz)	DDR5 – 4400(OC) DDR5 – 4800 DDR5 – 5200 DDR5 – 5600(OC) DDR5 – 6000(OC) DDR5 – 6200(OC) DDR5 – 6400(OC)
Max. Memory Capacity	128GB

Audio

7.1 Channel HD Audio

Primary GPU Interface	PCIe 4.0 (x16)
NVIDIA SLI Support	N/A
AMD CrossFire Support	N/A
Integrated Graphics	Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors	DisplayPort 1.4 HDMI 2.1

Expansion Slots	2 x M.2, 22-80/110, PCIe Gen4x4 1 x PCIe 3.0 x1 1 x PCIe 4.0 x16 4 x SATA 6GB/s
SATA Support	SATA3
RAID Support via
Storage Mode Support	RAID 0 RAID 1 RAID 10
Internal I/O	1 x 24-pin (Power) 1 x 4-pin CPU Fan Connector 1 x 8-pin (Power) 1 x Addressable Digital RGB Header 1 x Clear CMOS jumper 1 x Front Panel Audio Header 1 x Front Panel Connector 2 x M.2 1 x Reset Button 1 x RGB (RGBW) LED Strip Header 4 x SATA III – 6Gb/s 3 x System Fan header 1 x TPM Header 2 x USB 2.0 Header 1 x USB 3.2 Gen1 Header 1 x USB 3.2 Gen2 Type-C Port

Network Interface Type	Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules	1 x 2.5 Gigabit LAN
Rear I/O Connectors	1 x 10/100/1000/2500 (LAN) 2 x DisplayPort 1.4 1 x HDMI 2.1 1 x Line In 1 x Line Out 1 x Mic-In 1 x PS/2 Keyboard/Mouse Combo 1 x Q-Flash Plus Button 1 x S/PDIF-Out (Optical) 2 x SMA antenna connectors (2T2R) 4 x USB 2.0 2 x USB 3.2 Gen1 Type-A 1 x USB 3.2 Gen2 Type-A 1 x USB 3.2 Gen2 Type-C
