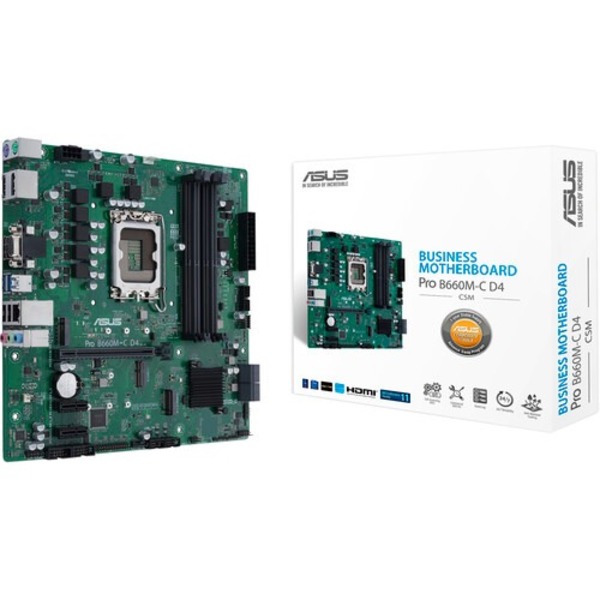

ASUS Pro B660M-C D4-CSM Micro-ATX Motherboard Supports Intel 12th, 13th & 14th Gen Processors

ASUS Pro B660M-C D4-CSM LGA 1700(Intel 12th Gen) Micro-ATX Commercial Motherboard (PCIe 4.0, DDR4,2xM.2 Slots,Front USB 3.2 Type-C,TPM 2.0 IC onboard,Mono-Out Header(with Amp IC), SMBUS Header,ACCE)

Feature

Micro-ATX B660 business motherboard with enhanced security, reliability, manageability and serviceability

ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.

ASUS Corporate Stable Model

ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS Pro CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.

Optimize IT endpoint management

Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely

Automate IT maintenance

Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility

Securely manage all of endpoints

Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices

Internationally Certified Business Motherboard

ASUS Business motherboards are enterprise proven with leading quality that exceeds industry standards. Certified by multiple international safety and environmental organizations, ASUS Business motherboards provide a safe, secure and sustainable solution, making them the ideal choice for your business.

PCIe 4.0

This business motherboard is specially designed for 12th Gen Intel Core processors and offer PCIe 4.0 connectivity for storage devices and graphics cards. Wide bandwidth and superfast transmission speeds empower you to create feature-rich builds that deliver optimal performance wherever it's needed.

ASUS Self-recovering BIOS

ASUS-exclusive BIOS protection technology automatically recovers the system BIOS with a verified backup in the event of an update failure, preventing the need to replace or reinstall hardware.

Trusted Platform Module(TPM)

Hardware-based security offers better data protection, enhances network security, protects digital identities and ensures platform integrity.

Certified NIST SP 800-147

ASUS Business motherboard is certified by the national computer security standards.

ASUS Secure Boot

ASUS business motherboard is set to check the firmware and signature of each piece of boot software.

ASUS Self-recovering BIOS

With ASUS Self-recovering BIOS

The user simply needs to reboot the system and ASUS Self-recovering BIOS will restore the latest BIOS update. • Ensures safe BIOS updates • Reduces maintenance frequency and costs • Requires no extra software • Provides automatic update failure detection and recovery

Standard process for BIOS update crash recovery

The user must go through the following steps to reinstall the BIOS update

ASUS Reliant

Ensures consistent performance with the finest components and rigorous reliability testing Finest Components

Anti-moisture Coating. Protection against moisture and corrosion

An innovative moisture-resistant coating protects the motherboard in humid environments, such as factories, libraries, data centers and internet cafes. It also minimizes internal corrosion by preventing adhesion and migration of moisture, prolonging the life of the motherboard.

Anti-sulfur Resistors

Consider long-term reliability of commercial product, ASUS Pro Business motherboard is equipped with anti-sulfur resistors. The resistors provide excellent resistance to sulfuration by constructed in a high grade ceramic body (aluminum oxide). With anti-sulfur resistors, ASUS Pro Business motherboard can be operated under the harsh environments.

Stainless-Steel Back I/O. 3X corrosion-resistance for greater durability

Corrosion-resistant stainless steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.

Solid Design

Overvoltage Protection. World-class circuit-protecting power design

An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies.

ESD Guards. Electrostatic discharge protection

ASUS Pro ESD Guards prevent damage from electrostatic discharge, up to +/- 10kV for air discharge and +/-15kV for contact discharge, arranged in an active-protective-circuit design that prolongs the life of components.

LANGuard. Pumped-up throughput. 2.5X higher surge tolerance.

ASUS Pro LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors ensuring a more reliable connection and better throughput, plus electrostatically guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges. Rigorous Testing

24/7 Reliability Test

Optimized for twenty-four seven operations, the motherboard is tested under temperature up to 45 Degree C and relative humidity up to 80% to ensure it can handle diverse temperature and humidity range of different location.

ASUS Pro Management Suite

Make IT work more efficiency!

Event Log

A built-in event log enables easier troubleshooting by capturing useful system information

BIOS updates

Update status, latest version and update time

AC power loss

Abnormal power loss events

RTC reset

Time of real-time-clock (RTC) reset

Chassis intrusion

Record of when chassis is opened

Hardware changes

Modifications to CPU, memory or HDDs

Hardware status

USB over current, CPU over temperature, and CPU over voltage events

ASUS Serviceability

Facilitate the assembly process and enable efficient troubleshooting

Q-LED

The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.

COM Debug header

This 6-1 pin COM debug header allows for faster and more efficient motherboard troubleshooting. IT administrators can view error and debugging codes to get a better idea of initialization and recovery processes when connecting to a debug card.

Box headers

All USB headers are box style, enabling fast connector installation and preventing pin damage.

Fixed-position Connectors

Connector positions on ASUS Business motherboards remain consistent across product generations, protecting training, manufacturing and investments in supporting hardware. Features Intel' LGA 1700 socket Ready for 12th Gen Intel Core processors ASUS Pro CSM program A stable motherboard supply, end-of-life notifications, and IT software for business motherboards ASUS Pro Control Center Express Integrated IT monitoring and management software that simplifies enterprise-level system administration Enhanced system security A self-recovering BIOS and TPM to safeguard PCs Consistent and reliable performance High-quality components and rigorous testing to help ensure durability in harsh environments Efficient management and customization An event log and commercial BIOS kit to enable easy maintenance Better serviceability Q-LED diagnostic display and COM debug header to facilitate building and support processes
