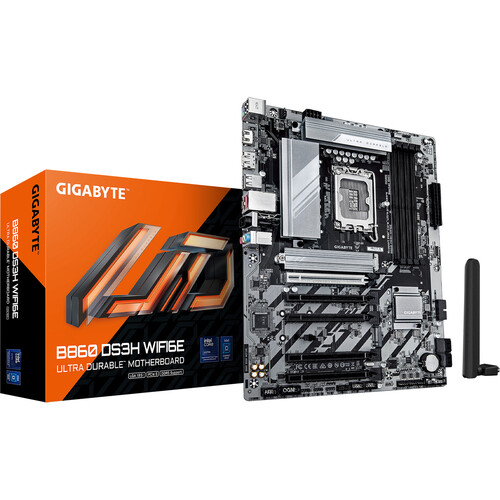

Gigabyte B860 DS3H WIFI6E LGA 1851 ATX Motherboard
SKU: B860-DS3H-WIFI6E
users viewing this item right now
₹28000
₹15994
Save Extra
Availability
In Stock
- ATX Form Factor
- Intel B860 Chipset
- LGA 1851 Socket
- 4 x Dual-Channel DDR5 Slots
- 1 x PCIe 5.0 x16 with PCIe UD Slot
- 4 x PCIe 4.0 x1
- 4 x SATA III | 3 x M.2
- 2.5GbE LAN | Wi-Fi 6E | Bluetooth 5.4
- EZ-Latch Plus and Plug
- Support for Windows 11 (64-Bit)
Key Features
CPU
| Chipset | Intel B860 |
| CPU Socket | LGA 1851 |
Back Panel I/O
| USB | 1x USB-C (USB 3.2 Gen 2x2) 1x USB-A (USB 3.1/3.2 Gen 2) 4x USB-A (USB 2.0) |
| Thunderbolt | No |
| Display | 1x DisplayPort Output 1x HDMI Output |
| Audio | 3x 1/8" / 3.5 mm |
| Ethernet / Controller | 1x Realtek 2.5Gigabit |
| Wi-Fi Antenna | 1x Connector |
Memory
| Memory Slots | 4x 288-Pin |
| Memory Support | DDR5 5600, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600, 8800, 9066 MT/s |
| Maximum Capacity | 256 GB |
| Channel Architecture | Dual Channel |
| ECC Support | Non-ECC, ECC Unbuffered |
Storage Expansion
| SATA | 4x SATA III |
| Storage Slots | 1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 5.0 x4, PCIe 5.0 x2) 1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 4.0 x4, PCIe 4.0 x2) |
| Optane Memory Support | No |
| RAID Support | RAID 0, 1, 5, 10 (SATA) |
Internal I/O
| Expansion Slots | 1x PCIe 5.0 x16 4x PCIe 4.0 x1 |
| USB | 1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port) 1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-A Port) 2x USB 2.0 Header (Supports 4 USB-A Port) |
| Air Cooling | 1x 4-Pin CPU 2x 4-Pin System |
| Liquid Cooling | 3x 4-Pin Pump |
| Power Connectors | 1x 24-Pin Mainboard 1x 8-Pin CPU |
| Security | TPM Header |
| LED Header | 4x RGB |
| Audio | No |
| Diagnostics | Clear CMOS, Flash BIOS, Reset |
| Legacy | 1x Serial |
BIOS
| ROM | 256 Mb |
Front Panel I/O
| Front Panel I/O | USB 3.0 / 3.1/3.2 Gen 1 |
Audio
| Audio Codec | Realtek (7.1-Channel) |
| DAC | No |
Wireless
| Wi-Fi | Wi-Fi 6E (802.11ax) with MU-MIMO Support |
| Bluetooth | 5.3 |
Software
| OS Compatibility | Windows 11 (64-Bit Only) |
Physical
| Form Factor | ATX |
Color
Black
Brands
Gigabyte
Socket
LGA 1851
Chipset
B860
Platform
Intel
Warranty
3 Years
Ean-Upc-Code
4719331867515
Memory-Series
DDR5
Motherboard-Size
ATX
Motherboard-Series
Gigabyte Ultra Durable
