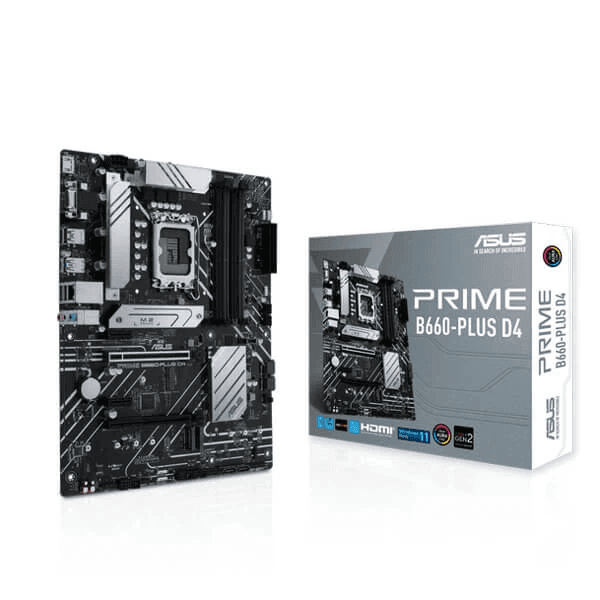

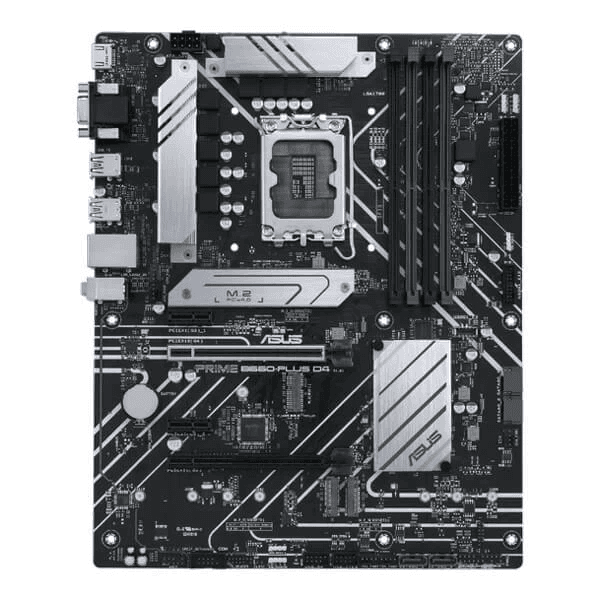

Asus Prime B660-PLUS D4 Intel Motherboard Supports Intel 12th, 13th & 14th Gen Processors
- Intel® LGA 1700 socket: B660-PLUS D4 Ready for 12th Gen Intel® processors
- Ultrafast connectivity: PCIe 4.0 slots, three M.2 slots, rear USB 3.2 Gen 2×2 Type-C®, front USB 3.2 Gen 1 Type-C®, Realtek 2.5Gb Ethernet and Thunderbolt™ 4 header support
- Comprehensive cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability
... people are viewing this right now
Original price was: ₹16,000.00.₹14,599.00Current price is: ₹14,599.00.
Out of stock
Email when stock available
- ASUS PRIME B660-PLUS D4 ATX motherboard is designed to support latest 12th Gen Intel CPU’s with LGA 1700 socket, Pentium Gold and Celeron Processors with B660 Intel Chipset.
- B660-PLUS D4 board is built with PCIe 3.0 Ready supporting 4 x DIMM, up to 128GB DDR4 5000MHz(OC) of memory and Intel Turbo Boost Technology to push your experience to its peak.
- Equipped with the next-gen Turbo boost max technology of PCIe 3.0, Three M.2 slots(PCIe 4.0), Realtek 2.5Gb Ethernet, USB 3.2 Gen 2×2 Type-C, Two USB 3.2 Gen 2 Type-A, USB 3.2 Gen1 Type-A, Two USB 2.0 Type-A, front panel USB 3.2 Gen 1, Two USB 2.0, Four SATA 6Gb/s, HDMI, DP, D-Sub and Thunderbolt 4 support.
- Comes with most comprehensive cooling options ever that are configurable via Fan Xpert 4 or the UEFI BIOS. It employs VRM heatsink, PCH heatsink and hybrid fan headers. We adapted our SMT manufacturing process for the faster SafeSlot, to ensure the highest data speeds. SafeSlot is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed.
PRIME B660-PLUS D4 programmed with Q-LED Core display, that produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.
It is also have a handful features like Overvoltage Protection, DRAM Overcurrent Protection, Stainless-Steel Back I/O and LANGuard.
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS Prime series. The Prime B660 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
All-Around Energy Efficiency
The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.
All-Around Energy Efficiency
The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.
M.2 Heatsink
M.2 heatsink wards off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws.
Features:
Intel® B660 (LGA 1700) ATX motherboard with 8 power stages, PCIe 4.0 slots, three M.2 slots, Realtek 2.5Gb Ethernet, DisplayPort, HDMI®, D-Sub, rear USB 3.2 Gen 2×2 Type-C®, front USB 3.2 Gen 1 Type-C®, Aura Sync
Intel® LGA 1700 socket: B660-PLUS D4 Ready for 12th Gen Intel® processors
Ultrafast connectivity: PCIe 4.0 slots, three M.2 slots, rear USB 3.2 Gen 2×2 Type-C®, front USB 3.2 Gen 1 Type-C®, Realtek 2.5Gb Ethernet and Thunderbolt™ 4 support
Comprehensive cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability
| CPU | Intel® Socket LGA1700 for 13th and 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel® B660 Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR4 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered memory* " Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem 4 x DIMM, Max. 128GB, DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered memory*" Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem |
| Graphics | 1 x DisplayPort** 1 x D-Sub port 1 x HDMI® port*** *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. ***Supports 4K@60Hz as specified in HDMI 2.1. **** VGA resolution support depends on processors' resolution. 1 x DisplayPort** 1 x D-Sub port 1 x HDMI® port*** *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. ***Supports 4K@60Hz as specified in HDMI 2.1. **** VGA resolution support depends on processors' resolution. |
| Expansion Slots | Intel® 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel® B660 Chipset* 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots * Supports Intel® Optane Memory H Series on PCH-attached PCIe slot Intel® 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel® B660 Chipset* 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots * Supports Intel® Optane Memory H Series on PCH-attached PCIe slot |
| Storage | Intel® 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Intel® 12th Gen processors support PCIe 4.0 x4 mode. Intel® B660 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)** M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots. Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Intel® 12th Gen processors support PCIe 4.0 x4 mode. Intel® B660 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)** M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH |
| Ethernet | ASUS LANGuard 1 x Realtek 2.5Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth | *Wi-Fi module is sold separately. M.2 slot only (Key E, CNVi & PCIe)* *Wi-Fi module is sold separately. |
| USB | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Rear USB (Total 6 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback - Audio Features - Audio Shielding - Power pre-regulator reduces power input noise to ensure consistent performance - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Power pre-regulator reduces power input noise to ensure consistent performance - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Back Panel I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x D-Sub port 1 x HDMI® port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x D-Sub port 1 x HDMI® port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks |
| Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ header Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ header |
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - Enhanced DRAM Overcurrent Protection - ESD Guards - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design AURA Sync - AURA RGB headers - Addressable Gen 2 headers ASUS 5X PROTECTION III - DIGI+ VRM - Enhanced DRAM Overcurrent Protection - ESD Guards - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design AURA Sync - AURA RGB headers - Addressable Gen 2 headers |
| Software Features | ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 2+ AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM ASUS CPU-Z Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 2+ AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM ASUS CPU-Z WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | 128 Mb Flash ROM, UEFI AMI BIOS |
| Accessories | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 Rubber Package 2 x M.2 SSD screw packages 1 x M.2 Key E screw package Installation Media 1 x Support DVD Documentation 1 x User guide Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 Rubber Package 2 x M.2 SSD screw packages 1 x M.2 Key E screw package Installation Media 1 x Support DVD Documentation 1 x User guide |
| Form Factor | ATX 30.5cm x 24.4cm |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
| Brands | |
|---|---|
| Product Type | |
| Socket | |
| Chipset | |
| Motherboard Size | |
| Memory Series | |
| Platform | |
| Motherboard Series | |
| EAN / UPC Code |
