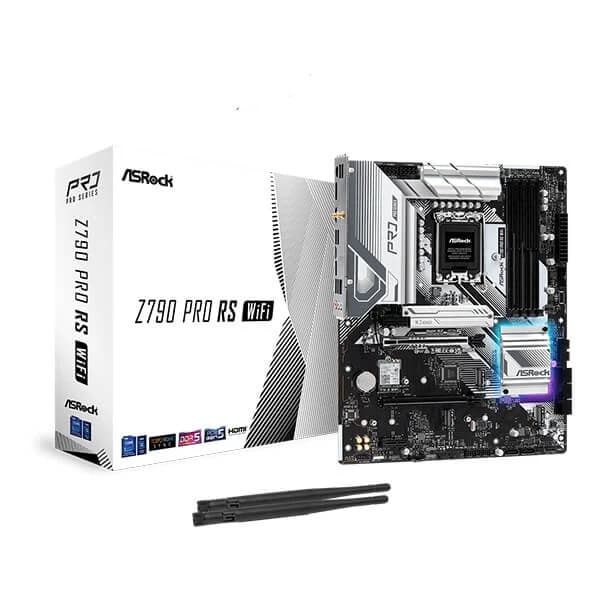

ASRock Z790 Pro RS WiFi Motherboard Supports Intel 12th , 13th & 14th Gen Processors

Features:

• Supports 14th, 13th & 12th Gen Intel® Core™ Processors
• 14+1+1 Phase Power Design, Dr.MOS for VCore+GT
• 4 x DDR5 DIMMs, supports up to 7200+(OC)
• 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 2 PCIe 3.0 x1
• Graphics Output Options: 1 HDMI, 1 DisplayPort, eDP
• 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
• 4 Hyper M.2 (PCIe Gen4x4), 8 SATA3
• 1 USB 3.2 Gen2x2 Type-C (Front), 1 USB 3.2 Gen2 Type-C (Rear), 1 USB 3.2 Gen2 Type-A (Rear), 6 USB 3.2 Gen1 (2 Rear, 4 Front), 8 USB 2.0 (4 Rear, 4 Front)
• Realtek 2.5G LAN
• 802.11ax Wi-Fi 6E + Bluetooth

• Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard.
• Its unique path takes aim at mainstream DIYers that drives an undeniable performance and trustable computing experience without a pricey upgrade
• RaceSport edition, your all-rounder motherboard that fulfills every task and light-loading gaming – with style and speed!

Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

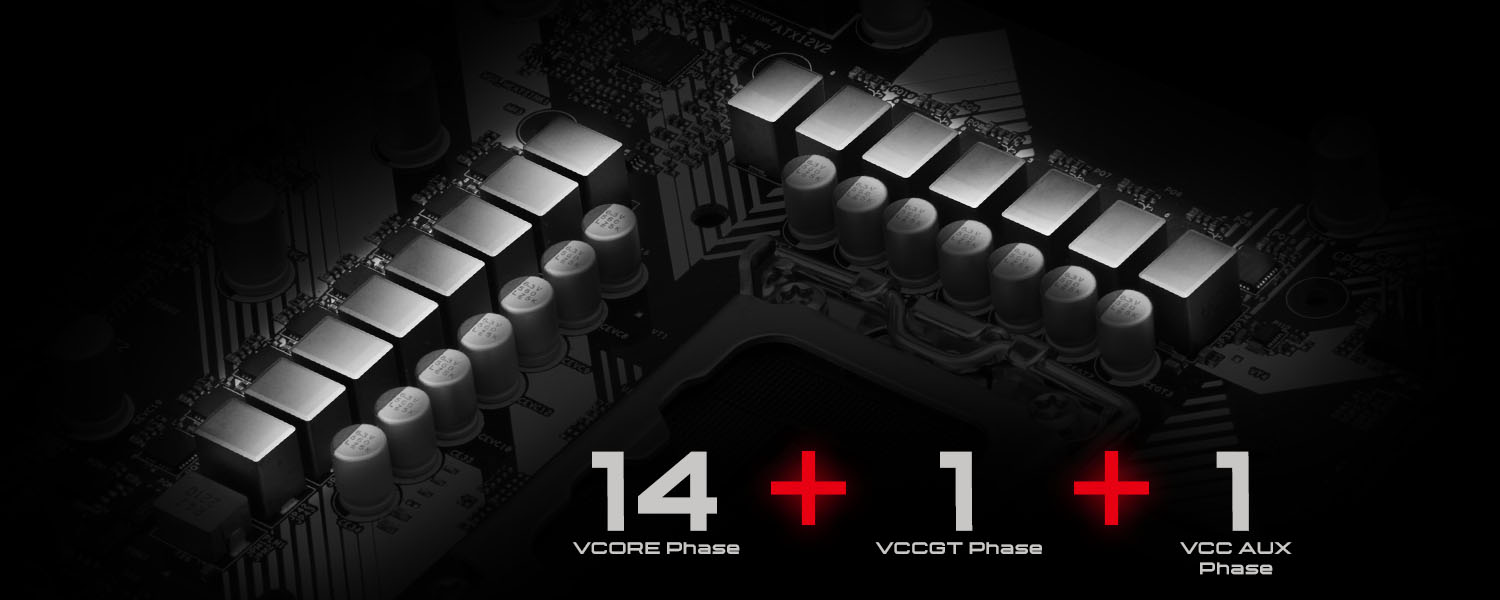

14+1+1 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

 6 Layer PCB

The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!

2oz Copper PCB

2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.

DDR5 XMP & EXPO Support

Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboards is built with low-loss materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel^® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

* There are certain risks involved with memory overclocking and may affect your system’s stability. Please realize that overclocking should be done at your own risk and expense. EXPO/XMP profile support may vary by different system configuration, memory modules and motherboard models. Please refer to Memory QVL for the completed support list.

DDR5 Memory with Protection Circuit

Due to the unique electrical architecture of DDR5 DIMM, there’s a high risk of damaging the memory module if AC power isn’t disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module.

PCIe 5.0 + Surface-Mount Tech

Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard. The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.

Reinforced Steel Slot [PCIe 5.0 Version]

The reinforced steel slot is capable of supporting PCI Express 5.0 standard. The various benefits include: ✔ Extra anchor points ✔ Stronger latch ✔ Ensure signal stability ✔ Make sure heavy graphics cards to be well-installed.

Nahimic Audio

Audio That Matters

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

Enhance Communication Quality

The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue. ●Static Noise Suppression ●Echo Cancellation ●Lateral Sound Cancellation ●Voice Stabilizer

Ultimate Gaming Experience

●Sound Tracker The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game. ●Works on any devices! Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.

POLYCHROME RGB

In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

High Speed M.2 Solution

• PCIe Gen4 x4 for SSD
• Anti-Drop Screw

Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Dragon 2.5 Gb/s LAN

The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

Wireless Networking

Wi-Fi 6E 802.11ax

WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.

*The availability of Wi-Fi 6E (6GHz) may vary between different countries.

Front USB 3.2 Gen2x2 Type-C

The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.

Dual USB 3.2 Gen2 (Type-A + Type-C)

This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.

*Charge speed may vary due to controller protocol, please make sure your device can support 3.0A charging.

Built in eDP Signal Connector

Supports ASRock 13.3” Side Panel kit

An eDP signal connector is built with ASRock selected motherboards and supports two functions simultaneously - power and transmission of digital display signal. The connector reserves the room for upgrading with ASRock’s exclusive 13.3” Side Panel Kit.. The ideal 13.3" Side Panel size will be perfectly matched standard form factor chassis and users can easily build a LCD display inside the PC, adding a sub-screen for monitoring PC status, or watching videos, doing streaming or working personalized tasks. This whole new concept of customization enables new possibilities for personalizing designs - doubles productivity or entertainment.

*ASRock 13.3” Side Panel kit is not included on motherboard package.

M.2 Key-E Module Cap

SMA cable is easy to loose, this is an unacceptable situation for every users. Now we fixed this issue with a little Key-E module cap.

EZ Setting

Auto Driver Installer

Optical drive or driver DVD is no longer needed! ASRock motherboard already has its Ethernet driver prepacked in BIOS ROM, once finish installing the operation system, simply follow the instructions and allow ADI to download and install all necessary drivers automatically!

BIOS Flashback

Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.
