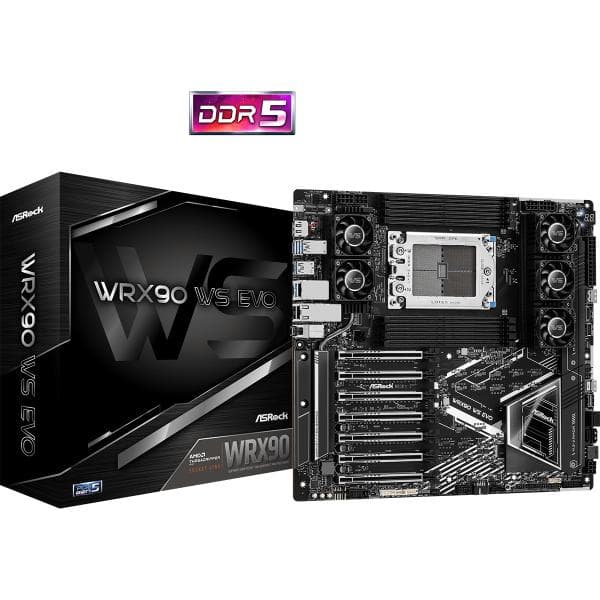

ASROCK WRX90 WS EVO MOTHERBOARD
SKU: ASROCK-WRX90-WS-EVO
users viewing this item right now
₹194999
₹95795
Save Extra
Availability
In Stock
ASROCK WRX90 WS EVO MOTHERBOARD
ASROCK WRX90 WS EVO MOTHERBOARD
Dependable and Versatile Workstations Motherboard.
Designed to deliver powerful performance, manageability and reliability for high speed computing workstations.
- ASROCK WRX90 WS EVO Supports AMD Ryzen™ Threadripper™ PRO 9000/7000 WX-Series Processors
- 18+3+3 Power Phase Design, 110A SPS Design for VCore
- 8 x DDR5 DIMMs Supports Eight Channel ECC Registered memory, up to 7600+ (OC)
- 7 PCIe 5.0 x16
- Realtek ALC1220 7.1 CH HD Audio, Nahimic Audio
- 4 SATA3, 1 Blazing M.2 (PCIe Gen5x4), 1 Hyper M.2 (PCIe Gen4x4), 2 MCIO Connector (PCIe Gen5x4/ 4 SATA3), 1 SlimSAS SFF-8654 Connector (PCIe Gen4x4) 1 SlimSAS SFF-8654 Connector (PCIe Gen4x4/ 4 SATA3)
- 2 USB4 Type-C (Rear) 1 USB 3.2 Gen2x2 Type-C (Front) 4 USB 3.2 Gen2 Type-A(Rear) 4 USB 3.2 Gen1 (2 Rear, 2 Front) 4 USB 2.0 (4 Front)
- Intel® X710 dual 10G LAN, 1 Dedicated IPMI LAN
Key Features
| Category | Details |
|---|---|
| Unique Features | - PCIe Gen5 for Graphics & M.2- USB4 Type-C (40Gb/s)- Eight Channel DDR5 Support- 18+3+3 Phase 110A SPS VCore Power- Dual Intel® 10G LAN |
| CPU Support | - AMD Ryzen™ Threadripper™ PRO 9000/7000 WX-Series (Socket sTR5)- Hyper BCLK Engine- Adaptive Boost, TVB, NPU Support |
| Chipset | AMD WRX90 |
| Memory Support | - 8× DDR5 DIMMs (ECC Buffered RDIMM/3DS)- Up to 2TB, up to 7600+ MHz OC- Eight Channel Architecture- XMP support- Sleep mode supported with 1/2/4 DIMMs |
| Graphics | - Aspeed AST2600 BMC Controller- 1× DisplayPort 1.1a (1920x1200 @ 60Hz, no audio) |
| Audio | - 7.1 CH HD Audio (Realtek ALC1220)- Nahimic Audio- Separate PCB layers for L/R audio- Impedance Sensing, Gold Audio Jacks |
| LAN | - Dual Intel® X710-AT2 10G LAN (100M to 10G)- Realtek RTL8211F Dedicated IPMI LAN |
| Expansion Slots | - 7× PCIe 5.0 x16 (x16/x16/x16/x16/x16/x8/x16)- 15μ Gold Contacts in VGA PCIe Slots |
| Storage Options | - 1× Blazing M.2 (Gen5x4, 128Gb/s)- 1× Hyper M.2 (Gen4x4)- 2× MCIO (PCIe Gen5x4 or 4x SATA3)- 1× SlimSAS Gen4x4 + 4× SATA3- RAID 0/1/10 NVMe & SATA |
| USB Ports | - Rear: 2× USB4 Type-C (40Gb/s), 4× USB 3.2 Gen2, 2× USB 3.2 Gen1- Front: 1× USB 3.2 Gen2x2 Type-C, 2× USB 3.2 Gen1, 4× USB 2.0 |
| Cooling & Fan | - 1× CPU Fan (1A), 1× CPU/Water Pump (2A), 3× Chassis/Water Pump (2A)- Thermistor, Fan Auto Detection, Smart Fan Speed Control |
| Power Connectors | - 1× 24-pin ATX, 1× 3-pin ATX, 2× 8-pin ATX 12V (for board), 2× 6-pin PCIe 12V (for board), 2× 6-pin GFX 12V (for GPUs) |
| Internal I/O | - 2× SGPIO, IPMI, PSU/BMC SMBus, COM, Front VGA, NMI Button, Debug LED, Reset, Power, Clear CMOS, RGB + 2× ARGB Headers |

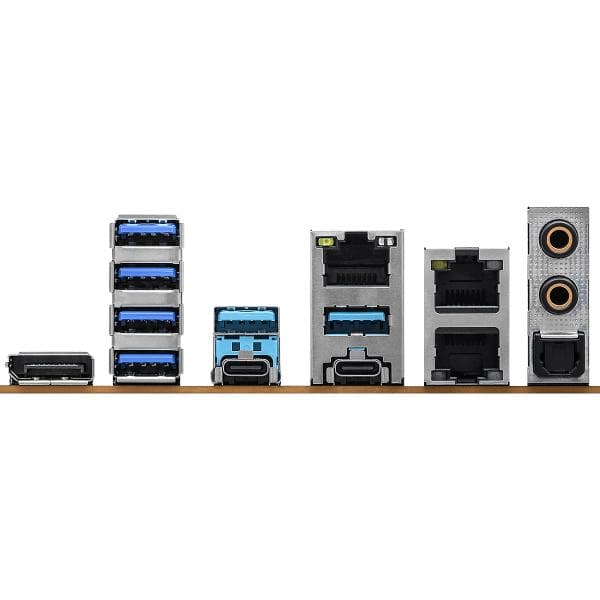

| Rear I/O Ports | - 1× DisplayPort 1.1a- 2× USB4 Type-C (PD up to 27W)- 4× USB 3.2 Gen2- 2× USB 3.2 Gen1- 2× 10G LAN- 1× IPMI LAN- SPDIF + Audio Jacks |
| Software & BIOS | - ASRock Polychrome Sync- Auto Driver Installer, Instant Flash- Full HD UEFI BIOS with GUI |
| Accessories | - 4× SATA Cables- 2× M.2 Screws + 2 Standoffs- 2× Thermistor Cables- Multi PSU Adaptor- I/O Shield, Manual |
| Form Factor | EEB (12.0" × 13.0" / 30.5 cm × 33.0 cm)- 14-layer PCB, 2oz Copper PCB |
| OS Support | Windows® 11 64-bit |
| Certifications | FCC, CE, ErP/EuP, CEC Tier II Ready |
Color
Black
Brands
AsRock
Socket
sTR5
Chipset
WRX90
Memory-Series
DDR5
Motherboard-Size
EEB
