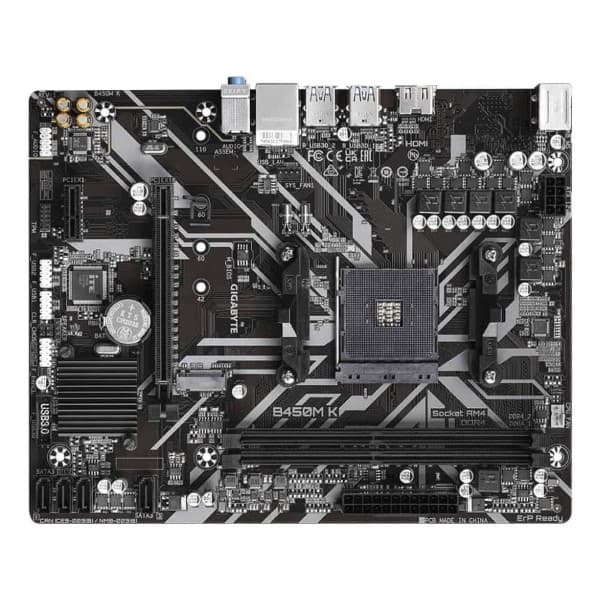

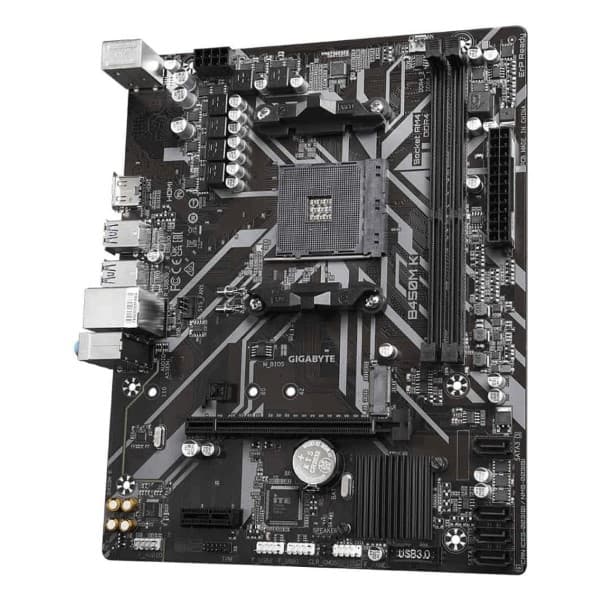

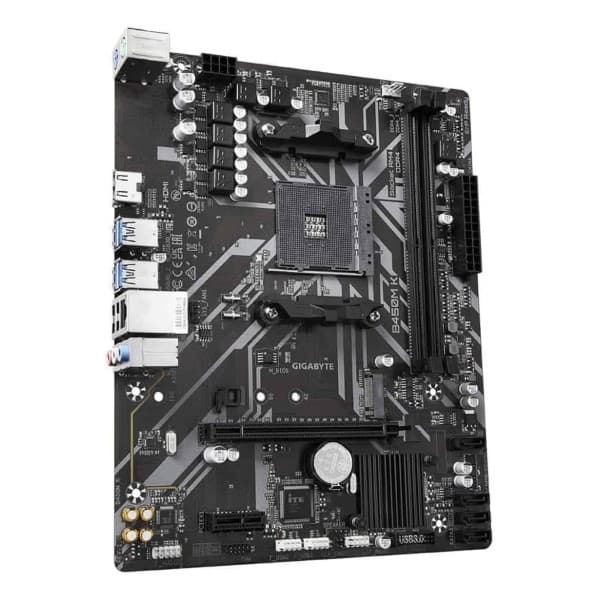

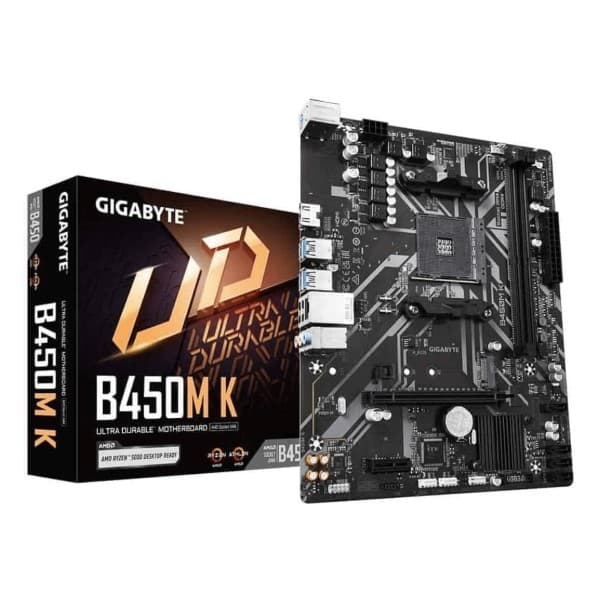

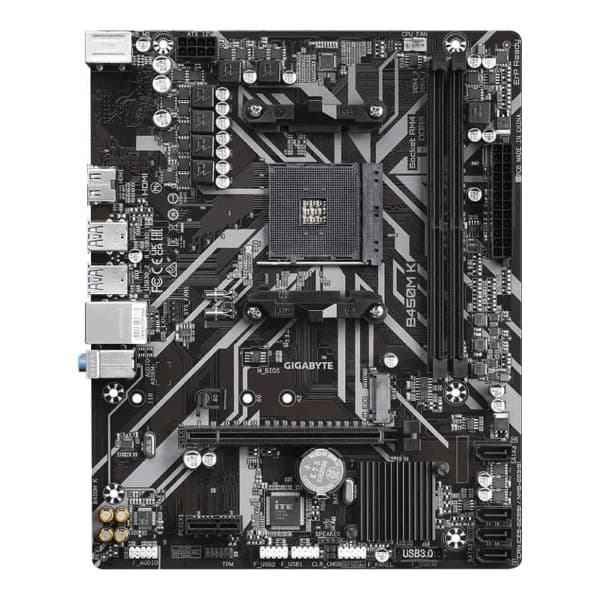

Gigabyte B450M K (Socket AM4/B450/DDR4/Micro ATX)
- Suitable For Desktop
- AMD B450
- DDR4 Compatible
- Maximum RAM Capacity upto 64GB
- Form Factor: Micro-ATX
- 3 Years Warranty
- Delivery & Return
🚚 Shipping and Risk:
- Order Will Be Shipped Within 24-48 Working Hours After the Order is Processed.
- Shipping Partners : Delhivery, XpressBees, Gati, BlueDart, Ecom Express (Depending on Availability at Your Pincode), Computech DOES NOT Have any Control over Operations of Shipping Partners.
- Delivery dates are estimates Provided By Shipping Partners. Shipping Partners are solely responsible for any kind of Delays.
- Loss or damage occured during shipping is Computech Responsibility.
- You Must Leave a Remark During Delivery to Delivery Guy About Damaged Box or Package, and Make an Un-cut Unboxing Video of the Package.
- You must notify Computech of damaged or missing items from your order within 24-hours of receiving your package
♻️ Replacement and Refund Policy:
- We accept replacement if product is defective or wrong product shipped no return or refund will be entertained.
- For gaming chairs only part replacement is applicable if the product delivered is defective or damaged, no refunds will be there for orders of gaming chairs.
- If the seal of the product is opened and the product is not faulty then return/refund will not be applicable.
- Packaging material should be kept by the buyer until the replacement window is opened as this will help them to pack the product to its original form to avoid any damage during the transit.
- Product should be packed in a proper way as it was received by the buyer, do not apply tapes or glues directly on the product or on the product box, this may lead to cancellation of your replacement request.
- All the accessories which were delivered along with the product should be returned in the same way and along with the product.
- If the payment was made through our payment gateway, then it will be refunded in same account by which the payment was done, in case of BANK TRANSFER and COD orders refunds will be done only in buyers bank account. Refunds usually takes 7-10 working days to reflect in your account.
₹6,990.00 ₹4,699.00
Gigabyte B450M K rev. 1.0 Micro ATX Motherboard ( AMD AM4 Socket, Supports AMD Ryzen 5000 ,5000 G-,4000 G, 3rd ,2nd ,1st Gen Series CPU,2 x DDR4 RAM Slots, Max 64GB RAM )
- Supports AMD Ryzen™ 5000 series / Ryzen™ 5000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
- Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
- PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
- GbE LAN with Bandwidth Management
- 8-Channel HD Audio with High Quality Audio Capacitors
- Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers
- GIGABYTE APP Center, Simple and Easy to Use
GbE LAN with Bandwidth Management
Gigabyte B450M-K GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Gigabyte B450M-K Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.
- 5 Temperature Sensors
- 2 Fan Pin Headers
- All Fan Pin Headers Upgraded to Hybrid Fan Headers
- Interoperable Fans and Sensors
- Intuitive UI for Fan Control
High-End Audio Capacitors
Gigabyte B450M-K motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
CPU | 1. AMD Socket AM4, support for: AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ 3rd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ processors/ 1st Generation AMD Ryzen™ processors/ 2nd Generation Ryzen™ with Radeon™ Vega Graphics processors/ 1st Generation Ryzen™ with Radeon™ Vega Graphics processors/ Athlon™ with Radeon™ Vega Graphics Processors |
(Please refer “CPU Support List” for more information.) | |
Chipset | 1. AMD B450 |
Memory | 1. Support for DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz memory modules |
2. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory | |
3. Dual channel memory architecture | |
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
6. Support for Extreme Memory Profile (XMP) memory modules | |
(Please refer “Memory Support List” for more information.) | |
Onboard Graphics | Integrated Graphics Processor: |
1. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz | |
* Support for HDMI 2.0 version and HDCP 2.2. | |
2. Maximum shared memory of 16 GB | |
Audio | 1. Realtek® Audio CODEC |
2. High Definition Audio | |
3. 2/4/5.1/7.1-channel | |
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | |
LAN | 1. Realtek® GbE LAN chip (1 Gbps/ 100 Mbps) |
Expansion Slots | 1. CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16* |
* Actual support may vary by CPU. | |
2. Chipset: 1 x PCI Express x1 slot, supporting PCIe 2.0 and running at x1 | |
Storage Interface | 1. 1 x M.2 connector (Socket 3, M key, type 22110/2280/2260/2242 SATA and PCIe 3.0 x4/x2(Note) SSD support) |
* Refer to “2-7 Internal Connectors,” for the installation notices for the M.2 connector. | |
2. 4 x SATA 6Gb/s connectors | |
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices | |
RAID 0, RAID 1, and RAID 10 support for SATA storage devices | |
(Note) Supports only M.2 SATA SSDs when using an Athlon™ with Radeon™ Vega Graphics Processors. | |
USB | Chipset: |
1. 2 x USB 3.2 Gen 1 ports available through the internal USB header | |
2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) | |
CPU: | |
1. 4 x USB 3.2 Gen 1 ports on the back panel | |
Internal I/O Connectors | 1. 1 x 24-pin ATX main power connector |
2. 1 x 8-pin ATX 12V power connector | |
3. 1 x CPU fan header | |
4. 1 x system fan header | |
5. 1 x M.2 Socket 3 connector | |
6. 4 x SATA 6Gb/s connectors | |
7. 1 x front panel header | |
8. 1 x front panel audio header | |
9. 1 x USB 3.2 Gen 1 header | |
10. 2 x USB 2.0/1.1 headers | |
11. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) | |
12. 1 x speaker header | |
13. 1 x Clear CMOS jumper | |
14. 1 x chassis intrusion header | |
Back Panel Connectors | 1. 1 x PS/2 keyboard port |
2. 1 x PS/2 mouse port | |
3. 1 x HDMI 2.0 port | |
4. 4 x USB 3.2 Gen 1 ports | |
5. 2 x USB 2.0/1.1 ports | |
6. 1 x RJ-45 port | |
7. 3 x audio jacks | |
I/O Controller | 1. iTE® I/O Controller Chip |
H/W Monitoring | 1. Voltage detection |
2. Temperature detection | |
3. Fan speed detection | |
4. Fan fail warning | |
5. Fan speed control | |
* Whether the fan speed control function is supported will depend on the cooler you install. | |
BIOS | 1. 1 x 128 Mbit flash |
2. Use of licensed AMI UEFI BIOS | |
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
Unique Features | 1. Support for APP Center |
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
@BIOS | |
EasyTune | |
Smart Backup | |
System Information Viewer | |
2. Support for Q-Flash | |
3. Support for Xpress Install | |
Bundled Software | 1. Norton® Internet Security (OEM version) |
2. LAN bandwidth management software | |
Operating System | 1. Support for Windows 11 64-bit |
2. Support for Windows 10 64-bit | |
3. Support for Windows 7 64-bit | |
* Please download the “Windows USB Installation Tool” from GIGABYTE’s website and install it before installing Windows 7. | |
Form Factor | 1. Micro ATX Form Factor; 24.4cm x 19.5cm |
