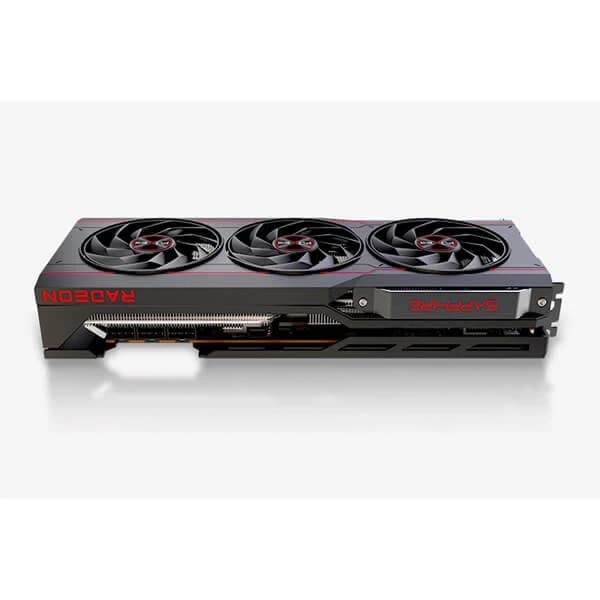

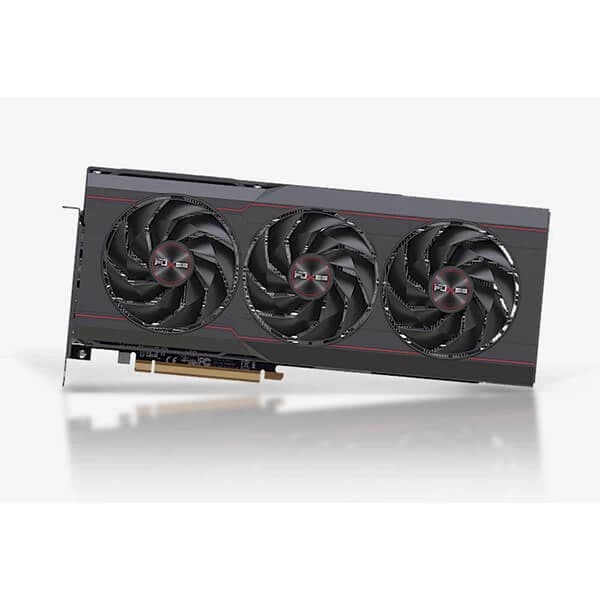

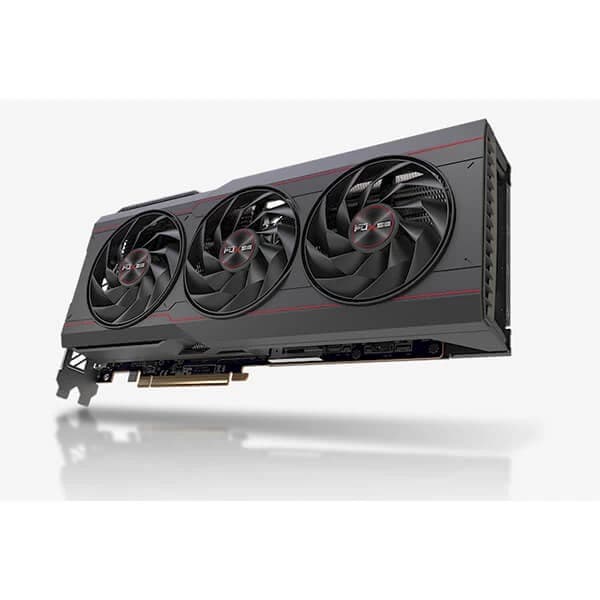

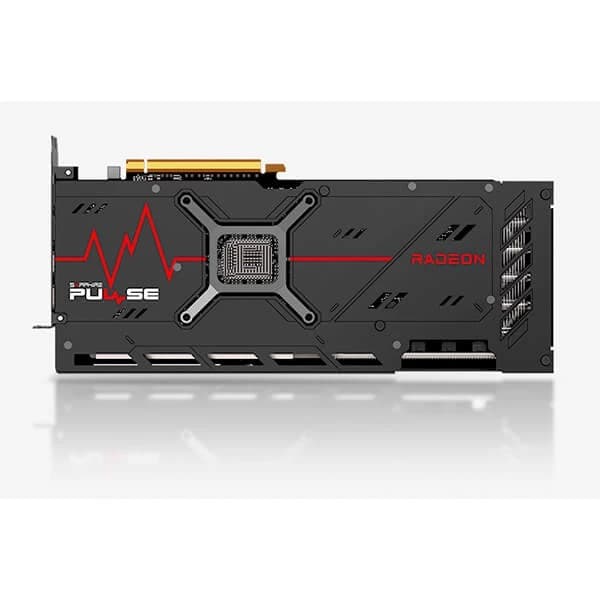

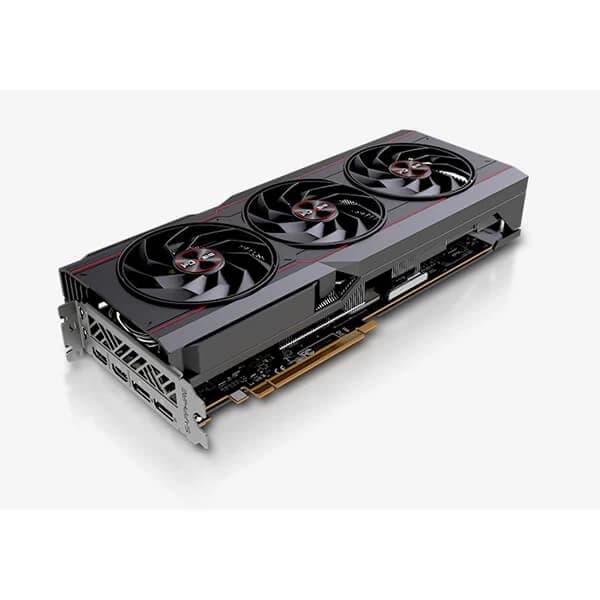

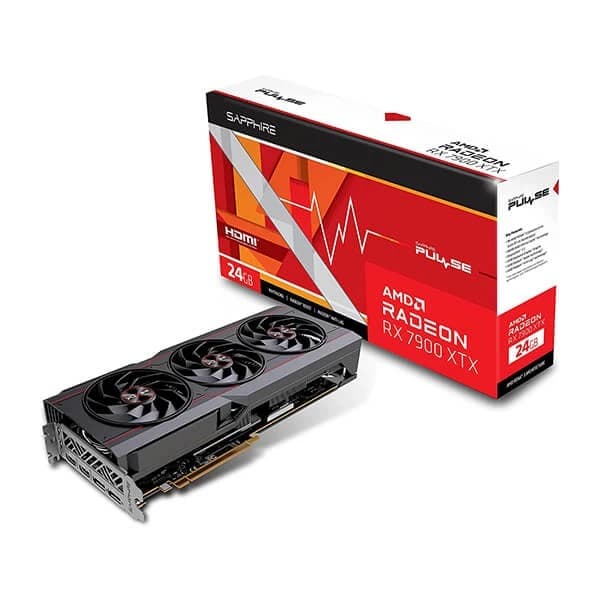

Sapphire Pulse RX 7900 XTX OC 24GB Graphics Card
- GPU: Boost Clock: Up to 2525 MHz
- GPU: Game Clock: Up to 2330 MHz
- Memory: 24GB/384 bit DDR6. 20 Gbps Effective
- Stream Processors: 6144
- RDNA™ 3 Architecture
- Ray Accelerator: 96
₹101,499.00
Sapphire PULSE AMD Radeon RX 7900 XTX OC 24GB offers stable capacitance at a high frequency and temperature with very low signal noise, ensuring the stability and reliability of the product. It provide boost clock Up to 2525 MHz, memory 24GB/384 bit DDR6
Digital Power Design
SAPPHIRE NITRO+ & PULSE AMD Radeon™ RX 7900 Series are designed with digital power which provides accurate power control and excellent power efficiency
Ultra High Performance Conductive Polymer Aluminum Capacitor
The Ultra High Performance Conductive Polymer Aluminum Capacitor has a small PCB foot print but high volumetric capacitance that makes 20-phase power possible on the RX 7900 series graphics card. The capacitor offers stable capacitance at a high frequency and temperature with very low signal noise, ensuring the stability and reliability of the product.
High TG Copper PCB
The GPU is mounted on to the high-density 14 layer 2oz Copper and high TG PCB to match the rapid speed, high current and increased power requirement of the GPU and memory to guarantee high stability of the PCB during operation.
Angular Velocity Fan Blade
The Angular Velocity Fan Blade provides a double layer of downward air pressure which alongside the air pressure on the outer ring of the Axial fan, results in up to 44% more downward air pressure and up to 19% more airflow for a quieter and cooler operation when compared to the previous generations.
Optimized Composite Heatpipe
The composite heatpipes are fine-tuned for each individual cooling design with optimal heat flow, efficiently and evenly spreading out the heat to the entire cooling module.
Fuse Protection
In order to protect your card, the SAPPHIRE cards have fuse protection built into the circuit of the external PCI-E power connector to keep the components safe.
Graphics Card Supporter
Bundled with a graphics card supporter to keep the graphics card in place on the PCIe Slot.
Two-Ball Bearing
These feature Dual Ball bearing fans, which have an approximately 85% longer lifespan than sleeve bearings in our tests. The improvements to the fan blades means the solution is up to 10% quieter than the previous generation.
| MODEL | 11322-02-20G |
| MODEL | AMD RADEON |
| GPU | RX 7900 XTX |
| PCI EXPRESS | 4 |
| GPU BOOST CLOCK | 2525 MHz |
| MEMORY CLOCK | 20 Gbps |
| MEMORY SIZE | 24 GB |
| MEMORY INTERFACE | 384-BIT |
| MEMORY TYPE | GDDR6 |
| DIRECT X SUPPORT | 12 Ultimate |
| OPEN GL | 4.6 |
| PORTS | 2x HDMI 2x DisplayPort |
| RESOLUTION | 7680 x 4320 |
| SOFTWARE | Driver & Software |
| PACKAGE CONTENTS | Graphics Card |
| POWER CONNECTORS | 3 x 8-pin |
| WARRANTY | 3 Years |
| NOTE** | ***Features Prices and Specifications are subject to change without notice. |
| Brands | |
|---|---|
| color | |
| GPU Chipset | |
| GPU Memory Size | |
| GPU Series | |
| Memory Series | |
| Product Type | |
| Warranty | |
| EAN / UPC Code |
Sapphire Pulse RX 7900 XTX OC 24GB Graphics Card
