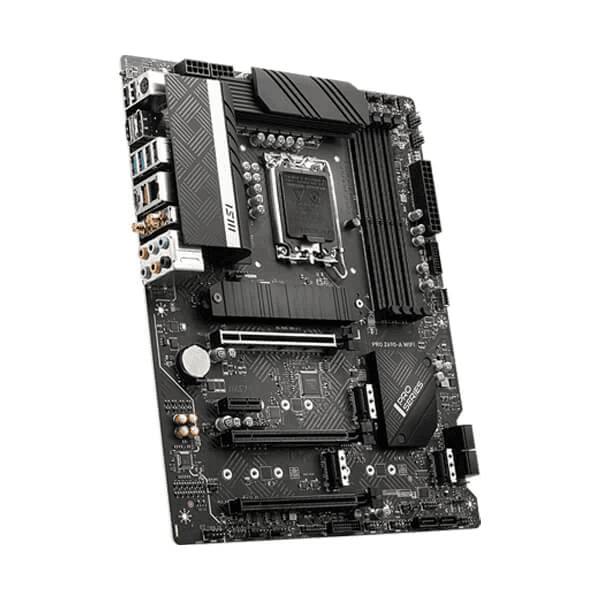

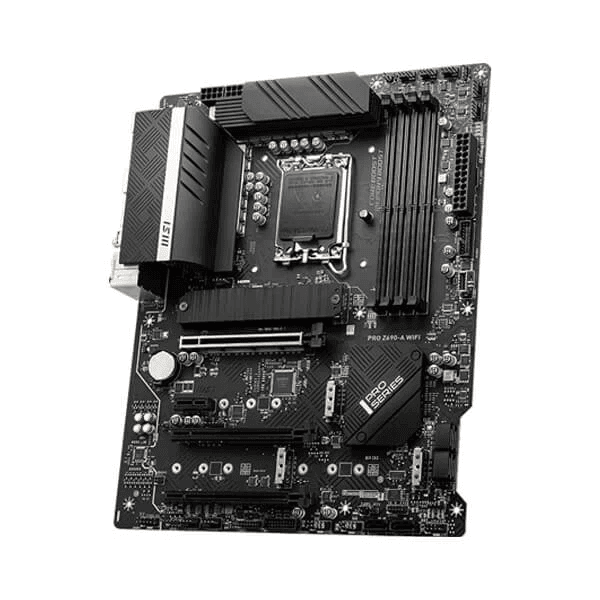

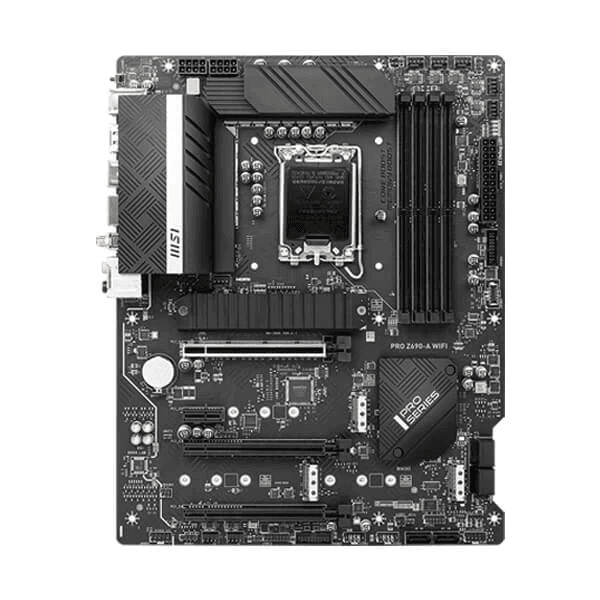

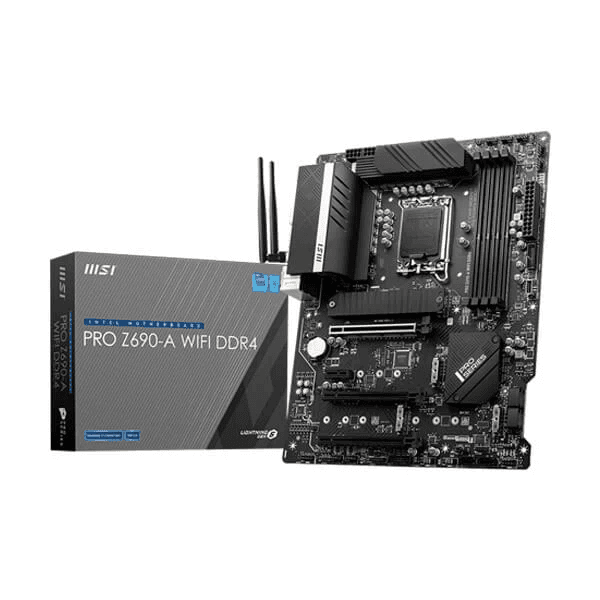

MSI PRO Z690-A WIFI DDR4 Intel Motherboard

Brands
  • Z690-A WIFI Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
  • Z690-A WIFI Supports DDR4 Memory, up to 5200+(OC) MHz
  • Lightning Fast Experience: PCIe 5.0 slots, Lightning Gen4 x4 M.2, USB 3.2 Gen 2×2
  • Premium Thermal Solution: Extended Heatsink Design, MOSFET thermal pads rated for 7W/mk and M.2 Shield Frozr are built for high performance system and non-stop works
  • 2.5G LAN with LAN Manager and Intel Wi-Fi 6 Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  •  Delivery & Return

    🚚 Shipping and Risk:

    • Order Will Be Shipped Within 24-48 Working Hours After the Order is Processed.
    • Shipping Partners : Delhivery, XpressBees, Gati, BlueDart, Ecom Express (Depending on Availability at Your Pincode), Computech DOES NOT Have any Control over Operations of Shipping Partners.
    • Delivery dates are estimates Provided By Shipping Partners. Shipping Partners are solely responsible for any kind of Delays.
    • Loss or damage occured during shipping is Computech Responsibility.
    • You Must Leave a Remark During Delivery to Delivery Guy About Damaged Box or Package, and Make an Un-cut Unboxing Video of the Package.
    • You must notify Computech of damaged or missing items from your order within 24-hours of receiving your package

    ♻️ Replacement and Refund Policy:

    • We accept replacement if product is defective or wrong product shipped no return or refund will be entertained.
    •  For gaming chairs only part replacement is applicable if the product delivered is defective or damaged, no refunds will be there for orders of gaming chairs.
    • If the seal of the product is opened and the product is not faulty then return/refund will not be applicable.
    • Packaging material should be kept by the buyer until the replacement window is opened as this will help them to pack the product to its original form to avoid any damage during the transit.
    • Product should be packed in a proper way as it was received by the buyer, do not apply tapes or glues directly on the product or on the product box, this may lead to cancellation of your replacement request.
    • All the accessories which were delivered along with the product should be returned in the same way and along with the product.
    • If the payment was made through our payment gateway, then it will be refunded in same account by which the payment was done, in case of BANK TRANSFER and COD orders refunds will be done only in buyers bank account. Refunds usually takes 7-10 working days to reflect in your account.
  ... people are viewing this right now

  Share
Guaranteed Safe Checkout

Original price was: ₹29,250.00.Current price is: ₹20,645.00.

Out of stock

Email when stock available

MSI PRO Z690-A WIFI DDR4 Intel Motherboard

Features

PRO Z690-A DDR4 WIFI

  • MSI Z690-A WIFI Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
  • Z690-A WIFI Supports DDR4 Memory, up to 5200+(OC) MHz
  • Lightning Fast Experience: PCIe 5.0 slots, Lightning Gen4 x4 M.2, USB 3.2 Gen 2×2
  • Premium Thermal Solution: Extended Heatsink Design, MOSFET thermal pads rated for 7W/mk and M.2 Shield Frozr are built for high performance system and non-stop works
  • 2.5G LAN with LAN Manager and Intel Wi-Fi 6 Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Intel Turbo USB 3.2 Gen 2: Z690-A WIFI Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
  • Audio Boost: Reward your ears with studio grade sound quality
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
  • Multi-GPU: With Steel armor PCI-E slots. Supports AMD Crossfire™
PRO Z690-A WIFI DDR4
PRO_Z690-A_WIFI_DDR4


MSI PRO A+ Logo

MSI Business & Productivity

MSI Business & Productivity specializes in home & commercial office computing hardware with a design emphasis on productivity and user comfort.

For business professionals searching for elegant, world class solutions engineered with cutting edge components, premium reliability and refined aesthetics, MSI Business & Productivity offers a broad array of innovative products to ensure a competitive working environment.

PRO Z690-A WIFI DDR4

Business Elegance

For professionals looking for efficient 12th Gen Intel Core performance with high-bandwidth PCIe 5.0 x16 graphics card architecture, improved DDR4 memory, and a vast array of M.2 Gen4 storage options, the MSI PRO Z690-A WIFI DDR4 epitomizes business elegance.

  • Supports Intel Core 12th Gen Processors (LGA 1700)
  • 4 x DDR4 DIMMs, Memory Boost (5200MHz OC)
  • 14+1+1 Duet Rail Power Design (55A) with DrMOS
  • 4 x M.2 Slots (3 x Gen4, 1 x Gen3) with Shield Frozr (M2_1)
  • 1 x PCI-e 5.0 x16 (128GB/s), 2 x PCI-e 3.0 x16 Graphic Card Slots
  • Intel I225-V 2.5G LAN
  • Wi-Fi 6 with Bluetooth 5.2
  • USB 3.2 Gen 2×2 Type-C (20Gbps)

Z690 Chipset, 14+1+1 Duet Rail VRM, Smart Cooling, DDR4 Memory Boost

Supports Intel Core 12th Gen Processors

14+1+1 Duet Rail VRM (55A) with DrMOS

Smart Cooling

4 x DDR4 Dual Channel (5200 MHz Overclocked*)

Supports Intel Core 12th Gen Processors

The PRO Z690-A WIFI DDR4 motherboard supports 12th Gen Intel Core processors.

  • Form Factor: ATX
  • Socket Type: LGA 1700
  • Chipset: Intel Z690



14+1+1 Duet Rail VRM (55A) with DrMOS

The VRM design features MSI exclusive Core Boost Technology powered by 2 x 8-pin CPU power connectors:

  1. 4 Duet Rail Power System (55A)
  2. 1 Phase AUX Power
  3. 1 Phase GT Power
  4. Digital PWM IC



Includes load-line calibration & overvoltage protection.

Smart Cooling

VRM Cooling: Features an extended heatsink for improved thermal dissipation.

SSD Cooling: M.2 Shield Frozr prevents thermal throttling.

Frozr AI Cooling: Automatically adjusts system cooling based on CPU & GPU temperatures.

A 6-layer server-grade PCB with 2oz of thickened copper improves performance & system stability.

4 x DDR4 Dual Channel (5200 MHz Overclocked*)

Memory Boost: A fully-isolated circuit delivers pure DDR4 data signals for optimal gaming and overclocking performance.

XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for improved memory speed and stability.

*1DPC 1R Max. overclocking frequency 5200 MHz, supports Intel XMP.

PCI-e 5.0 x16 Slot, Cutting-Edge Storage Performance, Wi-Fi 6 Connectivity

4 x DDR4 Dual Channel (5200 MHz Overclocked*)

Fortified PCI-e 5.0 x16

M.2 Shield Frozr

Wi-Fi 6 & Bluetooth 5.2

Fortified PCI-e 5.0 x16

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points* to support the weight of heavy graphics cards and shields the point of contact from electromagnetic interference:

  • 1 x PCI-e 5.0 x16 slot (with Steel Armor)
  • 2 x PCI-e 3.0 x16 slots
  • 1 x PCI-e 3.0 x1 slot
  • *All-new MSI Surface



Mount Technology (SMT) solder welding improves signal clarity.

Gen4 & Gen3 M.2 Connectors

The PRO Z690-A WIFI DDR4 motherboard features MSI’s latest M.2 slots (Intel Optane supported):

  • 3 x Gen4 x4 64Gb/s slots
  • 1 x Gen3 x4 32Gb/s slot



*M.2 specifications may vary depending on the CPU installed.

M.2 Shield Frozr

Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.

M.2 Shield Frozr is MSI’s most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.

Wi-Fi 6 & Bluetooth 5.2

2.5G LAN: An Intel I225-V 2.5Gbps LAN controller delivers a premium network experience.

USB 3.2 Gen 2×2 Type-C: Enables ultra-fast 20Gbps data transfer rates between devices.

HD Audio: 7.1-Channel High Definition Audio with Audio Boost.

Wi-Fi 6: Features an Intel Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.2 technology.

Processor Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors Processor socket LGA1700 Please go to intel.com for compatibility information
Chipset Intel® Z690 Chipset
Memory 4x DDR4 memory slots, support up to 128GB Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5200+ MHz 1DPC 2R Max speed up to 4800+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) Please refer www.msi.com for more information on compatible memory
Expansion Slot 3x PCIe x16 slots PCI_E1 (from CPU) Supports up to PCIe 5.0 x16 PCI_E3 & PCI_E4 (from Z690 chipset) Supports up to PCIe 3.0 x4& 3.0 x1 1x PCIe 3.0 x1 slot (from Z690 chipset)
Onboard Graphics 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Multi-GPU Supports AMD® CrossFire™ Technology
Storage 6x SATA 6Gb/s ports (from Z690 chipset) 4x M.2 slots (Key M) M2_1 slot (from CPU) Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (from Z690 chipset) Support up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_3 slot (from Z690 chipset) Support up to PCIe 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_4 slot (from Z690 chipset) Support up to PCIe 4.0x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Intel® Optane™ Memory Ready for M.2 slots that are from Z690 Chipset Support Intel® Smart Response Technology for Intel Core™ processors
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
USB Intel® Z690 Chipset 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel) 6x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 4 ports are available through the internal USB connectors) 4x USB 2.0 Type-A ports on the back panel USB 2.0 Hubs GL850G 4x USB 2.0 ports are available through the internal USB connectors
Audio Realtek®ALC897 Codec 7.1-Channel High Definition Audio
LAN 1x Intel® I225-V 2.5Gbps LAN controller
WIRELESS LAN & BLUETOOTH® Intel® Wi-Fi 6 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2
Internal connectors 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 4x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x Tuning controller connector 1x TBT connector (Supports RTD3)
LED Feature 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 4x EZ Debug LED

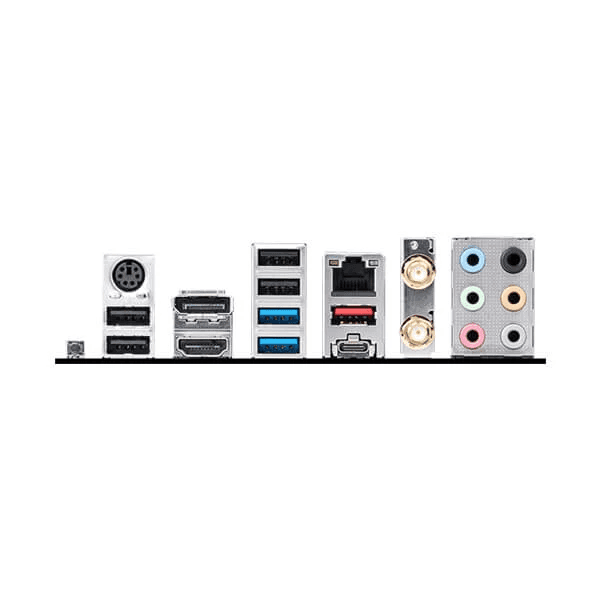

Back panel ports Keyboard / Mouse DisplayPort USB 2.0 LAN port WIFI / Bluetooth Audio connector Flash BIOS Button USB 2.0 HDMI USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 2x2 20Gbps Type-C USB 3.2 Gen 2 10Gbps Type-A
Dimensions ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Mounting 9 mounting holes
Operating System Support for Windows® 11 64-bit, Windows® 10 64-bit
Warranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.
Weight 2 kg
Dimensions 30 × 24 × 6 cm
