MSI PRO H810I WIFI Intel ITX Motherboard

EMI & Split Payment Options

Motherboard MSI Intel Motherboard MSI Motherboard

MSI PRO H810I WIFI Intel ITX Motherboard

Name: MSI PRO H810I WIFI Intel ITX Motherboard
Brand: MSI
SKU: PRO H810i
Price: 14713.00 INR
Availability: InStock

SKU: PRO H810i

MSI

users viewing this item right now

₹45000

₹14713 Save Extra

Availability

In Stock

Support Intel^® Core™ Ultra Processors (Series 2) for LGA 1851 socket
Supports DDR5 Memory, Dual Channel DDR5 6400 MT/s (MAX)
Core Boost: With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
Frozr Guard: Extended Heatsink, M.2 Shield Frozr, and MOSFET thermal pads rat

MSI PRO H810I WIFI Intel ITX Motherboard

PRO H810I WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a Wi-Fi 7 with EZ Antenna, 2.5G LAN, PCIe 5.0, and USB 20Gbps Type-C, ready for the Intel^® Core™ Ultra processors.

PRO H810I WIFI

Support Intel^® Core™ Ultra Processors (Series 2) for LGA 1851 socket
Supports DDR5 Memory, Dual Channel DDR5 6400 MT/s (MAX)
Core Boost: With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
Frozr Guard: Extended Heatsink, M.2 Shield Frozr, and MOSFET thermal pads rated for 7W/mK are built for high performance system and non-stop experience
EZ PCIe Clip II: Allows for easy removal of the graphics card by pressing the tail-like lock with one finger, even in the cramped case spaces.
Lightning Fast experience: PCIe 5.0 slot and Lightning Gen 4 x4 M.2
2.5G LAN with Wi-Fi 7 Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

Key Features

Brands

MSI

Socket

LGA 1851

Chipset

H810

Platform

Intel

Ram-Type

DDR5

Warranty

3 Years

Memory-Series

DDR5

Motherboard-Size

ITX

Motherboard-Series

MSI PRO

Only verified purchasers can leave a review.

No reviews yet for this product.

Please log in to ask a question.

No questions have been answered yet.

Chipset	INTEL H810
CPU	Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851
Memory	2x DDR5 UDIMM, Maximum Memory Capacity 128GB Memory Support DDR5 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 6400 MT/s • 1DPC 2R Max speed up to 6400 MT/s Supports Intel® POR Speed and JEDEC Speed Supports Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM • The DIMM slots on this motherboard only have single-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics	1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	1x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
Audio	Realtek® ALC897 Codec 7.1-Channel High Definition Audio
Storage	1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices 2x SATA 6G *Please refer to the manual for M.2 SSD heatsink restrictions.
USB	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear)
LAN	Intel® I226 2.5Gbps LAN
Internal IO	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 1x System Fan 1x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH	Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.9Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4*, MLO, 4KQAM 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED FEATURE	4x EZ Debug LED 1x EZ Memory Detection LED

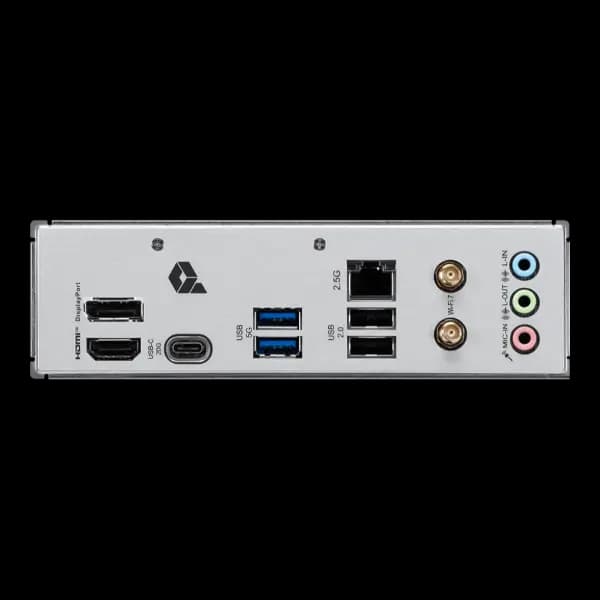

BACK PANEL PORTS	DisplayPort USB 5Gbps Type-A 2.5G LAN Wi-Fi / Bluetooth Audio Connectors HDMITM USB 20Gbps Type-C USB 2.0
OPERATING SYSTEM	Support for Windows® 11 64-bit
BOX CONTENT
PCB Info	Mini-ITX 170mmx170mm
