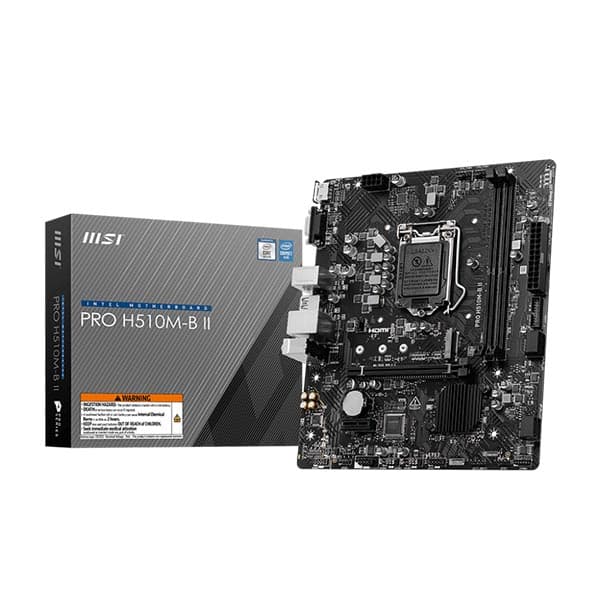

MSI PRO H510M-B II LGA 1200 Motherboard

Name: MSI PRO H510M-B II LGA 1200 Motherboard
Brand: MSI
SKU: PRO-H510M-B-II
Price: 5899.00 INR
Availability: InStock

SKU: PRO-H510M-B-II

MSI

users viewing this item right now

₹9599

₹5899 Save Extra

Availability

In Stock

Supports 10th Gen Intel^® Core™, Pentium^® Gold and Celeron^® processors for LGA 1200 socket
Supports DDR4 Memory, up to 2933MHz (MAX)
Core Boost : With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility

MSI PRO H510M-B II LGA 1200 Motherboard

Feature

MSI Supports 10th Gen Intel^® Core™, Pentium^® Gold and Celeron^® processors for LGA 1200 socket
Supports DDR4 Memory, up to 2933MHz (MAX)
Core Boost : With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
Audio Boost: Reward your ears with studio grade sound quality
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

Key Features

Chipset	INTEL H470
CPU	Supports 10th Gen Intel Core and Pentium Gold/Celeron processors for LGA 1200 Socket
Memory	2x DDR4, Maximum Memory Capacity 64GB Memory Support 2933/ 2666/ 2400/ 2133 MHz Supports 1R 2133/ 2666/ 2933 MHz for Intel® Core™ i9/ Core™ i7 CPU Supports 1R 2133/ 2666 MHz for Intel® Core™ i5/ Core™ i3/ Pentium® Gold and Celeron® CPU Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
Onboard Graphics	1x HDMI™ Support HDMI™ 1.4, maximum resolution of 4K 30Hz* 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Audio	Realtek® ALC897 Codec 7.1-Channel High Definition Audio
Storage	1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
USB	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front)
LAN	Realtek® 8111H Gigabit LAN
Internal IO	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports
LED FEATURE	4x EZ Debug LED
BACK PANEL PORTS	HDMI™ VGA Keyboard / Mouse USB 5Gbps Type-A LAN port Audio Connectors USB 2.0 USB 2.0
PCB Info	mATX 202mmx236mm
