MSI PRO B660M-P Wifi DDR4 Intel Motherboard Supports Intel 12th , 13th & 14th Gen Processors

Name: Buy MSI PRO B660M-P Wifi DDR4 Intel Motherboard Supports Intel 12th , 13th & 14th Gen Processors - Computech Store
Brand: MSI
SKU: PRO B660M-P Wifi DDR4
Price: 11900.00 INR
Availability: OutOfStock

Brands

Brand:

MSI

MSI PRO B660M-P Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
Supports DDR4 Memory, up to 4600+(OC) MHz
Core Boost : MSI PRO B660M-P With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Audio Boost: MSI PRO B660M-P Reward your ears with studio grade sound quality
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
Wireless and Bluetooth: Intel® Dual Band Wireless-AC 3168, Bluetooth 4.2

... people are viewing this right now

Guaranteed Safe Checkout

₹11,900.00

Out of stock

Description Specifications Additional information Reviews (0) Q & A

MSI PRO B660M-P Wifi DDR4 Intel Motherboard

Features:

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

USER FRIENDLY DESIGN

MSI PRO B660M-P motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. Makes it so easy to ionstall your own motherboard without any issue.

FROZR AI COOLING

Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

CONNECTIVITY

The most important thing of DIY expandability. MSI PRO series motherboards feature plenty possibility for prosumers’ need. Stable LAN, faster stroage and USB transfer speed and other expandable connectors are ready to enlarge your flexibility.

EZ DEBUG LED

Ran into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get it up and running again.

FROZR AI COOLING

Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

OPTIMIZE NETWORK FOR LOWER LATENCY!

MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications, giving you the best online experience with low latency.

MSI PRO B660M-P Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
Supports DDR4 Memory, up to 4600+(OC) MHz
Core Boost : With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Audio Boost: Reward your ears with studio grade sound quality
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
Wireless and Bluetooth: Intel® Dual Band Wireless-AC 3168, Bluetooth 4.2

14^th / 13^th / 12^th PROCESSORS SUPPORT

EXTREME STABILITY & COMPATIBILITY TESTING FOR MEMORY

WINDOWS 11 CERTIFIED

Model	PRO-B660M-P-WIFI-DDR4
CPU	Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors 1 Processor socket LGA1700
CHIPSET	Intel® B660 chipse
MEMORY	4x DDR4 memory slots, supporting up to 128GB1 Supports 1R 2133/2666/3200 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 4600+ MHz 1DPC 2R Max speed up to 4000+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 3600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
EXPANSION SLOT	1x PCIe x16 slot PCI_E1 (From CPU) Supports up to PCIe 4.0 x16 2x PCIe x1 slots PCI_E2 & PCI_E3 (Fom B660 chipset) Supports up to PCIe 3.0
ONBOARD GRAPHICS	1x HDMI 1.4 port, supporting a maximum resolution of 4K 30Hz1/2 1x DisplayPort 1.4 port, supporting a maximum resolution of 4K 60Hz1/2 1x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
AUDIO	Realtek® ALC897 Codec 7.1-Channel High Definition Audio
LAN	1x Realtek® RTL8111H 1Gbps LAN controller
STORAGE	4x SATA 6Gb/s ports (From B660 chipset) 1 1x M.2 slot (Key M) M2_1 slot (From B660 Chipset) Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
FORM FACTOR	M-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
WI-FI & BLUETOOTH	Intel® Dual Band Wireless-AC 3168 Dual Band 1x1 802.11ac 2.4GHz/ 5GHz bands 433 Mbps Max Speed Bluetooth 4.2 (BR/EDR, BLE) Supports Windows 7/ 8.1/ 10
BIOS FEATURES	1x 256 Mb flash UEFI AMI BIOS ACPI 6.4, SMBIOS 3.4 Multi-language
POWER CONNECTORS	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector
INTERNAL USB CONNECTORS	1x USB 3.2 Gen 1 5Gbps Type-C connector (From B660 chipset) 1x USB 3.2 Gen 1 5Gbps Type-A connector (From B660 chipset) Supports additional 2 USB 3.2 Gen 1 5Gbps ports 1x USB 2.0 Type-A connector (From B660 chipset) Supports additional 2 USB 2.0 ports
FAN CONNECTORS	1x 4-pin CPU fan connector 1x 4-pin system fan connector
SYSTEM CONNECTORS	1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 1x parallel port connector 1x Serial port
POWER CONNECTORS	1x Clear CMOS jumper
LED FEATURE	4x EZ Debug LED

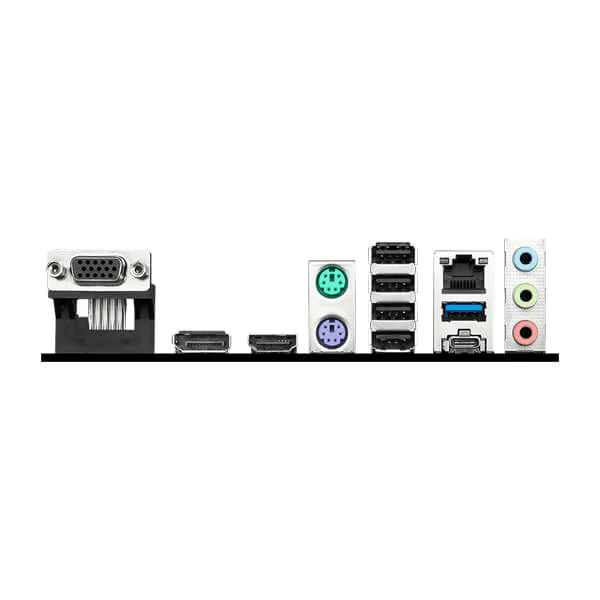

BACK PANEL CONNECTORS	VGA DisplayPort HDMI Keyboard / Mouse USB 2.0 LAN port Audio connectors USB 3.2 Gen 2 10Gbps Type-C USB 3.2 Gen 1 5Gbps Type-A
Warranty	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.

Brands	MSI
Motherboard Size	mATX
Socket	LGA 1700
Chipset	B660
Platform	Intel
Motherboard Series	MSI PRO
EAN / UPC Code	4719072912444
RAM Type	DDR4
Warranty	3 Years
