MSI PRO B660M-B DDR4 Intel Motherboard Supports Intel 12th , 13th & 14th Gen Processors

Name: Buy MSI PRO B660M-B DDR4 Intel Motherboard Supports Intel 12th , 13th & 14th Gen Processors - Computech Store
Brand: MSI
SKU: PRO B660M-B DDR4
Price: 10699.00 INR
Availability: OutOfStock

Brands

Brand:

MSI

B660M-B Supports 12th Gen Intel^® Core™, Pentium^® Gold and Celeron^® processors for LGA 1700 socket
B660M-B Supports DDR4 Memory, up to 4600+(OC) MHz
Core Boost : With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility

... people are viewing this right now

Guaranteed Safe Checkout

₹10,699.00

Out of stock

Description Specifications Additional information Reviews (0) Q & A

MSI PRO B660M-B DDR4 Intel Motherboard

Features:

MSI B660M-B Supports 12th Gen Intel^® Core™, Pentium^® Gold and Celeron^® processors for LGA 1700 socket
B660M-B Supports DDR4 Memory, up to 4600+(OC) MHz
Core Boost : With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Audio Boost: B660M-B Reward your ears with studio grade sound quality
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

MSI Business & Productivity

MSI Business & Productivity specializes in home & commercial office computing hardware with a design emphasis on productivity and user comfort.

For business professionals searching for elegant, world class solutions engineered with cutting edge components, premium reliability and refined aesthetics, MSI Business & Productivity offers a broad array of innovative products to ensure a competitive working environment.

PRO B660M-B DDR4

Business Elegance

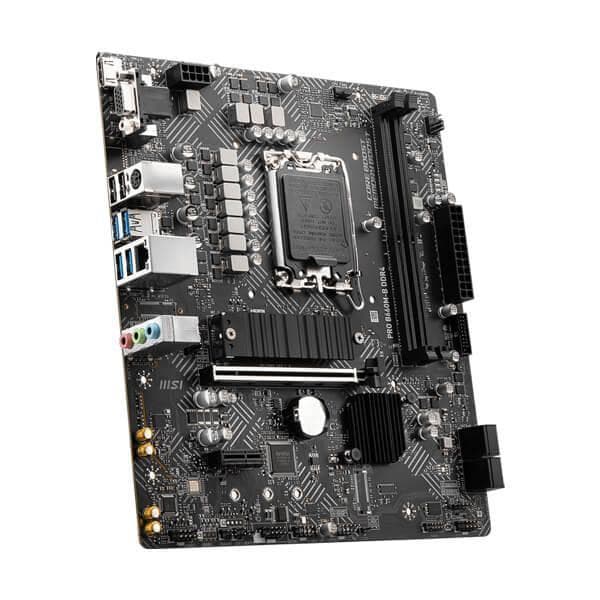

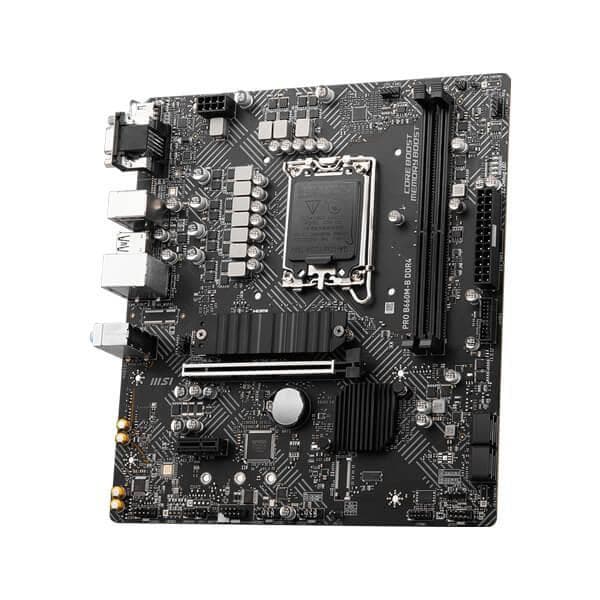

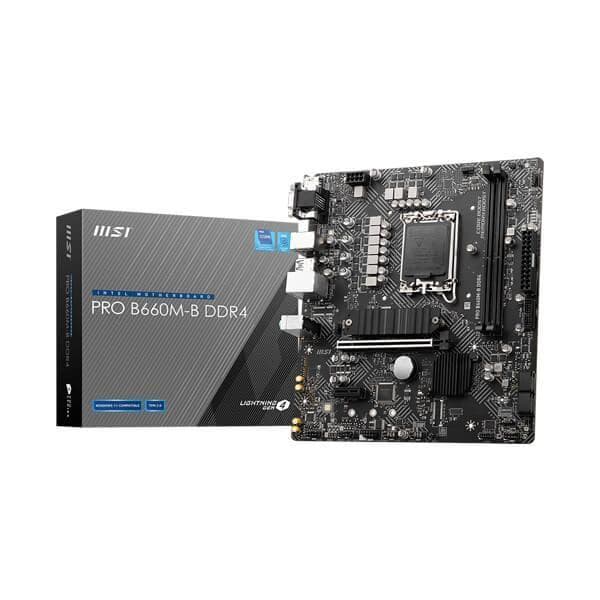

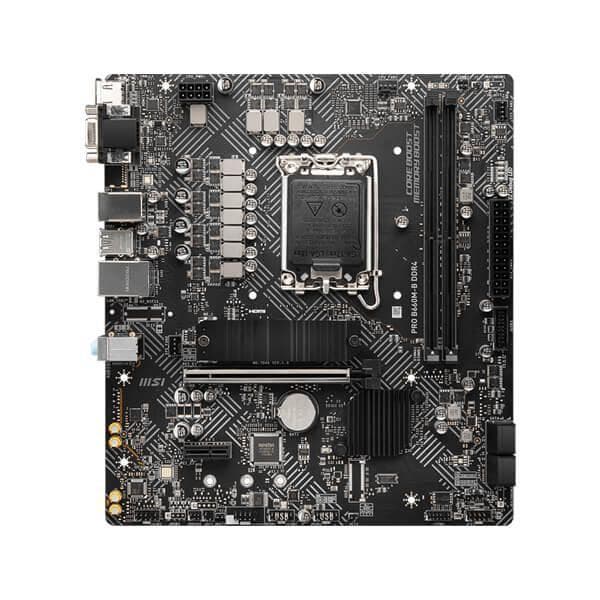

The PRO B660M-B DDR4 is a business-oriented micro-ATX motherboard featuring the latest Intel B660 chipset outfitted with ample RAM capacity.

Supports Intel Core 12th Gen Processors (LGA 1700)
2 DIMMs with DDR4 Boost: Dual Channel (64GB Max. / 4600MHz OC)
1 x PCI-e 4.0 x16 (Steel Armor), 1 x PCI-e 3.0 x16 Graphics Card Slots
Lightning Gen4 M.2 slot with Shield Frozr
7.1 HD Audio with Audio Boost
2.5G LAN Controller

B660 Chipset, Smart Cooling, DDR4 Memory Boost


Supports Intel Core 12th Gen Processors The PRO B660M-B DDR4 motherboard supports 12th Gen Intel Core processors. Form Factor: Micro-ATX Socket Type: LGA 1700 Chipset: Intel B660 Intel B660 chipset motherboards support memory overclocking but not CPU overclocking.	Integrated Cooling Features Chipset Heatsink: Provides passive cooling. Frozr AI Cooling: Automatically adjusts system fan settings based on CPU & GPU temperatures	2 x DDR4 Dual Channel (4600+ MHz Overclocked) Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance. XMP profiles in MSI BIOS are MSI OC LAB checked and can be easily enabled with auto power settings for optimized memory speed and stability. 1DPC 1R Max. overclocking frequency 4600+ MHz depending on memory module capability.

PCI-e 4.0 x16 Slot, Cutting-Edge Storage Performance, 2.5G LAN Controller


Fortified PCI-e 4.0 x16 MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference: 1 x PCI-e 4.0 x16 slot (with Steel Armor) 1 x PCI-e 3.0 x1 slot	Gen4 M.2 Connector The PRO B660M-B DDR4 motherboard features MSI’s latest M.2 slot: 1 x Gen4 x4 64Gb/s slots *M.2 specifications may vary depending on the CPU installed.	M.2 Shield Frozr Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures. M.2 Shield Frozr is MSI’s most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.	2.5G LAN Controller 2.5G LAN: A 2.5Gbps LAN controller delivers a premium network experience. 4K & Legacy Video Support: Includes HDMI and VGA ports for both digital and legacy display. HD Audio: 7.1-Channel High Definition Audio with Audio Boost.

Processor	Supports 12th Gen Intel^® Core™ Processors, Pentium^® Gold and Celeron^® Processors Processor socket LGA1700
Chipset	Intel® B660 Chipset
Memory	2x DDR4 memory slots, support up to 64GB 1 Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 4600+ MHz 1DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
Expansion Slot	1x PCIe 4.0 x16 slot (from CPU) 1x PCIe 3.0 x1 slot (from B660 chipset)
Onboard Graphics	1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz 1/2 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Audio	Realtek® ALC897 Codec 7.1-Channel High Definition Audio
LAN	1x Realtek® RTL8125BG 2.5Gbps LAN controller
Storage	4x SATA 6Gb/s ports (From B660 chipset) 1 1x M.2 slot (Key M) M2_1 slot (From CPU) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices
Power Connectors	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector
USB	Intel® B660 Chipset 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal connector) 2x USB 2.0 Type-A ports on the back panel USB Hub-GL850G 4x USB 2.0 ports available through internal connectors
BIOS Features	1x 256 Mb flash UEFI AMI BIOS ACPI 6.4, SMBIOS 3.4 Multi-language
Internal connectors	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x USB 2.0 connector (support additional 4 USB ports) 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB ports) 1x 4-pin CPU fan connector 2x 4-pin system fan connectorx 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x TPM module connector 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x Tuning Controller Connector
LED Feature	4x EZ Debug LED
Back panel Connectors	VGA Keyboard / Mouse LAN port Audio connector HDMI USB 2.0 USB 3.2 Gen 1 5Gbps Type-A
Form Factor	M-ATX Form Factor 9.6 in. x 8.7 in. (24.4 cm x 22.0 cm)
Warranty	3 Years
Note	***Features, Price and Specifications are subject to change without notice.
