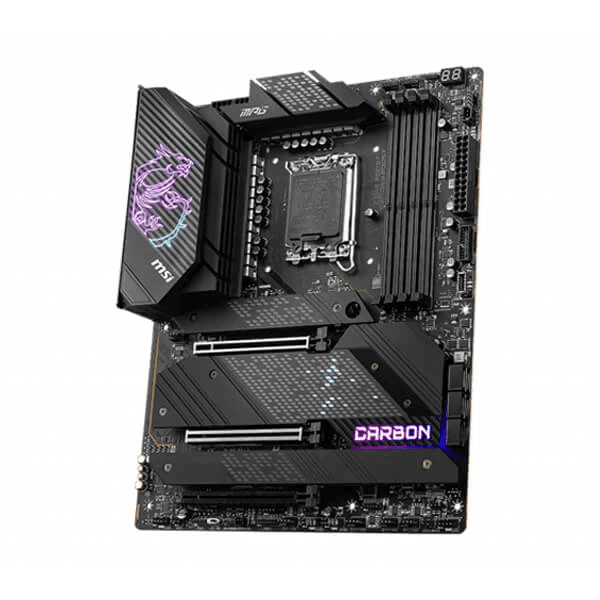

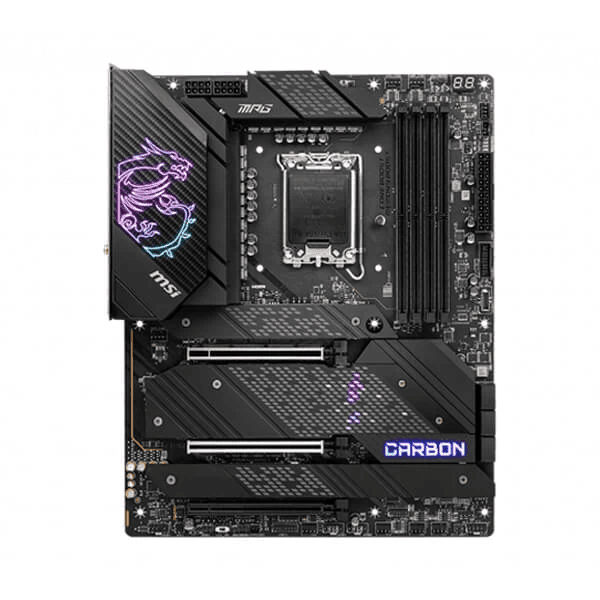

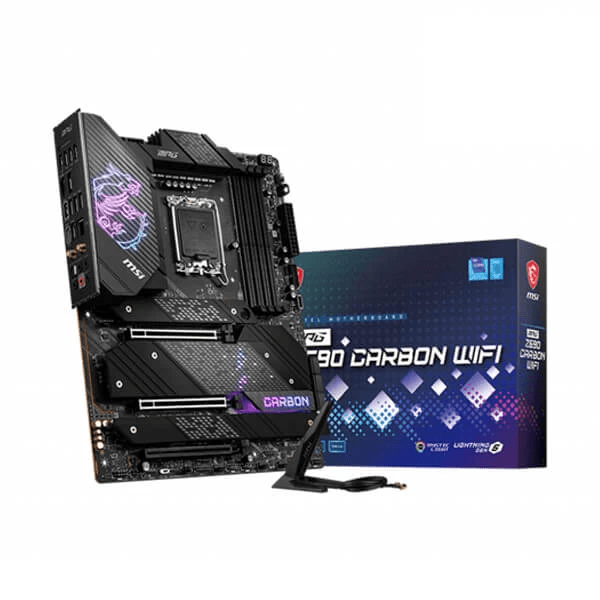

MSI MPG Z690 Carbon WiFi Gaming Intel Motherboard
- Z690 Carbon Supports 12th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1700 socket
- Z690 Carbon Supports DDR5 Memory, up to 6666+(OC) MHz
- Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2
- Enhanced Power Design: Direct 18+1+1 phases power, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
₹40,749.00
Out of stock
Email when stock available
MSI MPG Z690 Carbon WiFi Gaming Intel Motherboard
FEATURES
- Z690 Carbon Supports 12th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1700 socket
- Supports DDR5 Memory, up to 6666+(OC) MHz
- Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2
- Enhanced Power Design: Direct 18+1+1 phases power, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- MYSTIC LIGHT: 16.8 million colors / fancy lighting effects controlled in one click. MYSTIC LIGHT SYNC supports RGB, RAINBOW(ARGB), Corsair LED strips and Ambient devices.
- 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST 5: Z690 Carbon Reward your ears with studio grade sound quality for the most immersive gaming experience
- High Quality PCB: Z690 Carbon 8-layer PCB made by 2oz thickened copper and server grade level material
- Pre-installed I/O Shield: Better EMI protection and more convenience for installation
M.2 SHIELD FROZR
World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.
With MSI M.2 Shield FROZR
- – Prevents throttling
- – Maximizes drive performance
- – Higher maximum SSD speeds
Normal M.2 SSD
*performance vary by model configuration
FROZR AI COOLING
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.
LATEST DDR5 MEMORY
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MPG Z690 CARBON WIFI is ready to deliver the world class memory performance.
EXTREME STABILITY & COMPATIBILITY TESTING
MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules, configurations and even improve overclocking.
SMT DDR5 MEMORY SLOT
The advanced SMT(Surface Mount Technology) welding process reduces the defect rate of slot solder joints, electromagnetism, and interference. Combining with exclusive Memory Boost technology allows MSI motherboards to deliver the clean and pure high-frequency DDR5 signal.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.
SURFACING WITH THE REAL MU-MIMO TECHNOLOGY
The latest Wi-Fi 6E solution supports 6GHz spectrum, Bluetooth 5.2, two-way MU-MIMO and BSS color technology, provide up to 4X network capacity and efficiency in the high signal density environment, delivering speeds up to 2400Mbps.
OPTIMIZE ONLINE GAMING TRAFFIC FOR LOWER LATENCY!
MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency.
MSI LAN MANAGER
- – Automatically prioritizes games above other applications –
- – Allows you to change applications’ traffic priority –
- – Allows you to customize bandwidth for each application –
| Processor |
|
| Chipset | Intel® Z690 Chipset |
| Memory |
|
| Expansion Slots |
|
| Onboard Graphics |
|
| Multi-GPU | Supports AMD® CrossFire™ Technology |
| Storage |
|
| RAID |
|
| USB | Intel® Z690 Chipset
|
| Audio | Realtek® ALC4080 Codec
|
| LAN | 1x Intel® I225V 2.5Gbps LAN controller |
| WiFi & Bluetooth | Intel® Wi-Fi 6E module
|
| Internal connectors |
|
| LED Feature |
|
| Back panel ports |
|
| Dimensions |
|
| Mounting | 9 mounting holes |
| Operating System | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
