MSI MEG Z590 Godlike (Wi-Fi) Intel Motherboard

Name: Buy MSI MEG Z590 Godlike (Wi-Fi) Intel Motherboard - Computech Store
Brand: MSI
SKU: MEG Z590 Godlike (Wi-Fi)
Price: 96800.00 INR
Availability: OutOfStock

Brands

Brand:

MSI

Supports 11th and 10th Gen Intel^® Core™ / Pentium^® Celeron^® processors for LGA 1200 socket
Supports DDR4 Memory, up to 5600(OC) MHz
Extreme Power Design: INTERSIL digital PWM, direct 20 phases with 90A Smart Power Stage, Titanium Choke III and dual CPU power connectors to unleash the maximum performance.
Premium Thermal Module: Wavy fin design, 8mm heatpipe, 7W/mK thermal pads, Frozr Heatsink and Aluminum Backplate ensure the extreme performance with low temperature.
Dual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience.

... people are viewing this right now

Guaranteed Safe Checkout

₹96,800.00

Out of stock

Description Specifications Additional information Reviews (0) Q & A

MSI MEG Z590 Godlike (Wi-Fi) Intel Motherboard

Features

MSI MEG Z590 GODLIKE

Z590 Godlike Supports 11th and 10th Gen Intel^® Core™ / Pentium^® Celeron^® processors for LGA 1200 socket
Z590 Godlike Supports DDR4 Memory, up to 5600(OC) MHz
Extreme Power Design: INTERSIL digital PWM, direct 20 phases with 90A Smart Power Stage, Titanium Choke III and dual CPU power connectors to unleash the maximum performance.
Premium Thermal Module: Wavy fin design, 8mm heatpipe, 7W/mK thermal pads, Frozr Heatsink and Aluminum Backplate ensure the extreme performance with low temperature.
Dual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience.
Quadruple M.2 Connectors: Onboard 4x M.2 connectors for the maximum storage performance with one Lightning Gen 4 solution. Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
Dynamic Dashboard II: Built-in colorful OLED screen panel indicates the status of GODLIKE and shows off your own personality.
Latest Network Solution: Onboard 10G Super LAN, Intel 2.5G LAN and latest Wi-Fi 6E solution deliver the best online experience without lag.
Full Armor Design: The revolutionary magnetic cover allow you showing off your PC building without messy cable when installing great amount of devices.

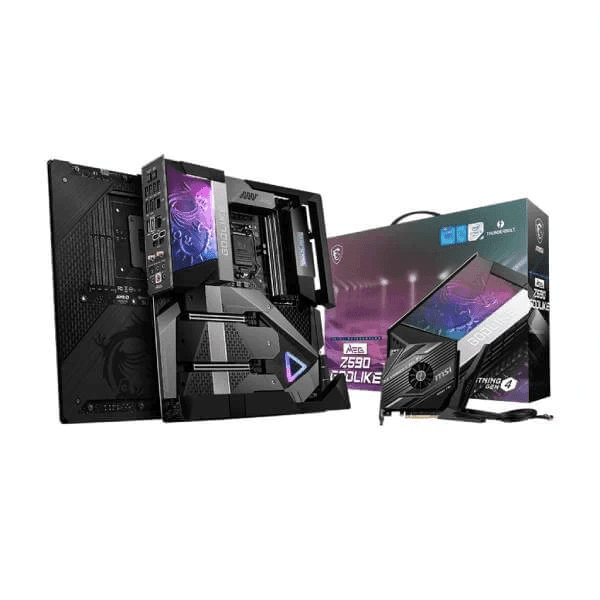

Special Accessory: Exclusive accessories boost the performance and user experience – M.2 XPANDER-Z GEN 4 S, Tuning Controller and DIY Stands set.

MSI: For Gamers & Creators

MSI is one of the most trusted names in gaming and esports with countless hours and significant resources invested into premier esports leagues and tier-1 gaming teams. By supporting and working with the best of the best, MSI is able to integrate competitive gaming knowledge and aspirations with technological innovation to create new products that shatter today’s performance limits.

MEG Z590 GODLIKE Motherboard

Extreme Gaming Across the Board

The MEG Z590 GODLIKE E-ATX motherboard represents the zenith of the Intel Z590 chipset’s system potential with spectacular aesthetics and uber-reliability under extreme gaming conditions.

Supports Intel Core 11th & 10th Gen Processors (LGA 1200)
Direct 20 Phase Power Design VRM with 90A SPS
Lightning Gen4 & Turbo Gen3 M.2 slots with Shield Frozr
2 x PCI-e 4.0 x16 (CrossFire via PCI-e 3.0 x16)
4 DIMMS with DDR4 Boost: Dual Channel (128GB Max. / 5600MHz OC)
10G SUPER LAN & Thunderbolt 4 ports
Dynamic Dashboard II OLED Display
Wi-Fi 6E AX210 & Bluetooth 5.2

Z590 Chipset, Direct 20 Phase VRM, Extreme Cooling, 2 x PCI-e 4.0 x16


Supports Intel Core 11th Gen Processors The MEG Z590 GODLIKE motherboard supports 11th Gen Intel Core, 10th Gen Intel Core, Pentium Gold, and Celeron processors. Form Factor: E-ATX Socket Type: LGA 1200 Chipset: Intel Z590	Direct 20 Phase Power Design Unleash and sustain maximum performance with dual 8-Pin CPU power connectors and MSI’s flagship VRM design: settings: Digital Direct PWM 20 x 90A Smart Power Stage 20 x Titanium Choke III	Extreme Cooling VRM Cooling: Features extended heatsinks with wavy fins, integrated fan, connecting 8mm heat pipe, choke and 7W/mK thermal pads. PCB Cooling: Premium 8-layer printed circuit design with 2 oz. thickened copper and aluminium backplate improves heat dissipation & reliability. SSD Cooling: Double-sided M.2 Shield Frozr prevents thermal throttling. System Cooling: Connect and synchronize cooling with strategically placed pin-headers – including a dedicated pump-fan header. Chipset Cooling: Includes an enlarged heatsink.	Fortified PCI-e 4.0 x16 MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference. 2 x PCI-e 4.0/3.0 x16 slots (with Steel Armor) 1 x PCI-e 3.0 x16 slot (CrossFire supported)

Cutting-Edge Performance & Incredible Connectivity


Gen4 & Gen3 M.2 Connectors The MEG Z590 GODLIKE motherboard features MSI’s latest M.2 slots (Intel Optane supported): * 1 x Gen4 x4 64Gb/s slot * 3 x Gen3 x4 32Gb/s slots *M.2 specifications may vary subject to the CPU installed.	Dynamic Dashboard II The sophisticated OLED screen supports multiple animated features: Power On Sleep/Shutdown Hardware Monitor Debug Function Under OS Standby Flash BIOS Customization with LUCKY!	4 x DDR4 Dual Channel (5600 MHz OC) DDR4 Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance. XMP profiles in MSI BIOS are MSI OC LAB tested and can be easily enabled with auto power settings for optimized memory speed and stability.	Outstanding Connectivity 10G LAN, Wi-Fi 6E & Thunderbolt 4 Ports LAN: Intel I225-V 2.5Gbps LAN and Aquantia AQC107 10G LAN controllers deliver a premium network gaming experience. HD Audio: 7.1-Channel High Definition Audio with Audio Boost 5 & S/PDIF output. Wi-Fi 6E: Features the latest Wi-Fi 6E AX210 (ultra-low latency, high-bandwidth) & Bluetooth 5.2 technology. Thunderbolt 4: Supports true 40Gbp transfer rates and 8K display support.

PROCESSOR	Supports 10th Gen Intel^® Core™ Processors, 11th Gen Intel^® Core™ Processors, Pentium^® Gold and Celeron^® processors ¹ Processor socket LGA1200
CHIPSET	Intel^® Z590 Chipset
MEMORY	4x DDR4 memory slots, support up to 128GB Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel^® CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel^® CPU (by JEDEC & POR) Max. overclocking frequency: 1DPC 1R Max speed up to 5600 MHz 1DPC 2R Max speed up to 4800+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC mode, un-buffered memory Supports Intel^® Extreme Memory Profile (XMP)
EXPANSION SLOTS	3x PCIe x16 slots Support x16/x0/x4, x8/x8/x4, x8/x4+x4/x4, x8+x8/x0/x4, x8+(x4+x4)/x0/x4 PCI_E1 & PCI_E2 slots (From CPU) Support up to PCIe 4.0 for 11th Gen Intel^® CPU Support up to PCIe 3.0 for 10th Gen Intel^® CPU PCI_E3 slot (From Z590 chipset) Supports up to PCIe 3.0 PCI_E3 will run at x1 speed when installing device in M2_4 slot.
MULTI-GPU	Supports 2-Way NVIDIA^® SLI™ Technology Supports 3-Way AMD^® CrossFire™ Technology
THUNDERBOLT 4	2x Thunderbolt™ 4 (Type-C) ports on the back panel Support up to 40 Gbps transfer rate with Thunderbolt devices Support up to 20 Gbps transfer rate with USB4 devices Support up to 10Gbps transfer rate with USB 3.2 devices Support up to 5V/3A , 15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display (need to connect the DisplayPort of the motherboard or discrete graphics card to the Mini DisplayPort Input port on the back panel)
STORAGE	6x SATA 6Gb/s ports (from Z590 chipset) 4x M.2 slots (Key M) M2_1 (from CPU) Available only on 11th Gen Intel^® CPU Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2, M2_3 & M2_4 slots (from Z590 chipset) M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices M2_3 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices M2_4 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices Intel^® Optane™ Memory Ready Supports Intel^® Smart Response Technology for Intel Core™ processors SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. SATA5 & SATA6 will be unavailable when installing M.2 SSD in the M2_3 slot. M2_4 will run at x2 speed when installing device in PCI_E3 slot. Before using Intel^® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
USB	Intel^® Z590 Chipset 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel and 1 Type-C internal connector) 2x USB 2.0 ports are available through the internal USB 2.0 connector Hub GL850G 2x USB 2.0 ports are available through the internal USB 2.0 connector Asmedia^® 1074 Chipset 10x USB 3.2 Gen 1 5Gbps ports (6 Type-A ports on the back panel, 4 ports are available through the internal USB 3.2 Gen 1 connectors)
AUDIO	Realtek^® ALC4082 Codec + ESS ES9218PQ Combo DAC/HPA 7.1-Channel High Definition Audio Supports S/PDIF output
LAN	1x Aquantia^® AQC107 10Gbps LAN controller 1x Intel^® I225-V 2.5Gbps LAN controller
WIRELESS LAN & BLUETOOTH	Intel^® WiFi-6E AX210 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps Supports 802.11a/ b/ g/ n/ ac/ ax Supports Bluetooth^® 5.2 , FIPS, FISMA
INTERNAL CONNECTORS	1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 1x 6-pin ATX PCIE power connector 6x SATA 6Gb/s connectors 4x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 8x 4-pin system fan connectors 1x 3-pin Water Flow connector 1x Front panel audio connector 2x System panel connectors 1x Chassis intrusion connector 2x 2-pin Thermal sensors connectors 1x TPM module connector 1x Tuning controller connector
LED FEATURE	1x 2-Digit Debug Code LED 4x EZ Debug LED 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1x 3-pin CORSAIR LED connector 1x EZ LED Control switch

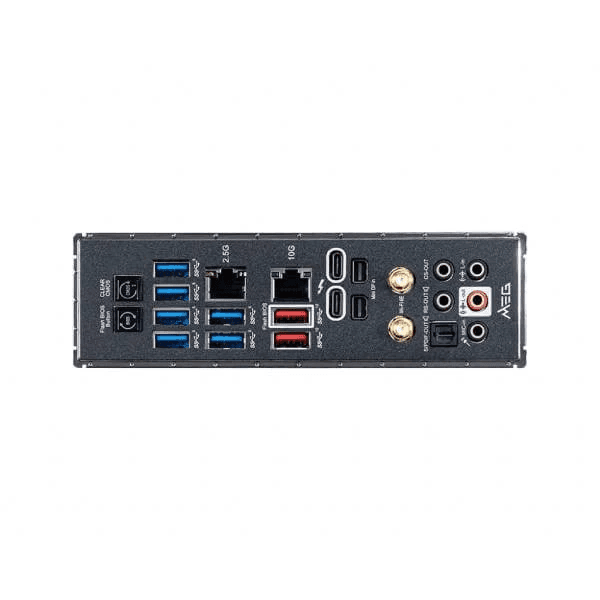

BACK PANEL PORTS	Clear CMOS Button 2.5G LAN 10G Super LAN Thunderbolt 4 40Gbps (Type-C) Wi-Fi / Bluetooth HD Audio Connectors Flash BIOS Button USB 3.2 Gen1 5Gbps (Type-A) USB 3.2 Gen2 10Gbps (Type-A) Mini DisplayPort Input (for Thunderbolt passthrough) Optical S/PDIF-Out
DIMENSIONS	12 in. x 10.9 in. (30.5 cm x 27.7 cm) E-ATX Form Factor
MOUNTING	9 mounting holes
OPERATING SYSTEM	Support for Windows^® 10 64-bit
Warranty	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.

Weight	1 kg
Dimensions	17 × 17 × 5 cm
Brands	MSI
Chipset	Z590
Motherboard Size	ATX
Socket	LGA 1200
Platform	Intel
Motherboard Series	MSI MEG
RAM Type	DDR4
Warranty	3 Years
EAN / UPC Code	4719072802820
