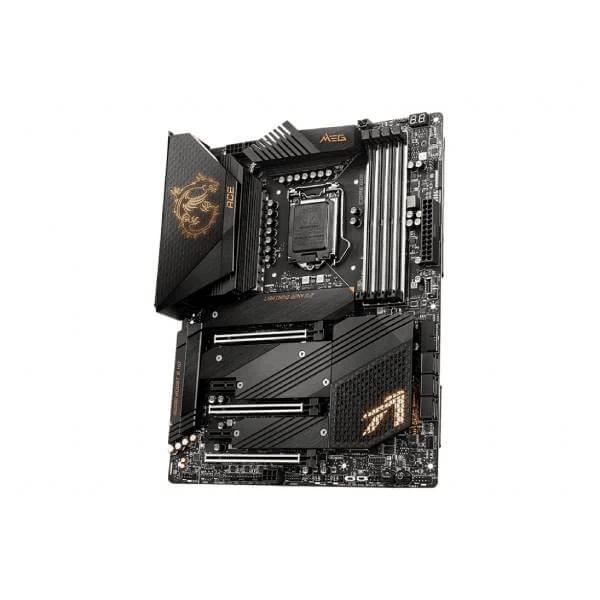

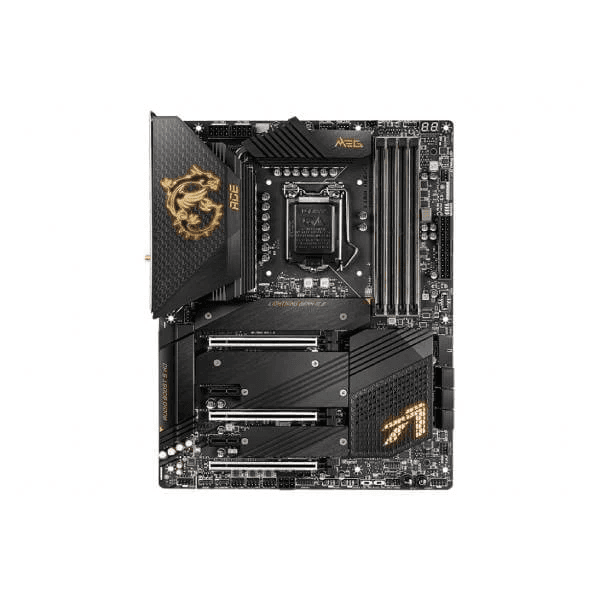

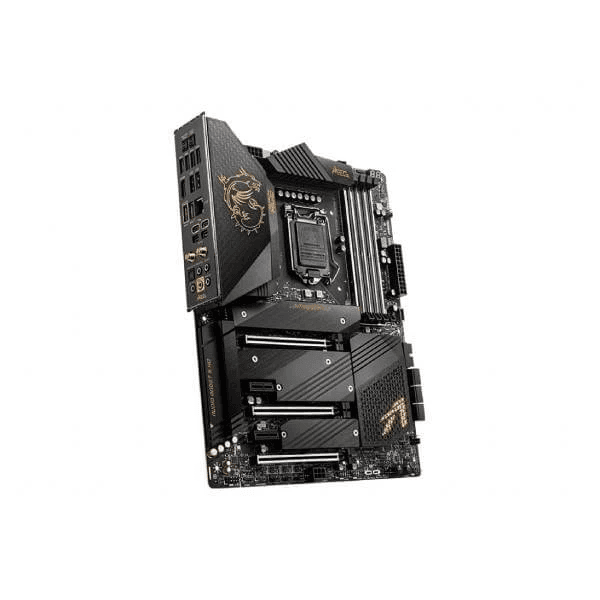

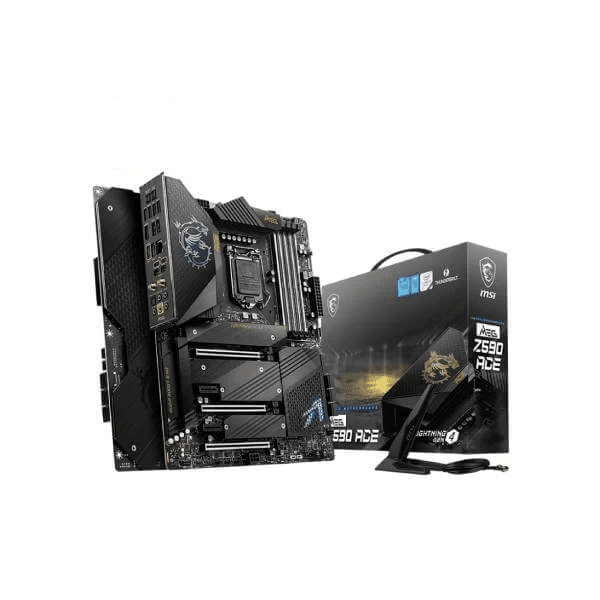

Msi Meg Z590 ACE (Wifi) Intel Motherboard
- Z590 ACE Supports 11th and 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
- Supports DDR4 Memory, up to 5600(OC) MHz
- Smart Button: One button with multiple hardware control. Reset Computer, Safe Boot, Turbo Fan and EZ LED control functions with just one click.
- 8 Layer PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.
- Audio Boost 5 HD: Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience.
... people are viewing this right now
₹36,000.00
Out of stock
Email when stock available
The MSI MEG Series Z590 Ace is a Top Of The Line Intel Z590, 11th Gen High Performance Motherboard, 19 Phase True Digital VRM With 8 Layer PCB Design, ESS Sabre Audio DAC With Realtek ALC4082 Premium Audio Supports WIFI 6E and 2.5 Gigabit Ethernet.
Features
- MSI Z590 ACE Supports 11th and 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
- Z590 ACE Supports DDR4 Memory, up to 5600(OC) MHz
- Dual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience.
- Quadruple M.2 Connectors: Onboard 4x M.2 connectors for the maximum storage performance with one Lightning Gen 4 solution. Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
- Extreme Power Design: INTERSIL digital PWM, 16+2+1 phases with 90A Smart Power Stage, dual CPU power connectors and exclusive Mirrored Power Arrangement to unleash the true power of your processors.
- Outstanding Cooling Solution: Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, M.2 Shield Frozr and Aluminum Backplate ensure the extreme performance with low temp.
- 2.5G LAN with latest Wi-Fi 6E: Onboard 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience.
- Smart Button: One button with multiple hardware control. Reset Computer, Safe Boot, Turbo Fan and EZ LED control functions with just one click.
- 8 Layer PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.
- Audio Boost 5 HD: Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience.
MSI: For Gamers & Creators
MSI is one of the most trusted names in gaming and esports with countless hours and significant resources invested into premier esports leagues and tier-1 gaming teams. By supporting and working with the best of the best, MSI is able to integrate competitive gaming knowledge and aspirations with technological innovation to create new products that shatter today’s performance limits.
MEG Z590 ACE Motherboard
Unlock the Potential
Whether it’s overclocking RAM, CPU’s or GPU cards, custom ARGB lighting via Mystic Light or envelope-pushing visionaries looking for a powerful, future-friendly, system base, the MEG Z590 ACE offers an cutting-edge hardware stage for gaming immersion at the highest settings.
- Supports Intel Core 11th & 10th Gen Processors (LGA 1200)
- 16+2+1 Mirrored Power Arrangementl VRM with 90A SPS
- Lightning Gen4 & Turbo Gen3 M.2 slots with Shield Frozr
- 2 x PCI-e 4.0 x16 (CrossFire via PCI-e 3.0 x16)
- 4 DIMMS with DDR4 Boost: Dual Channel (128GB Max. / 5600MHz OC)
- Intel I225-V 2.5G LAN & Thunderbolt 4 ports
- Mystic Light Illumination
- Wi-Fi 6E AX210 & Bluetooth 5.2
Z590 Chipset, 16+2+1 Phase VRM, Premium Cooling, 2 x PCI-e 4.0 x16
|
|
|
|
|
|---|---|---|---|
Supports Intel Core 11th Gen ProcessorsThe MEG Z590 ACE motherboard supports 11th Gen Intel Core, 10th Gen Intel Core, Pentium Gold, and Celeron processors.
|
16+2+1 Mirrored Power ArrangementUnleash and sustain maximum performance with an aggressive VRM design built with a total of 16+2+1 digital power phases. Combining dual 8-pin power connectors and an exclusive Mirrored Power Arrangement, the MEG Z590 ACE motherboard is ready for the challenge of high-end processors. |
Premium CoolingVRM Cooling: Features aluminum cover, connecting heat pipe, choke and 7W/mK thermal pads. PCB Cooling: Premium 8-layer printed circuit design with 2 oz. thickened copper and aluminium backplate improves heat dissipation & reliability. SSD Cooling: M.2 Shield Frozr prevents thermal throttling. System Cooling: Connect and synchronize cooling with strategically placed pin-headers – including a dedicated pump-fan header. Chipset Cooling: Includes an enlarged heatsink. |
Fortified PCI-e 4.0 x16MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:
|
Cutting-Edge Performance & Incredible Connectivity
|
|
|
|
|
|---|---|---|---|
Gen4 & Gen3 M.2 ConnectorsThe MEG Z590 ACE motherboard features MSI’s latest M.2 slots (Intel Optane supported):
*M.2 specifications may vary subject to the CPU installed. |
M.2 Shield FrozrEven the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures. M.2 Shield Frozr is MSI’s most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance. |
4 x DDR4 Dual Channel (5333 MHz OC)DDR4 Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance. XMP profiles in MSI BIOS are tested by MSI OC LAB and can be easily enabled with auto power settings for optimized memory speed and stability. |
Wi-Fi 6E & Thunderbolt 4 PortsThunderbolt 4: Supports true 40Gbp transfer rates and 8K display support. LAN: An Intel I225-V 2.5Gbps LAN controller delivers premium network gaming experience. Wi-Fi 6E: Features the latest Wi-Fi 6E AX210 (ultra-low latency, high-bandwidth) & Bluetooth 5.2 technology. HD Audio: 7.1-Channel High Definition Audio with Audio Boost 5 HD & S/PDIF output. |
| PROCESSOR |
|
| CHIPSET | Intel® Z590 Chipset |
| MEMORY | 4x DDR4 memory slots, support up to 128GB1 Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)1 Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)1 Max overclocking frequency: 1DPC 1R Max speed up to 5600 MHz 1DPC 2R Max speed up to 4800+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) Please refer to www.msi.com for more information on compatible memory |
| EXPANSION SLOTS |
|
| MULTI-GPU |
|
| ONBOARD GRAPHICS | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz |
| THUNDERBOLT 4 | Intel®JHL8540 Thunderbolt™ 4 Controller 2x Thunderbolt™ 4 (USB-C) ports on the back panel Support up to 40Gbps transfer rate with Thunderbolt devices Support up to 20Gbps transfer rate with USB4 devices Support up to 10Gbps transfer rate with USB 3.2 devices Support up to 5V/3A ,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display (need to connect the DisplayPort of the motherboard or discrete graphics card to the Mini DisplayPort Input port on the back panel) |
| STORAGE |
|
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| USB |
|
| AUDIO | Realtek® ALC4082 Codec + ESS SABRE9018Q2C Combo DAC/HPA 7.1-Channel High Definition Audio Supports S/PDIF output |
| LAN | 1x Intel® I225V 2.5Gbps LAN controller |
| WIFI & BLUETOOTH | Intel® Wi-Fi 6E AX210
|
| INTERNAL CONNECTORS |
|
| LED FEATURE |
|

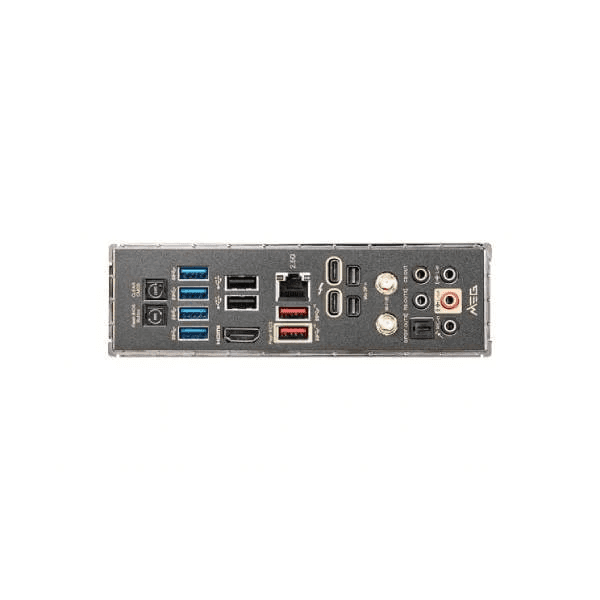

| BACK PANEL PORTS |
|
| DIMENSIONS |
|
| MOUNTING | 9 mounting holes |
| OPERATING SYSTEM | Support for Windows® 10 64-bit |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
