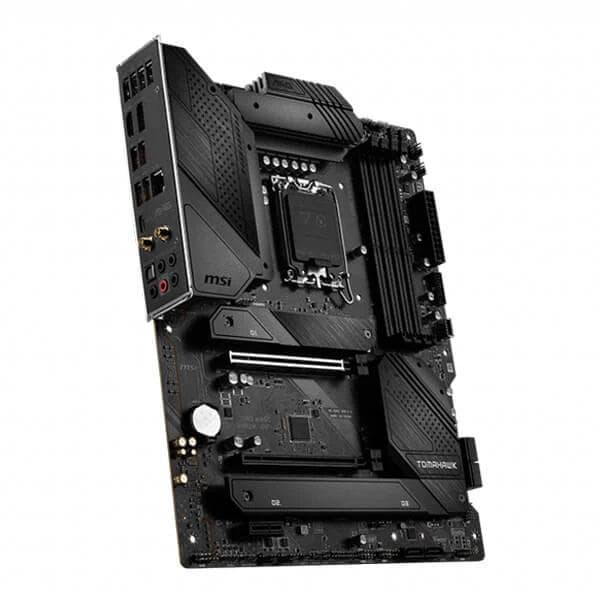

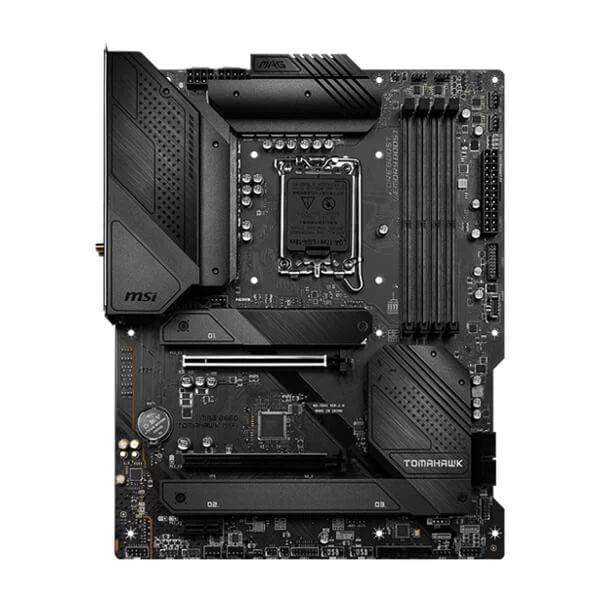

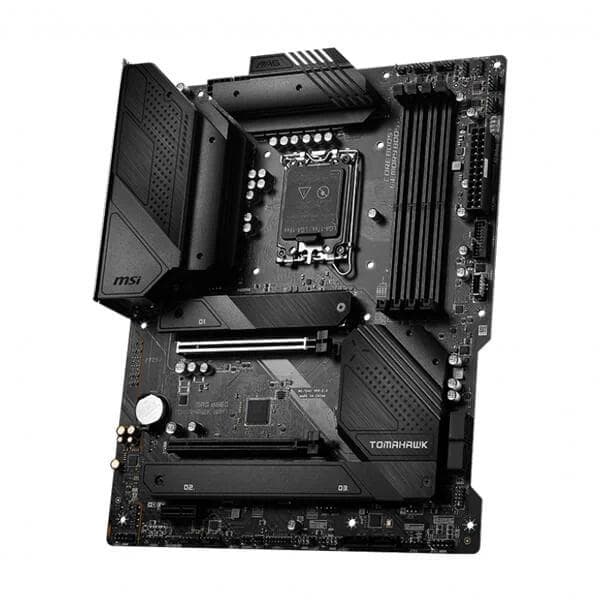

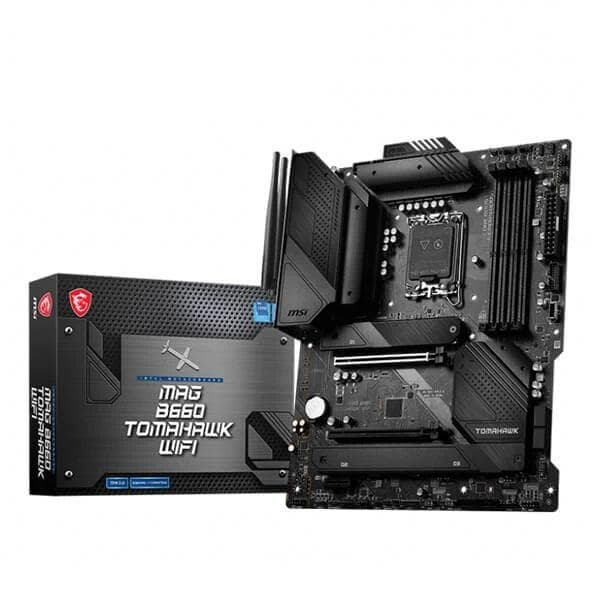

MSI MAG B660 Tomahawk WIFI DDR5 Intel Motherboard Supports Intel 12th , 13th & 14th Gen Processors

Brands
Brand:
msi
MSI
  • B660 Tomahawk Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
  • Supports DDR5 Memory, up to 6200+(OC) MHz
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
  •  Delivery & Return

    ? Shipping and Risk:

    • Order Will Be Shipped Within 24-48 Working Hours After the Order is Processed.
    • Shipping Partners : Delhivery, XpressBees, Gati, BlueDart, Ecom Express (Depending on Availability at Your Pincode), Computech DOES NOT Have any Control over Operations of Shipping Partners.
    • Delivery dates are estimates Provided By Shipping Partners. Shipping Partners are solely responsible for any kind of Delays.
    • Loss or damage occured during shipping is Computech Responsibility.
    • You Must Leave a Remark During Delivery to Delivery Guy About Damaged Box or Package, and Make an Un-cut Unboxing Video of the Package.
    • You must notify Computech of damaged or missing items from your order within 24-hours of receiving your package

    ♻️ Replacement and Refund Policy:

    • We accept replacement if product is defective or wrong product shipped no return or refund will be entertained.
    •  For gaming chairs only part replacement is applicable if the product delivered is defective or damaged, no refunds will be there for orders of gaming chairs.
    • If the seal of the product is opened and the product is not faulty then return/refund will not be applicable.
    • Packaging material should be kept by the buyer until the replacement window is opened as this will help them to pack the product to its original form to avoid any damage during the transit.
    • Product should be packed in a proper way as it was received by the buyer, do not apply tapes or glues directly on the product or on the product box, this may lead to cancellation of your replacement request.
    • All the accessories which were delivered along with the product should be returned in the same way and along with the product.
    • If the payment was made through our payment gateway, then it will be refunded in same account by which the payment was done, in case of BANK TRANSFER and COD orders refunds will be done only in buyers bank account. Refunds usually takes 7-10 working days to reflect in your account.
  ... people are viewing this right now

  Share
Guaranteed Safe Checkout

Original price was: ₹30,000.00.Current price is: ₹20,199.00.

Out of stock

Email when stock available

MSI MAG B660 Tomahawk WIFI DDR5 Intel Motherboard

Features:

  • MSI Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
  • Supports DDR5 Memory, up to 6200+(OC) MHz
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
  • Lightning USB 20G: Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire™

MAG B660 TOMAHAWK WIFI

FULLY CONTROLLABLE IN BIOS AND SOFTWARE

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

FULLY CONTROLLABLE IN BIOS AND SOFTWARE

M.2 SHIELD FROZR

World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.

With MSI M.2 Shield FROZRM.2 SHIELD FROZR

  • – Prevents throttling
  • – Maximizes drive performance
  • – Higher maximum SSD speeds

Normal M.2 SSD

*performance vary by model configuration

DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT

Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.

FROZR AI COOLING

Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

FAST AND FUTURE-READY STORAGE

MSI B660 motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.

B660-Storage

OPTANE: BOOST YOUR HDD TO PERFORM LIKE AN SSD

PC Enthusiasts can now enjoy the performance of an SSD on their HDD by coupling it with the new Intel® Optane™ Memory device. Intel® Optane™ technology provides an unparalleled combination of high throughput, low latency, high quality of service, and high endurance.


HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.

THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE

SURFACING WITH THE REAL MU-MIMO TECHNOLOGY

The latest Wi-Fi 6E solution supports 6GHz spectrum, Bluetooth 5.2, two-way MU-MIMO and BSS color technology, provide up to 4X network capacity and efficiency in the high signal density environment, delivering speeds up to 2400Mbps.

WIfi 6

OPTIMIZE ONLINE GAMING TRAFFIC FOR LOWER LATENCY!

MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency.

MSI LAN MANAGER

  • – Automatically prioritizes games above other applications –
  • – Allows you to change applications’ traffic priority –
  • – Allows you to customize bandwidth for each application –
MSI LAN MANAGER
Processor Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors 1 Processor socket LGA1700
Chipset Intel® B660 Chipset
Memory
  • 4x DDR5 memory slots, support up to 128GB 1
  • Supports 1R 4800 MHz (by JEDEC & POR)
  • Max overclocking frequency:
  • 1DPC 1R Max speed up to 6200+ MHz
  • 1DPC 2R Max speed up to 5200+ MHz
  • 2DPC 1R Max speed up to 4000+ MHz
  • 2DPC 2R Max speed up to 4000+ MHz
  • Supports Intel® XMP 3.0 OC
  • Supports Dual Controller Dual-Channel mode
  • Supports non-ECC, un-buffered memory
Expansion Slot
  • 2x PCIe x16 slots
  • PCI_E1 (From CPU)
  • Support up to PCIe 4.0
  • PCI_E2 (From B660 chipset)
  • Support up to PCIe 3.0 x4
  • 1x PCIe 3.0 x1 slot (From B660 chipset)
Multi-GPU
  • Supports AMD® CrossFire™ Technology
Onboard Graphics
  • 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1 / 2
  • 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz 1 / 2
Storage
  • 6x SATA 6Gb/s ports
  • SATA5~8 (From B660 chipset)
  • SATAA~B (From ASM1061)
  • 3x M.2 slots (Key M)
  • M2_1 slot (From CPU)
  • Supports up to PCIe 4.0 x4
  • Supports 2242/ 2260/ 2280/ 22110 storage devices
  • M2_2 & M2_3 slots (From B660 chipset)
  • M2_2 supports up to PCIe 4.0 x4
  • M2_3 supports up to PCIe 4.0 x2
  • 1 Supports SATA up to 6Gb/s
  • Supports 2242/ 2260/ 2280 storage devices
  • Supports Intel® Optane™ Memory
  • Supports Intel® Smart Response Technology for Intel Core™ processors
RAID
  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices 1
USB
  • Intel® B660 Chipset
  • 1x USB3.2 Gen 2x2 20Gbps port (Type-C port on the back panel)
  • 5x USB 3.2 Gen 2 10Gbps ports (4 Type-A ports on the back panel, 1 Type-C available through the internal connector)
  • 2x USB 3.2 Gen 1 5Gbps Type-A ports available through the internal connector
  • 8x USB 2.0 ports (4 Type-A ports on the back panel, 4 Type-A ports available through the internal connectors)
Audio Realtek® ALC1220P Codec
  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
LAN
  • 1x Realtek® RTL8125B-CG 2.5Gbps LAN controller
Wireless LAN & Bluetooth® Intel® Wi-Fi 6E
  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz 1 (160MHz) up to 2.4Gbps
  • Supports 802.11 a/ b/ g/ n/ ac/ ax
  • Supports Bluetooth® 5.2 2, FIPS, FISMA
Internal connectors
  • 1x 24-pin ATX main power connector
  • 2x 8-pin ATX 12V power connectors
  • 6x SATA 6Gb/s connectors
  • 3x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 2 10Gbps Type-C port
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 5x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x Clear CMOS jumper
  • 1x TPM module connector
  • 1x TBT connector (supports RTD3)
  • 1x Tuning Controller connector
LED Feature
  • 2x 4-pin RGB LED connectors
  • 2x 3-pin RAINBOW LED connectors
  • 4x EZ Debug LED
Back panel ports
  • USB 2.0 Port
  • DisplayPort 1.4
  • 2.5G LAN Port
  • Wi-Fi / Bluetooth Antenna
  • HD Audio Connectors
  • HDMI 2.1 Port
  • USB 3.2 Gen 2 10Gbps Type-A
  • USB 3.2 Gen 2x2 20Gbps Type-C
  • Optical S/PDIF OUT
Dimensions
  • ATX Form Factor
  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Warranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.
