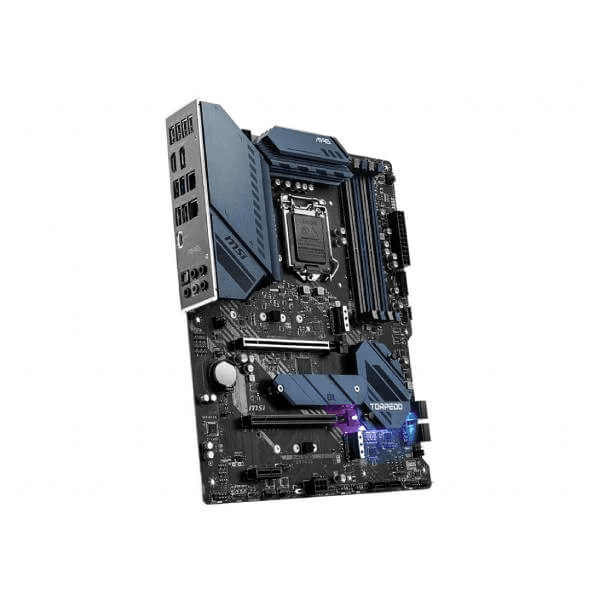

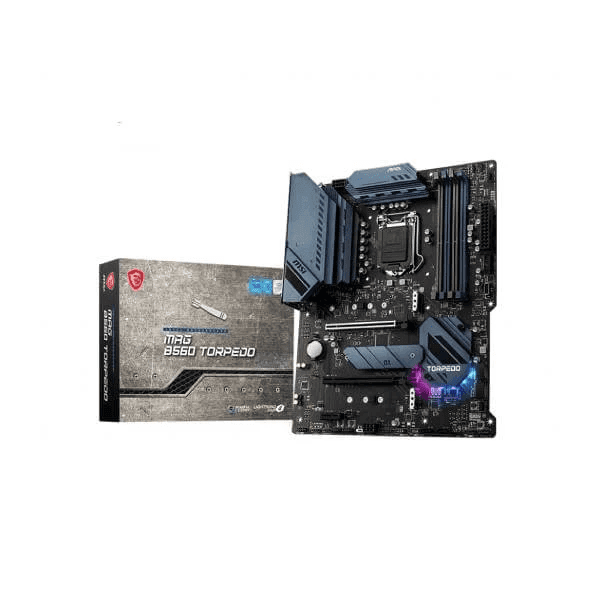

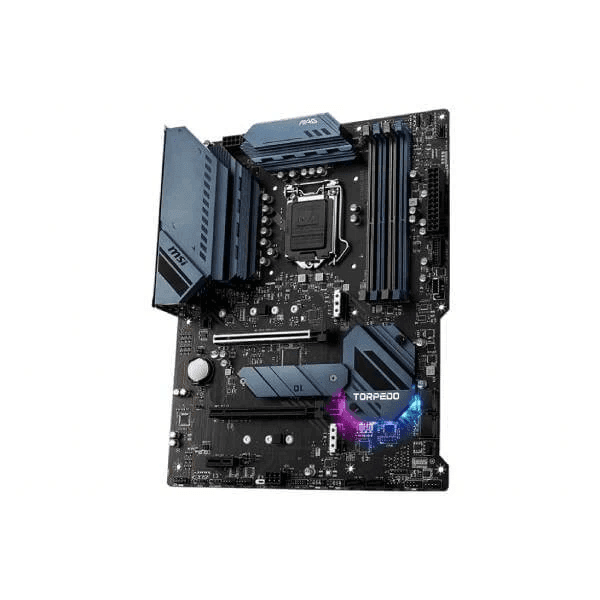

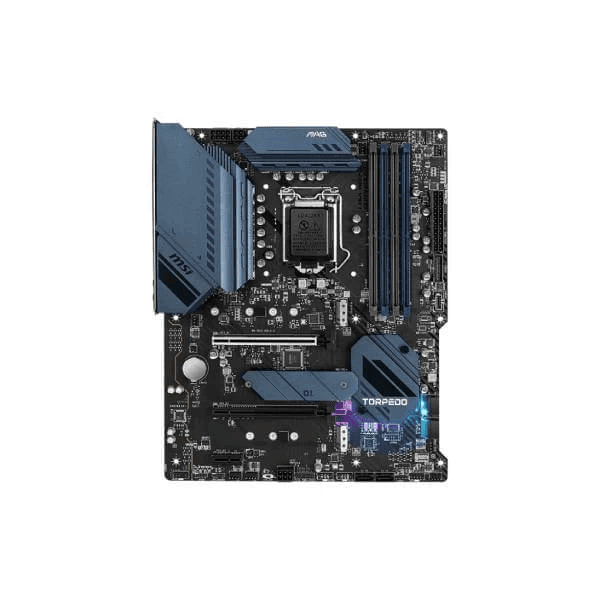

MSI MAG B560 Torpedo Intel Motherboard

Brands

B560 Torpedo Supports 10th Gen Intel^® Core™, 11th Gen Intel^® Core™, Pentium^® Gold and Celeron^® processors for LGA 1200 socket
Supports DDR4 Memory, up to 5066(OC) MHz
Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs
Premium Thermal Solution: B560 Torpedo Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
Latest Network Solution: Onboard 2.5G LAN plus Gigabit LAN with LAN Manager deliver the best online experience without lag

... people are viewing this right now

Guaranteed Safe Checkout

₹17,000.00

Out of stock

Description Specifications Additional information Reviews (0) Q & A

MSI MAG B560 Torpedo Intel Motherboard

MSI MAG Series B560 Based ATX Motherboard, Featuring 11th Gen Intel Rocket Lake Support, DDR4 5066 Mhz Memory Support, Dual LAN Networking Capability With 2.5 Gigabit Dragon Lan and Intel 1 Gigabit Ethernet.

Features

MAG B560 TORPEDO

MSI Supports 10th Gen Intel^® Core™, 11th Gen Intel^® Core™, Pentium^® Gold and Celeron^® processors for LGA 1200 socket
Supports DDR4 Memory, up to 5066(OC) MHz
Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
Latest Network Solution: Onboard 2.5G LAN plus Gigabit LAN with LAN Manager deliver the best online experience without lag
Lightning USB 20G: Powered by USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C
Audio Boost: Reward your ears with studio grade sound quality
Multi-GPU: With Steel armor PCIe slots. Supports 2-Way AMD Crossfire™

Core Boost Technology
With premium layout design, that is ready for unleashing the maximum performance.

6 layer PCB with 2oz Thickened Copper
6 layer PCB with 2oz thickened copper provides higher performance and long-lasting system stability without any compromise.

Digital PWM
Highest quality component digital power IC makes sure your system runs smoothly under the most extreme conditions.

PCIe Steel Armor
Protecting VGA cards against bending and EMI for better performance, stability and strength.

MAG B560 TORPEDO

PREMIUM THERMAL SOLUTION

Extended Heatsink
MSI extended heatsink and enhanced circuit design ensures even high-end processors to run in full speed.

M.2 Shield Frozr
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.

Pump Fan Support
Control watercooling pump speeds for best flow and noise control.

Heatsinks with 7W/mK Thermal Pad
7W/mK thermal pad provides better heat transfer to the heatsink.

MAG B560 TORPEDO

HIGH-SPEED TRANSMISSION

2.5G Plus Gigabit LAN
Featuring 2.5G, Gigabit LAN with LAN manager delivers better network experience.

Lightning USB 20G
Built-in USB 3.2 Gen 2×2 port, offers the 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.

DDR4 Boost
The Fully isolated DIMM slots to deliver pure data signals for the best gaming and overclocking performance.

Lightning Gen 4 Solution
The latest Gen 4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.

EXTENDED HEATSINK

Larger heatsink for maximum cooling.

DUET RAIL POWER SYSTEM

Unleash and sustain maximum performance with an aggressive VRM design with concurrent stable power delivery. Combining 8pin power connectors and exclusive Core Boost technology, MAG series motherboard is ready to sustain heavy daily work.

CORE BOOST

Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU.

LIGHTNING GEN 4 SOLUTION

The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications.

M.2 SHIELD FROZR

Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.

DUAL LAN WITH 2.5G LAN

MAG B560 TORPEDO features high-bandwidth and low-latency 2.5G plus Gigabit LAN for demanding creators and power users. Onboard 2.5Gbps connectivity provides incredible data transfer speed faster than ever before. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive for your applications, giving you the best online experience with low latency.

DOUBLE BANDWIDTH WITH LIGHTNING USB 3.2 GEN 2X2 20G

Using USB 3.2 devices has never been faster! Featuring the USB 3.2 Gen2x2 controller, MSI motherboards offer never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C. The Lightning USB 20G connectors are covered with gold to ensure a better signal and performance.

AMPLIFY YOUR GAME WITH AUDIO BOOST

Like a dedicated sound card, Audio Boost offers a HD audio processor, dedicated amplifier and high quality audio capacitors, all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy.

CUSTOMIZE YOUR GAMING RIG

Personalize your PC with 16.8 million colors and 29 effects through Mystic Light RGB LED. Controlled in one click with the Mystic Light APP or a mobile device.

PCB WITH 2OZ THICKENED COPPER

An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking.

MULTIPLE GPU SUPPORTS AND STEEL ARMOR

MAG B560 TORPEDO supports multiple GPU solution. Optimal PCI-Express slot placement allows for better fitting and airflow. That way, you can enjoy the best graphics at the highest framerate jumping from your screen when running an AMD® CrossFire™ setup Steel Armor has more solder points on the PCB for more strength and protects the PCI-Express signals against electromagnetic interference for a stutter-free user experience.

CUSTOMIZATION STICKERS

Thanks to the stickers within the package, you can easily personalize your motherboard and truly make it yours.

Description Specifications Additional information Reviews (0) Q & A

PROCESSOR	Supports 10th Gen Intel^® Core™ Processors, 11th Gen Intel^® Core™ Processors, Pentium^® Gold and Celeron^® Processors Processor socket LGA1200
CHIPSET	Intel^® B560 Chipset
MEMORY	4x DDR4 memory slots, support up to 128GB Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel^® CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel^® CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5066 MHz 1DPC 2R Max speed up to 4600+ MHz 2DPC 1R Max speed up to 4266+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel^® Extreme Memory Profile (XMP)
EXPANSION SLOTS	2x PCIe x16 slots PCI_E1 (from CPU) Support up to PCIe 4.0 for 11th Gen Intel^® CPU Support up to PCIe 3.0 for 10th Gen Intel^® CPU PCI_E2 (from B560 chipset) Support up to PCIe 3.0 x4 1x PCIe 3.0 x1 slot (from B560 chipset)
ONBOARD GRAPHICS	1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
MULTI-GPU	Supports 2-Way AMD® CrossFire™ Technology
STORAGE	6x SATA 6Gb/s ports (from B560 chipset) 3x M.2 slots (Key M) M2_1 slot (from CPU) Available only on 11th Gen Intel^® CPU Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (from B560 chipset) Supports up to PCIe 3.0 x4 Supports SATA up to 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_3 slot (from B560 chipset) Supports up to PCIe 3.0 x4 Supports 2242/ 2260/ 2280 storage devices Intel^® Optane™ Memory Ready Supports Intel^® Smart Response Technology for Intel Core™ processor
USB	Intel^® B560 Chipset 1x USB3.2 Gen 2x2 20Gbps port (Type-C port on the back panel) 1x USB 3.2 Gen 2 10Gbps port (1 Type-C available through the internal connector) 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 Type-A ports available through the internal connector) 4x USB 2.0 ports on the back panelG Hub-GL850G 4x USB 2.0 ports available through the internal connectors
AUDIO	Realtek^® ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
LAN	1x Realtek^® RTL8125B 2.5Gbps LAN controller 1x Intel^® I219V 1Gbps LAN controller
INTERNAL CONNECTORS	x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 3x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 5x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x TBT connector (supports RTD3) 1x Tuning Controller connect
LED FEATURE	1x EZ LED Control switch 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 4x EZ Debug LED

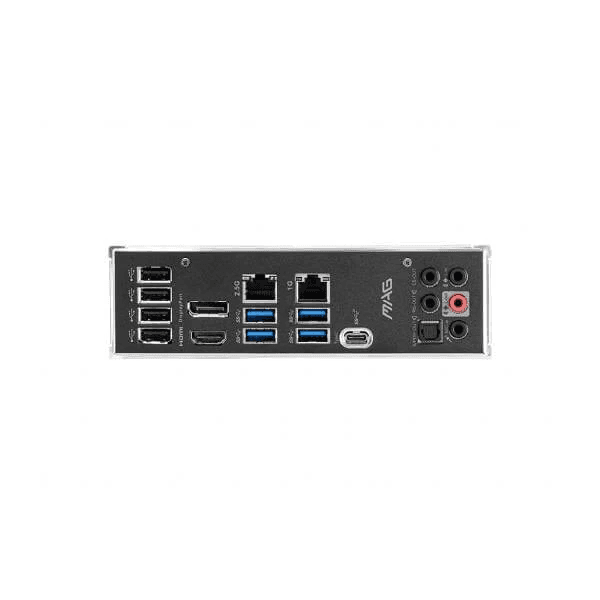

BACK PANEL PORTS	USB 2.0 DisplayPort 2.5G LAN Port Gigabit LAN Port HD Audio Connectors HDMI USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 2x2 20Gbps Type-C Optical S/PDIF OUT
DIMENSIONS	ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm
MOUNTING	9 mounting holes
OPERATING SYSTEM	Support for Windows^® 10 64-bit
Warranty	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.

Description Specifications Additional information Reviews (0) Q & A

Weight	2 kg
Dimensions	30 × 24 × 6 cm
Brands	MSI
Chipset	B560
Motherboard Size	ATX
Socket	LGA1200
Platform	Intel
Motherboard Series	MSI MAG
RAM Type	DDR4
Warranty	3 Years
EAN / UPC Code	4719072802912
