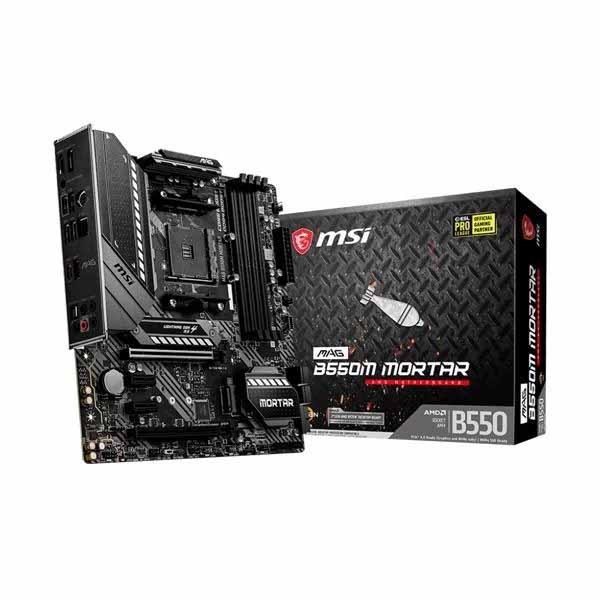

Msi Mag B550m Mortar Motherboard

Brands
  • Powered by 3rd generation AMD Ryzen 9, Ryzen7, Ryzen 5 AM4 to maximize connectivity and speed with dual M.2, PCIe 4.0, USB 3.2 Gen2 and up to 128GB of DDR4 (4400MHz).
  • With 3rd Gen Ryzen processors, this motherboard featurs the latest Lightning Gen 4 solution on both PCI-E and M.2 slot, which allow for faster data transfer on graphics cards, storage devices and networking devices.
  • Addressable LED Ready with Mystic Light Extension provides a JRAINBOW pinheader for complete function to connect to addressable RGB strips and control the RGB light all around the system.
  •  Delivery & Return

    🚚 Shipping and Risk:

    • Order Will Be Shipped Within 24-48 Working Hours After the Order is Processed.
    • Shipping Partners : Delhivery, XpressBees, Gati, BlueDart, Ecom Express (Depending on Availability at Your Pincode), Computech DOES NOT Have any Control over Operations of Shipping Partners.
    • Delivery dates are estimates Provided By Shipping Partners. Shipping Partners are solely responsible for any kind of Delays.
    • Loss or damage occured during shipping is Computech Responsibility.
    • You Must Leave a Remark During Delivery to Delivery Guy About Damaged Box or Package, and Make an Un-cut Unboxing Video of the Package.
    • You must notify Computech of damaged or missing items from your order within 24-hours of receiving your package

    ♻️ Replacement and Refund Policy:

    • We accept replacement if product is defective or wrong product shipped no return or refund will be entertained.
    •  For gaming chairs only part replacement is applicable if the product delivered is defective or damaged, no refunds will be there for orders of gaming chairs.
    • If the seal of the product is opened and the product is not faulty then return/refund will not be applicable.
    • Packaging material should be kept by the buyer until the replacement window is opened as this will help them to pack the product to its original form to avoid any damage during the transit.
    • Product should be packed in a proper way as it was received by the buyer, do not apply tapes or glues directly on the product or on the product box, this may lead to cancellation of your replacement request.
    • All the accessories which were delivered along with the product should be returned in the same way and along with the product.
    • If the payment was made through our payment gateway, then it will be refunded in same account by which the payment was done, in case of BANK TRANSFER and COD orders refunds will be done only in buyers bank account. Refunds usually takes 7-10 working days to reflect in your account.
  ... people are viewing this right now

  Share
Guaranteed Safe Checkout

15,100.00

Out of stock

Email when stock available

MSI MAG B550M MORTAR Motherboard

Important Notice :

  • BIOS Update May Be Required With This Motherboard in order to support the Latest Generation Ryzen Processor (Upto 5th Gen Ryzen).
  • The Maximum Supported Memory Speed Varies with The Generation of Ryzen Processor You are Using With it.
  • For Additional Information Regarding Compatibility, Please Check Within the Manufacturers Website

Features

  • MSI MAG B550M MORTAR Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
  • MAG B550M MORTAR Supports DDR4 Memory, up to 4400+(OC) MHz
  • Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 Gen 2
  • Premium Thermal Solution: Extended Heatsink Design with additional choke thermal pad rated for 7W/mk and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experience.
  • Enhanced Power Design: 8+2+1 Duet Rail Power System, Digital PWM, Core Boost, DDR4 Boost.
  • 2.5G LAN with LAN Manager  Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection.
  • Pre-installed I/O Shielding: Better EMI protection and more convenience for installation.
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience.
  • Multi-GPU: With Steel Armor PCI-E slots. Supports 2-Way AMD Crossfire™

MSI MAG B550M MORTAR is the most trusted name in gaming and eSports. We’ve dedicated countless hours and committed numerous resources to support the world’s most aspiring and best gamers and use their knowledge and expertise in our products in return. MSI integrated all gamer’s aspirational functions in its gaming rigs and pushing the performance beyond limits.

MAG B550M MORTAR

Advancing Ascension

  • Experience new generation of the MAG B550M MORTAR motherboard powered by 3rd Gen AMD 3000 series AM4 processors. Outperform your system’s capacity with Lightning Gen 4 solution and 2.5G LAN. Smart software tools DDR4 Boost and Core Boost, created to keep you one step ahead of the competition. Extended Heatsink Design, 7W/mK level thermal & choke pad with 2oz thickened copper help your PC remain cool, high performing and reliable.
  • Designed for 3rd Gen AMD Ryzen processors with Lightning Gen 4 M.2, PCIe 4.0, USB 3.2 Gen 2.
  • Addressable LED Ready with a JRAINBOW pinheader addressable RGB strips and control the RGB light all around the system.
  • Extended Heatsink Design improves VRM heat dissipation and ensures the power delivery system can sustain even high-end processors running at full load.
  • Front USB Type-C allows gamers to be compatible with the latest PC chassis and perfect for external drives and other mobile devices.



Processor Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
Chipset AMD B550 Chipset
Memory
  • 4x DDR4 memory slots, support up to 128GB
    • Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
    • Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE
      • 1DPC 1R max speed 4400 MHZ
      • 1DPC 2R max speed 3733 MHZ
      • 2DPC 1R max speed 3866 MHZ
      • 2DPC 2R max speed 3466 MHZ
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory (non-ECC mode)
  • Supports un-buffered memory
Expansion Slot
  • 1x PCIe 3.0/ 4.0 x16 slot (PCI_E1)
  • 1x PCIe 3.0 x16 slot (PCI_E4), supports x4 mode
  • 2x PCIe 3.0 x1 slots
  1. The supported specification depends on installed processor.
  2. PCI_E4 will be unavailable when an M.2 SSD is installed in the M2_2 slot.
Multi-GPU Supports 2-Way AMD CrossFire™ Technology
Onboard Graphics
  • 1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz
  • 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz
  • Maximum shared memory of 2048 MB
Storage AMD B550 Chipset
  • 6x SATA 6Gb/s ports
  • 2x M.2 slots (Key M)
    • M2_1 slot (from AMD processor)
      • Supports PCIe 4.0/ 3.0 x4
      • Supports SATA 6Gb/s
      • Supports 2242/ 2260/ 2280 storage devices
    • M2_2 slot (from AMD B550 chipset)
      • Supports PCIe 3.0x4
      • Supports 2242/ 2260/ 2280 storage devices
  1. The supported specification depends on installed processor.
RAID AMD B550 Chipset
  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  • Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB
AMD B550 Chipset
  • 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
  • 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AMD Processor
  • 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel)
  • 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Audio Realtek® ALC1200 Codec
  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
LAN 1x Realtek® RTL8125B 2.5Gbps LAN controller
Internal connectors
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 6x SATA 6Gb/s connectors
  • 2x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 1 5Gbps Type-C port
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 3x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x 4-pin RGB LED connector
  • 2x 3-pin RAINBOW LED connectors
  • 1xTPM module connector
  • 1x Clear CMOS jumper
Back panel ports
  • DisplayPort
  • PS/2 Combo Port
  • 2.5G LAN Port
  • USB 3.2 Gen 2 10Gbps (Type-A)
  • HD Audio Connectors
  • HDMI Port
  • Flash BIOS Button
  • USB 2.0 port
  • USB 3.2 Gen 1 5Gbps (Type-A)
  • USB 3.2 Gen 2 10Gbps (Type-C)
  • Optical S/PDIF OUT
Dimensions
  • Micro-ATX Form Factor
  • 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Mounting 8 mounting holes
Operating System Support for Windows® 10 64-bit
Warranty 3 Years
Note ***Features, Price and Specifications are subject to change without notice.
Weight 2 kg
Dimensions 24 × 4 × 24 cm
