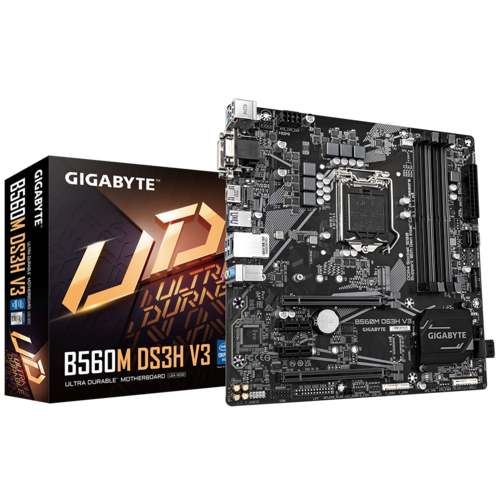

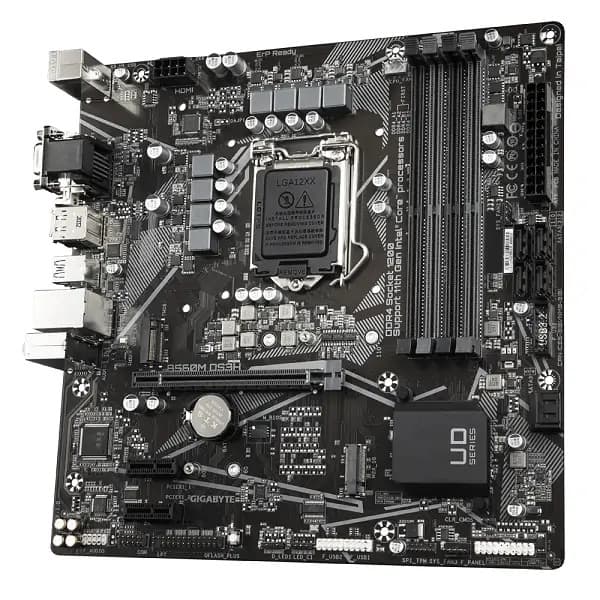

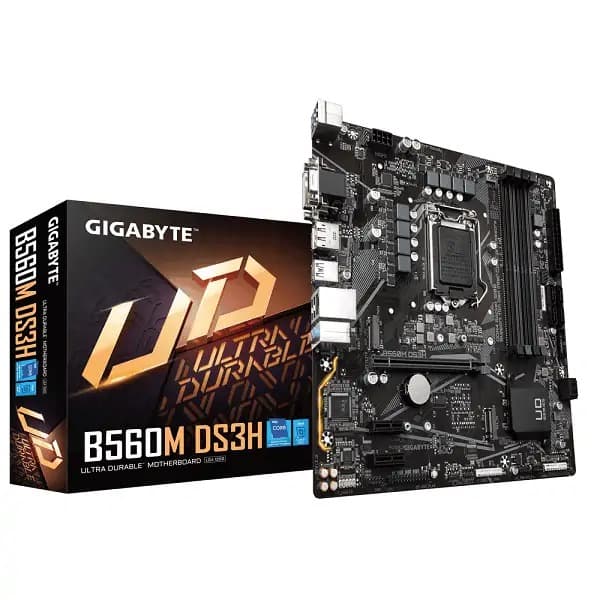

Gigabyte B560M DS3H V3 Intel Motherboard
- Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors*
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- NVMe PCIe Gen3 X4 M.2 Connectors
- Smart Fan 5 Features Multiple Temperature Sensors,Hybrid Fan Headers with FAN STOP
- Intel® Optane™ Memory Ready
- Intel® GbE LAN with cFosSpeed Internet Accelerator Software
- 3 Display Interfaces Support
- RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
- Anti-Sulfur Resistors Design
- Q-Flash Plus Update BIOS without Installing the CPU、Memory and Graphics Card
... people are viewing this right now
Original price was: ₹12,870.00.₹11,349.00Current price is: ₹11,349.00.
Out of stock
Email when stock available
Intel® Ultra Durable Motherboard with Intel® GbE with cFosSpeed, PCIe Gen3 x4 M.2, HDMI / DVI-D/ D-Sub Ports for Multiple Display, Anti-Sulfur Resistor, Smart Fan 5, RGB FUSION 2.0
PERFORMANCE
4+2 Hybrid Digital VRM with Low RDS(on) MOSFET
GIGABYTE motherboards use Low RDS(on) MOSFETs which reduce energy wastage through unnecessary residual heat dissipation. This all amounts to tangible energy saving which are beneficial for both end-users and the environment without impacting system performance.
Benefits of Low RDS(on) MOSFETs
‧ Optimized gate charge to minimize switching losses.
‧ Lower temperature, smaller size, better thermal characteristics.
‧ Lower temperature, smaller size, better thermal characteristics.
NVMe PCIe Gen3 X4 22110 M.2 Connector
GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.
2-Way CrossFire™ Multi-Graphics
CONNECTIVITY
Intel® GbE LAN with cFosSpeed Internet Accelerator Networking
Intel® GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
The Industry’s Leading LAN Static-Electricity & Surge Protection
GIGABYTE motherboards use ICs with up to 3 times the ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard and its components against potential damage caused by static electricity. GIGABYTE motherboards also feature special anti-surge ICs that protect your motherboard, and your PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular and inconsistent power delivery.
High Definition Digital Outputs
COOLING
Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.
Fan / Water Pump Connectors
Internal Temperature SensorsDifferent models have different number of fan pin headers and temperature sensors. Smart Fan 5 function may vary by model.
Temperature Sensors
Hybrid Fan Headers
■ 2 Fan / Water Pump Connectors
■ 4 Temperature Sensors
■ All Fan Pin Headers Upgraded to Hybrid Fan Headers
■ Interoperable Fans and Sensors
■ Intuitive UI for Fan Control
■ 4 Temperature Sensors
■ All Fan Pin Headers Upgraded to Hybrid Fan Headers
■ Interoperable Fans and Sensors
■ Intuitive UI for Fan Control
FAN STOP
Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.
Intelligent Fan Control Design
LIGHTING
RGB FUSION 2.0
With H470 Motherboards, RGB Fusion 2.0 is even better with Addressable LEDs.* RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion 2.0 on H470 Series Motherboards are now upgraded with Addressable LED support. With external Addressable LED strips*, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.
With H470 Motherboards will support either 5v or 12v Addressable LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings with more to come.
* Addressable LEDs are available only on select Motherboards, external LED Strips, Addressable LED Strips are not included with Motherboard purchase.
RGB Fusion 2.0 Software
RGB Fusion APP
With an integrated intuitive user interface, the RGB Fusion 2.0 provides you a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience.
Sync with one click
Individual control as you wish
AUDIO
High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
ULTRA DURABLE
GIGABYTE Patented Double Locking Bracket
Q-Flash Plus
Update the BIOS easily without installing the CPU, memory and graphics card.
With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!
START SULFURIZATION PROTECTION
Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.
GIGABYTE EXCELLENCE
GIGABYTE BIOS
The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.
* Photos are for reference only. Product features may vary by model.
4K Ultra HD Support
4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today’s standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel® HD Graphics via HDMI.
HDMI™ – The Next Generation Multimedia Interface
HDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.
| Model | |
|---|---|
| Brand | GIGABYTE |
| Model | B560M DS3H V3 |
| Supported CPU | |
| CPU Socket Type | LGA 1200 |
| CPU Type | 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® C |
| Chipsets | |
| Chipset | Intel H470 Express Chipset |
| Memory | |
| Number of Memory Slots | 4 x DDR4 DIMM Slots |
| Memory Standard | 11th Generation Intel® Core™ i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules 10th Generation Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/ |
| Maximum Memory Supported | up to 128 GB |
| Channel Supported | Dual channel memory architecture |
| Expansion Slots | |
| PCI Express x1 | 2 x PCI Express x1 slots |
| PCI Express x16 | 1 x PCI Express x16 slot, running at x16 (PCIEX16) |
| Storage Devices | |
| SATA 3Gb/s | 4 x SATA 6.0 Gb/s Connectors |
| SATA RAID | Support Raid 0, 1, 5, 10 |
| Onboard Video | |
| Onboard Audio | |
| Audio Channels | 2/4/5.1/7.1-channel |
| Audio Chipset | Realtek audio codec |
| Onboard LAN | |
| LAN Chipset | Intel GbE LAN chip (1 Gbps/10 Mbps/100 Mbps) |

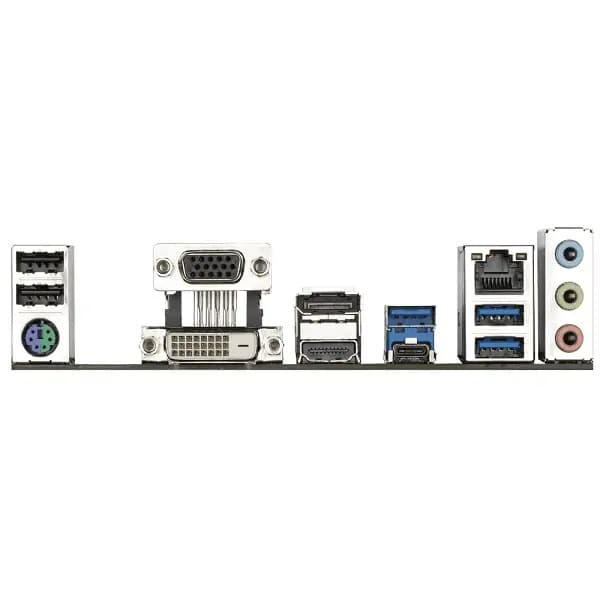

| Rear Panel Ports | |
| USB | 3 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports |
| IEEE 1394 | N/A |
| S/PDIF Out | N/A |
| Audio Ports | 3 x audio jacks |
| PS/2 | 1 x PS/2 keyboard/mouse port |
| Video Ports | 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 1 x RJ-45 port |
| HDMI | 1 x HDMI Port |
| Onboard USB | |
| Onboard USB | Chipset: 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the intern |
| Onboard 1394 | |
| Onboard 1394 | N/A |
| Physical Spec | |
| Form Factor | Micro ATX Form Factor |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Dimensions | 24.4cm x 24.4cm |
