Intel Network AX200.NGWG.NV WI-FI 6 AX2002230 2X2 AX+BT NO VPRO Retail
SKU: AX200.NGWG.NV
users viewing this item right now
₹9999
₹3999
Save Extra
Availability
Sold Out
- 2.4GHz, 5GHz (160Mhz)
- 2.4Gbps
- 802.11ac WiFi 6 pre certified

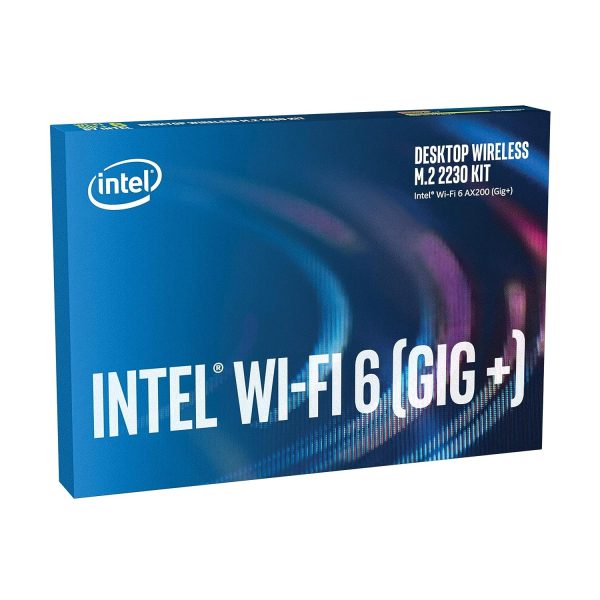

Intel Network AX200.NGWG.NV WI-FI 6 AX2002230 2X2 AX+BT NO VPRO Retail
Feature
- The Intel® Wi-Fi 6 AX200 (Gig+) adapter supports the new IEEE 802.11ax standard - Wi-Fi 6 technology and is Wi-Fi CERTIFIED 6™. The product supports 2x2 Wi-Fi 6 technology, including new features such as UL and DL OFDMA and 1024QAM, delivering data rates of up to 2.4Gbps and increased network capacity as well as Bluetooth® 5.2 support.
- These new features deliver a significant improvement in user experience in dense deployments, supporting fast uploads and downloads, lower latency, and longer battery life compared to solutions supporting 802.11ac. Combined with Intel® Core™ processors and exceptional Intel wireless innovations, the Intel® Wi-Fi 6 AX200 module can provide Gigabit wireless speed and dramatically improve your connected experience at home, work, or on the go.
- Intel Wi-Fi 6 solutions enable the fastest wireless speeds for PCs, more responsive performance, with enhanced security and reliability, especially in dense environments.
Key Feature
- Plug into an M.2 slot on your device for instant wireless connectivity
- The internal wi-fi/bluetooth combo adapter allows future enhancements to the computing platform
Key Features
| Weight | 0.90718 kg |
|---|---|
| Connectivity technology | Wireless |
| Host interface | PCI Express |
| Interface | WLAN |
| Maximum data transfer rate | 2400 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11u, IEEE 802.11v, IEEE 802.11w |
| Wi-Fi | Y |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Security algorithms | 64-bit WEP, 128-bit AES, 128-bit WEP, 256-bit AES, AES-CCMP, AES-GCMP, EAP-AKA, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP, TKIP, WPA2, WPA3, WPS |
| Bluetooth | Y |
| Bluetooth version | 5 |
| Internal | Y |
| Component for | PC/notebook |
| Antenna type | 2×2 |
| Package size | 22 x 30 x 2.4 mm |
| Compatible operating systems | Windows 10, 64-bit*, Linux* |
| Windows operating systems supported | Windows 10 x64 |
| Linux operating systems supported | Y |
| Other operating systems supported | ChromeOS |
| Operating temperature (T-T) | 0 – 80 °C |
| Maximum operating temperature | 80 °C |
| Supported Under vPro | Y |
| Interface type | Wi-Fi(PCIe), BT(USB) |
| Product type | Wireless |
| Processor family | Intel Wi-Fi 6 Products |
| Harmonized System (HS) code | 85176990 |
| Export Control Classification Number (ECCN) | 5A992CN3 |
| Commodity Classification Automated Tracking System (CCATS) | G165483 |
| Compliance | FIPS, FISMA |
| MU-MIMO | Y |
| Launch date | Q2'19 |
| Product brief URL | https://www.intel.com/content/dam/www/public/us/en/documents/product-briefs/wi-fi-6-ax200-module-brief.pdf |
| Status | Launched |
| Product series | Intel® Wireless Products |
| Product codename | Cyclone Peak |
Brands
Intel
Ean-Upc-Code
4533154036141
Product-Type
Normal
Connection-Type
Bluetooth|Wi-FI
