SALE

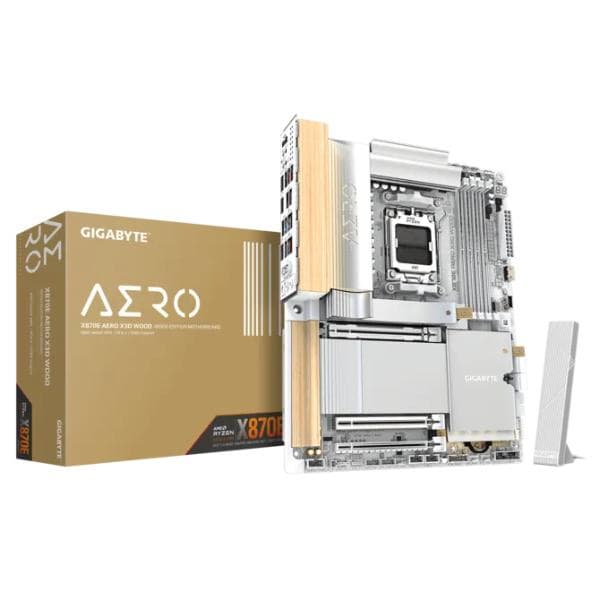

Gigabyte X870E AERO X3D WOOD Motherboard

EMI & Split Payment Options

Motherboard Gigabyte AMD Motherboard Gigabyte Motherboard

Gigabyte X870E AERO X3D WOOD Motherboard

Name: Gigabyte X870E AERO X3D WOOD Motherboard
Brand: Gigabyte
SKU: X870E-AERO-X3D-WOOD
Price: 40644.00 INR
Availability: InStock

SKU: X870E-AERO-X3D-WOOD

Gigabyte

users viewing this item right now

₹245000

₹40644 Save Extra

Availability

In Stock

Gigabyte X870E AERO X3D WOOD Motherboard

Raw textures reveal timeless elegance
X3D Turbo Mode 2.0 : Incredible X3D performance unleashed by AI
DDR5 OC up to 9000MT/s
DriverBIOS : Wi-Fi Driver Pre-install, Power-On & EZ to Launch the Network.
AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
Digital twin 16+2+2 phases VRM solution
Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
M.2 EZ-Flex : high-efficiency heat dissipation & flexible patented baseplate for M.2 SSD
WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
M.2 EZ-Latch Click & Plus : Quick Release & Screwless Design on M.2 slots and heatsinks
Friendly UI : Multi-Theme, One click to screenshot, and Click to go BIOS path in BIOS
Ultra-Fast Storage : 4*M.2 slots, including PCIe 5.0 x4
PCB Thermal Plate : 14% thermal improvement and reinforced motherboard stability.
Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard L & M.2 Thermal Guard Ext.
Fast Networking : Dual 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
Extended Connectivity : HDMI, Dual USB4 Type-C with DP-Alt
PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card

Key Features

Category	Specification
CPU Socket	AMD Socket AM5
Supported Processors	AMD Ryzen™ 9000 Series / 8000 Series / 7000 Series (check GIGABYTE CPU support list for latest)
Chipset	AMD X870E
Memory	4 × DDR5 DIMM sockets, up to 256 GB (64 GB single DIMM max) Dual channel architecture Supports DDR5 9000(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8000(O.C) / 7800(O.C) / 7600(O.C) / 7400(O.C) / 7200(O.C) / 7000(O.C) / 6800(O.C) / 6600(O.C) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s AMD EXPO™ and Intel XMP support Non-ECC Un-buffered DIMM support
Onboard Graphics	Integrated AMD Radeon™ Graphics (via CPU) + ASMedia USB4® Controller 2 × USB4® Type-C ports (DisplayPort, max 3840×2160@240 Hz) 1 × HDMI 2.1 (max 4096×2160@60 Hz) 1 × Front HDMI (max 1920×1080@30 Hz)
Audio	Realtek® ALC1220 CODEC High Definition Audio 2/4/5.1/7.1-channel S/PDIF Out support DSD audio support on line out
LAN	2 × Realtek® 5GbE LAN chips (5 Gbps / 2.5 Gbps / 1 Gbps / 100 Mbps)
Wireless	MediaTek Wi-Fi 7 MT7927 (RZ738) 802.11a/b/g/n/ac/ax/be, 2.4/5/6 GHz bands, 320 MHz channel Bluetooth 5.4 (Wi-Fi 7 requires Windows 11 SV3; 6 GHz availability varies by country)
Expansion Slots	1 × PCIe 5.0 x16 (PCIEX16) – CPU (PCIe 5.0 x16 on Ryzen 9000/7000, PCIe 4.0 x8/x4 on 8000 series) 1 × PCIe 5.0 x8 (PCIEX8) – CPU (shares with PCIEX16) 1 × PCIe 4.0 x4 (PCIEX4) – Chipset
Storage	4 × M.2 (Socket 3, M key): - M2A_CPU & M2B_CPU: PCIe 5.0 x4/x2 (CPU) - M2C_SB & M2D_SB: PCIe 4.0 x4/x2 (Chipset) 4 × SATA 6Gb/s RAID 0/1/5/10 (NVMe), RAID 0/1/10 (SATA)
USB (Rear I/O)	2 × USB4® Type-C 1 × USB 3.2 Gen 2 Type-C 5 × USB 3.2 Gen 2 Type-A (red) 3 × USB 3.2 Gen 1 2 × RJ-45 (5GbE)
USB (Internal Headers)	1 × USB 3.2 Gen 2x2 Type-C 2 × USB 3.2 Gen 1 2 × USB 2.0/1.1
Internal I/O Connectors	1 × 24-pin ATX, 2 × 8-pin CPU power Multiple fan/pump headers, RGB/ARGB headers, TPM, Q-Flash Plus, etc.
Back Panel I/O	HDMI 2.1, 2 × USB4® Type-C (DP), 1 × USB-C 3.2 Gen 2x2, 5 × USB 3.2 Gen 2 Type-A, 3 × USB 3.2 Gen 1, 2 × 5GbE RJ-45, optical S/PDIF, 2 × audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage, temperature, fan speed, water cooling flow, fan fail warning, fan speed control, noise detection
BIOS	256 Mbit flash, AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup
Bundled Software	Norton® Internet Security (OEM version)
Operating System	Windows 11 64-bit support
Form Factor	ATX; 30.5 cm × 24.4 cm
