Gigabyte B850M AORUS ELITE WIFI6E ICE AM5 M-ATX AMD Motherboard

EMI & Split Payment Options

Motherboard Gigabyte AMD Motherboard Gigabyte Motherboard

Gigabyte B850M AORUS ELITE WIFI6E ICE AM5 M-ATX AMD Motherboard

Name: Gigabyte B850M AORUS ELITE WIFI6E ICE AM5 M-ATX AMD Motherboard
Brand: Gigabyte
SKU: B850M A ELT WF6E ICE
Price: 19199.00 INR
Availability: InStock

SKU: B850M A ELT WF6E ICE

Gigabyte

users viewing this item right now

₹31000

₹19199 Save Extra

Availability

In Stock

MATX Form Factor
AMD B850 Chipset
AM5 Socket
4 x Dual-Channel DDR5 Slots
1 x PCIe 5.0 x16 with PCIe UD Slot
1 x PCIe 3.0 x4
4 x SATA | 2 x M.2
2.5GbE LAN | Wi-Fi 6E | Bluetooth 5.3
EZ-Latch Plug, Plus, and Click
Support for Windows 11 (64-Bit)

Gigabyte B850M AORUS ELITE WIFI6E ICE AM5 M-ATX AMD Motherboard

Key Features

X3D Turbo Mode : Unleash new era gaming performance
DDR5 OC up to 8200MT/s
AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
Digital twin 12+2+2 phases VRM solution
Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
EZ-Latch Click : M.2 heatsinks with screwless design
Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup
Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
Ultra-Fast Storage : 2*M.2 slots, including PCIe 5.0 x4
Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.

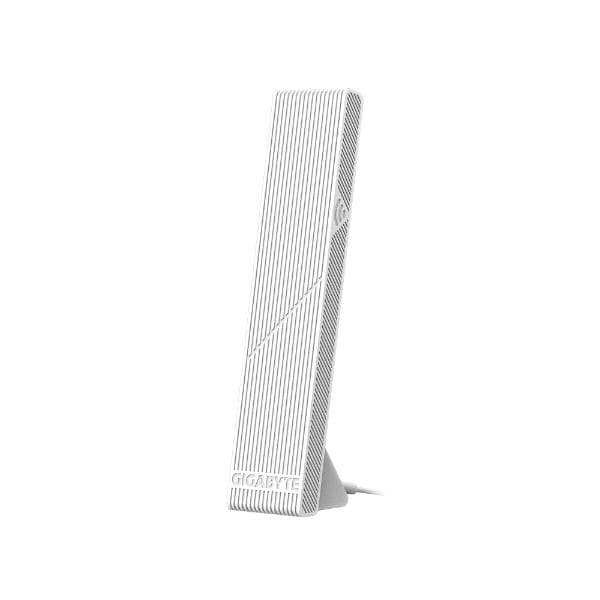

Fast Networking : 2.5GbE LAN & Wi-Fi 6E with directional Ultra-high gain antenna
Extended Connectivity : HDMI,Displayport
PCIe UD Slot : PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect.

Infinite Memory Performance

Elite gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.

QVL List

* Memory overclocking and XMP/EXPO support may vary. Please refer to the qualified vendor list (QVL) for details and note that product features may vary by model.

Steady Power

Elite Series with steady power keeps your AI operation smooth.

Comprehensive Thermal

Advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient

Level Up Epic VRM heatsinks for non-stop gaming

Massive cooling surface

Exceptional heat dissipation

Superior

Heatpipe

5 W/mK

thermal pad

M.2 Thermal Guard Ext.

2x M.2

slots coverage

Small Vents, Big Cooling Power

* Test results are for reference only and may vary in different circumstances.

Up To

7°C

lower temperature

Smart Fan 6

Cool. Quiet. Customized.

Future Connectivity

Enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.

Born from Ultra Durable™

Technology embodies our commitment to excellence, providing gamers with a platform that's not only powerful but also built for longevity and reliability. Elite series motherboards are engineered to endure and excel.

PCIe UD Slot

GIGABYTE's one-piece stainless-steel shielding design reinforces the PCIe Slots, providing the extra strength required to support heavy graphics cards.

1.7X

stronger shearing test

3.2X

stronger retention force test

Reduced Signal Degradation

with SMD Technology

UD Power Connector

Our innovative UD Power Connector design enhances power conductivity and thermal dissipation.

Solid Pins

Delivers superior conductivity and signal transmission and reduces metal wear from repeated connections.

Key Features

Component	Details
CPU	AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors / AMD Ryzen™ 8000 Series Processors / AMD Ryzen™ 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.)
Chipset	AMD B850
Memory	Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Onboard Graphics	Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz - 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz (Graphics specifications may vary depending on CPU support.)
Audio	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	Realtek® Wi-Fi 6E RTL8852CE WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard
Expansion Slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Storage Interface	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting PCIe 5.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), supporting PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
USB	1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports on the back panel 4 x USB 2.0/1.1 ports on the back panel 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through internal USB header
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 2 x M.2 Socket 3 connectors

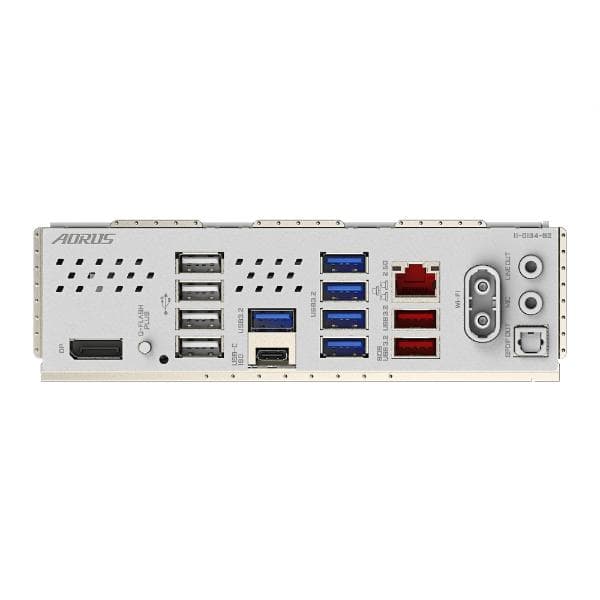

Back Panel Connectors	1 x DisplayPort 1 x Q-Flash Plus button 5 x USB 3.2 Gen 1 ports 2 x USB 3.2 Gen 2 Type-A ports 1 x USB Type-C® port 1 x RJ-45 port 2 x antenna connectors 2 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control
BIOS	1 x 256 Mbit flash AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Smart Backup
Bundled Software	Norton® Internet Security (OEM version) LAN bandwidth management software
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
