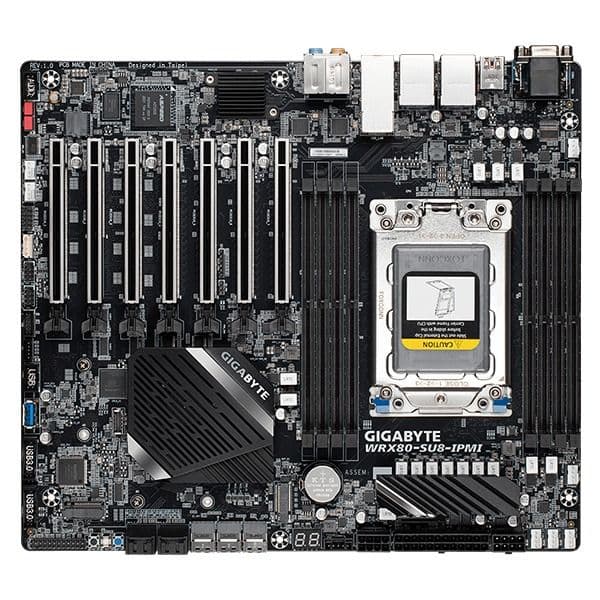

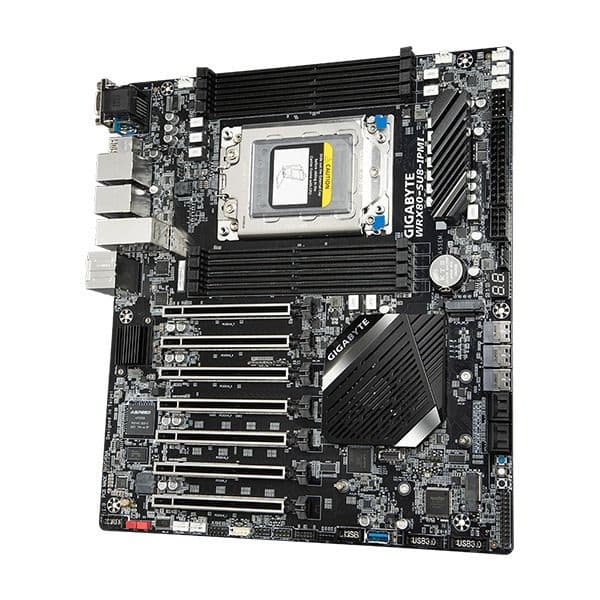

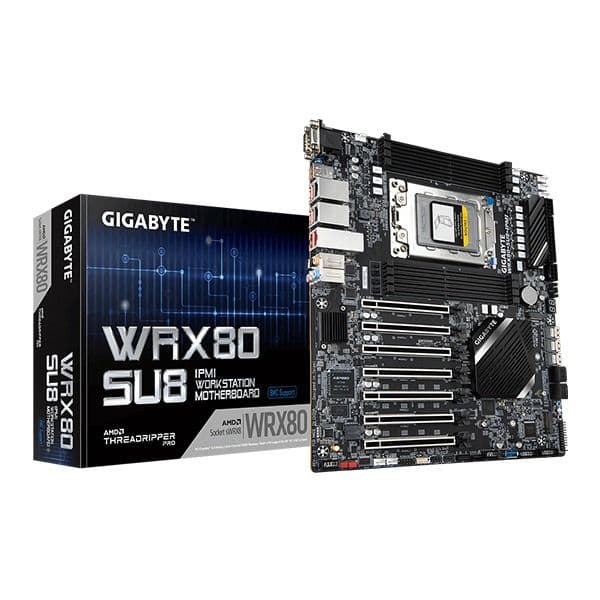

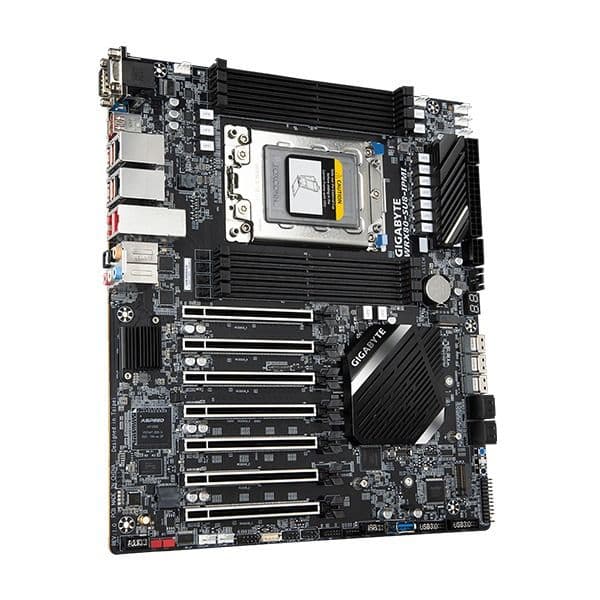

Gigabyte WRX80-SU8-IPMI (rev. 1.0) AMD Motherboard

AMD WRX80-SU8-IPMI Motherboard with sWRX8 4094 Socket, 8-Channel DDR4 RDIMM 8 x DIMMs, Aspeed^® AST2500 BMC, Dual M.2, Dual Intel^® Server 10G and 1G LAN, 7 x PCIe 4.0 x16 Slots for multi cards

Feature

• AMD Ryzen™ Threadripper™ PRO 3000WX Series Processors, sWRX8 4094 Socket
• 8-Channel DDR4 RDIMM/LRDIMM 8 x DIMMs
• Aspeed® AST2500 BMC
• Dual Intel® Server 10G LAN and GbE LAN
• 7 PCIe 4.0 x16 Slots for Multi-GPU, supports for DirectX® 12
• Multiple storage interface: 4 SATA3 Ports, 3 SlimSAS ports (NVMe and SATA are available)
• Next-gen transfer speeds: Dual M.2 (NVMe and SATA mode) and 6 USB 3.2 Gen2 including 1 Type-C
• Q-Flash Plus Updates BIOS without Installing the CPU, Memory and Graphics Card
• 120dB SNR AMP-UP Audio with ALC1220

PCIe 4.0 Design
WRX80-SU8-IPMI equips several new components to ensure the best PCIe 4.0 signal quality, including PCB, PCIe Slots, M.2 Connectors, Re-drivers, and Switches that are specifically designed for PCIe 4.0. There will be no compromise on PCIe 4.0 performance on PCIe, M.2, and SlimSAS interface.

Low Signal Loss PCB

• SlimSAS port PCIe 4.0 Ready (from WRX80 Chipset)
• 2 x M.2 PCIe 4.0 Connectors (from CPU)
• 7x PCIe 4.0 Slot (from CPU)
• PCIe 4.0 Re-Driver (at the back)

7 PCIe 4.0 Slots to enrich your various card configuration
Gigabyte WRX80-SU8-IPMI Comes with leadership architecture of AMD Ryzen™ Threadripper™ PRO, max out the 128 PCIe 4.0 lanes from 3000WX series with 6 PCIe 4.0 x16 and 1 PCIe 4.0 x8 slot that makes Gigabyte WRX80 SU8 IPMI the various card configuration and fulfill your content creation, deep learning and virtual machine application.

Multiple storage interface: 4 SATA3 Ports + 3 SlimSAS Ports
In Gigabute WRX80-SU8-IPMI Motherboard comes with Plentiful NVMe and SATA interfaces can fulfill your hot and cold data processing requirements at once.

Dual-Mode M.2 Slot Design (PCIe 4.0 x4 or SATA mode)

Support both PCIe NVMe + SATA SSDs
Gigabyte WRX80-SU8-IPMI are built with dual M.2 Slots with a PCIe NVMe + SATA dual-mode design. It can offer user flexible storage configuration and adaptation to fit most users’ requests

Carefully Selected Components
GIGABYTE’s WRX80-SU8-IPMI Motherboard passive components are meticulously selected to guarantee a super stable operating environment and allow the processors and the memory to deliver their maximum performance. With some of the longest service lifetimes in the industry, our server motherboards build on 30 years of company-wide experience in motherboard design to attain the highest reliability levels.

Dual Intel® Server 10GbE and GbE LAN
The Intel® X550AT2 is a high-performance, backward compatible with 10GBASE-T/ 5GBASE-T/ 2.5GBASE-T/ 1000BASE-T Ethernet Controller which is able to provide up to 10 GbE network connectivity as well as Intel SR-IOV feature. It is perfectly designed for media centers, workstations, and virtual machine requirements.
The i210AT supports Windows server OS with fault tolerance, link aggregation, and load balancing features. The network interface is shared with IPMI management with NCSI. Users can choose data transferring or remote management on GbE LAN to their requirements.

Connecting the Future – USB Type-C™
AMD’s native USB 3.2 Gen2 provides USB 3.2 Gen2 ports with speeds up to 10Gbps. With twice the bandwidth compared to its previous generation as well as backward compatibility with USB 2.0 and USB 3.2 Gen1, the much improved USB 3.2 Gen2 protocol is available over the new reversible USB Type-C™ and the traditional USB Type-A connector for better compatibility over a wider range of devices.

USB 3.2 Gen2 Type-C™ Front Panel Connector
The onboard USB Type-C™ header for USB 3.2 Gen2 makes access convenient when connecting a USB 3.2 Gen2 drive or charging your new mobile device.

GIGABYTE Remote Management
With ASPEED AST 2500 BMC, Gigabyte server boards can provide an IPMI 2.0 compliant solution for IT managers to do remote management through the web interface.ALC 1220 120dB SNR HD Audio with Smart Headphone Amp ALC 1220 120dB SNR HD AudioThe ALC1220 is a high-performance multi-channel High Definition Audio Codec with up to 120dB SNR for crystal clear audio and features such as a Smart Headphone Amp, 114dB SNR recording for precise voice chats and hardware decoding of DSD128, ensuring users get the best possible audio quality from their PC.

Ultra Durable™ PCIe Armor Industry Leading Ultra Durable™ PCIe Armor
The innovative one-piece stainless steel shielding design from GIGABYTE WRX80-SU8-IPMI reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.
