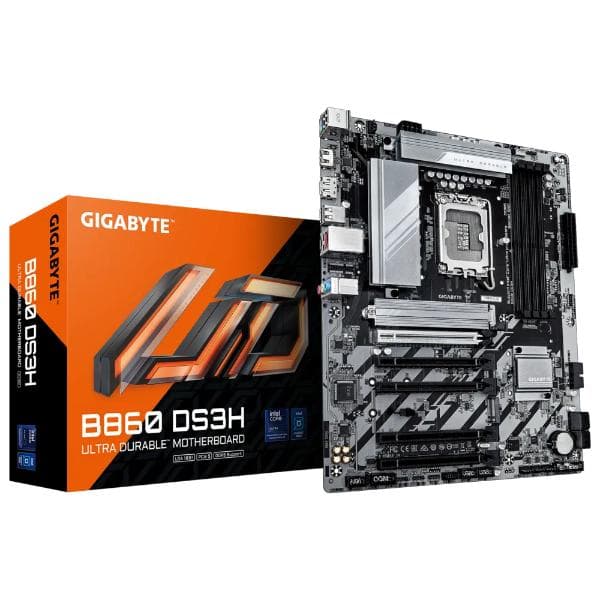

Gigabyte B860 DS3H LGA 1851 ATX Motherboard
7 sold in last 18 hours
Hurry! Over 4 people have this in their carts
- Supports Intel® Core™ Ultra processors (Series 2)
- Hybrid 8+1+2 phases VRM solution
- D5 Bionic Corsa for Infinite Memory Performance
- AI Perfdrive : Provides optimal and customized BIOS preset profile for users
- EZ-Latch : PCIe x16 Slot with Quick Release Design
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 5.0 x4
- M.2 Thermal Guard : To Ensure M.2 SSD Performance
- Fast Networking : 2.5GbE LAN
- Extended Connectivity : DisplayPort, HDMI
Estimated Delivery: Mon, Apr 28 – Fri, May 02
... people are viewing this right now
Original price was: ₹24,400.00.₹16,449.00Current price is: ₹16,449.00.
Gigabyte B860 DS3H LGA 1851 ATX Motherboard
- Gigabyte Supports Intel® Core™ Ultra processors (Series 2)
- Hybrid 8+1+2 phases VRM solution
- D5 Bionic Corsa for Infinite Memory Performance
- AI Perfdrive : Provides optimal and customized BIOS preset profile for users
- EZ-Latch : PCIe x16 Slot with Quick Release Design
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 5.0 x4
- M.2 Thermal Guard : To Ensure M.2 SSD Performance
- Fast Networking : 2.5GbE LAN
- Extended Connectivity : DisplayPort, HDMI
| CPU | LGA1851 socket, Intel® Core™ Ultra Processors |
| Chipset | Intel® B860 Express Chipset |
| Memory | Supports DDR5 up to 9066 MT/s (O.C), Dual Channel, 4 DIMM slots, Max 256GB, ECC & Non-ECC support, XMP support |
| Onboard Graphics | Intel® HD Graphics (depends on CPU) |
| Display Outputs | HDMI 2.1 (4096x2160@60Hz), DisplayPort 2.1 (3840x2160@144Hz) |
| Audio | Realtek® Audio CODEC, 7.1-Channel HD Audio, S/PDIF Out |
| LAN | Realtek® 2.5GbE LAN (2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots | CPU: 1 x PCIe 5.0 x16 (for GPU/NVMe SSD) Chipset: 4 x PCIe 4.0 x1 |
| Storage | CPU: 1 x M.2 (PCIe 5.0 x4/x2) Chipset: 1 x M.2 (PCIe 4.0 x4/x2), 4 x SATA 6Gb/s, RAID 0/1/5/10 |
| USB Ports | Back Panel: 1 x USB-C 3.2 Gen 2x2, 1 x USB-A 3.2 Gen 2, 4 x USB 2.0 Internal: 1 x USB-C 3.2 Gen 1, 2 x USB 3.2 Gen 1, 4 x USB 2.0 |
| Internal I/O Connectors | ATX Power (24-pin, 8-pin), CPU & System Fan Headers, RGB & ARGB Headers, Front Panel & Audio, TPM Header, Q-Flash Plus, Clear CMOS |
| Back Panel Ports | PS/2, HDMI, DP, USB-C, USB-A, RJ-45, Audio Jacks, Antenna Connectors |
| BIOS | AMI UEFI BIOS (256 Mbit), Q-Flash, Q-Flash Plus |
| Software | GIGABYTE Control Center (GCC), Norton Internet Security (OEM) |
| OS Support | Windows 11 64-bit, Windows 10 64-bit (Intel® NPU driver only for Windows 11) |
| Form Factor | ATX (30.5cm x 24.4cm) |
| Weight | 1 kg |
|---|---|
| Brands | |
| Motherboard Series | |
| Chipset | |
| Socket | |
| Motherboard Size | |
| EAN / UPC Code | |
| Memory Series | |
| Platform | |
| Warranty |
