| CPU | - AMD Socket AM5, support for: AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- (Go to GIGABYTE's website for the latest CPU support list.)
|
| Chipset | AMD B850 |
| Memory | - Support for DDR5 8200(O.C) down to 4400 MT/s memory modules.
- 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity).
- Dual channel memory architecture.
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules.
- Support for AMD EXPO™ & Extreme Memory Profile (XMP) memory modules.
|
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x DisplayPort, max resolution 3840x2160@144 Hz (DP 1.4, HDR).
- 1 x HDMI port, max resolution 4096x2160@60 Hz (HDMI 2.1, HDCP 2.3, HDR).
(Graphics specifications may vary depending on CPU support.) |
| Audio | - Realtek® Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel
|
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless & Bluetooth | Realtek® Wi-Fi 7 RTL8922AE - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard
- * Wi-Fi 7 requires Windows 11 SV3. No support for Windows 10.
|
| Expansion Slots | CPU: - 1 x PCI Express x16 slot (PCIEX16)
- Ryzen™ 9000/7000 Series: PCIe 5.0 x16 mode
- Ryzen™ 8000 Series-Phoenix 1: PCIe 4.0 x8 mode
- Ryzen™ 8000 Series-Phoenix 2: PCIe 4.0 x4 mode
Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 at x4 (PCIEX4)
- 2 x PCI Express x16 slots, supporting PCIe 3.0 at x1 (PCIEX1_1, PCIEX1_2)
- * PCIEX1_1/2 slots share bandwidth with SATA3 0/1 connectors.
|
| Storage Interface | CPU: - 1 x M.2 (M2A_CPU): PCIe 5.0 x4/x2 (Ryzen 9000/7000) or PCIe 4.0 x4/x2 (Ryzen 8000)
- 1 x M.2 (M2B_CPU): PCIe 4.0 x4/x2
Chipset: - 1 x M.2 (M2C_SB): PCIe 4.0 x2
SATA & RAID: - 4 x SATA 6Gb/s connectors
- RAID 0, 1, 5, 10 support for NVMe SSDs (RAID 5 requires Ryzen 9000)
- RAID 0, 1, 10 support for SATA devices
|
| USB | CPU: - 1 x USB Type-C® (back panel), USB 3.2 Gen 1
- 2 x USB 3.2 Gen 2 Type-A (red, back panel)
Chipset: - 1 x USB Type-C® (internal header), USB 3.2 Gen 1
- 4 x USB 3.2 Gen 1 (2 back, 2 internal)
- 4 x USB 2.0/1.1 (back panel)
Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 (internal headers)
|
| Internal I/O Connectors | - 1 x 24-pin ATX main power
- 1 x 8-pin & 1 x 4-pin ATX 12V power
- 1 x CPU fan, 1 x CPU fan/water pump, 3 x system fan, 1 x system fan/water pump headers
- 3 x addressable RGB Gen2 LED, 1 x RGB LED strip headers
- 3 x M.2 Socket 3 connectors
- 4 x SATA 6Gb/s connectors
- Front Panel, Front Audio headers
- 1 x USB Type-C® header (USB 3.2 Gen 1)
- 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers
- 1 x TPM header
- 1 x reset button, 1 x reset jumper, 1 x Clear CMOS jumper
|

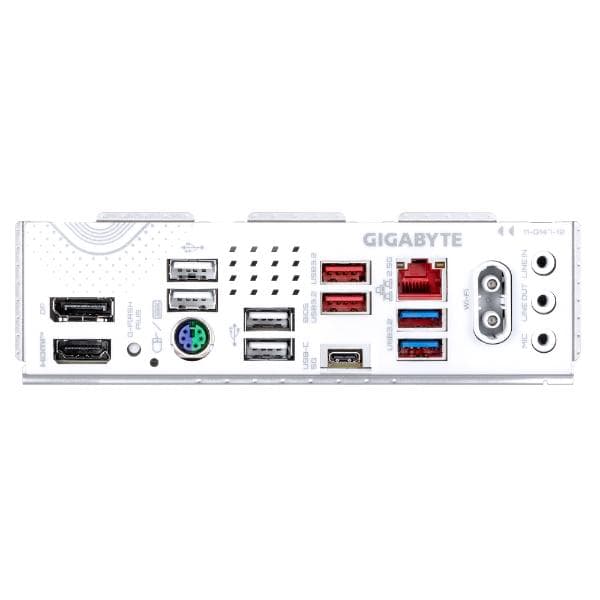

| Back Panel Connectors | - 1 x DisplayPort, 1 x HDMI port
- 1 x Q-Flash Plus button
- 4 x USB 2.0/1.1, 1 x PS/2 port
- 2 x USB 3.2 Gen 2 Type-A (red)
- 1 x USB Type-C® (USB 3.2 Gen 1)
- 1 x RJ-45 LAN port
- 2 x USB 3.2 Gen 1 ports
- 2 x antenna connectors (2T2R)
- 3 x audio jacks
|
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, Temperature, Fan speed, Water cooling flow rate detection; Fan fail warning; Fan speed control |
| BIOS | 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version); LAN bandwidth management software |
| Operating System | Support for Windows 11 64-bit |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
