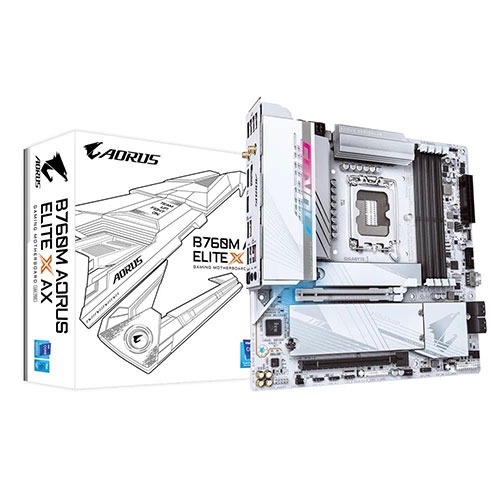

Gigabyte B760M Aorus ELITE X AX DDR5 Intel Motherboard Supports Intel 12th, 13th & 14th Gen Processors

Gigabyte B760M Aorus ELITE X AX DDR5 Intel Motherboard

Feature

• Supports Intel® Core™ 14th and 13th processors
• Digital twin 14+1+1 phases VRM solution
• Dual Channel DDR5：4*DIMMs with XMP 3.0 memory module support
• PCIe UD Slot X： PCIe 5.0 x16 slot with 10X strength for graphics card
• EZ-Latch Click：M.2 heatsinks with screwless design
• EZ-Latch Plus：PCIe 5.0 x16 slot & M.2 slots with quick release design
• Sensor Panel Link：Onboard video port for hassle-free in-chassis panel setup
• UC BIOS：User-Centred intuitive UX with Quick Access function
• Ultra-Fast Storage：2*M.2 PCIe 4.0 x4
• Efficient Overall Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard
• Fast Networking：2.5GbE LAN & Wi-Fi 6E with Ultra-high gain antenna
• Extended Connectivity：DP,Front USB-C® 10Gb/s, Rear USB-C® 20Gb/s
• Reliable Audio：8-Ch HD Audio & Audiophile Grade Capacitors

Gen Designed for 14th Gen

X marks the 14th generation! Introducing the AORUS B760 X Gen Motherboards, the most powerful platforms ever built for the Intel® Core™ 14th Gen processors. With the leading performance in DDR5 memory, the upgraded DIY-friendly innovations, and the all-new BIOS redesigned as user-centered, the AORUS B760 X Gen Motherboards are built to fully unleash the next-gen power.

Memory

Xceed in DDR5 performance

GIGABYTE is committed to enabling the unparalleled performance of the Intel® Core™ 14th Gen processors. That is why every B760M AORUS ELITE X AX motherboard is engineered with industry-leading technologies to achieve the best-in-class DDR5 performance on the market.

BIOS Engineering

Feature-rich BIOS functions that enable easy access to the best-in-class DDR5 performance.

Achieve Higher DDR5 Memory Frequencies with Ease

DDR5 XMP Booster function provides optimized pre-defined profiles, based on memory IC and PMIC vendor analysis, for effortless performance enhancement and elimination of manual configuration for overclocked DDR5 memory kits.

Accelerate instantly

Boost memory performance instantly.

Streamline overclocking

Easily overclock Native and XMP 3.0 DDR5 memory to higher frequencies.

Automate input

No need to manually configure multiple memory parameters like clock, voltage, and timings.

Integrate database

Built-in database of pre-tuned profiles for different memory IC vendors.

Maximize DDR5 performance with your memory settings

XMP 3.0 User Profile empowers you to optimize your memory settings and achieve the best performance for your system.

SPD Re-defined or retrieve from database

Users can define two empty SPD profiles and transfer them to another computer.

Performance Simulation

Simulate memory performance quickly by inputting clock and timing parameters.

Save/Load Profile

Save and load memory profiles for online sharing.

Boost non-overclockable DDR5 memory frequency

Increase the frequency of non-overclockable DDR5 memory.

One-click Clear Profile

Reset memory settings conveniently.

Hardware Craftsmanship

Maximize DDR5 performance with our advanced technology for an unparalleled gaming experience.

Revolutionary DDR5 Technology

Maximize DDR5 performance with our advanced technology for an unparalleled gaming experience.

Shielded Memory Routing

Memory routing is shielded within the PCB's inner layer to protect against interference.

Isolated Memory Routing

Memory routing isolated on dedicated inner layer to prevent interference.

Impedance-Optimized Topology

Optimized memory trace width, length, and style lower the overall impedance between the CPU memory controller and modules, enabling higher DDR5 speeds.

Daisy-Chained Routing

Optimized routing eliminates the stub effect, enabling higher memory frequencies and providing professional gamers with a faster and denser system memory experience.

8-layer Server-grade PCB

Selecting server-grade PCB material minimizes signal loss within the PCB, ensuring high-speed transmission for DDR5.

Back drilling Technology

Enhances signal integrity in high-speed PCB designs by reducing signal reflections and timing issues, thereby improving system performance and reliability.

Robust VRM Design

Xtraordinary power delivery

The B760M AORUS ELITE X AX motherboard is equipped with the all-digital power design to achieve peak performance of the next-gen processor while providing the best stability under heavy workloads.

Digital Twin VRM Design

Ensures stable high-power delivery for advanced overclocking.

Efficient Overall Thermal

Xpress your cool

Every B760M AORUS ELITE X AX motherboard is armored with the most advanced, full metal thermal design. These solid heatsinks are forged to keep your system cool while running fast.

DIY-friendly Innovations

Xpeditious building process

Building your own PC is meant to be joyful and effortless. Now we introduce a variety of innovations to make the B760M AORUS ELITE X AX motherboard the most DIY-friendly ever.

EZ-Latch Designs

Effortless mechanisms that enable easy installations of components. *For reference only; actual appearance may vary.

Xtra layers for excellent players

As the very foundation of the motherboard, the PCB plays a subtle yet critical role in the capabilities. No gamers should overlook the details lie within the PCB layers.

8-Layer PCB

Enables dense integration, signal quality, power integrity, and low EMI for high-performance systems.

2X Copper Enhancement

Enhances system performance with improved heat dissipation, power handling, and seamless overclocking support.

56% Lower Dissipation Factor

Elevate signal integrity in high-frequency circuits with our pioneering technology, setting a new standard for high-speed electronic design.

Xpect everything

GIGABYTE Ultra Durable™ Technology represents our highest standards to provide a platform for gamers that is not only powerful but also durable and reliable. The B760M AORUS ELITE X AX motherboard is built to last longer and stand stronger.

Connectivity

Xtensively versatile

The B760M AORUS ELITE X AX motherboard offers a wide range of versatilities from the cutting-edge Wi-Fi 6E support with a redesigned antenna, to an array of USB ports.

Enhancing VR Experiences with Wi-Fi 6E

Wi-Fi 6E enhances VR with faster speeds, lower latency, increased capacity, and stronger security, enabling seamless wireless streaming of high-quality VR games and improved multi-user experiences.

Lower Latency

Lower latency ensures minimal delay between their actions and the corresponding response in online games, resulting in a more responsive and immersive gaming experience.

Increased Capacity

Wi-Fi 6E's increased capacity ensures smoother gameplay by minimizing congestion and maintaining consistent performance.

Higher Speeds

Faster transmission speeds enable quick downloads, seamless online gaming, and smooth video streaming without interruptions.

Broader spectrum

Wi-Fi 6E's use of the 6 GHz frequency band provides additional bandwidth, reducing congestion and interference from other devices.

GIGABYTE Ultra-high Gain Antenna

Experience enhanced signal strength with the GIGABYTE Ultra-high gain Antenna, which incorporates a smart antenna function to optimize Wi-Fi signal transmission.
