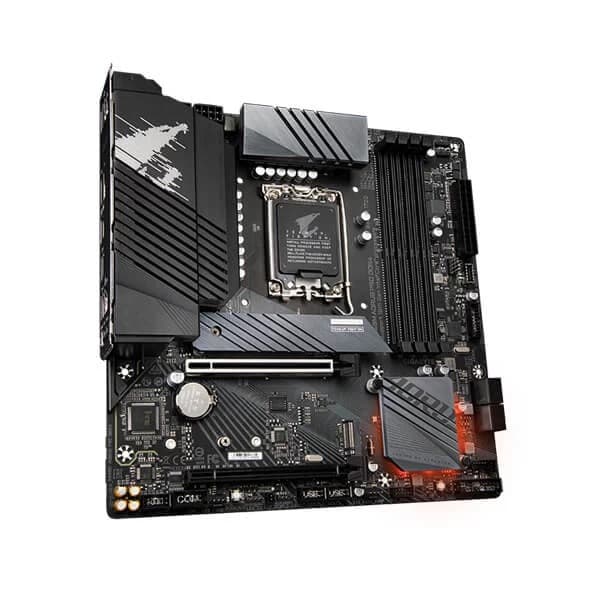

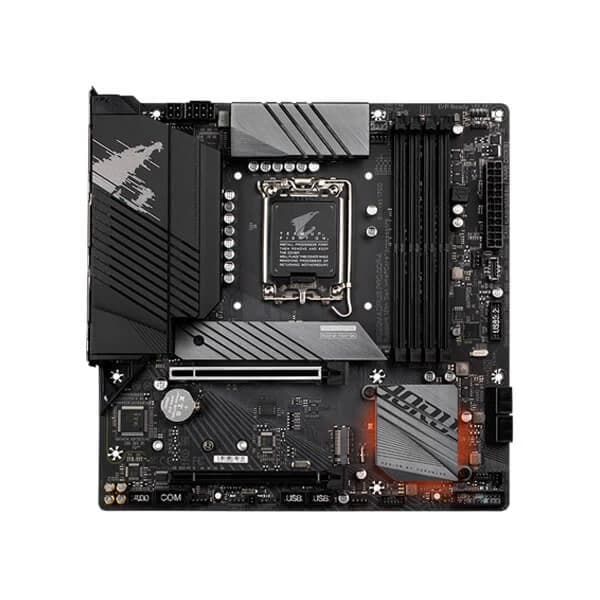

Gigabyte B660M Aorus Pro DDR4 Intel Motherboard

₹17,620.00

Add to cart

Gigabyte B660M Aorus Pro DDR4 Intel Motherboard

Gigabyte B660M Aorus Pro DDR4 Motherboard 1
Gigabyte B660M Aorus Pro DDR4 Motherboard 2
Gigabyte B660M Aorus Pro DDR4 Motherboard 3
View details

₹17,620.00

Save 39%
Gigabyte
  • Intel LGA 1700 Socket: Supports 12th Gen Intel Core Series Processors
  • DDR4 Compatible: Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Commanding Power Design: 12+1+1 Twin Hybrid Digital VRM Design with 60A DrMOS
  • Cutting-Edge Thermal Design: Fully Covered Thermal Design with High Coverage MOSFET Heatsinks, Shielded Memory Routing, Thermal Guards
Gigabyte B660M Aorus Pro DDR4 Motherboard 1

₹17,620.00

Add to wishlist
Add to cart
Buy Now
Add to wishlist
SKU: B660M-AORUS-PRO-DDR4 Categories: Tags: Brand:

Gigabyte B660M Aorus Pro DDR4 Intel Motherboard

Features:

Intel® B660M Aorus Pro Motherboard with 12*+1+1 Twin Hybrid Phases Digital VRM Design, Fully Covered Thermal Design , 2 x PCIe 4.0 M.2 with Thermal Guard, Intel® 2.5GbE LAN, Rear USB 3.2 Gen 2×2 Type-C®, RGB FUSION 2.0, Q-Flash Plus

  • B660M Aorus Pro Supports 12th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • 12*+1+1 Twin Hybrid Digital VRM Design with 60A DrMOS
  • Shielded Memory Routing for Better Memory Overclocking
  • Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
  • Blazing Fast Intel® 2.5GbE LAN with Bandwidth Management
  • Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Thermal Guard
  • SuperSpeed USB 3.2 Gen 2×2 Type-C® delivers up to 20Gb/s transfer speeds
  • Pre-installed IO Shield for easy and quick installation
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
    * Actual support may vary by CPU.
    * 6+6 phases parallel power design
Product Type

Motherboard Size

Socket

Chipset

Memory Series

color

Brands

Specification

CPU
  • LGA1700 socket: Support for 13th Generation Intel® Core™ Processors and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
  • L3 cache varies with CPU
Chipset
  1. Intel® B660 Express Chipset
Memory
  1. Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules
  2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  3. Dual channel memory architecture
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules

(Please refer “Memory Support List” for more information.)
Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:

  1. 1 x HDMI port, supporting a maximum resolution of 4096×[email protected] Hz
    * Support for HDMI 2.1 version and HDCP 2.3.
    ** Support native HDMI 2.1 TMDS compatible ports
  2. 1 x DisplayPort, supporting a maximum resolution of 4096×[email protected] Hz
    * Support for DisplayPort 1.2 version and HDCP 2.3

(Graphics specifications may vary depending on CPU support.)
Audio
  1. Realtek® Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software.
  4. Support for S/PDIF Out
LAN Intel®2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots
  • 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    (The PCIEX16 slot conforms to PCI Express 4.0 standard.)
  • 1 x PCI Express x16 slot, running at x4 (PCIEX4)

(The PCIEX4 slot conforms to PCI Express 3.0 standard.)
Multi-Graphics Technology
  1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Storage Interface

CPU:

  1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

  1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
  2. 4 x SATA 6Gb/s connectors

Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
Intel® Optane™ Memory Ready
* System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connector supported by the Chipset.
USB Chipset:

  1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support
  2. 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
  3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

Chipset+2 USB 3.2 Gen 1 Hubs:

  1. 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Chipset+2 USB 2.0 Hubs:

  1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x 4-pin ATX 12V power connector
  4. 1 x CPU fan header
  5. 1 x water cooling CPU fan header
  6. 3 x system fan headers
  7. 1 x system fan/water cooling pump header
  8. 2 x addressable LED strip headers
  9. 2 x RGB LED strip headers
  10. 2 x M.2 Socket 3 connectors
  11. 4 x SATA 6Gb/s connectors
  12. 1 x front panel header
  13. 1 x front panel audio header
  14. 1 x USB Type-C® header, with USB 3.2 Gen 2 support
  15. 1 x USB 3.2 Gen 1 header
  16. 2 x USB 2.0/1.1 headers
  17. 2 x Thunderbolt™ add-in card connectors
  18. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  19. 1 x serial port header
  20. 1 x reset button
  21. 1 x Q-Flash Plus button
  22. 1 x reset jumper
  23. 1 x Clear CMOS jumper
Back Panel Connectors
  1. 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support
  2. 1 x USB 3.2 Gen 2 Type-A port (red)
  3. 4 x USB 3.2 Gen 1 ports
  4. 4 x USB 2.0/1.1 ports
  5. 1 x HDMI port
  6. 1 x DisplayPort
  7. 1 x RJ-45 port
  8. 1 x optical S/PDIF Out connector
  9. 2 x audio jacks
I/O Controller
  1. iTE® I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Fan fail warning
  6. Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install
Bundled Software
  1. Norton® Internet Security (OEM version)
  2. cFosSpeed
Operating System
  1. Support for Windows 11 64-bit
  2. Support for Windows 10 64-bit
Form Factor
  1. Micro ATX Form Factor; 24.4cm x 24.4cm
Warranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.
