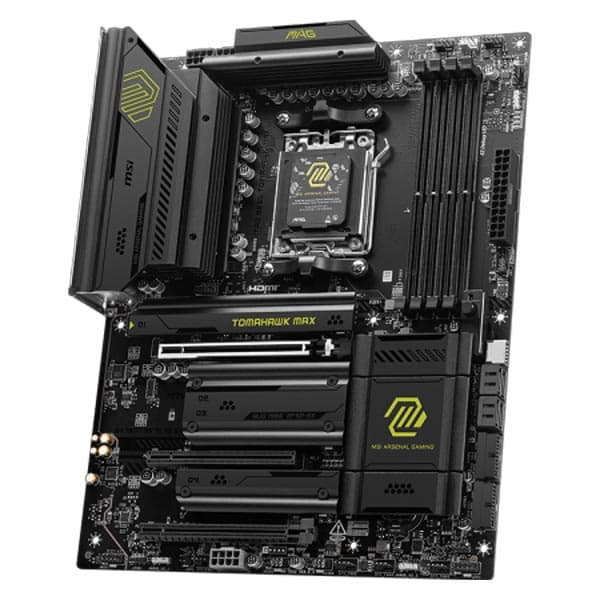

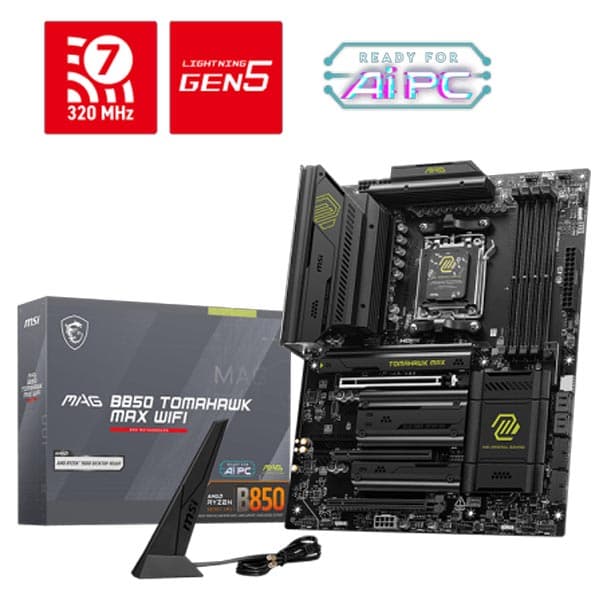

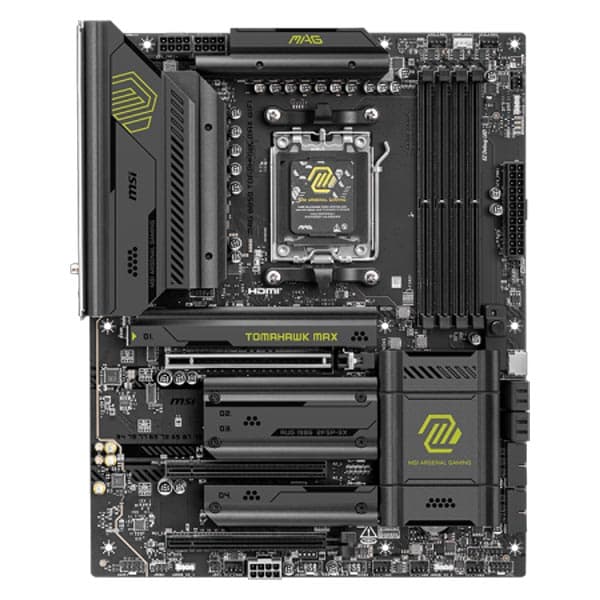

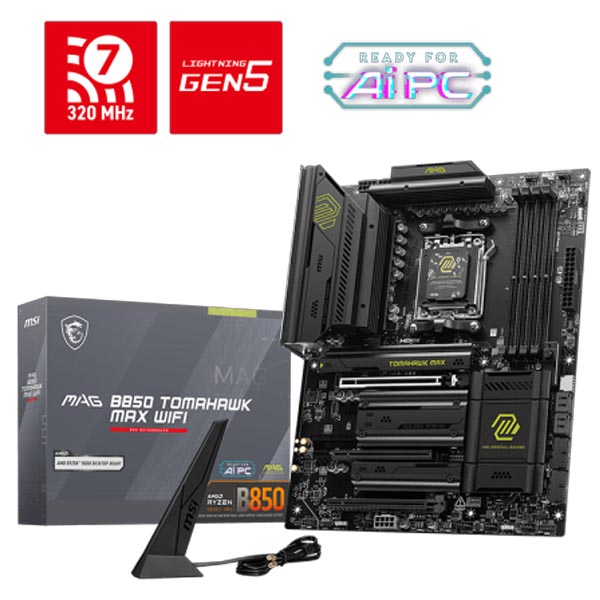

MSI MAG B850 TOMAHAWK MAX WIFI Motherboard

MSI MAG B850 TOMAHAWK MAX WIFI Motherboard, ATX - Supports AMD Ryzen 9000/8000 / 7000 Processors, AM5-80A SPS VRM, DDR5 Memory Boost 8400+ MT/s (OC), PCIe 5.0 x16, M.2 Gen5, Wi-Fi 7, 5G LAN

Feature

• Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
• Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC)
• Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
• Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
• EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release and EZ Antenna
• Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, Front USB Type-C
• 5G LAN with Wi-Fi 7 Solution: the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
• Audio Boost 5: Reward your ears with studio-grade sound quality for the most immersive gaming experience

MSI: For Gamers & Creators

MSI is one of the most trusted names in gaming and esports with countless hours and significant resources invested into premier esports leagues and tier-1 gaming teams. By supporting and working with the best of the best, MSI is able to integrate competitive gaming knowledge and aspirations with technological innovation to create new products that shatter today's performance limits.

MAG B850 TOMAHAWK MAX WIFI

Stable Foundation, Durably Built

The MAG B850 TOMAHAWK MAX WIFI is a gaming oriented ATX motherboard that is contructued with a 14 Duet Rail Power System and the latest AMD B850 chipset which supports AMD Ryzen 9000 / 8000 / 7000 series desktop processors, featuring PCIe 5.0, 5G LAN, Wi-Fi 7 and DDR5 support that balances both value and premium hardware.

• Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors (Zen 5, Zen 4, AM5)
• Ultra Power: 14 Duet Rail Power System with 80A SPS, 8-layer PCB, Server Grade PCB material
• 4 x DDR5 DIMMs with Memory Boost: Dual Channel (256GB Max. / 8400+ MT/s OC)
• 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1
• Lightning Gen5 & Gen4 M.2 slots
• High-Speed Connectivity: USB 20G Type-C, Realtek 5G LAN, Full-speed Wi-Fi 7 solution, Bluetooth 5.4
• 8-Channel (7.1) USB High Performance Audio with Audio Boost 5
• EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release, EZ Antenna

Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors

The MAG B850 TOMAHAWK MAX WIFI motherboard supports AMD Ryzen 9000 / 8000 / 7000 Series processors.

• Form Factor: ATX
• Socket Type: AM5
• Chipset: AMD B850

Ultra Power - 14 Duet Rail Power System with 80A Smart Power Stage

With exclusive Core Boost technology and dual 8 pin power connectors, the MAG B850 TOMAHAWK MAX WIFI is able to sustain heavy CPU power loads to support system-demanding game settings:

• Digital PWM IC
• 14 Duet Rail Power System (80A / SPS)
• 2 Phase SOC Power
• 1 Phase MISC Power

Frozr Design

• Frozr Guard: Extended Heatsink design, 7W/mK MOSFET thermal pads, extra choke thermal pads and EZ M.2 Shield Frozr II for improved thermal dissipation.
• Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers - including CPU fan header (2A), Combo fan (3A, supports both pump fan and system fan) and system fans.
• Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizzard and Frozr AI Cooling.

4 x DDR5 Dual Channel (8400+ MT/s OC)*

• Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
• High-Efficiency Mode: Enabling High-Efficiency-Mode in the MSI BIOS increases memory bandwidth and reduces latency. Four different modes allow users to find out the optimal configuration based on the quality of their memory modules.
• EXPO Profiles in the MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.

*1DPC 1R Max. overclocking frequency 8400+ MT/s, supports AMD EXPO and Intel XMP.

Fortified PCIe 5.0 x16 Slot

The MSI PCI Express Steel Armor II slot is reinforced with additional solder points on the motherboard, supporting up to twice the weight of graphics cards compared to 1st Gen Steel Armor.

• 1 x PCIe 5.0/4.0/3.0 x16 slot* (one with Steel Armor II** and EZ PCIe Release)
• 1 x PCIe 4.0/3.0 x16 slot*
• 1 x PCIe 3.0 x1 slot*

*Supports x16x1x4 **MSI Surface Mount Technology (SMT) solder welding improves signal clarity.

Gen5 M.2 Connector

The MAG B850 TOMAHAWK MAX WIFI motherboard features MSI's M.2 slots:

• 2 x Gen5 x4 128Gbps slots*
• 1 x Gen4 x4 64Gbps slot*
• 1 x Gen4 x2 32Gbps slot*

*with M.2 Shield Frozr

EZ DIY

The DIY Friendly designs optimize the assemble process and experience.

• EZ M.2 Shield Frozr II: MSI patented Shield Frozr cover features a tool-free design so users don't have to worry about lost screws or overtightening.
• EZ M.2 Clip II: Install or remove the SSD with a simple push of the latch, without using any screws.
• EZ PCIe Release: With just one press of a button, users can easily install or remove the graphics card with one hand.
• EZ Antenna: MSI's latest Wi-Fi antenna not only boasts a beautiful appearance but also features a magnetic design, making it easier to adjust the antenna's placement.

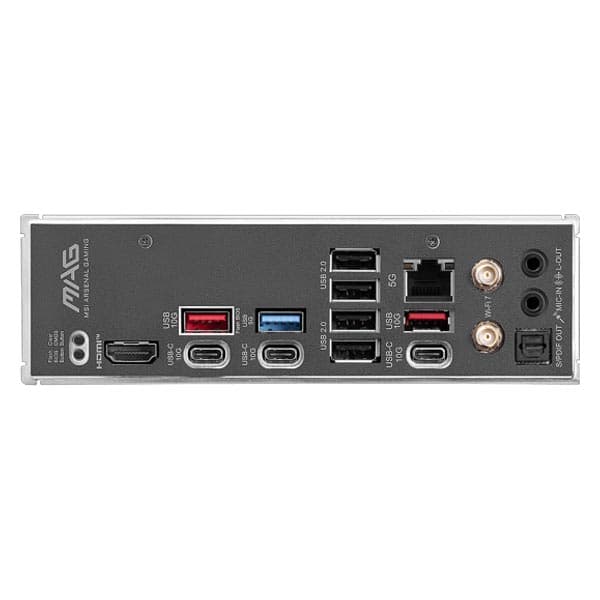

High-Speed Connectivity

• 5G LAN: A Realtek 5Gbps LAN controller delivers a premium network gaming experience.
• Wi-Fi 7: Features the full-speed Wi-Fi 7 solution (ultra-low latency, high-bandwidth) & Bluetooth 5.4 technology.
• USB 20G Type-C: Connect to devices and transfer files at high bandwidth rates: 20Gbps*

*Only available through the internal front panel connector
